How do I assemble my RJ204M?

Follow these steps to assemble the RJ204M 21-Foot Twist-N-Lock Telescoping Snow Shovel Roof Rake and adjust the handle for use.

Before You Begin

Place all parts on a clean, flat surface and confirm that the required hardware and tools are included before starting assembly.

Safety First:
Assemble the roof rake before use and make sure all screws, braces, knobs, and locking hardware are securely fastened. Use the roof rake while standing on solid ground.

Included Parts and Hardware

Part / Hardware	Quantity	Description / Use
Handle	1	Twist-N-Lock telescoping aluminum pole.
Roof Rake Head	1	Polycarbonate roof-clearing blade.
Metal Braces	2	Support the roof rake head and connect it to the pole.
Short Hex Screws	2	Used to attach the metal braces to the roof rake head.
Open-End Wrench	1	Used to hold and tighten the locking nut.
Hex Key Wrench	1	Used to tighten the short and long hex screws.
Long Hex Screw	1	Passes through both braces and the pole.
Locking Nut	1	Secures the long screw after it passes through the braces and pole.

Helpful Tip:
The two shorter M5 × 10 mm screws are used at the rake head. The longer M5 × 30 mm screw passes through the two braces and the pole and is secured with the locking nut.

Screw Sizes

Hardware	Size	Used For
Short hex screws (2)	M5 × 10 mm	Securing the two metal braces to the roof rake head.
Long hex screw	M5 × 30 mm	Securing the metal braces to the telescoping pole.

Helpful Tip:
Keep the locking nut paired with the M5 × 30 mm long hex screw during assembly so the hardware is easy to identify.

Step-by-Step Assembly

Step 1

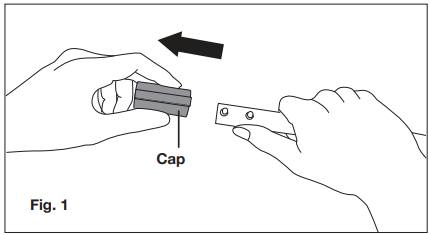

Remove the Shipping Cap

Remove the shipping cap from the top of the pole. Keep the cap for product storage.

Step 2

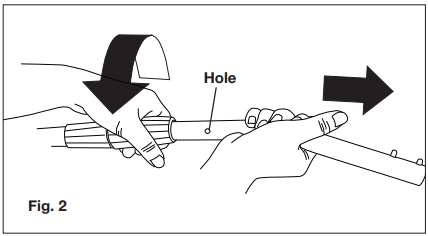

Expose the Handle Holes

Unscrew the handle knob and extend the pole until the small holes near the end of the handle are visible.

Step 3

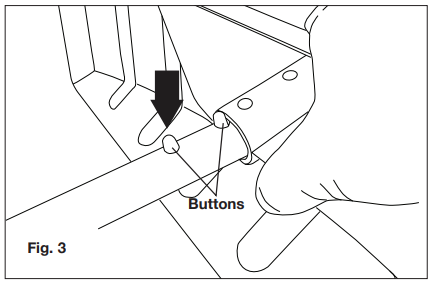

Insert the Handle

Press the small buttons at the end of the handle and insert the handle into the roof rake head. Make sure the buttons align and lock into place.

Step 4

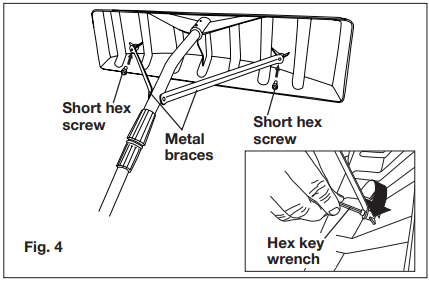

Attach the Metal Braces to the Head

Position the two metal braces against the roof rake head. Using the hex key wrench, secure the braces with the two short hex screws #4 — M5 × 10 mm.

Step 5

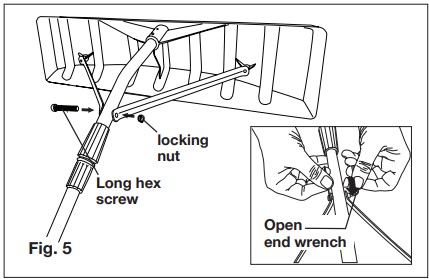

Attach the Braces to the Pole

Align the metal braces with the hole in the pole. Thread the long hex screw #7 — M5 × 30 mm through both braces and the pole. Secure it with the locking nut using the open-end wrench.

Step 6

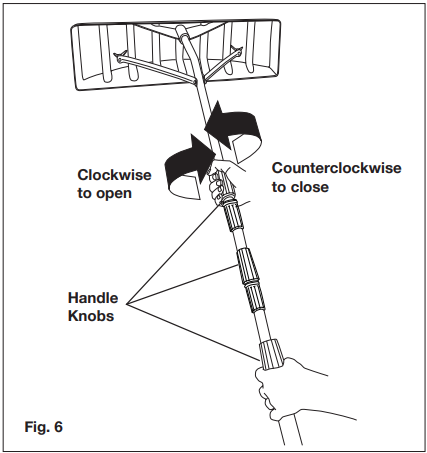

Adjust the Telescoping Pole

Rotate the handle knob clockwise to loosen it. Extend the pole to the desired length, then rotate the knob counterclockwise to secure it.

Assembly Video

Watch the RJ204M Assembly Instructions

The assembly video provides a visual walkthrough of the roof rake setup.

Watch the Assembly Video

Final Assembly Check

The handle buttons are fully engaged in the roof rake head.
Both M5 × 10 mm short hex screws are securely tightened.
The M5 × 30 mm long hex screw and locking nut are securely fastened.
The two metal braces are aligned and firmly attached.
All handle knobs lock securely at the selected pole length.
The rake head does not wobble or shift after assembly.

Assembly Complete:
Once all hardware is secure and the telescoping handle locks properly, your RJ204M is ready for use.
