🧵 3" Marine-Grade FiberJacket💧 600 PSI Burst Rated🔩 Heavy-Duty Metal Fittings🌀 Kink-, Twist- & Tangle-Resistant

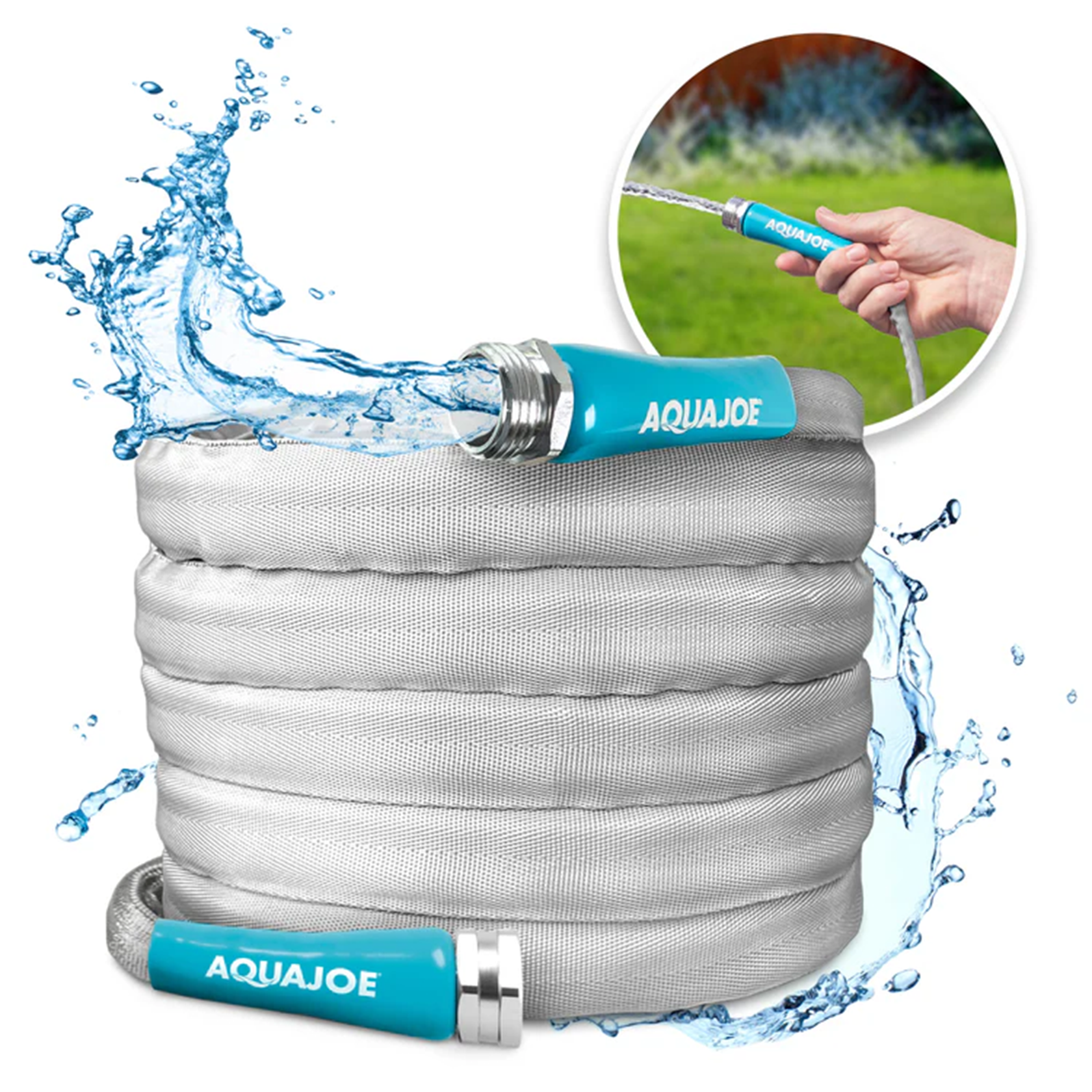

Meet the AJFJH25-PRX
FiberJacket® vs. Conventional Hoses
| Feature | XTREME FiberJacket® (AJFJH25-PRX) | Standard Rubber Hose | Expandable Hose |
|---|---|---|---|
| Burst Pressure | 600 PSI | ~200 PSI | ~150 PSI |

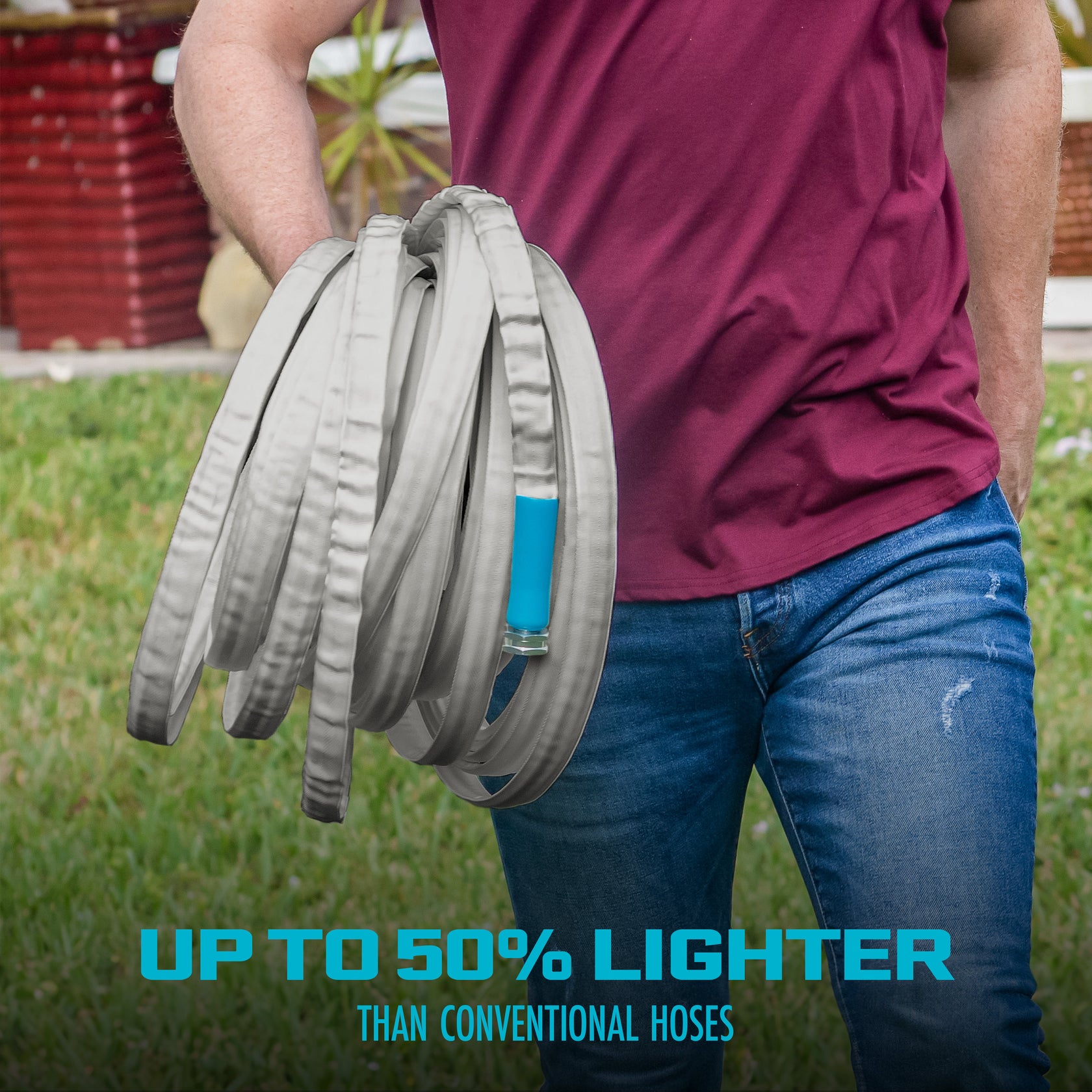

| Weight | ~50% lighter | Heavy | Very light |

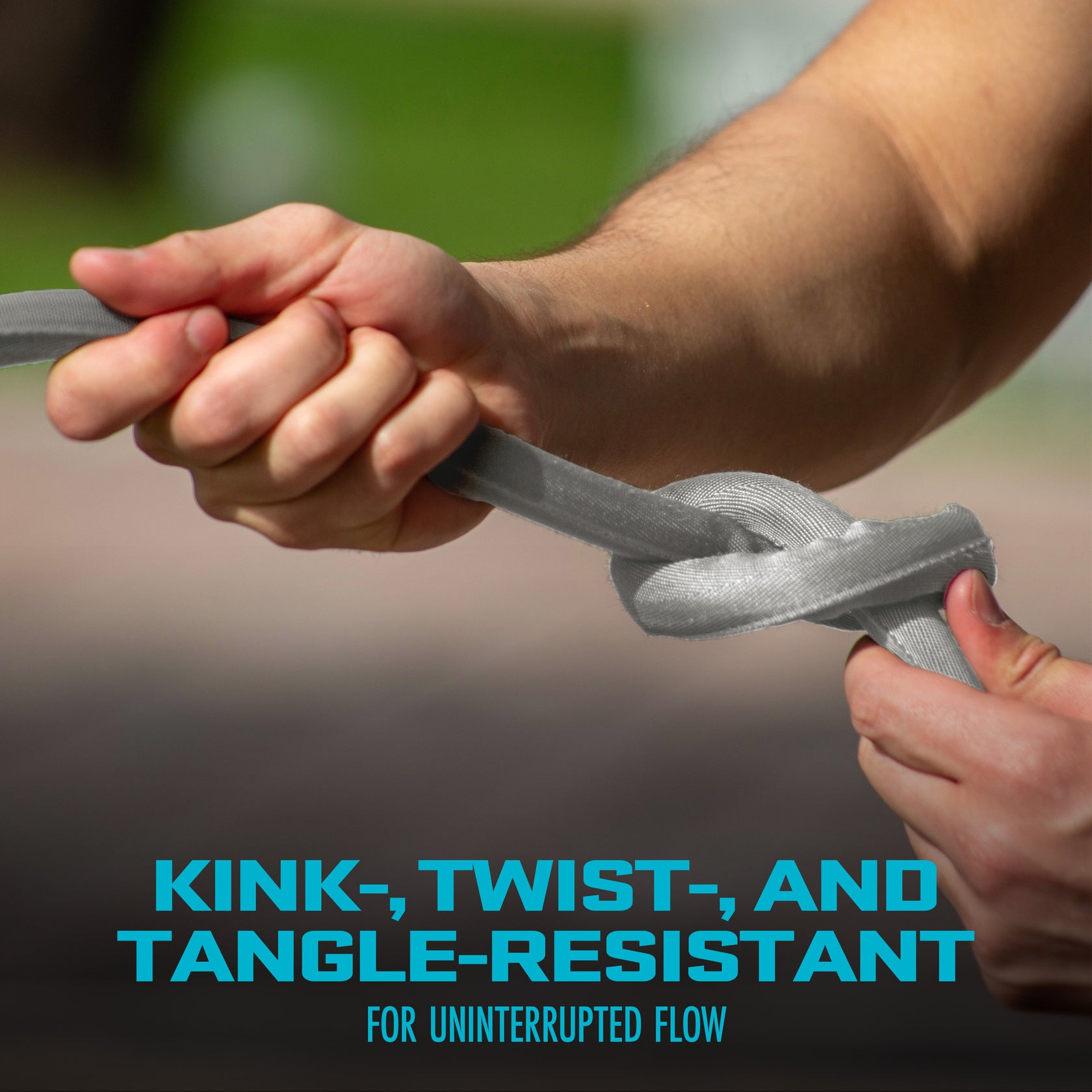

| Kink Resistance | ✓ Excellent | ✗ Kinks easily | ✓ Good |
| Cold Weather Use (35°F) | ✓ Stays flexible | Stiffens | ✗ May crack |
| Non-Expandable / Consistent Diameter | ✓ Yes | ✓ Yes | ✗ Expands/contracts |
| Surface Safe (cars/boats) | ✓ Won't scratch | ✗ May scuff | ✓ Soft |
| Mildew Resistant | ✓ Yes | ✗ No | ✗ No |
| Metal Fittings | ✓ Standard | ✓ Standard | ✗ Often plastic |
Technical Specifications
| Specification | Details |
|---|---|

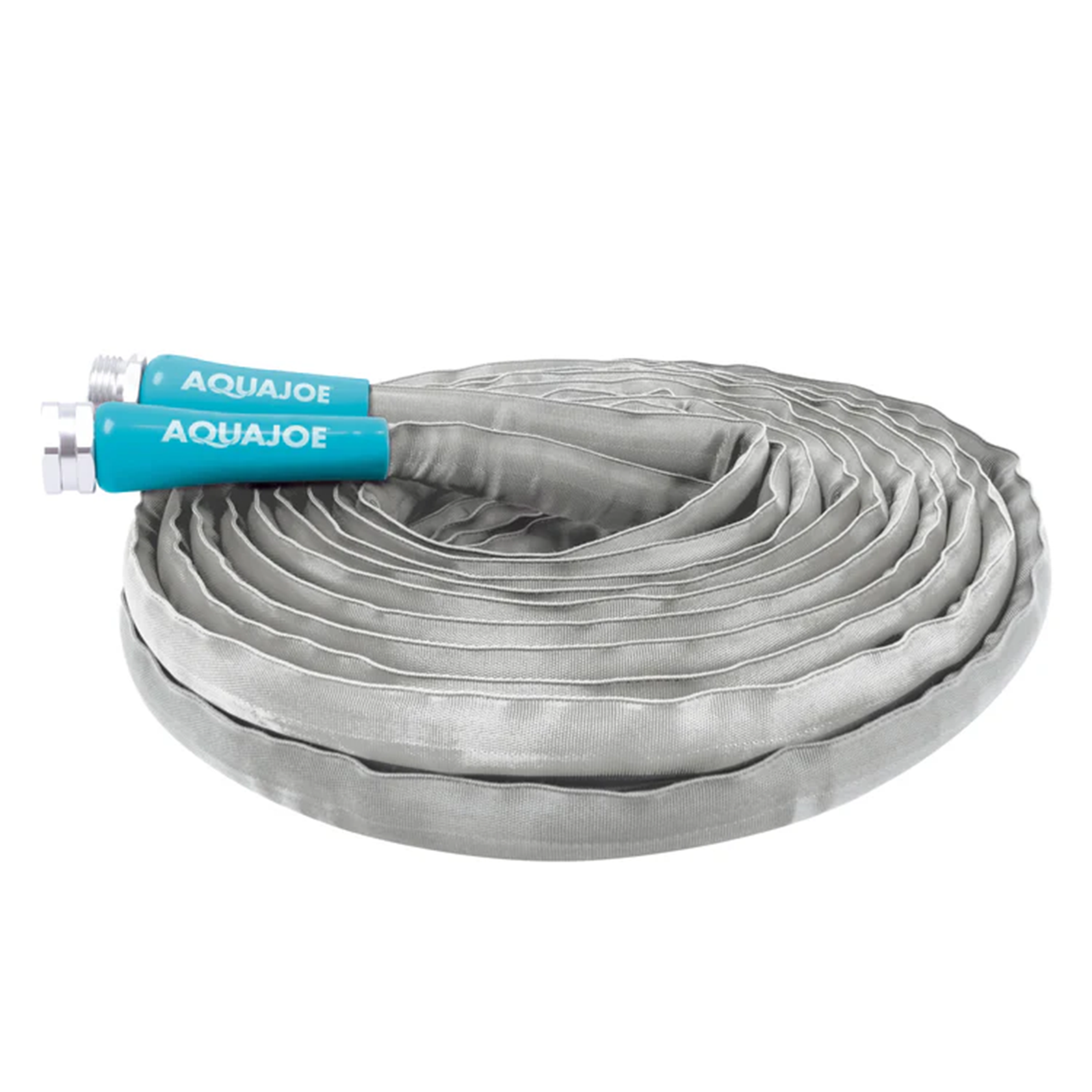

| Model Number | AJFJH25-PRX |
| Brand | Aqua Joe® |
| Series | XTREME FiberJacket® |
| Hose Length | 25 ft (7.6 m) |
| Outer Diameter | 5/8 in. (15.9 mm) |

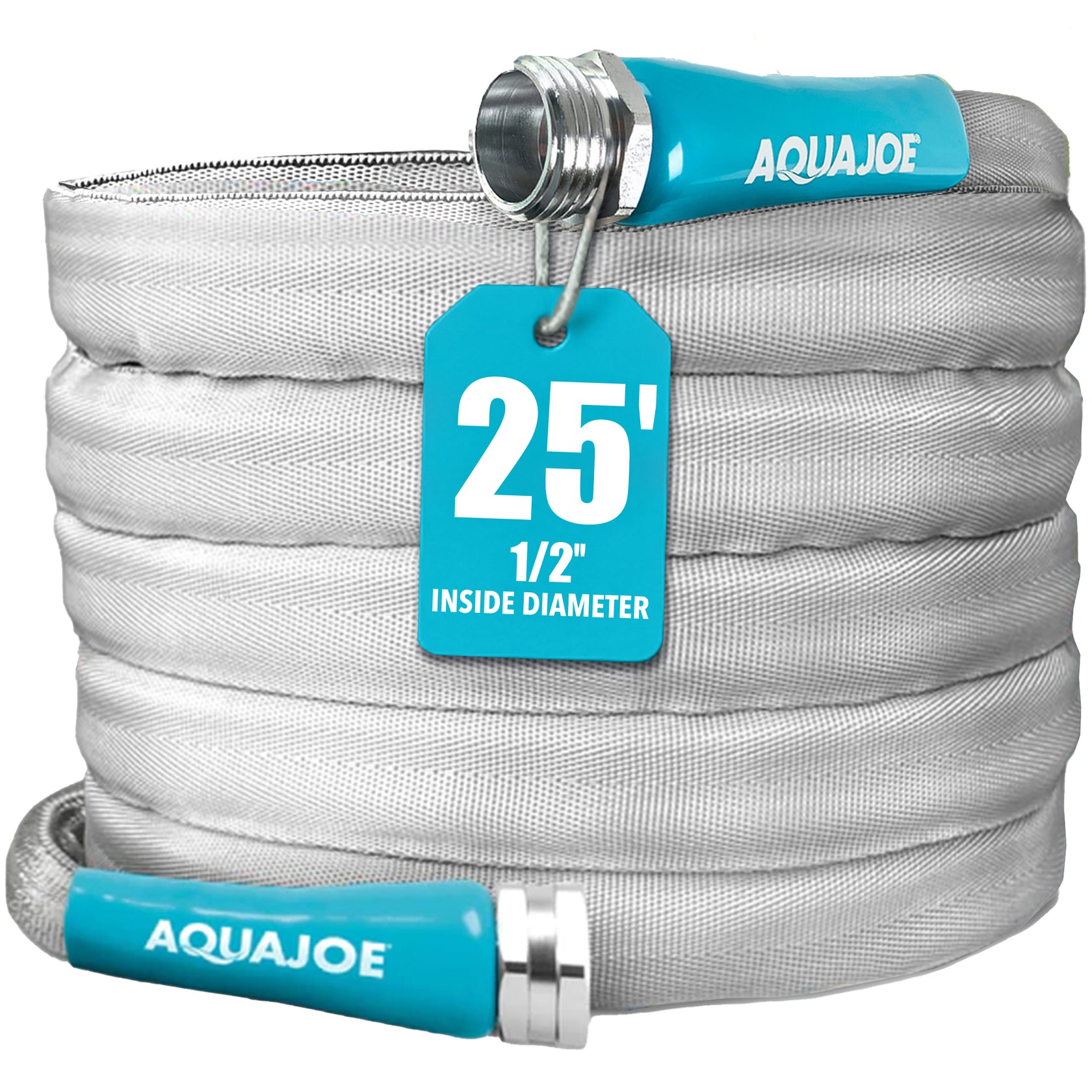

| Inner Core Diameter | 1/2 in. (12.7 mm) |

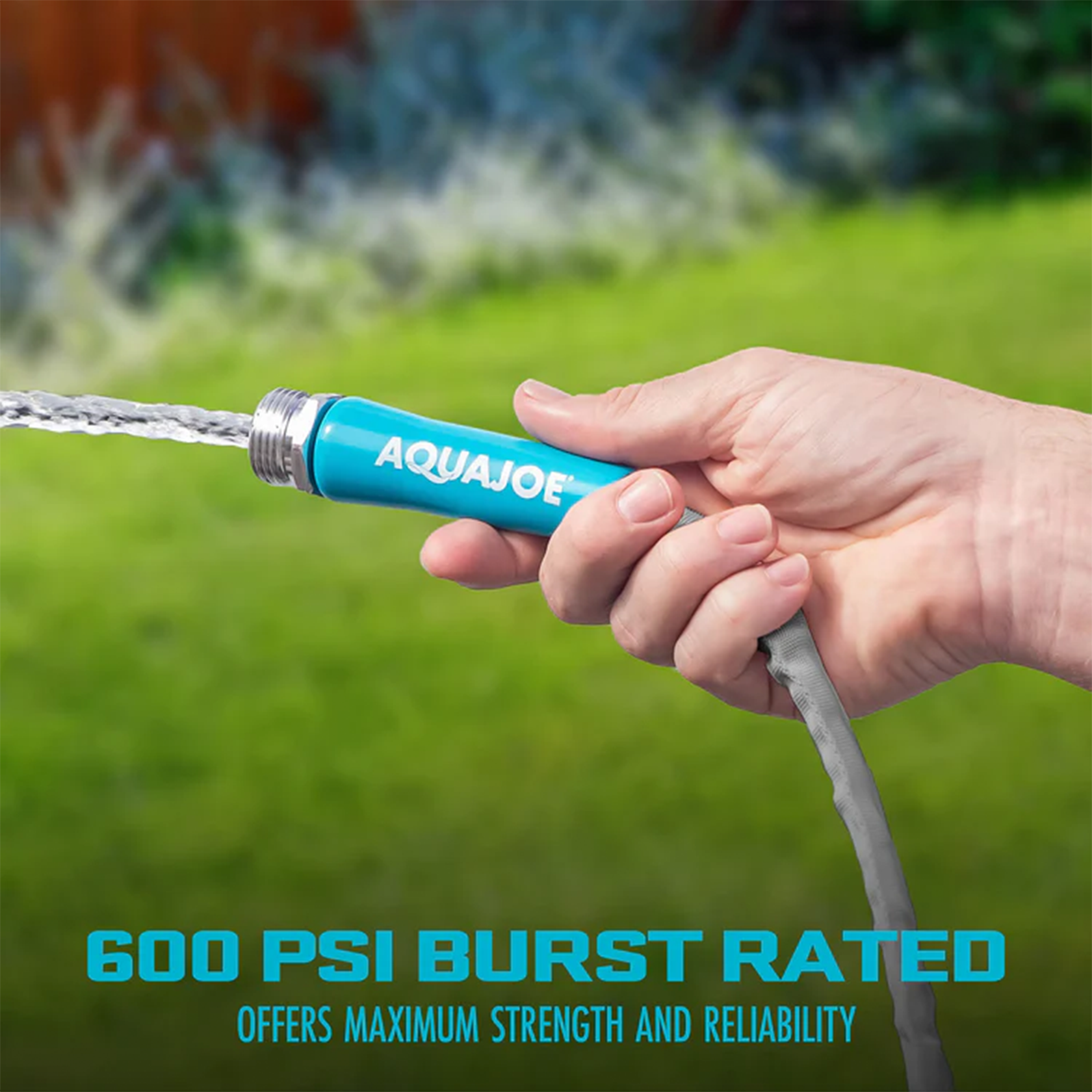

| Burst Pressure Rating | 600 PSI |
| Fitting Type | Heavy-duty metal (3/4-in. GHT thread) |
| Grip Type | Sturdy, flexible grip handles |

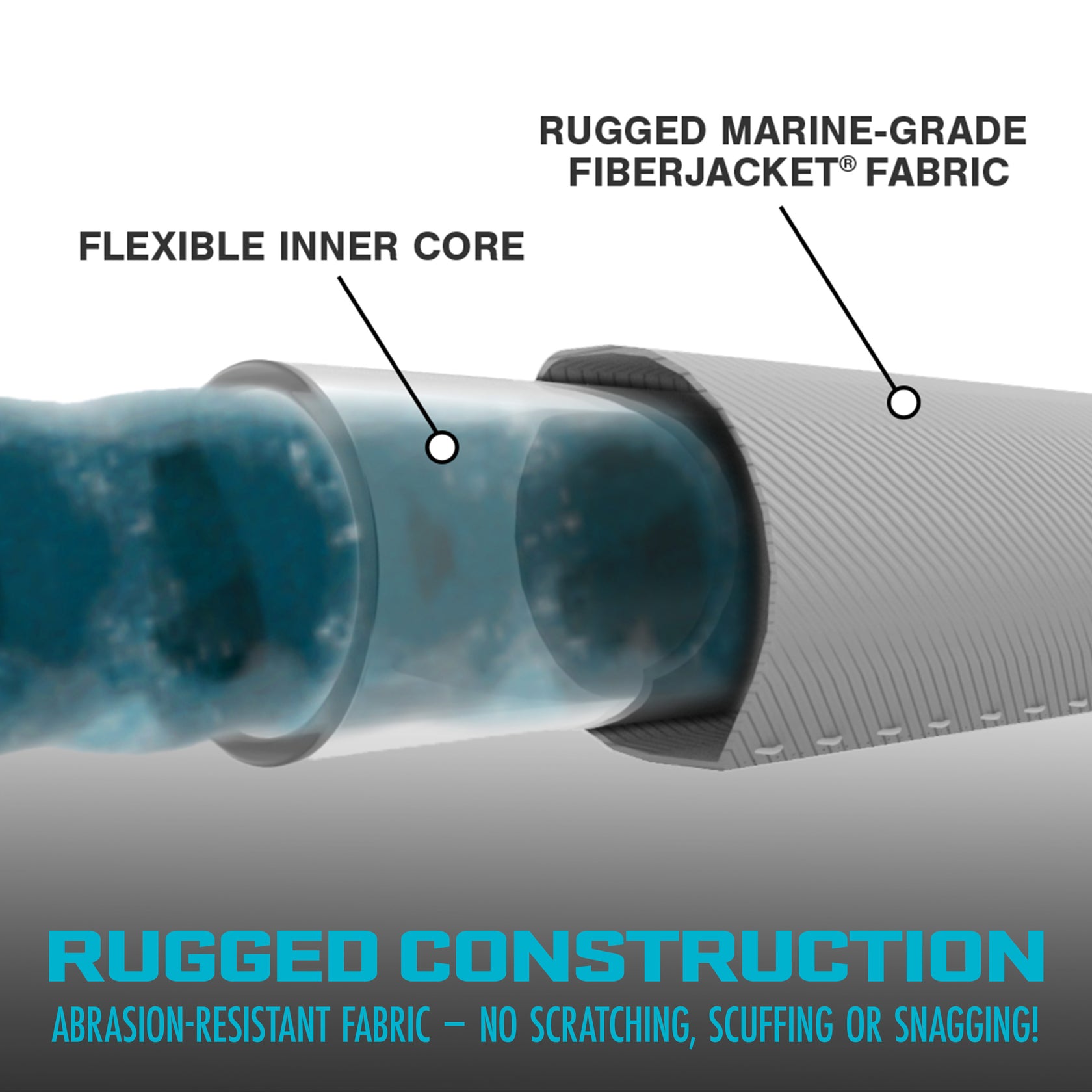

| Outer Material | Marine-grade FiberJacket® fabric |
| Inner Core Material | Flexible polymer |
| Min. Operating Temperature | 35°F (1.7°C) |
| Expandable | No — fixed non-expanding diameter |
| BPA / Lead / Phthalate Free | Yes |
| Drinking Water Safe | Yes (BPA/Lead/Phthalate free) |
| Kink / Tangle Resistant | Yes |
| Mildew Resistant | Yes |
| Available Lengths | 25 ft, 50 ft, 100 ft |
| Warranty | 2 Years + 30-Day Money-Back Guarantee |
What's in the Box
| Included Item | AJFJH25-PRX |
|---|---|
| Aqua Joe® XTREME FiberJacket® Garden Hose (25 ft) | ✔ |
| Pre-installed heavy-duty metal female fitting (tap/spigot end) | ✔ |
| Pre-installed heavy-duty metal male fitting (nozzle/accessory end) | ✔ |
| Flexible grip handles at both fittings | ✔ |
| Operator's manual | ✔ |
Hose nozzle, spray gun, and sprinkler attachments are not included. The AJFJH25-PRX has a standard 3/4-in. GHT (Garden Hose Thread) female end and male end, compatible with all standard spigots, nozzles, and accessories.
Setup & First Use
No tools required for setup
-
Uncoil the hose fully
Before first use, fully uncoil and stretch the hose on a flat surface. This removes any storage kinks and allows the hose to "relax" into its natural shape.
-

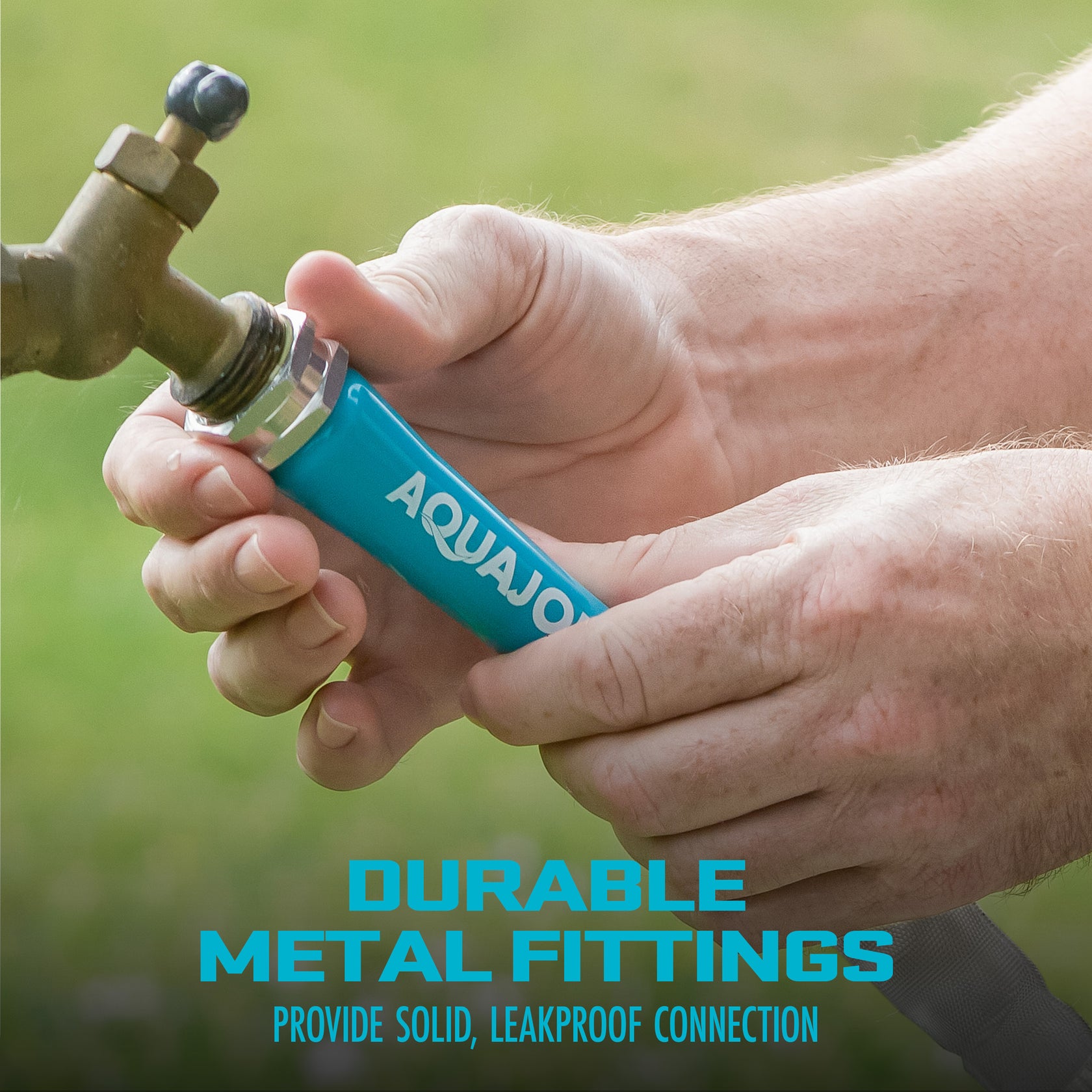

Connect the female end to your spigot
Thread the metal female fitting (with rubber washer inside) clockwise onto your outdoor spigot or tap. Hand-tighten firmly — do not use pliers, which can damage the fitting.
-
Attach your nozzle or accessory
Connect your preferred nozzle, sprinkler, or spray gun to the male fitting at the other end. Thread clockwise until snug.
-
Turn on the water slowly
Open the spigot gradually to allow water to fill the hose. Check both connections for any leaks and tighten if needed.
-
Check for leaks
Run water at full pressure for a few seconds. If any leaks appear at the fittings, turn off the water, ensure the rubber washer is seated correctly, and re-thread.
Never exceed the rated burst pressure of 600 PSI. For residential use, standard water supply pressure (40–80 PSI) is well within the safe operating range. If your water pressure is unusually high, install a pressure regulator.
Usage Tips
- Keep the hose as straight as possible when in use to maintain maximum water flow
- Drag and maneuver the hose by the body — avoid pulling by the fittings
- When working around corners, guide the hose gently — it is kink-resistant, not kink-proof under extreme bending
- Move the hose away from sharp edges, tools, and rough concrete that could abrade the outer jacket over time
- Do not drive vehicles over the hose, even though it is crush-resistant — sustained compression can cause internal damage
- When using with a pressure washer, verify the pressure washer's inlet requirements match standard garden hose pressure and flow
- For maximum comfort, use the flexible grip handles when carrying or repositioning the hose
Care & Maintenance
After Every Use
-
Turn off the water at the spigot
Always shut off the water source before disconnecting the hose.
-
Release residual pressure
Squeeze or open the nozzle/spray gun to release any remaining water pressure in the hose.
-
Drain completely
Disconnect both ends and allow the hose to drain fully. Elevate one end to help water flow out. Never store with water trapped inside.
-

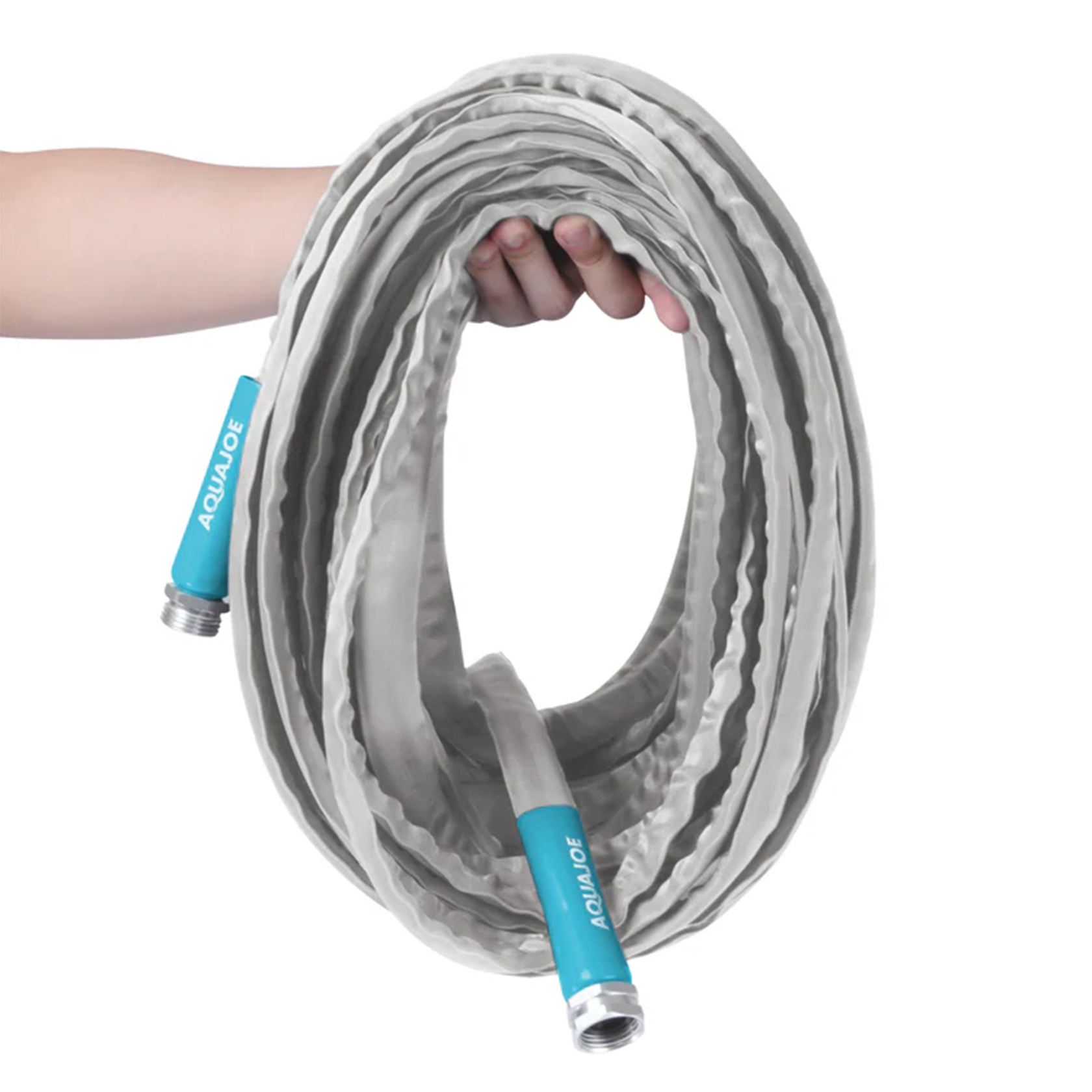

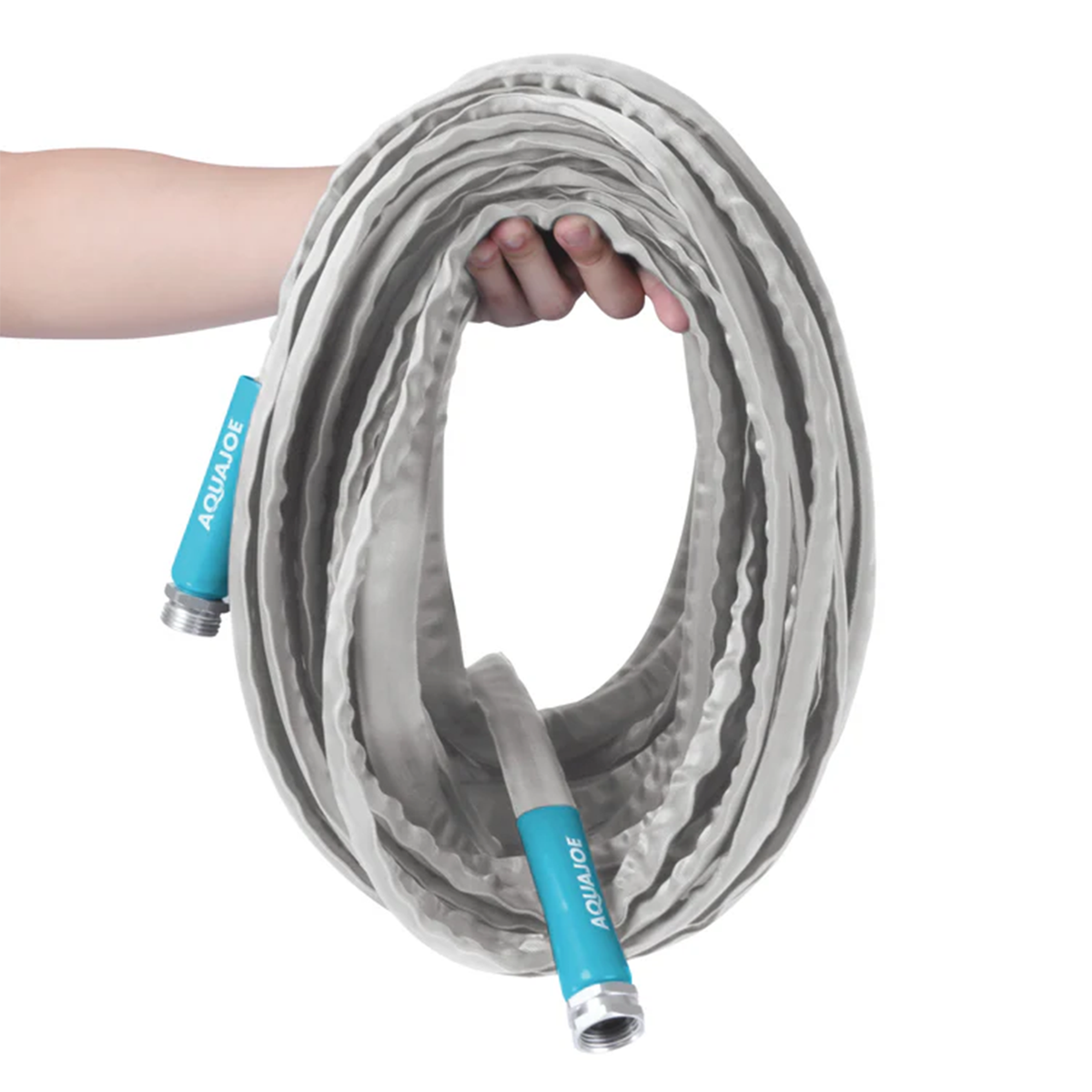

Coil loosely and store
Coil the hose in large, natural loops (not tight spirals). Store flat or on a hose reel in a shaded area away from direct sunlight.
Periodic Checks
- Inspect fittings for corrosion, cracks, or stripping — replace if any damage is found
- Check the rubber washer inside the female fitting — replace if worn, cracked, or missing to prevent leaks
- Inspect the outer FiberJacket® for cuts, abrasions, or fraying that could indicate inner damage
- Confirm both connections seal properly with no dripping at full pressure
The FiberJacket® exterior dries quickly on its own — no need to wipe down before storing. This is one of the key advantages over rubber hoses that remain wet and heavy.
Storage
- Store in a cool, shaded location — prolonged direct UV exposure can degrade any polymer material over time
- Coil loosely on a hose reel, hook, or flat surface — avoid tight coiling or folding
- Always drain the hose before storing to prevent mildew and freeze damage
- For temperatures below 35°F, drain completely and store indoors — the hose remains flexible to 35°F but should not be stored with water in freezing conditions
- Keep away from lawn chemicals, solvents, or petroleum products that may degrade the FiberJacket® exterior
Do not store with water inside in freezing temperatures. Trapped water will freeze and expand, potentially damaging the hose body and fittings. Always drain fully before cold-weather storage.
Troubleshooting Guide
💧 Leaking at Fittings
Possible Causes
- Rubber washer missing or worn
- Fitting not threaded fully
- Cross-threaded connection
Solutions
- Turn off water, disconnect, and inspect the rubber washer inside the female fitting
- Replace the washer if cracked or missing (standard 3/4-in. GHT washer)
- Re-thread slowly and carefully — hand-tighten only
🌀 Reduced Water Flow
Possible Causes
- Hose kinked or folded
- Spigot not fully open
- Nozzle or attachment clogged
- Low water supply pressure
Solutions
- Straighten the hose fully along its length
- Ensure spigot is turned fully open
- Remove and clean the nozzle/attachment
- Check household water pressure
🔴 Hose Leaking Along Body
Possible Causes
- Cut or puncture in outer jacket and inner core
- Damage from sharp objects or vehicle compression
Solutions
- Inspect the hose body for visible damage
- Minor outer jacket abrasion is normal and does not indicate a leak
- If the inner core is punctured, contact Aqua Joe® support — hose body damage is covered under the 2-year warranty for manufacturing defects
🥶 Hose Stiff in Cold
Possible Causes
- Temperature below 35°F
- Water frozen inside hose
Solutions
- The hose is rated to maintain flexibility down to 35°F — below this, stiffening is expected
- Bring the hose indoors to thaw before use
- Always drain before storage in cold weather
🔩 Fitting Will Not Thread
Possible Causes
- Cross-threading on attachment
- Incompatible thread type on accessory
Solutions
- The fittings use standard 3/4-in. GHT (Garden Hose Thread)
- Start threading slowly and straight — never force
- Confirm the accessory uses standard GHT (not NPT) threads
🌿 Mildew or Odor
Possible Causes
- Stored with water still inside
- Stored in a hot, damp, enclosed area
Solutions
- Always drain fully before storing
- Flush with clean water before next use
- Store in a well-ventilated, shaded area
- The FiberJacket® exterior is mildew-resistant — if odor persists from inside, flush thoroughly
Frequently Asked Questions
What makes XTREME FiberJacket® different from the standard FiberJacket® hose?
The XTREME PRX series features a 5/8-inch outer diameter (vs. 1/2-inch on
the standard models) and is burst-rated to 600 PSI — 3× stronger than conventional
garden hoses. It also includes heavy-duty metal fittings with flexible grip
handles. The standard FiberJacket® is rated at 300 PSI. The XTREME is the
premium tier for users needing maximum strength and flow.
What thread size are the fittings?
Both fittings use standard 3/4-inch GHT (Garden Hose Thread), which is the
universal standard for residential outdoor spigots, spray guns, nozzles,
and sprinkler attachments. It is compatible with virtually all standard outdoor
water accessories.
Can I use this hose in freezing temperatures?
The XTREME FiberJacket® is rated to maintain flexibility down to 35°F (1.7°C).
Below this temperature, the hose will begin to stiffen. More importantly,
never leave water inside the hose in freezing conditions
— trapped water will freeze and expand, which can damage the inner core and
fittings. Always drain the hose fully before storing in cold weather.
Can I leave this hose outdoors permanently?
The FiberJacket® is weather-resistant and designed for outdoor use. However,
for maximum longevity, it's best practice to coil and store the hose in a
shaded area when not in use. Prolonged direct UV exposure can degrade polymer
materials over time. Always drain before leaving overnight in case temperatures
drop.
