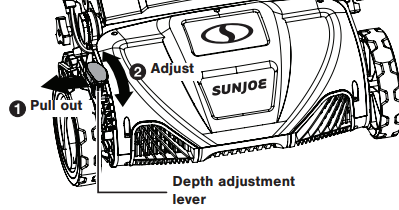

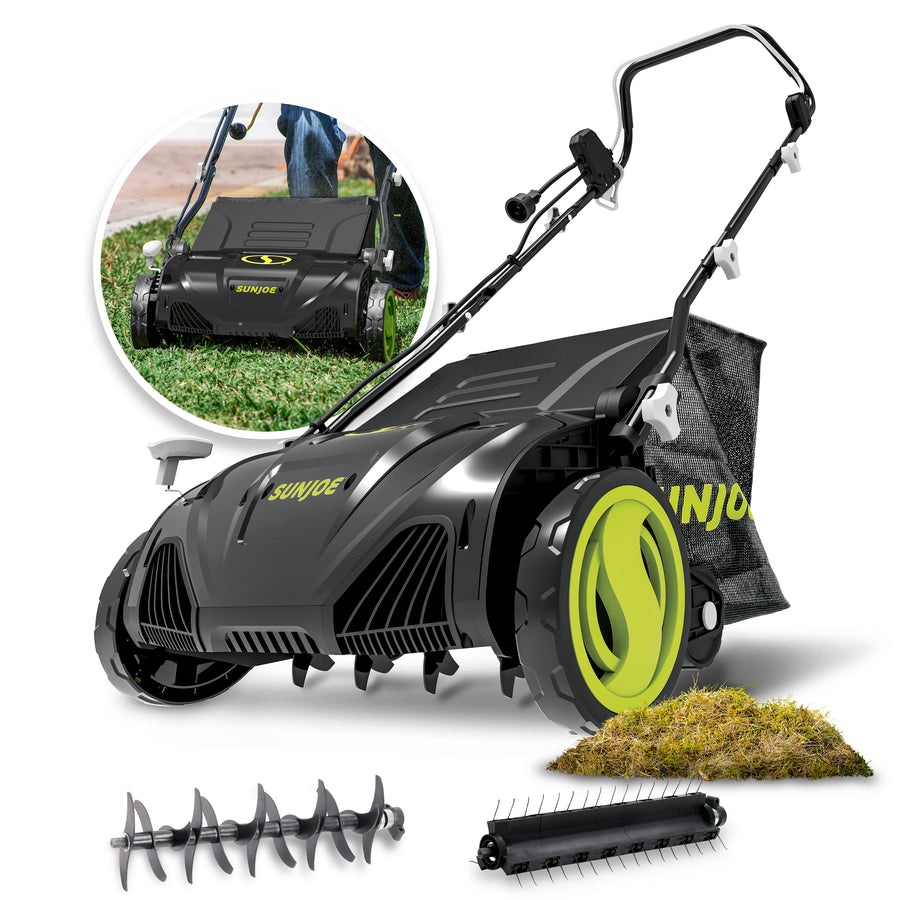

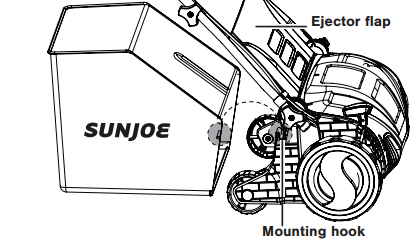

AJ805E Electric Lawn Scarifier + Dethatcher Sun Joe® AJ805E Electric Lawn Scarifier + Dethatcher | Product Guide Let Your Lawn Breathe. The Sun Joe® AJ805E Electric Lawn Scarifier + Dethatcher helps remove thatch buildup and refresh small to mid-sized lawns. Powered by a 13-amp motor, it rakes a 15-inch wide path and includes both a scarifying cylinder and dethatcher cylinder for two lawn-care tasks in one machine. ⚡ 13-Amp Electric Motor 🌱 Scarifier + Dethatcher 🚫 No Gas, Oil, or Tune-Ups Meet the AJ805E Key Components 🤲 Upper handle frame — main grip and control handle 🔩 Handle knobs + bolts — secure the upper, middle, and lower handle sections 🧰 Middle handle bars — connect the upper and lower handle assembly 🧰 Lower handle bars — attach to the adjusting gear wheels on the body ⬆️ Ejector flap — covers the rear discharge opening and collection bag area 🌿 Scarifying cylinder — pre-assembled cylinder with slicing blades 🍂 Dethatcher cylinder — spring tine cylinder for raking and thatch removal 🔧 Hex key wrench — used when changing the cutting cylinder ⚙️ Depth adjustment lever — changes the raking or scarifying depth 🧺 Thatch collection bag — collects removed thatch and debris 🔌 Extension cord restraint holder — helps secure the extension cord during use ▶️ Safety lock button + switch lever — required to start the unit Technical Specifications Specification AJ805E Product Type Electric lawn scarifier + dethatcher Rated Voltage 120V ~ 60 Hz Motor 13 amp No Load Speed 3000 rpm Maximum Raking Width 15 in. / 38 cm Scarifying Depth -0.4 in. to 0 in. / -10 mm to 0 mm Raking Depth 0 in. to 0.4 in. / 0 mm to 10 mm Depth Adjustment 5 positions Thatch Bag Capacity 13.2 gal / 50 L Dethatcher Cylinder 24 spring steel raking tines, 1.5 mm thick and 1.2 in. / 30 mm long Scarifier Cylinder 26 slicing blades, 5.1 in. / 130 mm long Wheel Size 8 in. front wheels / 4 in. rear wheels Product Dimensions 34.4 in. x 24.2 in. x 46 in. Net Weight 23.4 lbs / 10.6 kg Warranty 2 Year Warranty What's in the Box Included Item AJ805E Scarifier + dethatcher body ✔ Handle knobs ✔ 6 Bolts ✔ 4 Adjusting gear wheels ✔ 2 Upper handle frame ✔ Middle handle bars ✔ 2 Lower handle bars ✔ 2 Thatch collection bag ✔ Cable clip ✔ Hex key wrench ✔ Scarifying cylinder ✔ pre-assembled Dethatcher cylinder ✔ Operator's manual ✔ 💡 If any parts are missing or damaged, do not use the unit. Contact Shop Joe customer support before operation. Assembly 🚫 Do not connect the scarifier + dethatcher to power until assembly is complete. Accidental starting can cause serious injury. ⚙️ Step 1 Insert the lower handle bars into the adjusting gear wheels. › 🔩 Step 2 Align the holes and secure the lower handle bars with the knobs. › 🧰 Step 3 Attach the middle handle bars to the lower handle bars. › 🤲 Step 4 Attach the upper handle frame and tighten both sides securely. › 🧷 Step 5 Secure the cord with the cable clips. ⚠️ Assembly check: Make sure all knobs, bolts, and handle connections are tight before connecting the unit to power. Getting Started Inspect the lawn first Remove stones, sticks, wire, bones, and other objects that could be thrown or damage the unit. Attach the thatch collection bag Lift the ejector flap and hang the collection bag on the mounting hooks before operation. Set the cutting depth Pull the depth adjustment lever away from the wheel, then move it forward or backward to select one of the five depth settings. Connect the power cord Use the extension cord restraint holder and plug the appliance cord into a proper outdoor extension cord. Start the unit Press and hold the safety lock button, then pull the switch lever toward you. Release the safety lock button once the unit starts. Work in overlapping rows Push the machine forward slowly in straight, slightly overlapping rows for even coverage. Stop the unit Release the switch lever and wait for the cylinder to stop completely before lifting, tilting, or servicing the unit. Depth Setting Use 10 mm For pushing the machine and removing thin thatch layers. Do not use for scarifying. 5 mm For raking healthy lawn. Do not use for scarifying. 0 mm For transport, storage, scarifying, and raking. -5 mm For scarifying. Not recommended for raking. -10 mm For scarifying only. Do not use for raking. 🔌 Extension cord guidance: Use a 14-gauge 50-foot extension cord. For 50–100 feet, use a 12-gauge extension cord. ⚠️ Important: Do not operate on wet grass. Wet clippings can stick to the underside, block discharge, cause overheating, and increase slipping risk. Maintenance & Care 🚫 Always disconnect the unit from power before cleaning, inspection, maintenance, storage, or transport. 1 Keep fasteners tight Check nuts, bolts, knobs, and screws regularly so the unit remains in safe working condition. 2 Clean the cylinder area after each use Grass clippings can accumulate around the cylinder and cause overheating. Remove clippings after every use. 3 Keep air vents clear Blocked vents can reduce performance and cause overheating. Clean vents with a soft brush when needed. 4 Inspect the collection bag Check the thatch collection bag for wear or deterioration before use. Let it dry fully before storing. 5 Clean with a brush or cloth only Do not use water, solvents, or polishes to clean the machine. 6 Store in a dry place Allow the unit to cool before storage. Do not place other objects on top of the unit while stored. Troubleshooting Guide Only perform the steps described below. If the issue cannot be resolved, contact an authorized service center or Shop Joe customer support. 🔴 Motor Does Not Start Possible Causes Unit is not connected to power Power cord or plug is defective Other electrical defect Safety lock button was not pressed Machine overheated Solutions Connect the unit to a power supply Press the safety lock button first, then pull the switch lever Clean grass clippings around the cylinder Allow the machine to cool before restarting Contact an authorized service agent for cord, plug, or electrical defects 🟡 Product Is Not Powering On Possible Cause Wrong extension cord is being used Solution Use a 14-gauge 50-foot extension cord For 50–100 feet, use a 12-gauge extension cord 🟡 Product Does Not Reach Full Power Possible Causes Extension cord is not suitable for this product Air vents are blocked Solutions Use a proper outdoor extension cord Clean the air vents with a soft brush 🟡 Unsatisfying Results Possible Causes Cutting device is worn Scarified material exceeds machine capacity Scarifying depth is incorrect Solutions Replace the tine cylinder if worn Only scarify material within the machine’s capacity Adjust the depth setting 🟡 Not Performing as Expected Possible Cause Machine is clogged Solution Unplug the unit Remove dead grass from the tines Confirm there are no clogs preventing normal operation 🟡 Excessive Vibration Possible Causes Cutting device is unbalanced Cutting device has been damaged by impact Solutions Switch off and unplug the unit immediately Inspect the cutting device for damage Replace or have the cutting device repaired before reuse Video Guide Frequently Asked Questions What is the difference between scarifying and dethatching? Scarifying uses the blade cylinder to scratch through and between the grass, helping aerate the soil surface. Dethatching uses the spring tine cylinder to rake the lawn surface and lift thatch and light debris. How often should I dethatch or rake my lawn? The manual recommends raking or aerating every 4–6 weeks depending on the condition of the lawn. When is the best time to scarify? Scarify during spring between April and May when the lawn can recover more easily. If the summer is wet, scarify again in late summer with a decreased depth setting. Do not scarify during periods of hot weather. Can I use the AJ805E on wet grass? No. The manual advises not to use the machine on wet grass because wet material can stick to the underside, block discharge, overload the motor, and increase the risk of slipping. Is the AJ805E for commercial use? No. The AJ805E is intended for private domestic use only and should not be used for commercial trade use. What replacement accessories are available? Compatible optional accessories listed for this model include: AJ805E-DTNS — replacement dethatcher tines AJ805E-SCRF — replacement scarifier blade PJEXT50-B — Snow Joe® + Sun Joe® SJTW-A 14-gauge 50-foot extension cord with lighted end Related articles SJI-OMS20 Indestructible Jumbo Metal Base Oscillating Sprinkler Sun Joe BRDSD25 Premium Bird Seed Blend Can I operate the timer manually? What should I do if my unit is overheating?
