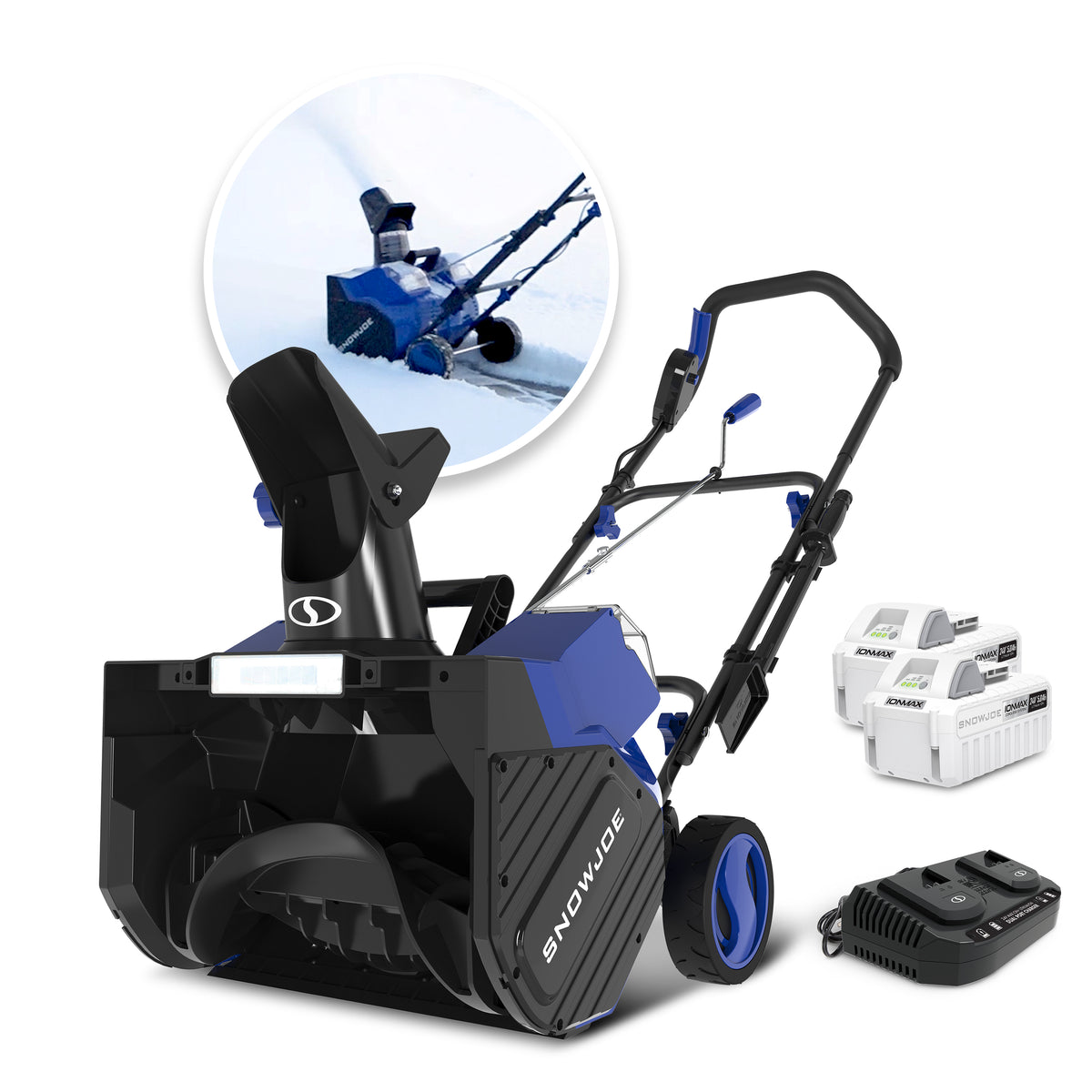

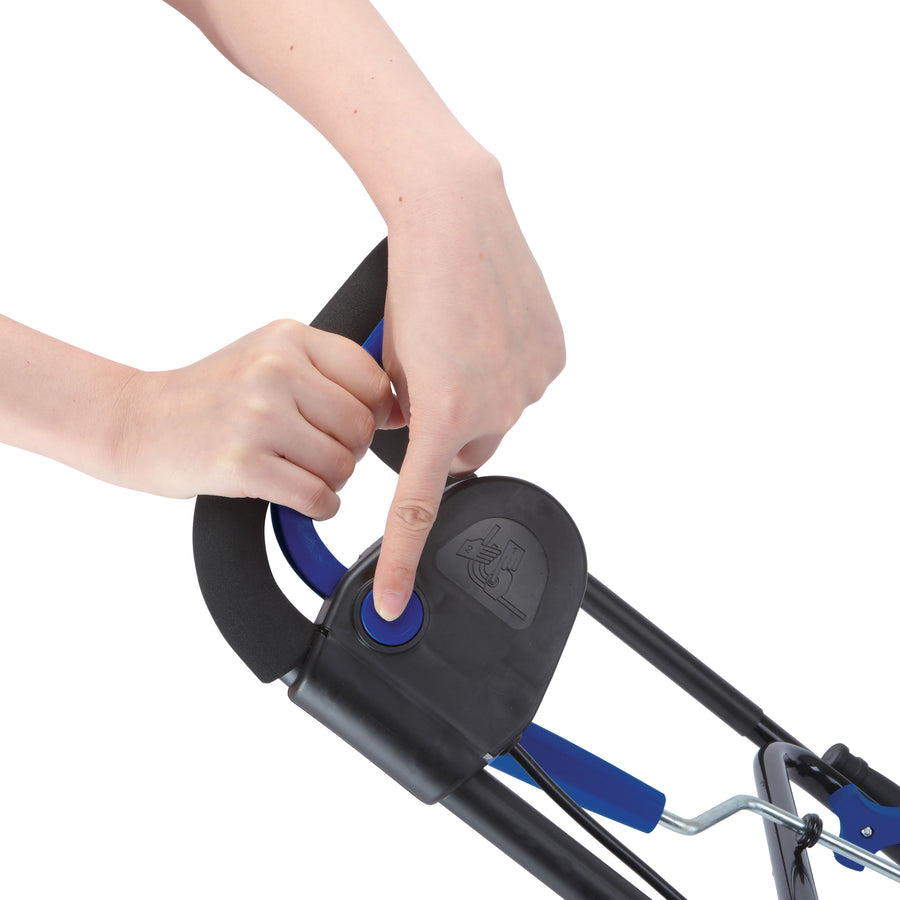

24V-X2-SB18-XR Cordless Snow Blower Snow Joe® 24V-X2-SB18-XR Cordless Snow Blower | Product Guide ❄️ Snow Joe® Product Guide18-Inch Clearing Width 48V IONMAX Power 2-Year WarrantyCut The Cord® and Clear With Confidence.The Snow Joe® 24V-X2-SB18-XR Cordless Snow Blower uses two included 24V IONMAX™ 5.0 Ah batteries to deliver 48V max power. It clears an 18-inch wide by 10-inch deep path, throws snow up to 20 feet, and includes a 2 W LED headlight for safer clearing after dark.⚡ 1200 W Brushless Motor ❄️ 18 in. x 10 in. Clearing Path 🔋 Includes Dual-Port ChargerMeet the 24V-X2-SB18-XR Key Components🤲Handle bar — main grip area for pushing and controlling the snow blower▶️Safety lock button + ON/OFF trigger — two-step start control to help prevent accidental starting🔋Dual battery compartments — hold two compatible 24V IONMAX™ batteries❄️Auger — 4 rubber-tipped steel blades move snow through the housing🧊Scraper bar — helps clear snow close to paved surfaces↔️Discharge chute + chute crank — adjusts snow discharge direction up to 180°↕️Chute deflector + deflector knob — controls the height of the snow stream💡LED headlight — illuminates the forward clearing path while the blower is running🧹Clean-out tool — clears chute buildup safely without using hands🛞Wheels — help maneuver the snow blower during clearing and transport🔩Handle knobs and bolts — secure the upper, middle, and lower frame sections🔌Dual-port charger — charges both included 24VBAT-XR battery packsTechnical SpecificationsSpecification24V-X2-SB18-XRProduct TypeCordless single-stage snow blowerBest UseNormal driveway clearing, small to large decks, and drivewaysMotor1200 W brushlessBattery Voltage Max48V DC max / 2 x 24V batteriesBattery Capacity5.0 AhBattery Model24VBAT-XR, 2 includedBattery CompatibilityCompatible with 24V IONMAX™ battery configurations except 8.0 Ah and above / 24VBAT-XR8 and 24VBAT-XR12Charger Input120V AC, 60 Hz, 160 WCharger Output26V DC, 2 x 2.2ACharge Time Max2 hr 30 minsNo Load Speed2500 rpmAuger4 rubber-tipped steel bladesClearing Width18 in. / 46 cmDepth of Snow Cut10 in. / 25.4 cmThrow Distance Max20 ft / 6 mStagesSingle stageDirectional Control180° adjustable chuteLED Light2 WTire Size6.5 in. / 16.5 cmProduct Dimensions44.9 in. x 18.5 in. x 37 in. / 114 cm x 47 cm x 94 cmNet Weight29.8 lbs / 13.5 kgWarranty2 yearsWhat's in the BoxIncluded Item24V-X2-SB18-XR KitCordless snow blower✔Joint-fixing knob and bolt sets✔ 4 setsUpper crank rod✔ assembledClean-out tool✔ assembled24V IONMAX™ 5.0 Ah lithium-ion batteries✔ 2 batteries24V IONMAX™ lithium-ion dual-port charger✔Manual✔💡 Kit note: This XR kit includes two 5.0 Ah batteries and a dual-port charger. It does not list the snow thrower cover, cover storage bag, or ice scraper that may appear in other bundle versions.Assembly🚫 Do not insert the batteries until assembly is complete. Accidental starting can cause serious injury.1Step 1Pull the middle frame back and pull the upper frame up.›2Step 2Secure the middle frame to the lower frame with knobs and bolts.›3Step 3Secure the upper frame to the middle frame with the second knob and bolt set.›4Step 4Lift and lock the chute deflector onto the discharge chute.›5Step 5Install and secure the chute crank rods with hitch pins.Set the chute deflectorLoosen the deflector knob, lift the chute deflector, lock it securely onto the discharge chute, then adjust the height of the snow stream.Install the lower chute crankInsert the lower crank rod into the opening at the back of the housing, align the holes, and secure it with the hitch pin.Install the upper chute crankSlide the upper chute crank through the rubber ring on the middle frame, connect it to the lower chute crank, align the holes, and secure it with the hitch pin.⚠️ Assembly check: Make sure the chute deflector snaps and locks completely onto the discharge chute. Do not overtighten the chute deflector knob.Getting StartedCharge both batteries firstPlace both 24V IONMAX™ 5.0 Ah batteries on the dual-port charger. Red lights indicate charging; green lights indicate fully charged. A fully discharged set charges in about 2 hr 30 mins in the normal temperature range.Check battery charge levelPress the charge-level button on each battery. Three lights indicate high charge; one light means the battery should be charged immediately.Inspect the clearing areaRemove stones, toys, broken glass, nails, wire, string, and other objects that could be picked up and thrown by the auger.Install both batteriesOpen the battery compartment covers and slide each battery down until it clicks and locks into position.Start the snow blowerPress and hold the safety switch button, then pull the ON/OFF trigger toward you. Once the machine starts, release the safety switch button.Clear at a steady pacePush gently and evenly according to the snow blower’s throw rate. Overlap clearing paths for best results.Adjust snow direction and heightRotate the chute crank to adjust the discharge chute up to 180°. Loosen the deflector knob to raise or lower the snow stream, then tighten the knob.Stop the unitRelease the ON/OFF trigger. Wait for all moving parts to stop before cleaning, inspecting, or storing the unit.💡 Headlight note: The LED headlight turns on when the snow blower is running and automatically turns off about 30 seconds after the machine powers off.🚫 Never use your hands to unclog the chute. Turn the motor off, remove the batteries, wait 10 seconds for the impeller blades to stop, then use the clean-out tool.Maintenance & Care🚫 Always turn off the snow blower and remove both batteries before cleaning, inspecting, servicing, storing, or transporting the unit.1Run briefly after snow clearingAfter each snow removal session, run the snow blower for a few minutes to help prevent the collector/impeller and auger from freezing.2Remove residual snow and iceShut off the motor, wait for all revolving parts to stop, remove the batteries, then wipe residual snow and ice from the unit.3Rotate the chute after useRotate the chute deflector by the chute control crank several times to remove excess snow buildup.4Check hardware oftenInspect bolts and screws at frequent intervals and tighten as needed to keep the equipment in safe working condition.5Care for batteries and chargerDo not immerse batteries or charger in liquid. Clean charger vents and electrical contacts with compressed air. Use only mild soap on a damp cloth when cleaning plastic surfaces.6Store indoorsRemove both batteries and store the snow blower indoors in a locked, dry place out of reach of children.7No lubrication neededLubrication is not necessary and may damage the unit. The motor and auger are lubricated for lifetime use at the factory.Troubleshooting GuideOnly perform the steps described below. If the issue cannot be resolved, contact Shop Joe customer support or an authorized service center.🔴 Unit Does Not StartPossible CausesOne or both batteries are not installed correctlyOnly one battery is installedBatteries are dischargedStart sequence was not followedSolutionsInstall both batteries until each clicks into placeUse two batteries of the same voltage and capacityCharge both batteries before usePress the safety switch button first, then pull the ON/OFF trigger🟡 Batteries Will Not ChargePossible CausesBatteries are not fully seated in the chargerBattery temperature is too hot or too coldCharger is not plugged into the correct outletSolutionsRemove and reinsert both batteries into the chargerAllow batteries to return to the normal charging rangeConfirm the charger is plugged into a 120V AC outletContact support if charger lights do not come on after reseating the batteries🟡 Weak Snow Clearing PerformancePossible CausesBattery charge is lowSnow is too deep, wet, packed, or heavySnow blower is being pushed too fastLoose surface material may be entering the auger areaSolutionsRecharge both batteriesClear within the recommended 10-inch depth per passPush gently and evenly according to the unit’s throw rateOn gravel or unpaved areas, push down on the handle to raise the scraper bar above loose material🟡 Chute Is CloggedPossible CausesWet, packed, or heavy snow is blocking the discharge chuteSnow is being cleared faster than the unit can discharge itSolutionsTurn the motor offRemove both batteriesWait 10 seconds for the impeller blades to stopUse the clean-out tool, not your hands, to clear the chuteResume clearing at a slower, steady pace🟡 Frozen Parts or ControlsPossible CausesExtreme temperatures caused parts to freezeResidual snow or ice remained after useSolutionsStop the snow blower and remove both batteriesInspect for frozen partsFree all frozen parts before restartingNever force frozen controlsRun the unit briefly after clearing snow to help prevent freezing🟡 Abnormal Noise or VibrationPossible CausesForeign object may have entered the snow blowerPart may be worn, loose, damaged, or misalignedSolutionsStop the machine immediatelyRemove both batteriesInspect the unit for obstructions or damageRepair or replace damaged parts before restartingContact support if abnormal sounds continueVideo GuideFrequently Asked QuestionsWhat comes with the 24V-X2-SB18-XR kit?This kit includes the cordless snow blower, two 24V IONMAX™ 5.0 Ah batteries, a dual-port charger, joint-fixing knob and bolt sets, an assembled upper crank rod, an assembled clean-out tool, and manual.How wide and deep does it clear?The 24V-X2-SB18-XR clears an 18-inch wide path and cuts snow up to 10 inches deep in a single pass.How far can it throw snow?The adjustable chute can throw snow up to 20 feet away. The chute rotates up to 180° and the chute deflector controls the snow stream height.Can I run the snow blower with only one battery?No. The cordless snow blower must be powered by both batteries together. Use two batteries of the same voltage and same capacity.Is it compatible with all 24V IONMAX™ batteries?No. This model is not compatible with 24V IONMAX™ System batteries 8.0 Ah and above, including 24VBAT-XR8 and 24VBAT-XR12.What optional accessories are listed for this model?Compatible optional accessories listed for this model include:24VBAT — 24V IONMAX™ 4.0 Ah lithium-ion battery24VBAT-XR — 24V IONMAX™ 5.0 Ah lithium-ion battery24VCHRG-QC — 24V IONMAX™ quick charger24VCHRG-DPC — 24V IONMAX™ dual-port chargerSJCVR-21 — universal 21-inch snow thrower protection coverSJCOT — universal snow thrower chute clean-out toolHow should I store the batteries during the off-season?Store the batteries and charger at room temperature away from moisture. During off-season storage, recharge the batteries every 6 months to about 50% capacity, shown as 2 lights on the battery indicator.
