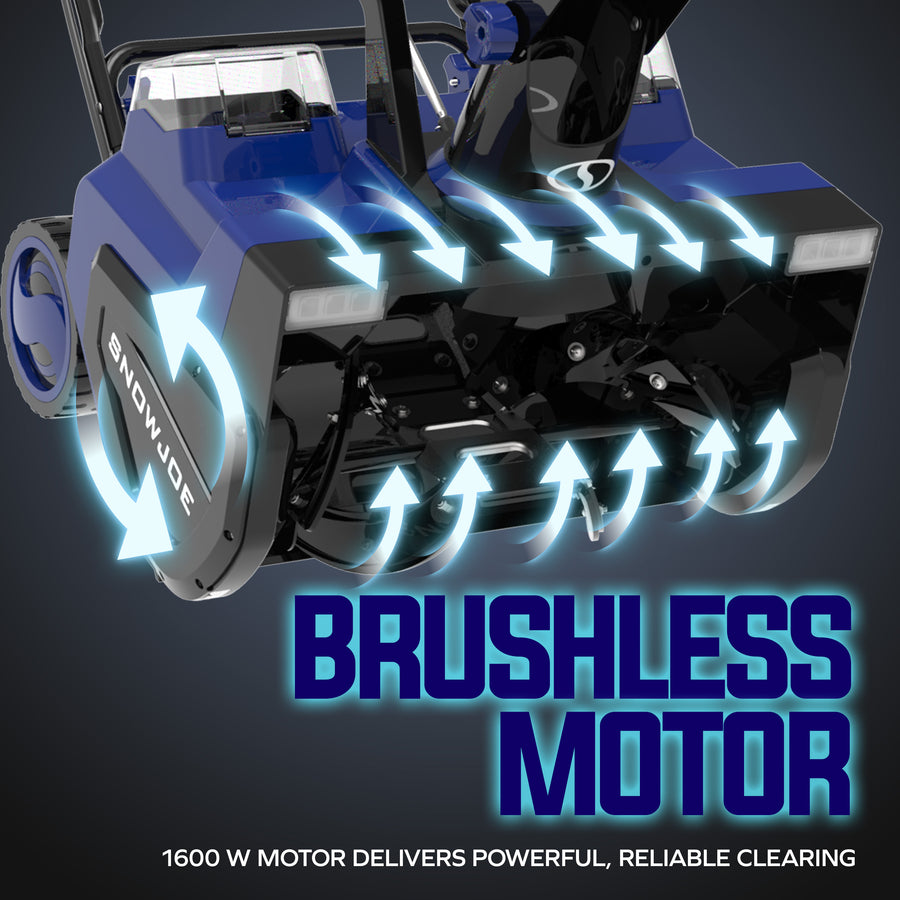

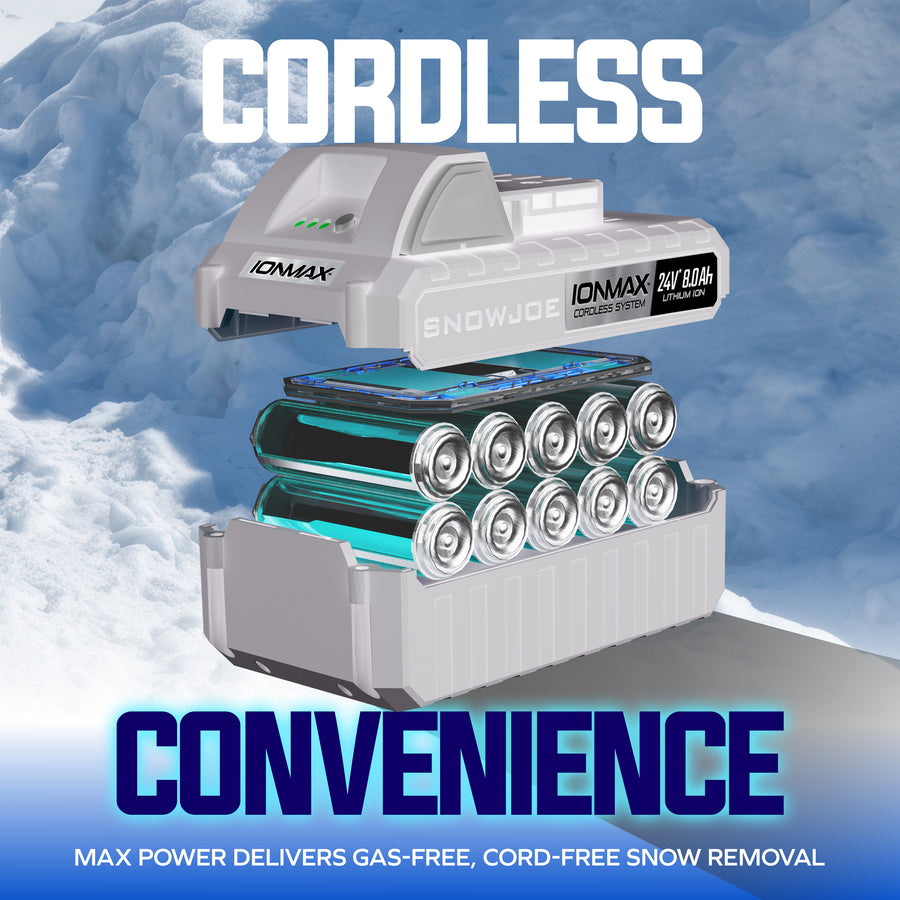

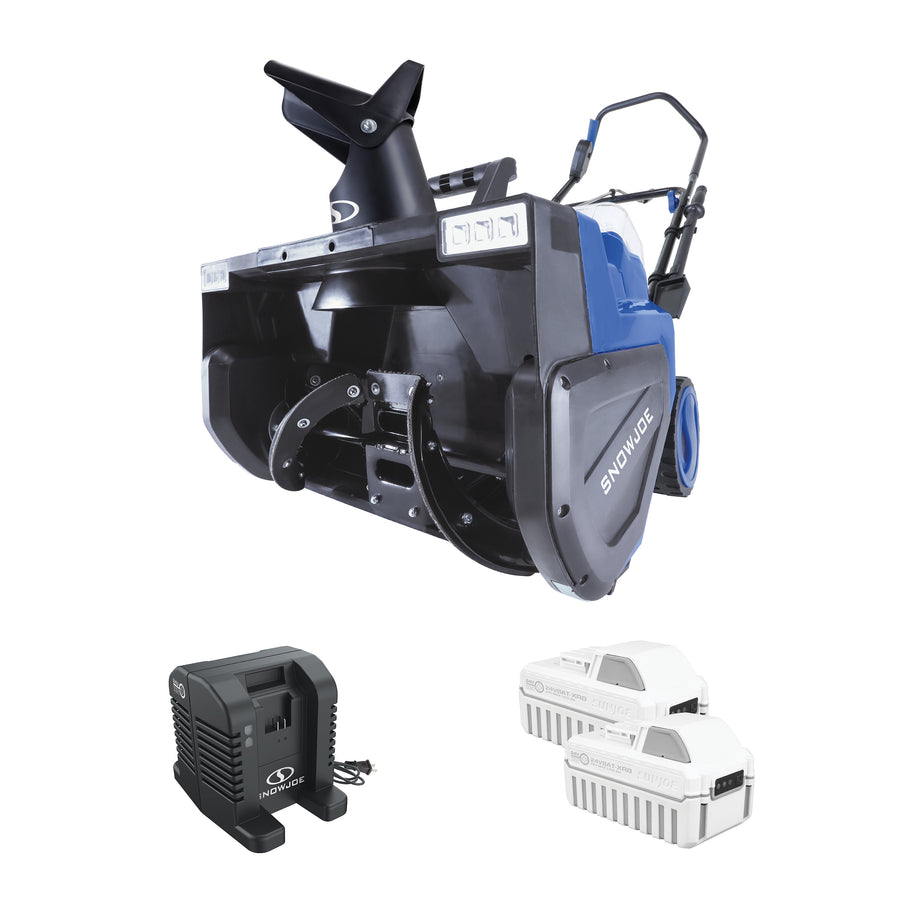

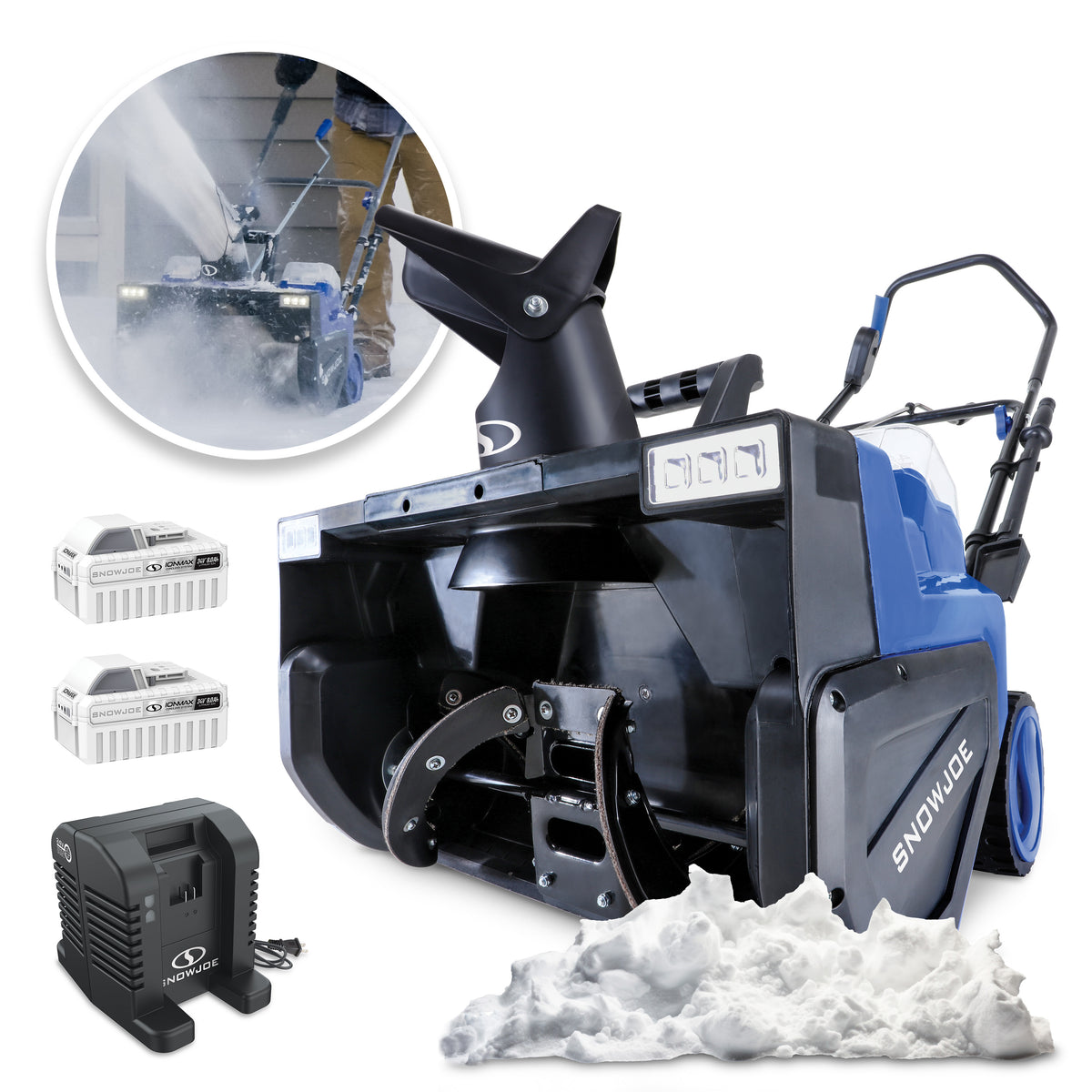

24V-X2-SB22 Cordless Snow Blower Snow Joe® 24V-X2-SB22 Cordless Snow Blower | Product Guide ❄️ Snow Joe® Product Guide22-Inch Clearing Width 1600 W Brushless Motor 2-Year WarrantyWage War on Winter.The Snow Joe® 24V-X2-SB22 Cordless Snow Blower uses two included 24V IONMAX™ 8.0 Ah batteries to deliver 48V max power. It clears a 22-inch wide by 13-inch deep path, throws snow up to 25 feet, and features dual LED lights for safer clearing after dark.⚡ 1600 W Brushless Motor ❄️ 22 in. x 13 in. Clearing Path 🔋 Includes High-Speed Dual-Port ChargerMeet the 24V-X2-SB22 Key Components🤲Handle bar — main grip area for pushing and controlling the snow blower▶️Safety lock button + ON/OFF trigger — two-step start control to help prevent accidental starting🔋Battery compartments — hold the two included 24V IONMAX™ battery packs❄️Auger — 4 rubber-tipped steel blades move snow through the housing🧊Scraper bar — helps clear close to paved surfaces without damaging decks, driveways, or pavement↔️Discharge chute + chute crank — adjusts snow discharge direction up to 180°↕️Chute deflector + deflector knob — controls the height of the snow stream💡Dual LED lights — illuminate the forward clearing path while the blower is running🧹Chute clean-out tool — clears chute buildup safely without using hands🧷Clean-out tool clips — attach the clean-out tool to the middle frame🛞Wheels — help maneuver the snow blower during clearing and transport🔌High-speed dual-port charger — charges both included 24VBAT-XR8 battery packsTechnical SpecificationsSpecification24V-X2-SB22Product TypeCordless single-stage snow blowerBest UseHeavy driveway clearing, large decks, and drivewaysMotor1600 W brushlessBattery Voltage Max48V DC max / 2 x 24V batteriesBattery Capacity8.0 AhBattery Model24VBAT-XR8, 2 includedBattery FeatureIONMAX™ 24V 8.0 Ah batteries feature USB-C charging capabilitiesCharger Model24VCHRG-HS-DPC high-speed dual-port chargerCharger Input120V AC, 60 Hz, 260 WCharger Output26V DC, 2 x 4ACharge Time Max2 hrNo Load Speed2500 rpmAuger4 rubber-tipped steel bladesClearing Width22 in. / 56 cmDepth of Snow Cut13 in. / 33 cmThrow Distance Max25 ft / 7.6 mPlowing Capacity Max840 lbs/min / 381 kg/minStagesSingle stageType of SnowLight, fluffy snowDirectional Control180° adjustable chuteLED Lights2 lights, 1 WTire Size7 in. / 27.8 cmProduct Dimensions22.5 in. L x 23.5 in. W x 22 in. HNet Weight45.2 lbs / 20.5 kgWhat's in the BoxIncluded Item24V-X2-SB22 KitCordless snow blower✔Middle frame✔Upper frame✔Handle knobs and bolts✔ 4 setsUpper chute crank✔Lower chute crank✔Cable clips✔ 3 clipsChute clean-out tool with clips✔ tool + 2 clips24V IONMAX™ 8.0 Ah lithium-ion batteries✔ 2 batteries24V IONMAX™ high-speed dual-port charger✔Manual✔💡 Kit note: This kit includes two 8.0 Ah XR8 batteries and a high-speed dual-port charger. Use both batteries together for operation.Assembly🚫 Do not insert the batteries until assembly is complete. Accidental starting can cause serious injury.1Step 1Attach the middle frame to the lower frame.›2Step 2Attach the upper frame to the middle frame.›3Step 3Adjust and secure the chute deflector.›4Step 4Attach the clean-out tool and clips.›5Step 5Install the upper and lower chute crank rods.Assemble the framesSecure the middle frame to the lower frame with the first set of knobs and bolts on each side. Then secure the upper frame to the middle frame with the second set of knobs and bolts.Set the chute deflectorLoosen the chute deflector knob, raise or lower the deflector to the desired snow stream height, then tighten the knob.Attach the chute clean-out toolAttach the two included clean-out tool clips to the middle frame, then snap the clean-out tool onto the clips.Install the lower chute crankRemove the hitch pin from the female end of the lower chute crank. Insert the lower crank rod into the opening at the back of the housing, align the holes, and secure it with the hitch pin.Install the upper chute crankSlide the upper chute crank through the rubber ring on the middle frame, connect it to the lower chute crank, align the holes, and secure it with the hitch pin.Secure the cablePlace the cable clips over the cable and snap them onto the middle frame to secure the cable to the machine.⚠️ Assembly check: Make sure the chute deflector is secure. Do not overtighten the chute deflector knob.Getting StartedCharge both batteries firstInsert the charger plug into a wall outlet. The top light turns green when powered on. Insert both batteries into the charger. The bottom red light indicates charging; the top green light with the red light off indicates fully charged. A fully discharged battery pack charges in about 2 hours in the normal temperature range.Check battery charge levelPress the charge-level button on each battery. Three lights indicate high charge; one light means the battery should be charged immediately.Inspect the clearing areaRemove stones, toys, broken glass, nails, wire, string, and other objects that could be picked up and thrown by the auger.Install both batteriesOpen the battery compartment covers and slide each battery down until it clicks and locks into position.Start the snow blowerPress and hold the safety switch button, then pull the ON/OFF trigger toward you. Once the machine starts, release the safety switch button.Clear at a steady pacePush gently and evenly according to the unit’s throw rate. Do not force the machine or push too quickly.Adjust snow direction and heightRotate the chute crank to adjust the discharge chute up to 180°. Loosen the deflector knob to raise or lower the snow stream, then tighten the knob.Stop the unitRelease the ON/OFF trigger. Wait for all moving parts to stop before cleaning, inspecting, or storing the unit.💡 Headlight note: The two LED lights turn on when the snow blower is running and automatically turn off about 30 seconds after the machine powers off.🚫 Never use your hands to unclog the chute. Turn the motor off, remove the batteries, wait 10 seconds for the impeller blades to stop, then use the clean-out tool.Maintenance & Care🚫 Always turn off the snow blower and remove both batteries before cleaning, inspecting, servicing, storing, or transporting the unit.1Run briefly after snow clearingAfter each snow removal session, run the snow blower for a few minutes to help prevent the collector/impeller and auger from freezing.2Remove residual snow and iceShut off the motor, wait for all revolving parts to stop, remove the batteries, then wipe residual snow and ice from the unit.3Rotate the chute after useRotate the chute deflector by the chute control crank several times to remove excess snow buildup.4Check hardware oftenInspect bolts and screws at frequent intervals and tighten as needed to keep the equipment in safe working condition.5Care for batteries and chargerDo not immerse batteries or charger in liquid. Clean charger vents and electrical contacts with compressed air. Use only mild soap on a damp cloth when cleaning plastic surfaces.6Store indoorsRemove both batteries and store the snow blower indoors in a locked, dry place out of reach of children.7Recharge during off-season storageRecharge the battery packs every 6 months to about 50% capacity, shown as 2 lights on the battery indicator, to maintain battery performance.8No lubrication neededLubrication is not necessary and may damage the unit. The motor and auger are lubricated for lifetime use at the factory.Troubleshooting GuideOnly perform the steps described below. If the issue cannot be resolved, contact Shop Joe customer support or an authorized service center.🔴 Unit Does Not StartPossible CausesOne or both batteries are not installed correctlyOnly one battery is installedBatteries are dischargedStart sequence was not followedSolutionsInstall both batteries until each clicks into placeUse two batteries of the same voltage and capacityCharge both batteries before usePress the safety switch button first, then pull the ON/OFF trigger🟡 Batteries Will Not ChargePossible CausesBatteries are not fully seated in the chargerBattery temperature is too hot or too coldCharger is not plugged into the correct outletSolutionsRemove and reinsert both batteries into the chargerAllow batteries to return to the normal charging rangeConfirm the charger is plugged into a 120V AC outletContact support if charger lights do not come on after reseating the batteries🟡 Weak Snow Clearing PerformancePossible CausesBattery charge is lowSnow is too deep, wet, packed, or heavySnow blower is being pushed too fastSnow type may be outside the recommended light, fluffy snow useSolutionsRecharge both batteriesClear within the recommended 13-inch depth per passPush gently and evenly according to the unit’s throw rateUse slower passes in heavier snow conditions🟡 Chute Is CloggedPossible CausesWet, packed, or heavy snow is blocking the discharge chuteSnow is being cleared faster than the unit can discharge itSolutionsTurn the motor offRemove both batteriesWait 10 seconds for the impeller blades to stopUse the clean-out tool, not your hands, to clear the chuteResume clearing at a slower, steady pace🟡 Frozen Parts or ControlsPossible CausesExtreme temperatures caused parts to freezeResidual snow or ice remained after useSolutionsStop the snow blower and remove both batteriesInspect for frozen partsFree all frozen parts before restartingNever force frozen controlsRun the unit briefly after clearing snow to help prevent freezing🟡 Abnormal Noise or VibrationPossible CausesForeign object may have entered the snow blowerPart may be worn, loose, damaged, or misalignedSolutionsStop the machine immediatelyRemove both batteriesInspect the unit for obstructions or damageRepair or replace damaged parts before restartingContact support if abnormal sounds continue🟡 Snow Is Throwing Toward People or PropertyPossible CausesDischarge chute is aimed in an unsafe directionChute deflector height is set too high or too low for the areaSolutionsStop and rotate the chute away from people, vehicles, windows, and the operatorAdjust the chute deflector height and retighten the knobAlways check chute direction before restartingVideo GuideFrequently Asked QuestionsWhat comes with the 24V-X2-SB22 kit?This kit includes the cordless snow blower, middle frame, upper frame, handle knobs and bolts, upper chute crank, lower chute crank, cable clips, chute clean-out tool with clips, two 24V IONMAX™ 8.0 Ah lithium-ion batteries, a high-speed dual-port charger, and manual.How wide and deep does it clear?The 24V-X2-SB22 clears a 22-inch wide path and cuts snow up to 13 inches deep in a single pass.How far can it throw snow?The adjustable chute can throw snow up to 25 feet away. The chute rotates up to 180° and the chute deflector controls the snow stream height.Can I run the snow blower with only one battery?No. The cordless snow blower must be powered by both batteries together. Use two batteries of the same voltage and same capacity.What type of snow is this model designed for?The manual lists the recommended snow type as light, fluffy snow. For heavier or packed snow, use slower passes and avoid forcing the machine.Do the included 8.0 Ah batteries have USB-C charging?Yes. The 24V IONMAX™ 8.0 Ah batteries included with this model feature USB-C charging capabilities.What optional accessories are listed for this model?Compatible optional accessories listed for this model include:24VBAT — 24V IONMAX™ 4.0 Ah lithium-ion battery24VBAT-XR — 24V IONMAX™ 5.0 Ah lithium-ion battery24VBAT-XR8 — 24V IONMAX™ 8.0 Ah lithium-ion battery24VCHRG-HS-DPC — 24V IONMAX™ high-speed dual-port charger24VCHRG-DPC — 24V IONMAX™ dual-port chargerSJCOT — universal snow thrower chute clean-out toolHow should I store the batteries during the off-season?Store the batteries and charger at room temperature away from moisture. During off-season storage, recharge the batteries every 6 months to about 50% capacity, shown as 2 lights on the battery indicator.
