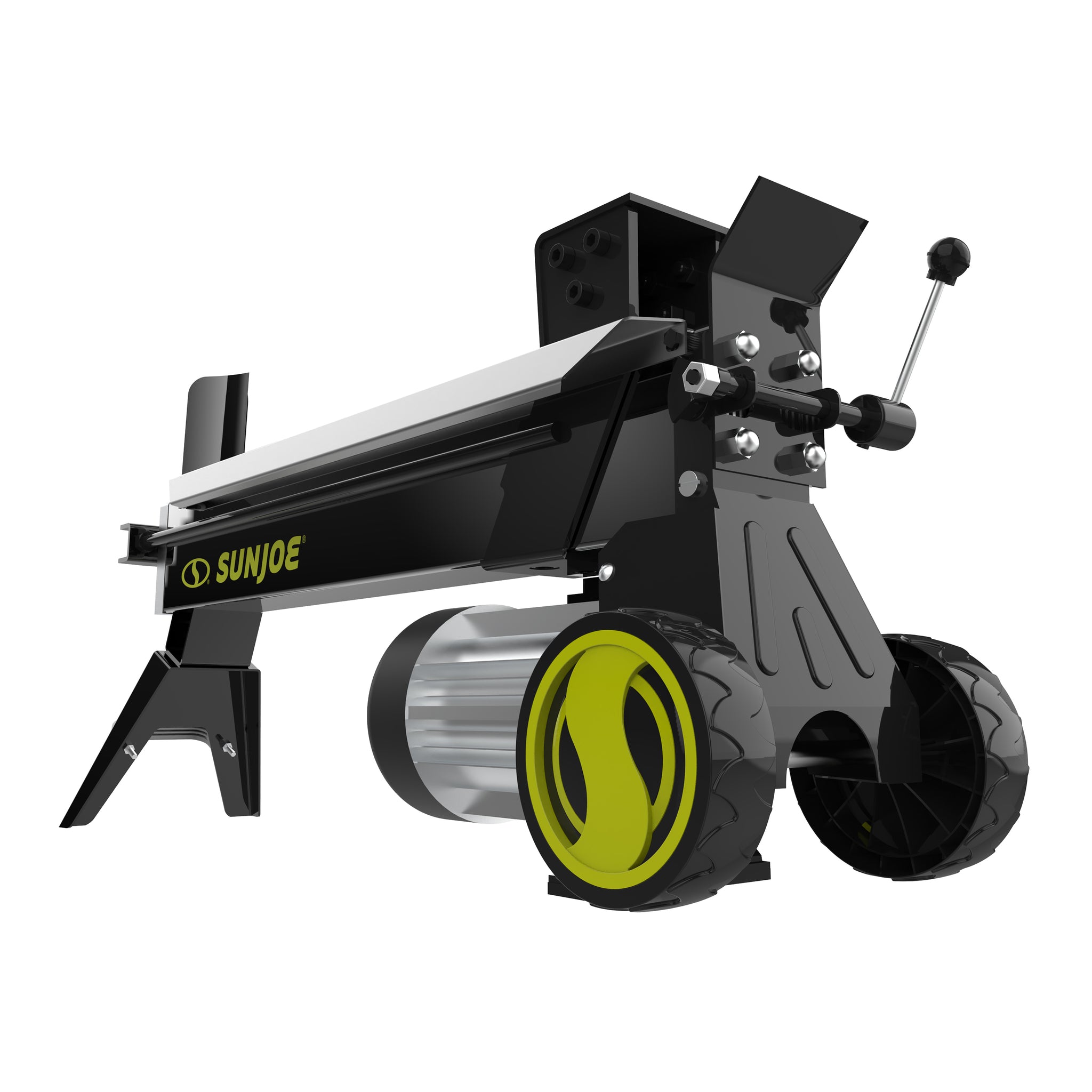

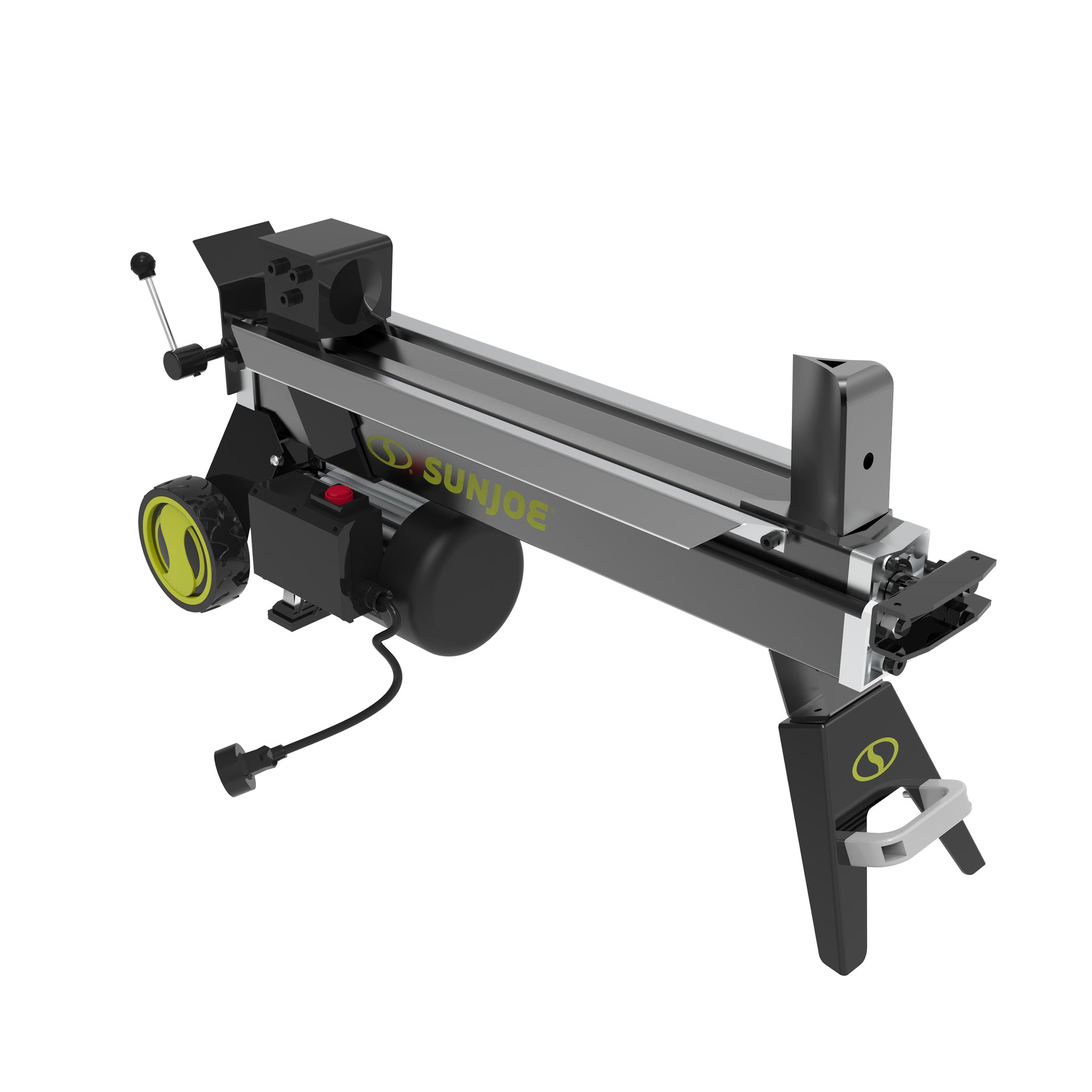

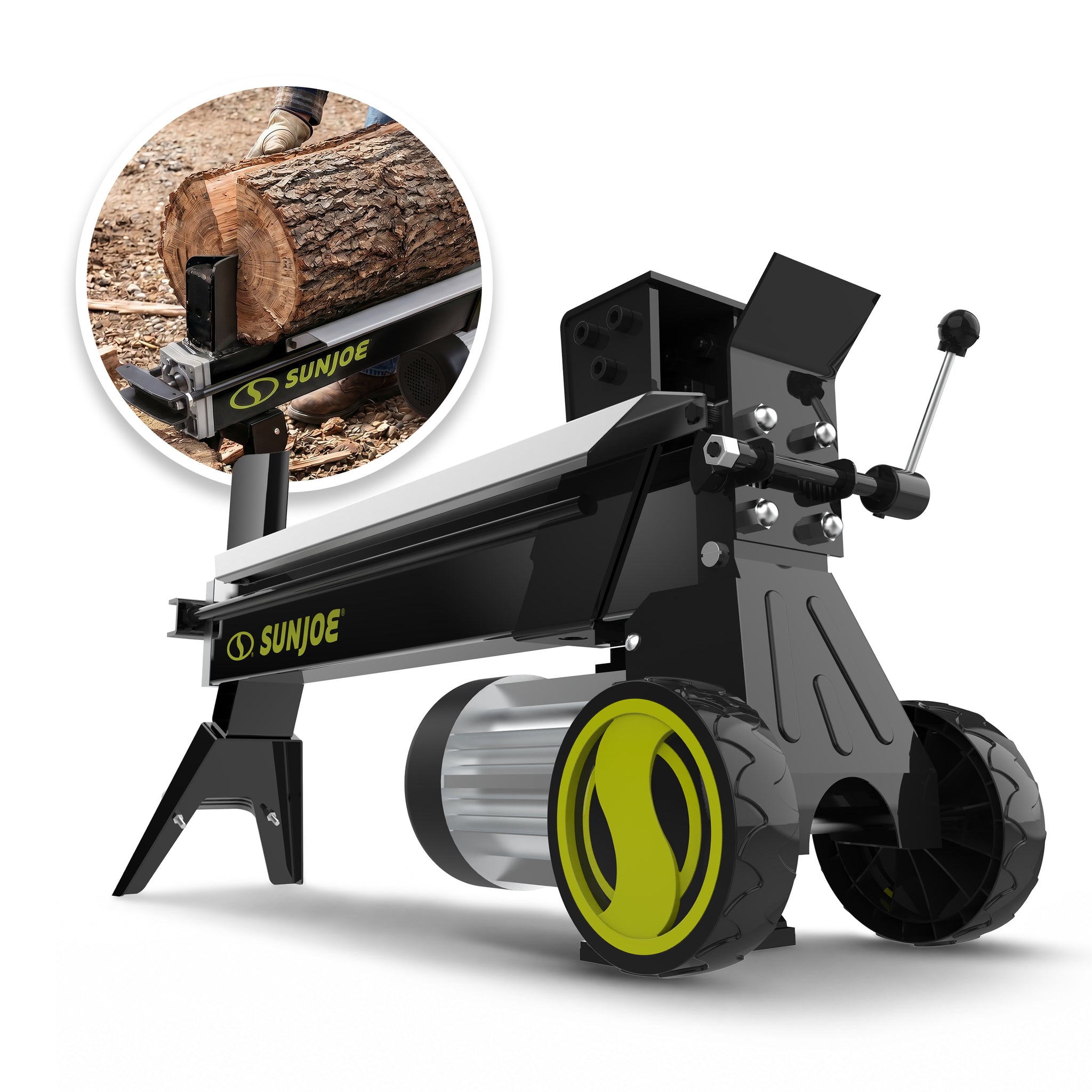

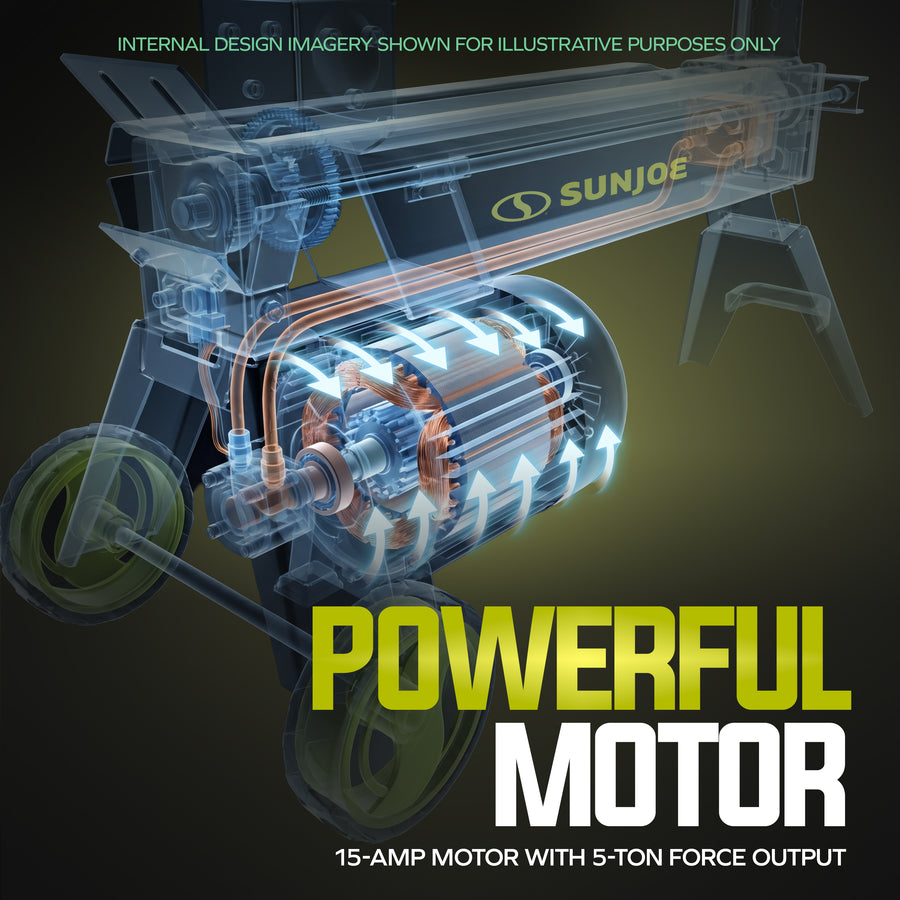

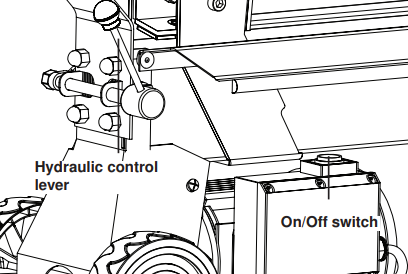

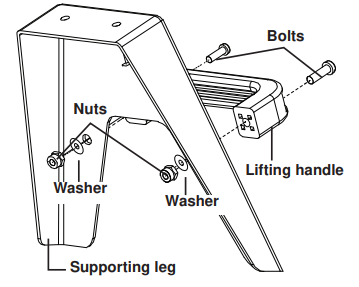

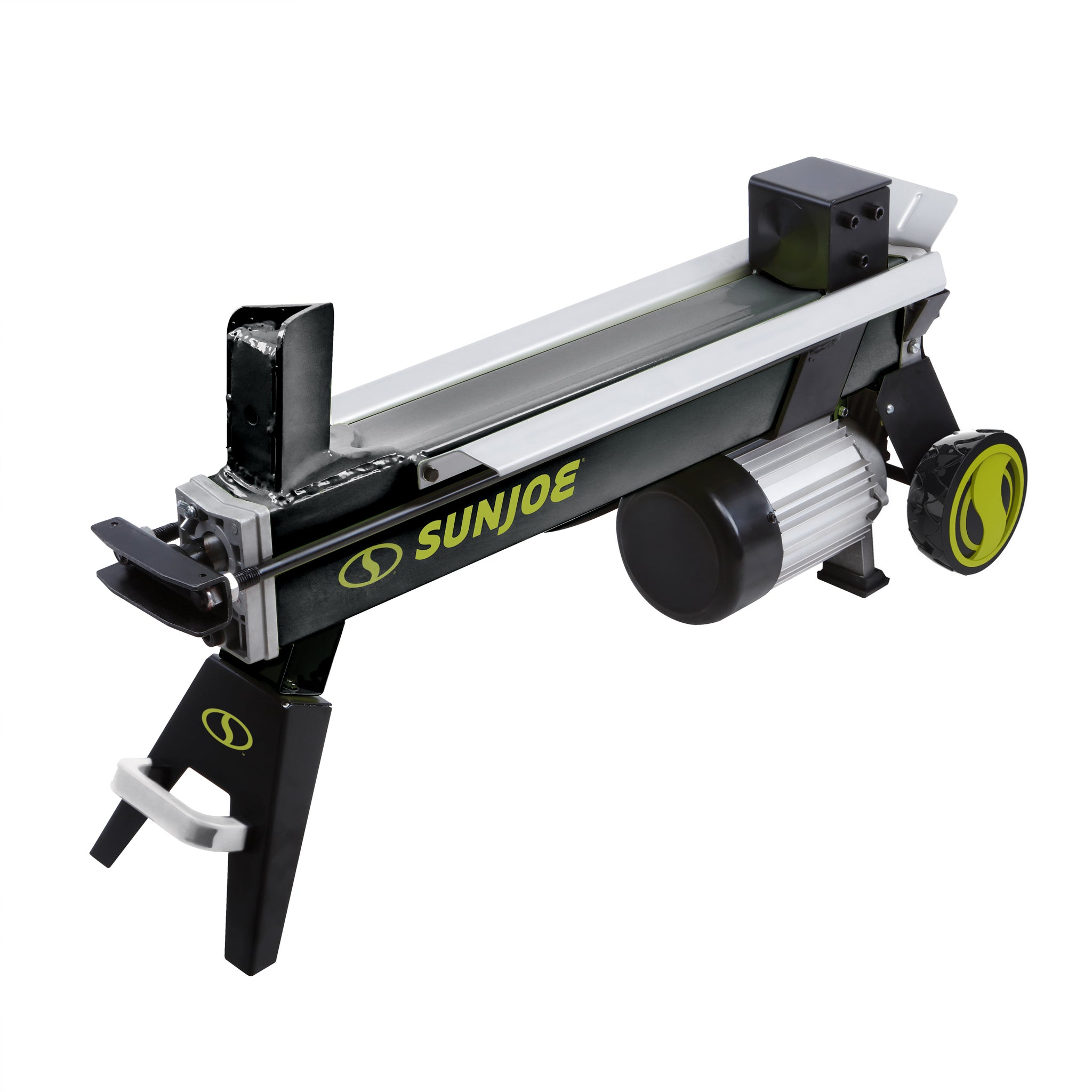

LJ602E Electric Log Splitter Sun Joe® LJ602E Electric Log Splitter | Product Guide ☀️ Sun Joe® Product Guide15-Amp Motor 5-Ton Splitting Force 2-Year WarrantySplit Firewood the Electric Way.The Sun Joe® LJ602E Electric Log Splitter is built for home and light-duty firewood splitting. Powered by a 15-amp motor and hydraulic ram, it delivers up to 5 tons of splitting force for logs up to 10 inches in diameter and 20.5 inches long.⚡ 15-Amp Electric Motor 🪵 Hydraulic 5-Ton Ram 🚫 No Gas, Fumes, or Pull CordsMeet the LJ602E Key Components🪵Log pusher — moves the log toward the splitting wedge during operation🛤️Log rail — supports the log while it is being split🔺Splitting wedge — separates the log along the grain💨Bleed screw — must be loosened before operation and tightened before moving🛢️Oil drain bolt with dipstick — used to check and replace hydraulic oil🤲Lifting handle — helps move and position the log splitter🦵Supporting leg — stabilizes the machine during splitting📏Log retaining plates — help keep the log stable on the rail⚙️Motor — 15-amp electric motor powers the hydraulic system🔘ON/OFF switch — used with the hydraulic control lever for two-hand operation🎚️Hydraulic control lever — engages the hydraulic ram when used with the ON/OFF switch🛞Rear wheels — help transport the 92.6 lb unit around the work areaTechnical SpecificationsSpecificationLJ602EProduct TypeElectric hydraulic log splitterBest UseHome or light-duty firewood splittingPower SourceCorded electricMotor15 ampRated Voltage120V AC, 60 HzDuty CycleS3: 5 minutes on / 10 minutes offMaximum Splitting Force5 tonRam Force / Continuous Force5 tonMaximum Log Length20.5 in. / 52 cmMaximum Log Diameter10 in. / 25.4 cmWedge Height5 in. / 12.7 cmBeam Height5.5 in. / 14 cmHydraulic Capacity1.1 gal / 4.2 LHydraulic Oil TypeAW32 anti-wear hydraulic oilWheel Size6 in. / 15.2 cmMaterialSteelOrientationHorizontalCertificationETL approvedNet Weight92.6 lbs / 42 kgWhat's in the BoxIncluded ItemLJ602EElectric log splitter✔Lifting handle✔Supporting leg✔Bolts, nuts, and washers✔ 4 setsManual✔Assembly🚫 Do not connect the log splitter to power until assembly is complete. Do not operate if the unit is partially assembled or has damaged parts.1Step 1Place the lifting handle onto the supporting leg.›2Step 2Secure the handle and leg with bolts, nuts, and washers.›3Step 3Attach the leg with handle assembly to the bottom of the splitter.›4Step 4Secure with the remaining bolts, nuts, and washers.Build the leg and handle assemblyPlace the lifting handle on the supporting leg. Fasten them together with the supplied bolts, nuts, and washers, then tighten securely.Attach the assembly to the log splitterPosition the leg with handle assembly on the bottom of the log splitter. Secure it with the remaining two sets of bolts, nuts, and washers.Final assembly checkConfirm all hardware is tight and the splitter is stable before connecting power.Getting StartedSet the splitter on a safe work surfacePlace the machine on a stable, level surface 23.6 in. to 29.5 in. high. Keep children, pets, and bystanders at least 16.5 ft away.Check log size and conditionUse logs up to 10 in. diameter and 20.5 in. length. Make sure the log is free of nails, wire, and other foreign objects. Ends should be cut square and branches cut flush.Open the bleed screwBefore operation, loosen the bleed screw three to four turns so air can move in and out of the oil tank.Use the correct extension cordUse only an outdoor-rated 3-wire extension cord. Use 14 AWG up to 25 ft, or 12 AWG for 26–50 ft. Do not use an extension cord longer than 50 ft.Load the log lengthwisePlace the log between the wedge and log pusher so the split follows the grain. Keep hands away from log ends, the wedge, and the pusher.Operate with both handsUse your left hand to push the hydraulic control lever and your right hand to press the ON/OFF switch. Both controls must be engaged at the same time.Release to stop and resetRelease both controls. The log pusher will return to the starting position. Wait until it fully stops before removing split wood.Close the bleed screw before movingTighten the bleed screw before transporting or moving the machine to help prevent oil leakage.🚫 Do not split logs for more than 5 seconds per attempt. If a log does not split within 5 seconds, release the controls. Rotate the log 90° and try again. If it still does not split, the log exceeds the machine’s capacity.⚠️ Duty cycle: Do not operate at 15A load for more than 5 minutes at a time. Let the motor cool for at least 10 minutes before restarting.Maintenance & Care🚫 Always disconnect power and release built-up pressure before cleaning, repairing, inspecting, or servicing the log splitter.1Check fasteners before useInspect all bolts, screws, and fasteners for tightness before each work session.2Keep the wedge sharpPeriodically sharpen the wedge with a fine-tooth file. Remove burrs and smooth rough cutting-edge areas.3Lubricate springs and moving areasApply a light coat of rust-resistant oil, such as 3-in-1 oil or WD-40, to the springs. Annually clean and lightly lubricate parts.4Replace hydraulic oil every 150 hoursUse AW32 anti-wear hydraulic oil. Turn off and unplug the splitter, remove the oil drain bolt with dipstick, drain the oil, refill, and tighten the oil drain bolt securely.5Inspect for oil leaksCheck the bleed screw and oil drain bolt with dipstick. Tighten them before moving or storing to help prevent leakage.6Protect metal surfacesUse glossy enamel spray paint to touch up scratched or worn painted metal surfaces.7Store clean and dryBefore storage, make sure the splitter is clean and dry. Lightly lubricate metal surfaces and store in a secure, dry location away from children.🚫 Do not adjust the max pressure limit screw. It is factory-set for the 5-ton pressure limit. Tampering with it can cause hydraulic pump failure and should only be handled by a professional mechanic.Troubleshooting GuideOnly perform the steps described below. If the issue cannot be resolved, contact Shop Joe customer support or an authorized service center.🔴 Motor Does Not RunPossible CauseOverload protection device disengaged to protect the log splitterSolutionDo not open the switch box yourselfContact a qualified electrician to open the switch box and re-engage the overload protection device🟡 Machine Fails to Split LogsPossible CausesLog is improperly positionedLog size or hardness exceeds machine capacityWedge cutting edge is bluntOil leak is presentMax pressure limit screw was adjustedSolutionsReload and reposition the log correctlyDo not exceed 10 in. diameter or 20.5 in. lengthSharpen the wedge with a fine-tooth fileCheck for oil leaksDo not adjust the max pressure limit screw; contact service🟡 Log Pusher Moves Jerkily or Makes NoisePossible CausesLow hydraulic oilExcessive air in the hydraulic systemBleed screw was not tightened before movingSolutionsCheck hydraulic oil level and refill with AW32 oil if neededLoosen the bleed screw 3–4 turns before operatingTighten the bleed screw before moving the machine🟡 Oil Leaks Around Ram or Other PointsPossible CausesBleed screw was not tightened before movingOil drain bolt with dipstick is looseHydraulic control valve assembly or seals are wornSolutionsTighten the bleed screw before movingTighten the oil drain bolt with dipstickContact customer service if leaking continues🟡 Log Pusher Does Not ReturnPossible CausesHydraulic control lever or ON/OFF switch released too quicklyLow hydraulic oil levelHydraulic valve malfunctionSolutionsRelease both controls fully and at the same timeCheck and refill AW32 hydraulic oilContact customer service if the issue persists🟡 Motor Overheats or Thermal Shutoff OccursPossible CauseDuty cycle exceededSolutionsTurn the machine off immediatelyAllow it to cool for at least 10 minutesDo not operate continuously for more than 5 minutes at a time🟡 Machine Splits Slowly or with Low ForcePossible CausesLow hydraulic oil levelAir in hydraulic systemBleed screw not open during operationSolutionsRefill AW32 hydraulic oil to the correct levelLoosen bleed screw 3–4 turns before operationDo not adjust the max pressure limit screw🟡 Log Gets Stuck on the WedgePossible CausesLog hardness exceeds machine capacityLog has irregular grain or knotsSolutionsRelease both controls and wait for the pusher to returnInsert a wedge-shaped piece of wood under the jammed logRestart the splitter to push the wedge wood under the stuck logRepeat with a sharper wooden wedge as neededDo not knock the jammed log offVideo GuideFrequently Asked QuestionsWhat comes with the LJ602E?The LJ602E includes the electric log splitter, lifting handle, supporting leg, four sets of bolts, nuts, and washers, and the manual.What size logs can it split?The LJ602E is designed for logs up to 10 inches in diameter and 20.5 inches long.Can it split more than one log at a time?No. Only split one log at a time. Splitting more than one log can cause a piece to fly up and create a serious injury risk.What kind of hydraulic oil does it use?The manual specifies AW32 anti-wear hydraulic oil. The hydraulic oil should be replaced after every 150 hours of use.How long can I run the log splitter continuously?The LJ602E is designed for occasional use. Do not operate it at 15A load for more than 5 minutes at a time. Let it cool for at least 10 minutes before restarting.What extension cord should I use?Use only an outdoor-rated 3-wire extension cord. Use 14 AWG up to 25 ft or 12 AWG from 26–50 ft. Do not use an extension cord longer than 50 ft.What optional replacement parts are listed for this model?The manual lists the following optional replacement parts:LJ602E-DIP — oil drain bolt with dipstickLJ602E-BLEED — bleed screw
