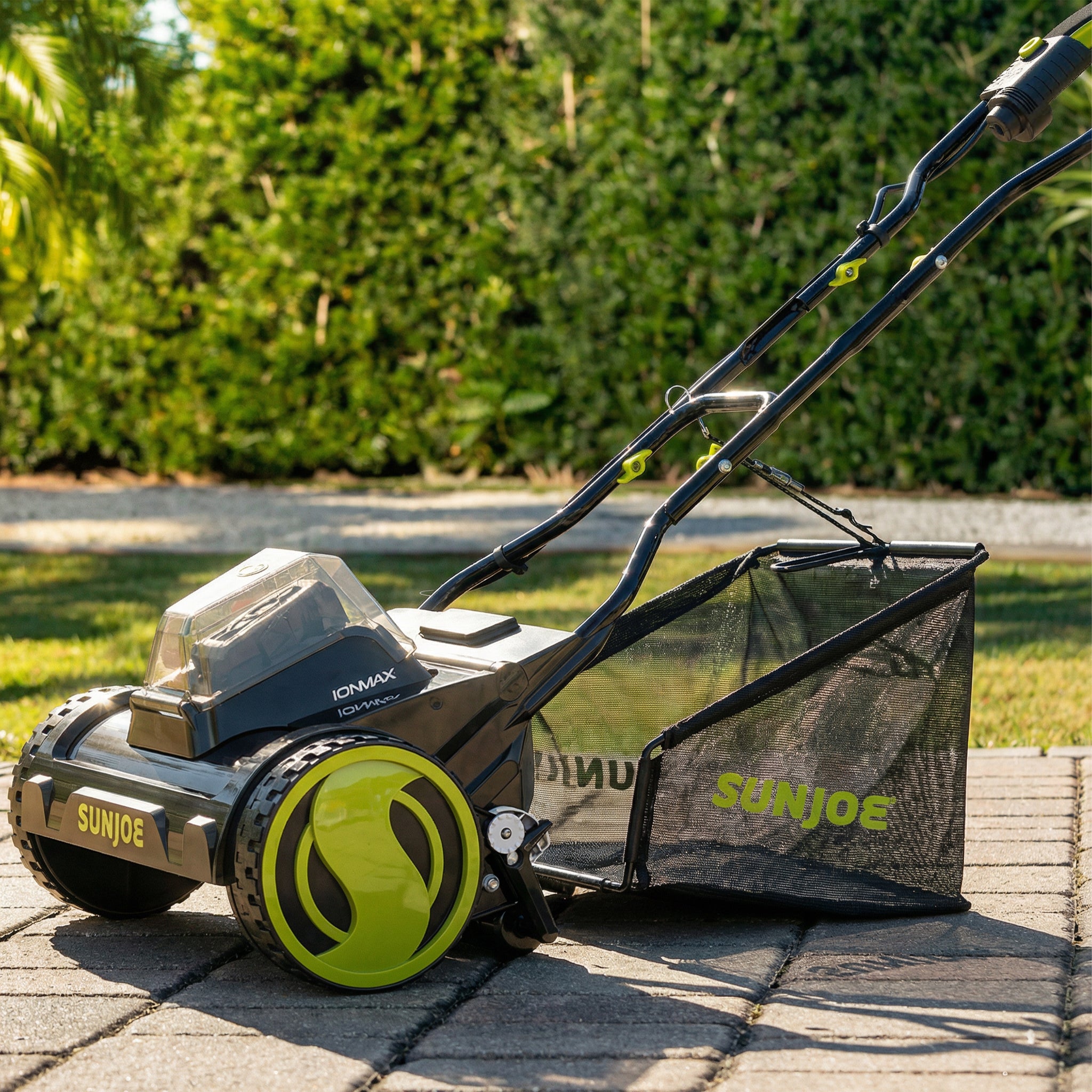

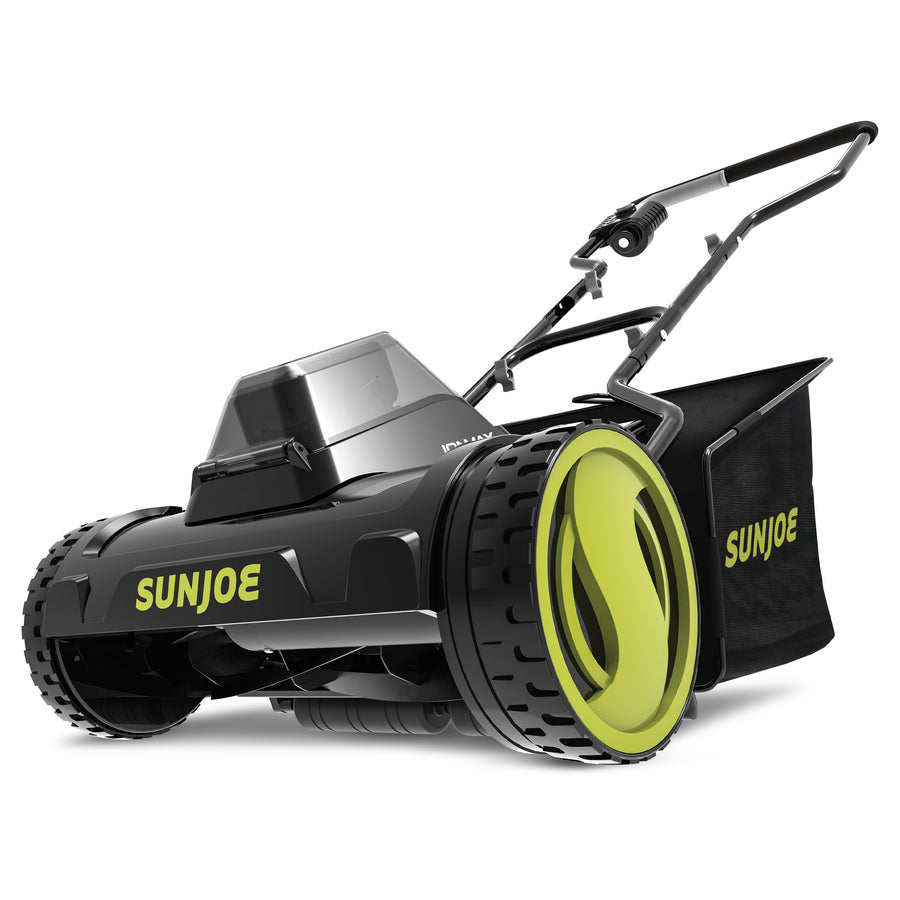

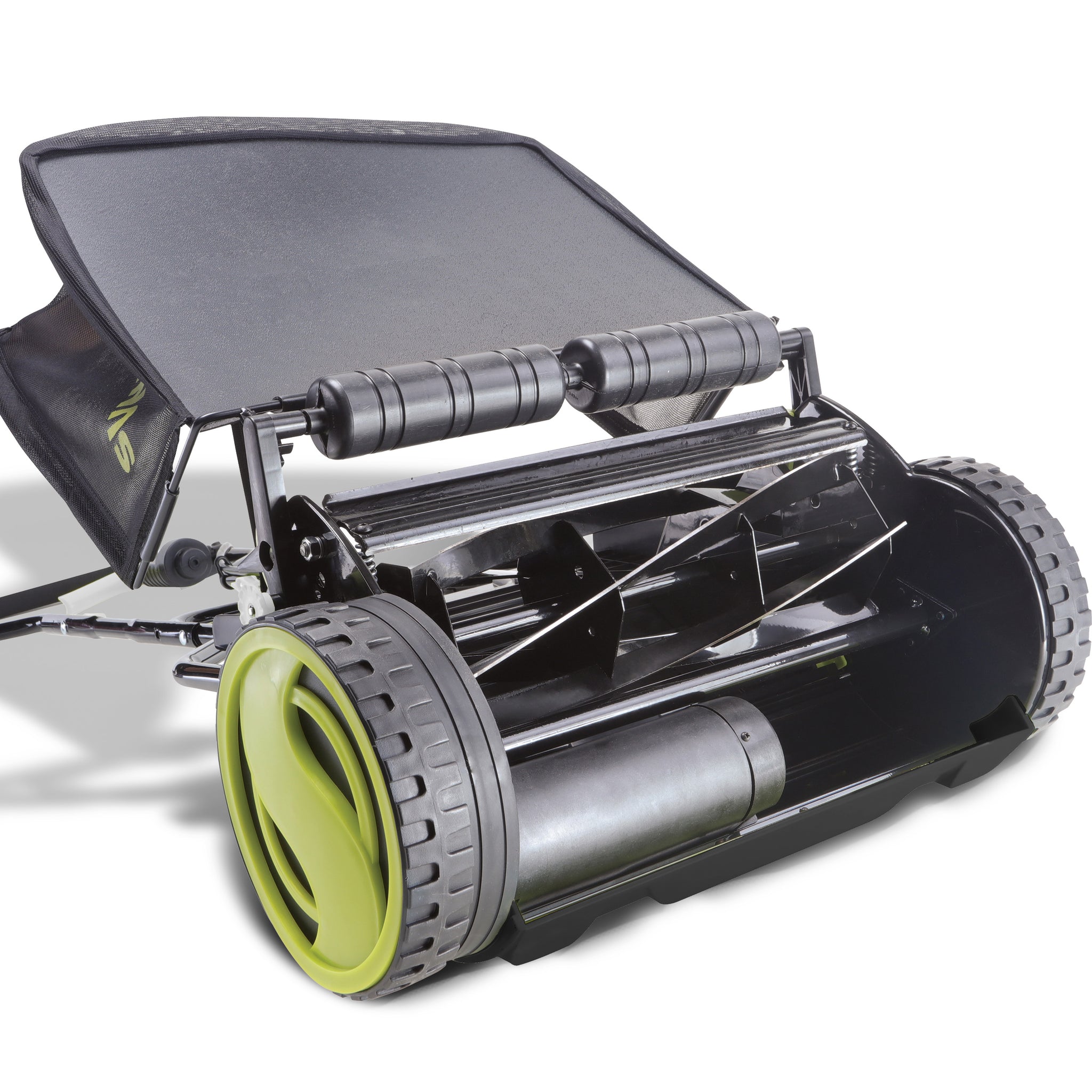

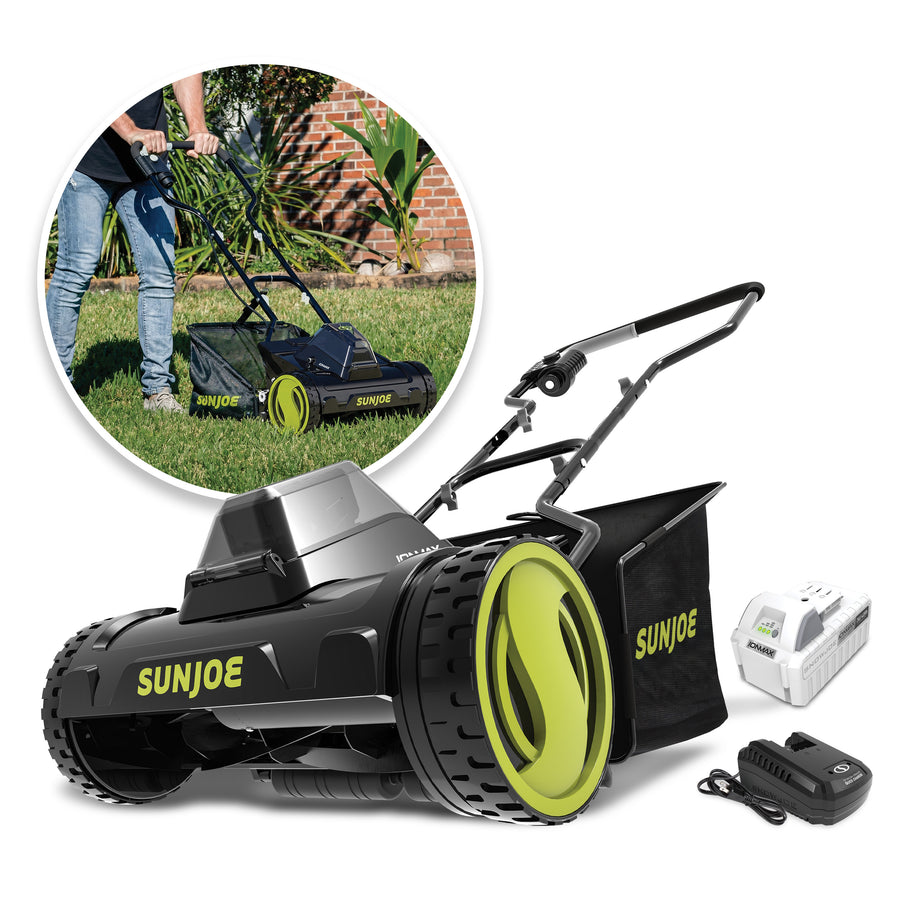

24V-CRLM15 Cordless Push Reel Mower Sun Joe® 24V-CRLM15 Cordless Reel Mower | Product Guide Cut the Cord® and Mow With Joe®. The Sun Joe® 24V-CRLM15 Cordless Reel Mower combines reel-mower precision with 24V battery convenience. Its 360W motor powers a 15-inch, 5-blade RAZOREEL cutting system, while the included 4.0 Ah IONMAX battery and quick charger help keep small to mid-size lawns trimmed without gas, cords, or fumes. ⚡ 24V IONMAX Power🌱 5-Blade Reel Cut🚫 No Gas, Fumes, or Pull Cords Meet the 24V-CRLM15 Key Components 🤲 Soft grip + upper handle frame — comfortable handle area for pushing and steering 🧩 Middle handle bars — connect the upper and lower handle frames 🧺 Grass collection bag — collects clippings and helps keep the lawn tidy 📏 Height adjustment knobs — adjust cutting height to 0.6, 1.0, 1.5, or 2.0 inches 🌀 5 steel cutting blades — reel-style blades lift and cut grass as the mower moves 🔋 Battery compartment — houses the 24V iON+ lithium-ion battery 🔐 Safety lock button — must be pressed before the On/Off switch lever can start the mower 🎚️ On/Off switch lever — pull to run and release to stop the mower 🔌 24V quick charger — charges the included 24VBAT battery in about 1 hr 50 mins Technical Specifications Specification 24V-CRLM15 Product Type Cordless push reel mower Best Use Small to mid-size residential lawns and gardens Power Source 24V cordless battery Motor 360 W Battery Voltage Max 24V DC max / 21.6V nominal under typical load Battery Capacity 4.0 Ah Battery Model 24VBAT Charger Model 24VCHRG-QC Charger Input 120V AC, 60 Hz, 75 W Charger Output 26V DC, 2.2A Charge Time Max 1 hr 50 mins No Load Speed 1000 RPM Rotor 5 steel blades Cutting Width 15 in. / 38 cm Cutting Heights 0.6 in. / 1.0 in. / 1.5 in. / 2.0 in. Grass Collection Bag Capacity 11.9 gal / 45 L Net Weight 29.5 lbs / 13.4 kg Warranty 2 Year Warranty 💡 Voltage note: The 24V max rating refers to initial no-load voltage at full charge. Nominal voltage under typical load is 21.6V. What's in the Box Included Item 24V-CRLM15 Cordless reel mower body connected with upper handle frame ✔ Middle handle bars ✔ 2 Lower handle frame ✔ Grass collection bag ✔ Grass collection bag support rod ✔ Handle knob + bolt sets ✔ 4 sets Lower handle knobs ✔ 2 Cable clips ✔ 2 Hex key wrench ✔ 24V iON+ lithium-ion battery ✔ 24V iON+ lithium-ion battery charger ✔ Manual and registration card ✔ Assembly 🚫Do not insert the battery until assembly is complete. Make sure the mower is fully assembled and all knobs, bolts, and clips are secure before operation. 1 Step 1 Install the lower handle frame into the mower base sockets. › 2 Step 2 Attach the middle handle bars and upper handle frame. › 3 Step 3 Secure the cable with the two cable clips. › 4 Step 4 Assemble and attach the grass collection bag. Install the lower handle frame Insert the ends of the lower handle frame into the sockets on both sides of the mower base. Lock them with the lower handle knobs. Attach the middle handle bars Fit the middle handle bars on both sides of the lower handle frame. Align the holes and secure with two handle knob and bolt sets. Attach the upper handle frame Fit the upper handle frame onto both middle handle bars. Align the holes and secure with the remaining two handle knob and bolt sets. Clip the cable Secure the cable to the handle using the two cable clips so it stays clear during mowing. Assemble the grass collection bag Fit the grass collection bag support rod into the bag tube, then clip the protective leather profiles onto the support rod. Attach the collection bag Lift the ejector flap, hook the bag sockets onto both ends of the roller bar shaft, then hook the strap to the center bar of the lower handle frame. Battery Charging Remove the battery Open the battery compartment cover and press the battery push lock button to remove the pack from the mower. Plug in the charger Insert the charger plug into a matching wall outlet. The charger’s green light will illuminate when powered. Seat the battery in the charger Slide the battery pack into the charger until it locks. The red light indicates normal charging. Wait for full charge When the charger light turns green, the battery is fully charged. A fully discharged battery charges in about 1 hr 50 mins under normal temperature conditions. Remove from charger Press the battery push lock buttons and slide the battery out of the charger. 🔋 Battery care tip: Recharge the battery when you notice a drop in mower power. Never allow the battery pack to become fully discharged. Getting Started Inspect the lawn Remove stones, sticks, wires, toys, and other objects that could be picked up by the rotating blades. Set the cutting height Remove the battery first. Pull the height adjustment knobs on both sides of the mower frame and set both sides to the same height: 0.6, 1.0, 1.5, or 2.0 inches. Insert the battery Make sure the On/Off switch lever is not squeezed. Insert the battery into the compartment and close the battery compartment cover. Start the mower Press and hold the safety lock button, then pull the On/Off switch lever toward you. Release the safety lock button once the mower powers on. Mow at a steady pace Walk slowly in thick or tall grass. For a healthy lawn, cut one-third or less of the total grass height at one time. Stop the mower Release the On/Off switch lever. Wait for the blades to stop completely before lifting, tilting, carrying, or inspecting the mower. 🚫Do not start in tall grass. Set the mower to a higher cutting height when mowing uneven ground, tall grass, or thick growth. ⚠️ Slope safety: Mow across slopes, not up and down. Do not mow wet grass or excessively steep slopes. Maintenance & Care 🚫Always stop the mower, remove the battery, and wait for all moving parts to stop before cleaning, adjusting, repairing, or inspecting the mower. 1 Clean after each mowing session Remove grass clippings and debris with a dry cloth or hand brush. A damp cloth may be used, but do not let water enter the equipment. 2 Do not use running water Do not clean the reel mower with running water or high-pressure water. Avoid harsh solvents and cleaning agents. 3 Inspect hardware Check all nuts, bolts, screws, and handles for tightness before each use. 4 Check the grass collection bag Inspect the grass bag frequently for wear or damage. Replace damaged components with genuine parts. 5 Check cutting performance with paper With the battery removed, turn the mower upside down and insert paper between the steel blades and cutting bar. Turn the wheel by hand. The blades should slice paper evenly along the cutting bar. 6 Adjust the cutting bar if needed If cutting is intermittent, use the supplied hex key to tighten the nearest adjustment bolt clockwise about 1/8 turn. Do not overtighten. 7 Store dry Clean the exterior with a soft brush and cloth, then store the mower in a dry place. Do not place other objects on top during storage. Troubleshooting Guide Remove the battery before checking the mower, cleaning the deck, or performing maintenance. Only perform the steps described below. 🔴 Mower Fails to Start Possible Causes Battery is flat Battery is not inserted securely Motor/blade control is disengaged Mower deck is clogged with grass or debris Grass is too tall Solutions Charge the battery Attach the battery pack until it clicks Press the safety lock button first, then pull the On/Off switch lever Clean the mower deck and make sure the blade is free to move Set the mower to a higher cutting height 🟡 Mower Stops While Mowing Possible Causes Battery is flat Grass is too tall Mower deck is clogged with grass or debris Battery or mower circuitry is too hot Solutions Charge the battery Reset the cutting height higher Clean the mower deck and make sure the blade is free to move Let the battery and mower cool down before restarting 🟡 Mower Does Not Cut Evenly Possible Causes Lawn is rough or uneven Blade is not sharp enough Solutions Adjust the cutting height Sharpen or replace the blade 🟡 Mower Is Difficult to Push Possible Causes Grass is too tall to cut Blade or mower rear is dragging in heavy grass Too much tolerance between the steel blades and cylinder Solutions Raise the cutting height Tighten the adjusting bolts Perform the paper test and adjust the cutting bar carefully 🔴 Mower Vibrates at High Speed Possible Causes Motor shaft is bent Blade is unbalanced Adjusting bolts are loose Solutions Stop the motor, remove the battery, and inspect for damage Contact a qualified repair person if damage is found Balance or replace the blade if needed Tighten loose adjusting bolts 🟡 Battery Will Not Charge Normally Possible Causes Battery is not fully seated in charger Battery is too hot or too cold Charger is not connected to a proper outlet Solutions Remove and reinsert the battery into the charger Allow the battery to reach normal charging temperature Check the outlet and charger connection Contact support if charger lights do not illuminate Frequently Asked Questions What comes with the 24V-CRLM15? The mower includes the cordless reel mower body connected with upper handle frame, two middle handle bars, lower handle frame, grass collection bag, bag support rod, handle knobs and bolts, lower handle knobs, cable clips, hex key wrench, 24V iON+ battery, 24V iON+ charger, manual, and registration card. What cutting heights are available? The 24V-CRLM15 has four cutting height positions: 0.6 in., 1.0 in., 1.5 in., and 2.0 in. Always remove the battery and wait for the blades to stop before adjusting the cutting height. Can the mower be used without the grass collection bag? Yes. The manual states that the mower can be used without the grass collection bag. When the bag is not attached, adjust the ejector flap to help shield flying grass clippings. How long does the battery take to charge? A fully discharged 24VBAT battery charges in about 1 hour and 50 minutes when the battery temperature is within the normal charging range. What should I do if the mower is hard to push? Raise the cutting height if the grass is too tall. If the mower is still difficult to push, remove the battery and inspect the blade area. The manual also recommends tightening the adjusting bolts if there is too much tolerance between the steel blades and the cylinder. What optional accessories are listed for this model? Optional accessories listed for this mower include: 24VBAT — 24V iON+ 4.0 Ah lithium-ion battery 24VBAT-XR — 24V iON+ 5.0 Ah lithium-ion battery 24VBAT-XR8 — 24V iON+ 8.0 Ah lithium-ion battery 24VCHRG-QC — 24V iON+ lithium-ion quick charger 24VCHRG-DPC — 24V iON+ lithium-ion dual-port charger How should I store the mower? Remove the battery, clean the exterior with a soft brush and cloth, clean the blade area using a wood or plastic cleaning tool if needed, and store the mower in a dry place. Do not place other objects on top of the mower during storage.
