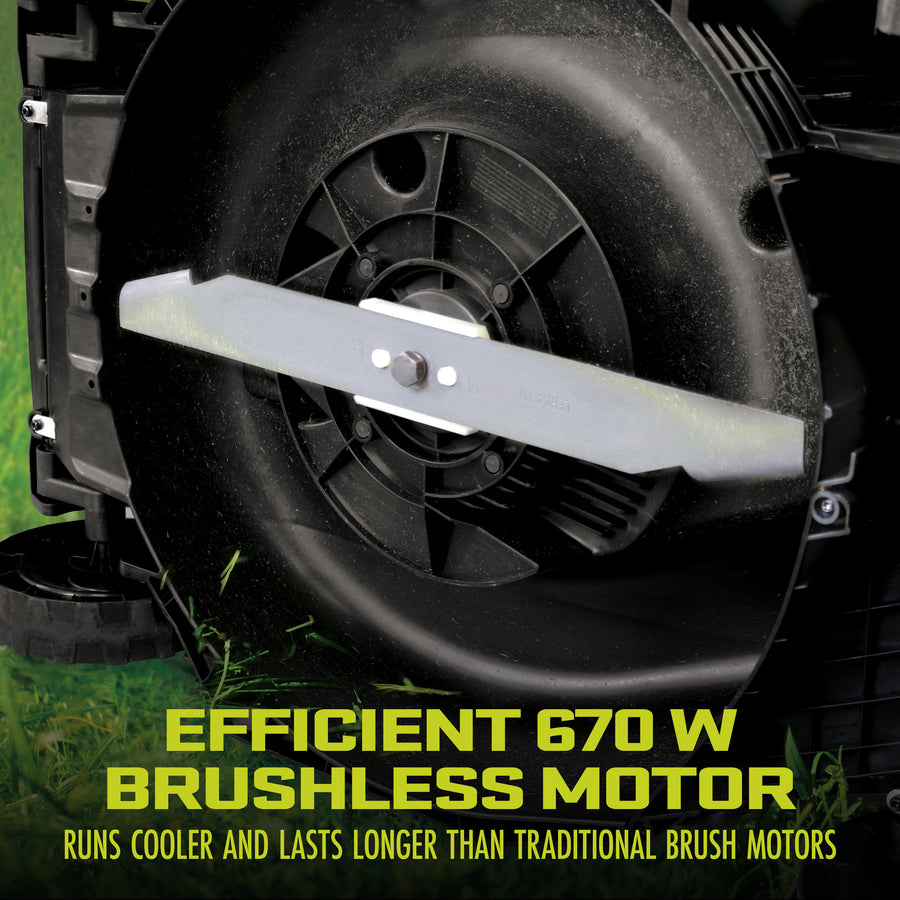

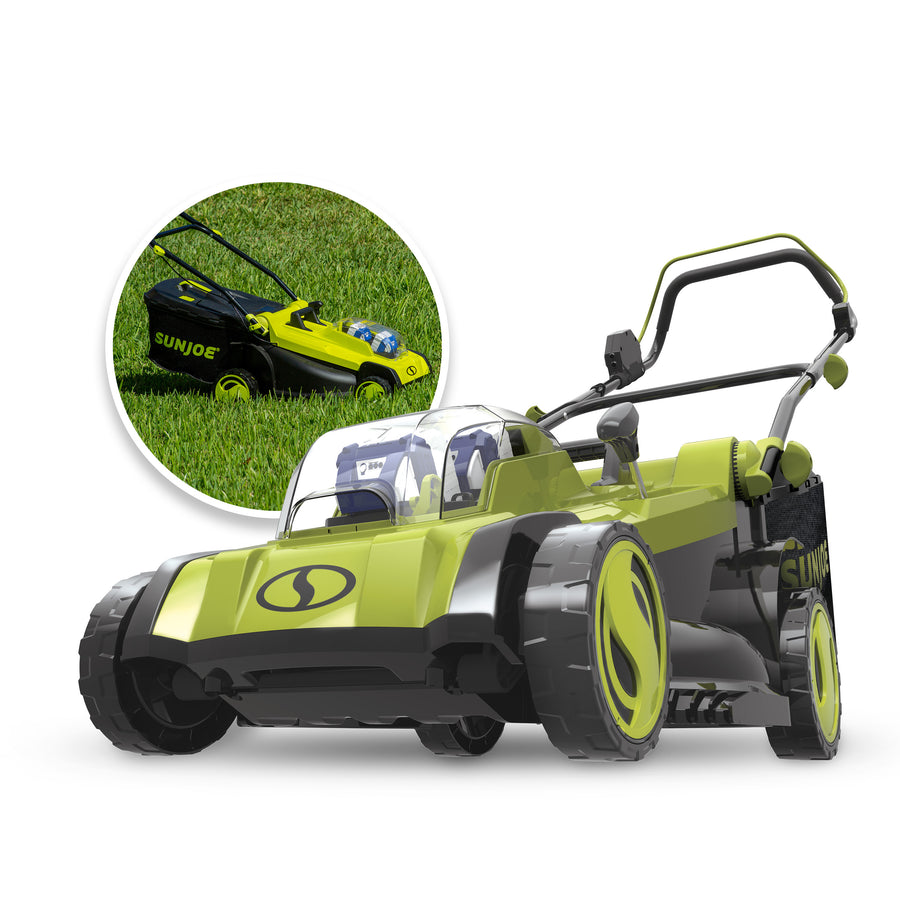

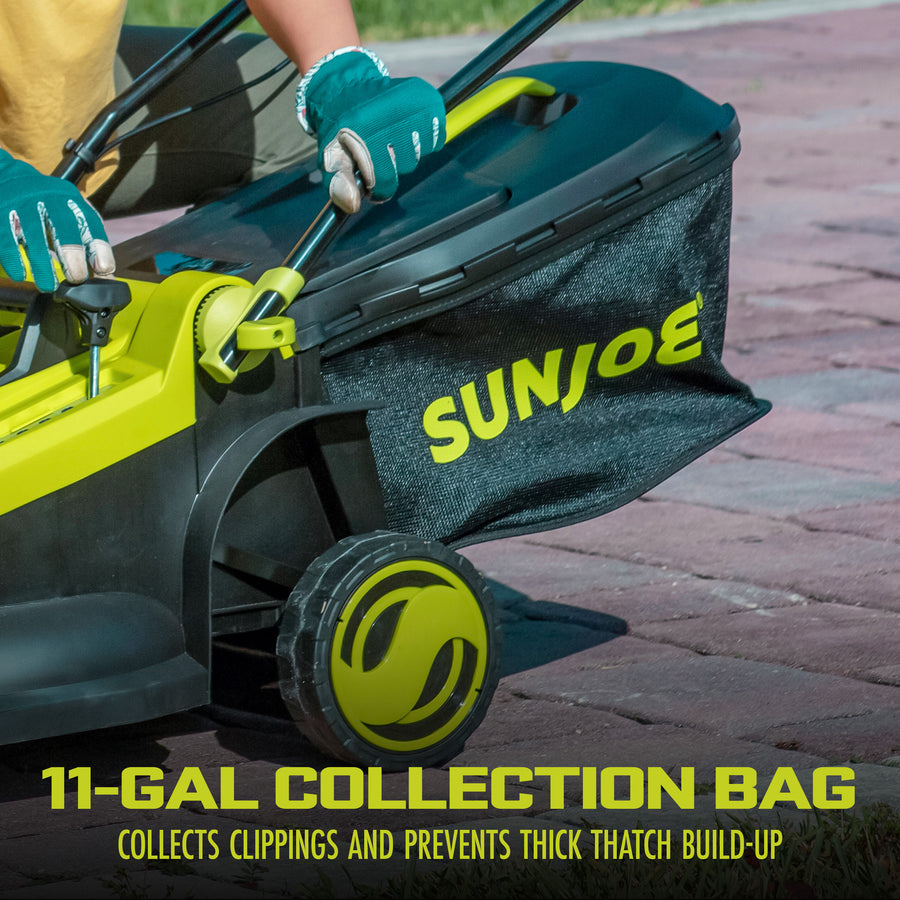

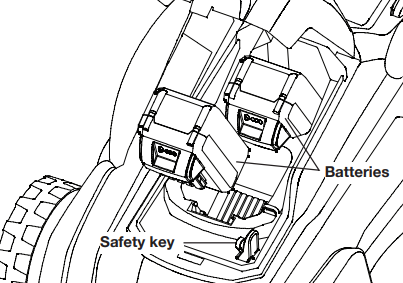

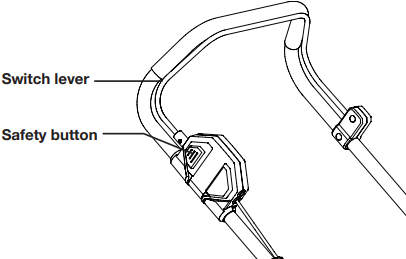

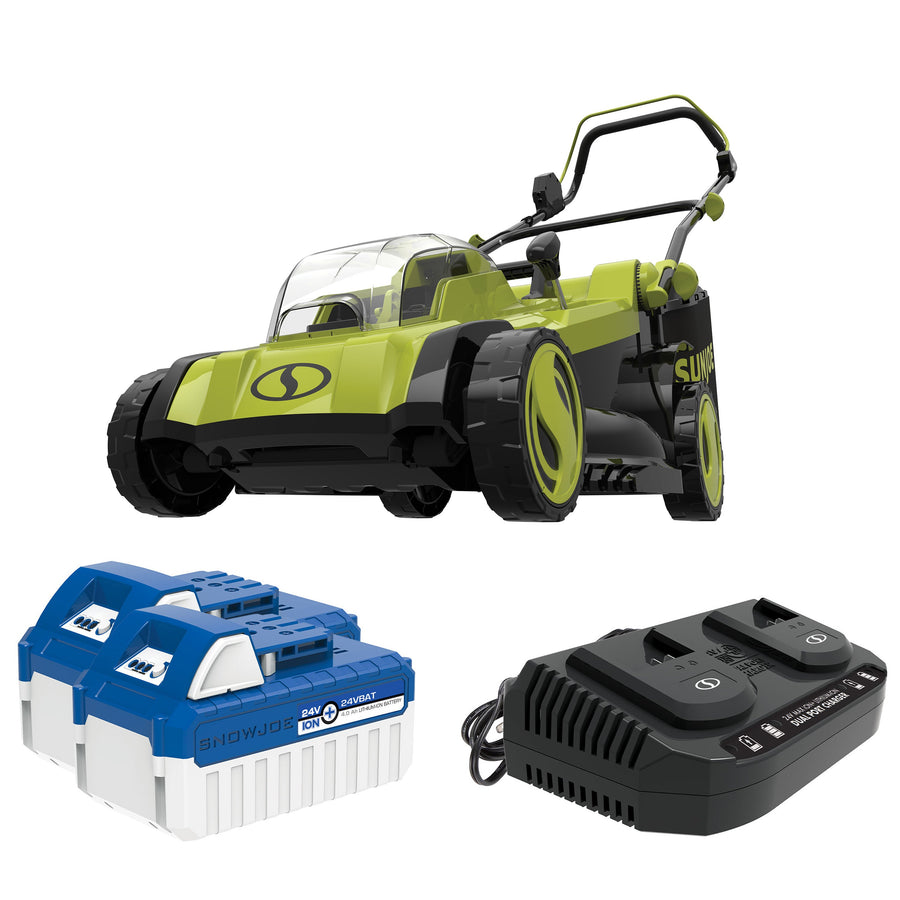

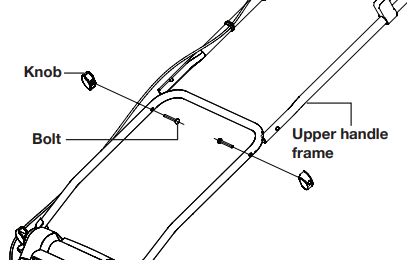

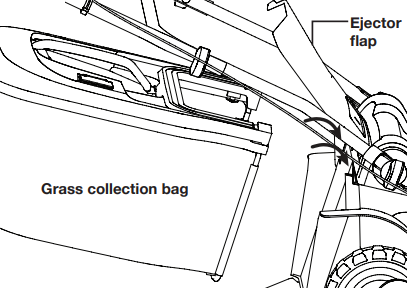

24V-X2-17LM Cordless Lawn Mower Sun Joe® 24V-X2-17LM Cordless Lawn Mower | Product Guide Mow with cordless 48V IONMAX™ power. The Sun Joe® 24V-X2-17LM Cordless Lawn Mower is designed for residential lawn care with a 670W brushless motor, 17-inch steel cutting blade, 6-position cutting height adjustment, and a 2-in-1 design for either bagging or mulching. The kit includes two 24V 4.0Ah batteries, a dual-port charger, an 11-gallon grass collection bag, and a foldable handle for compact storage. ⚡ 670W Brushless Motor 🌱 6 Cutting Heights 🔋 2 x 24V Batteries Meet the 24V-X2-17LM Key Components 🖐️ Upper handle — foldable handle design for operation and compact storage 🔒 Safety lock button — must be pressed before pulling the switch lever to start the mower ⚙️ Switch bar lever — starts and stops the mower blade when operated correctly 🔋 Two 24V batteries — both batteries must be installed together for operation 🔌 Dual-port charger — charges both included 24V batteries 🗝️ Safety key — required for operation and should be removed before maintenance or storage 🎚️ Height adjustment lever — adjusts cutting height from 1 inch to 3 inches 🧺 Grass collection bag — catches clippings and includes a grass indicator window 🌱 Mulching plug — allows grass to be cut into finer clippings for mulching 🛞 Easy-glide wheels — support smooth movement while mowing Technical Specifications Specification 24V-X2-17LM Product Type Cordless walk-behind lawn mower Power Type 48V IONMAX™ system using 2 x 24V batteries Motor 670W brushless motor Battery Capacity 4.0Ah per included battery Batteries Included 2 x 24V iON+ lithium-ion batteries Charger Included 24VCHRG-DPC dual-port charger Charger Input 120V AC, 60Hz, 160W Charger Output 26V DC, 2 x 2.2A Maximum Charge Time 1 hour 50 minutes Cutting Width 17 in. / 43 cm Cutting Height Range 1 in. to 3 in. / 25 mm to 75 mm Height Adjustment 6-position Grass Bag Capacity 11 gal / 40 L No Load Speed 3,700 ± 5% RPM Mulching Capability Yes, with included mulching plug Manual Net Weight 33.8 lbs / 15.3 kg Product Page Dimensions 33 in. L x 19.5 in. W x 15 in. H Warranty 2 Year Warranty What's in the Box Included Item 24V-X2-17LM Cordless lawn mower with lower handle assembly ✔ Grass collection bag ✔ Cable clip ✔ Safety key ✔ Upper handle assembly ✔ Knobs and bolts ✔ 2 sets Mulching plug ✔ inserted in rear discharge opening 24V iON+ lithium-ion batteries ✔ 2 batteries 24V iON+ dual-port battery charger ✔ Manual with registration card ✔ Before You Mow 🚫 Safety first: Do not operate the mower in rain, damp grass, or wet grass. Keep hands and feet away from the blade area, keep bystanders and pets away, and always remove the batteries and safety key before cleaning, inspecting, adjusting, or storing the mower. ⚠️ Inspect the mowing area first. Remove stones, sticks, wires, toys, and other objects that could be picked up and thrown by the blade. Assembly 🚫 Do not insert the batteries or safety key until assembly is complete. The mower must be fully assembled before operation. 1 Handle Raise and secure the lower handle. › 2 Upper Handle Attach upper handle with knobs and bolts. › 3 Bag or Mulch Install grass bag or mulching plug. › 4 Power Insert both batteries and safety key. Raise the lower handle The mower arrives with the lower handle in the storage position. Lift the lower handle to the desired height and tighten the preassembled knobs. Attach the upper handle Fit the upper handle onto the lower handle. Insert the provided bolts through the aligned holes and secure them with the knobs. Attach the grass collection bag Lift the ejector flap, remove the mulching plug from the rear discharge opening, then hook the grass collection bag onto the mower from above. Release the ejector flap so it rests on the bag. Use the mulching plug instead To mulch, do not attach the grass collection bag. Lift the ejector flap, insert the mulching plug fully into the rear discharge opening, and make sure it is seated securely. Battery + Charging 🔋 Both batteries are required. This mower can only operate with both 24V batteries installed together. One battery alone cannot provide sufficient power. Check charge level Press the battery charge level button. Three LEDs mean high charge, two LEDs mean the charge is decreasing, and one LED means the battery should be charged immediately. Remove the batteries Open the battery compartment cover and press each battery’s push lock button to remove the batteries from the mower. Plug in the charger Connect the dual-port charger to a compatible indoor outlet. Two green lights indicate the charger is powered on. Charge both batteries Slide the battery packs into the charger until locked. Red lights indicate charging. Green lights indicate the batteries are fully charged. Unplug after charging The charger does not automatically turn off when the batteries are fully charged. Unplug the charger when charging is complete. Cutting Height Guide 🚫 Before adjusting cutting height: Turn the mower off, remove both batteries and the safety key, and wait for the blade to completely stop. Position Cutting Height 1 1 in. / 25 mm 2 1.4 in. / 35 mm 3 1.8 in. / 45 mm 4 2.2 in. / 55 mm 5 2.6 in. / 65 mm 6 3 in. / 75 mm Starting + Stopping Set up the mower safely Make sure the switch lever is not being squeezed. Confirm the mower is not touching any foreign object and do not start the mower in tall grass. Insert both batteries and the safety key Install both batteries until they click into place, insert the safety key, and close the battery compartment cover. Start the mower Press and hold the safety lock button, then pull the switch lever toward you. Once the mower starts, release the safety lock button and continue mowing. Stop the mower Release the switch lever to stop the mower. ⚠️ The blade continues rotating briefly after shutoff. Do not tilt, carry, or touch the underside of the mower until the blade has fully stopped. Bagging + Mulching Mode How It Works Bagging Use the grass collection bag to collect clippings. The grass indicator window opens with airflow during mowing and closes when the bag is full and needs to be emptied. Mulching Remove the grass collection bag and insert the mulching plug fully into the rear discharge opening. This allows the blade to cut and recut grass into finer clippings. Mowing Tips 1 Mow dry grass only Do not mow wet grass. Wet grass can reduce cutting performance, stick under the deck, and affect mulching. 2 Use a higher setting for tall grass For tall, thick, or uneven grass, start with a higher cutting height, then mow again at the desired height. 3 Cut one-third or less For a healthy lawn, avoid removing more than one-third of the grass height in a single cut. 4 Slow down in thick grass Reduce walking speed in thick grass to help the mower cut and discharge clippings properly. 5 Mow across slopes On slopes, mow across the face of the slope, not up and down. Do not mow slopes over 15 degrees. Maintenance & Care 🚫 Always remove both batteries and the safety key before cleaning, inspecting, or maintaining the mower. Confirm all moving parts have stopped completely. 1 Clean after each mowing session Remove accumulated grass and debris with a dry cloth or hand brush. A damp cloth with mild soap may be used, but do not allow water to enter the mower. 2 Do not use running water Do not clean the mower with running water or high-pressure water, as water can damage electrical components. 3 Check fasteners Before each use, check nuts, bolts, screws, wheels, and handle knobs to make sure they are secure. 4 Inspect the grass bag Check the grass collection bag frequently for wear or damage and replace it with a genuine part if needed. 5 Inspect the blade If the cut quality drops, the blade may be dull or damaged. Wear gloves when handling the blade and use only the correct replacement blade. Blade Care ⚠️ The blade is sharp. Wear protective gloves or wrap the blade when handling it. Use extra caution and only use original replacement parts specified for this mower. Remove power first Remove both batteries and the safety key from the mower. Access the blade safely Turn the mower on its side to expose the underside of the blade housing. Inspect the blade If the blade is dull or has minor wear, it may need sharpening. If the blade is bent, gouged, or heavily worn, replace it. Use the correct tool The manual lists a 16 mm lug wrench for blade removal. The wrench is not included. Storage 1 Remove batteries and safety key Always remove both batteries and the safety key before storage. 2 Remove the grass bag Empty and remove the grass collection bag before storing. 3 Clean the mower Clean the mower with a damp cloth or hand brush and inspect for loose, worn, or damaged parts. 4 Store indoors Store the mower in a dry, clean, cool indoor area away from children and corrosive materials such as fertilizer or rock salt. 5 Fold for compact storage Loosen the upper handle knobs, fold down the upper handle, then lower the lower handle completely. Troubleshooting Guide Use these quick checks for common 24V-X2-17LM issues. Always remove both batteries and the safety key before checking, cleaning, or maintaining the mower. 🔴 Mower Fails to Start Possible Causes Safety key is not inserted Batteries are flat Batteries are not inserted securely Safety lock button was not pressed before the switch lever Mower deck is clogged with grass or debris Grass is too tall Solutions Insert the safety key Charge both batteries Press each battery in until it clicks Press the safety lock button first, then pull the switch lever Clean the mower deck and make sure the blade can move freely Set the mower to a higher cutting height before restarting 🟡 Mower Stops While Mowing Possible Causes Batteries are flat Grass is too tall Deck is clogged with grass or debris Batteries or mower circuit are too hot Solutions Recharge both batteries Raise the cutting height Remove batteries and safety key, then clean the deck Let the batteries and mower cool before restarting 🟡 Uneven Cutting Possible Causes Lawn is rough or uneven Blade is not sharp enough Cutting height is not suitable for grass conditions Solutions Adjust the cutting height Sharpen or replace the blade Use a higher setting for uneven or tall grass 🌱 Poor Mulching Possible Causes Deck is clogged with grass or debris Grass is too wet Grass is too tall Blade is not sharp enough Solutions Clean the mower deck Wait until the grass is dry Start with a higher cutting height, then mow again at the desired height Sharpen or replace the blade 🟡 Mower Is Difficult to Push Possible Causes Grass is too tall Blade or rear of mower is dragging through heavy grass Solutions Raise the cutting height Slow your walking speed Make narrower passes in heavy grass 🔴 Mower Vibrates at High Speed Possible Causes Blade is unbalanced Blade lug nut is loose Blade or motor shaft may be damaged after impact Solutions Stop the mower immediately Remove batteries and safety key Inspect for visible damage Tighten the blade lug nut if loose Replace the blade if damaged or unbalanced Optional Accessories Accessory Model iON+ 24V 2.0Ah lithium-ion battery 24VBAT-LTE iON+ 24V 2.5Ah lithium-ion battery 24VBAT-LT iON+ 24V 4.0Ah lithium-ion battery 24VBAT iON+ 24V 5.0Ah lithium-ion battery 24VBAT-XR iON+ 24V dual-port battery charger 24VCHRG-DPC iON+ 24V quick charger 24VCHRG-QC Replacement cutting blade 24V-X2-17LM-BLD Video Guide Frequently Asked Questions What comes with the 24V-X2-17LM? The kit includes the cordless lawn mower with lower handle assembly, grass collection bag, cable clip, safety key, upper handle assembly, two knob and bolt sets, mulching plug, two 24V 4.0Ah lithium-ion batteries, dual-port battery charger, and manual with registration card. Can the mower run with only one battery? No. The mower requires both 24V batteries to be installed together. One battery cannot provide sufficient power for operation. How long does it take to charge the batteries? A fully discharged battery pack charges in up to approximately 1 hour and 50 minutes when charged within the normal temperature range. What cutting heights are available? The mower has six cutting height positions: 1 in., 1.4 in., 1.8 in., 2.2 in., 2.6 in., and 3 in. Can I use this mower on wet grass? No. Do not mow wet grass or use the mower in rain or damp conditions. Wait until the grass is dry before mowing. How does the grass bag indicator work? The grass bag has an indicator window that opens with airflow during mowing. If the flap closes during mowing, the bag is full and should be emptied. How do I use the mulching plug? Remove the grass collection bag, lift the ejector flap, insert the mulching plug fully into the rear discharge opening, and make sure it is seated securely before mowing. What should I do if the mower stops while mowing? Release the switch lever, remove both batteries and the safety key, then check for low battery charge, tall grass, deck clogging, or overheating. Clean the deck if needed and let the mower cool before restarting. How should I store the mower? Remove both batteries and the safety key, clean the mower, remove and empty the grass bag, inspect for loose or damaged parts, and store indoors in a dry, clean, cool area. The handle can be folded for compact storage. What warranty does it have? The 24V-X2-17LM is backed by a 2-year limited warranty for ordinary household use when purchased from Snow Joe / Sun Joe or an authorized seller with proof of purchase. Related articles 24V-AJC-LTE Cordless Air Compressor
