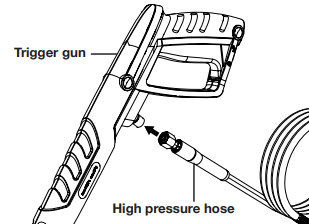

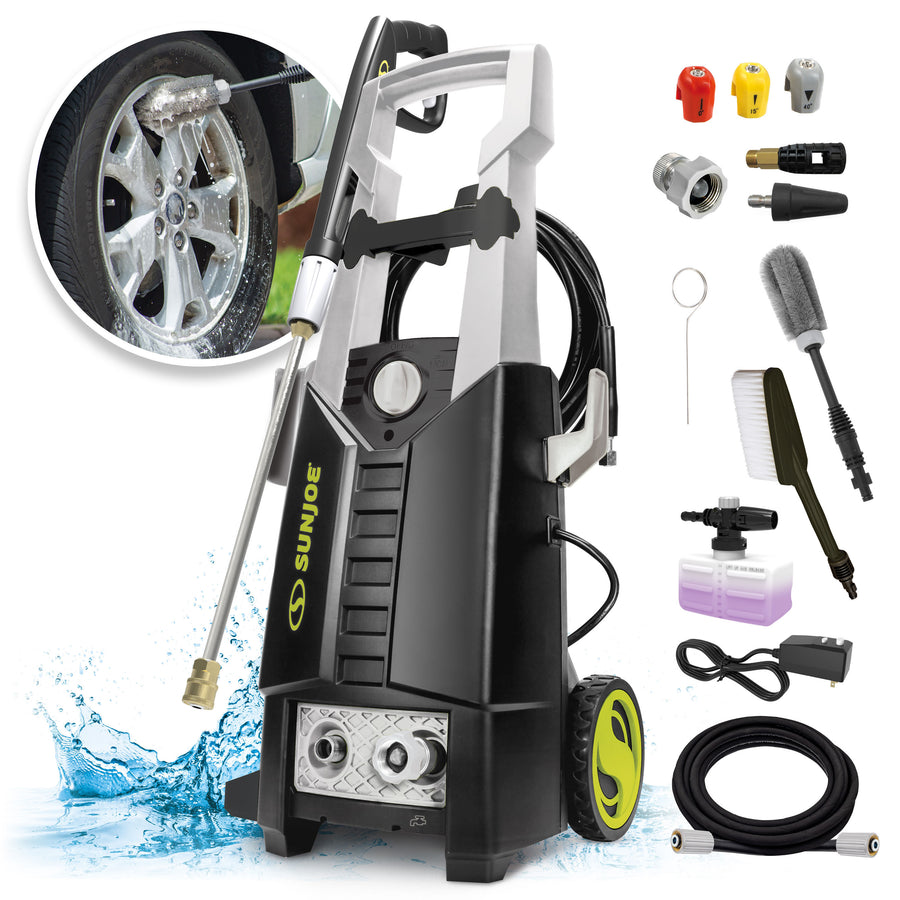

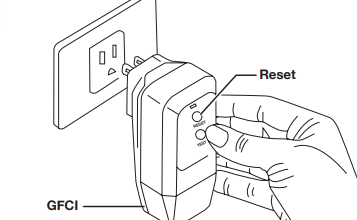

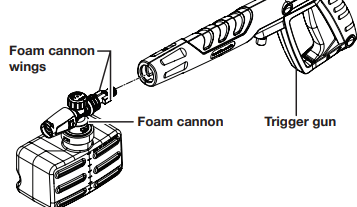

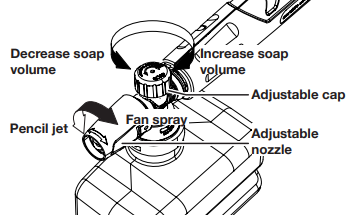

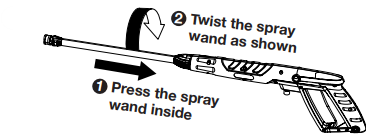

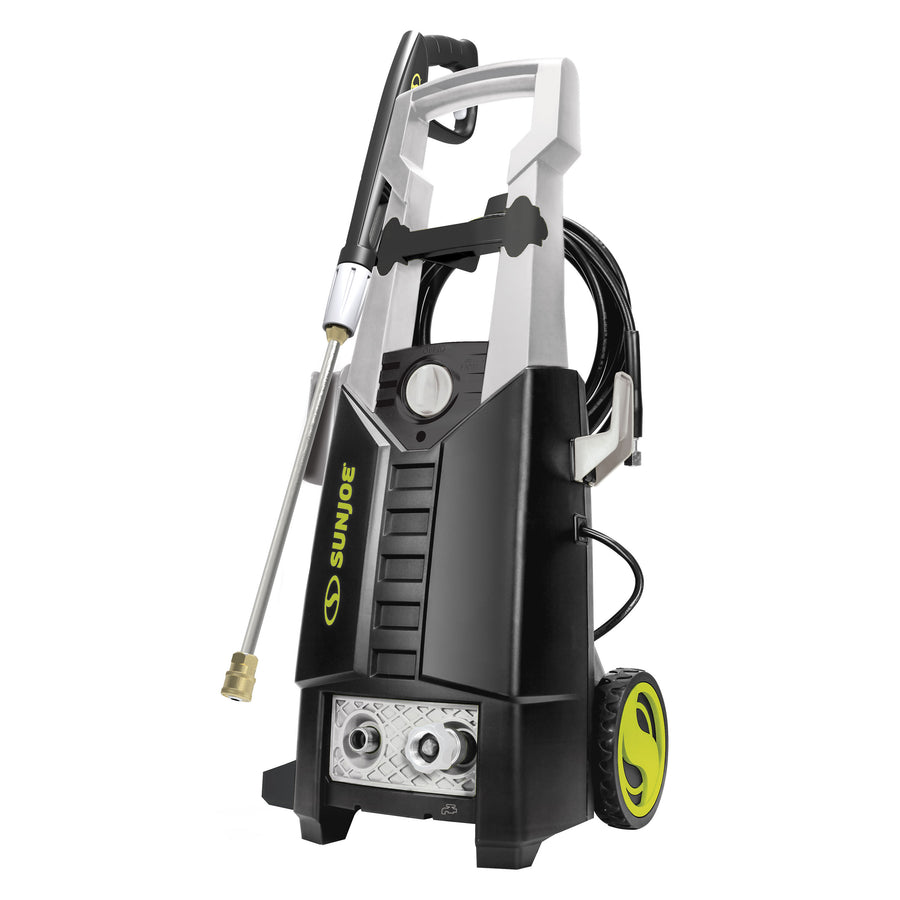

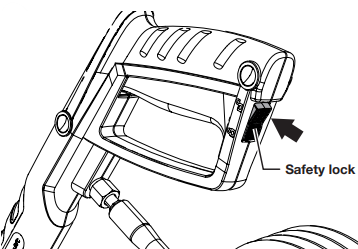

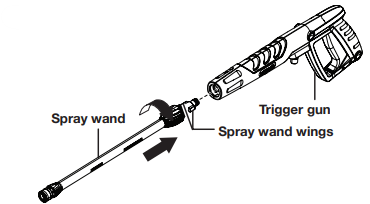

SPX2700-MAX Electric Pressure Washer Sun Joe® SPX2700-MAX Electric Pressure Washer | Product Guide Take tough cleaning tasks to the MAX.The Sun Joe® SPX2700-MAX Electric Pressure Washer is designed for residential medium-to-heavy duty cleaning around boats, motorcycles, RVs, ATVs, trailers, decks, barbecues, siding, patio furniture, vehicles, and more. It features a 13-amp motor, 2100 PSI max pressure at initial discharge, 1.65 GPM max flow with nozzle open at minimum pressure, a 20 ft high-pressure hose, a 35 ft GFCI power cord, a 34 fl oz foam cannon, three Quick-Connect nozzles, a heavy-duty turbo nozzle, utility bristle brush, and wheel + rim brush.⚡ 13-Amp Electric Motor🧼 34 fl oz Foam Cannon🌀 Total Stop SystemMeet the SPX2700-MAXKey Components🔫Trigger gun — controls spray flow and includes a safety lock🚿Spray wand — connects to the trigger gun and accepts Quick-Connect nozzles🎯3 Quick-Connect nozzles — 0°, 15°, and 40° for different cleaning tasks🌀Heavy-duty turbo nozzle — rotary zero-degree spray for tougher dirt and grime🧼Foam cannon bottle — applies pressure washer-rated detergent through the trigger gun🎚️Foam adjusting cap — increases or decreases soap volume🪥Utility bristle brush — helps clean painted, topcoat, and delicate surfaces🛞Wheel + rim brush — helps clean wheels and rims🧵20 ft high-pressure hose — connects the pressure washer to the trigger gun🔌35 ft power cord with GFCI — built-in protection for electric pressure washer use💧Water inlet + adapter — connects to a reinforced garden hose🧰Needle clean-out tool — clears clogged nozzle openingsTechnical SpecificationsSpecificationSPX2700-MAXProduct TypeElectric pressure washerBest UseResidential medium-to-heavy duty cleaning for boats, motorcycles, RVs, ATVs, trailers, decks, barbecues, siding, patio furniture, vehicles, and moreRated Voltage120V AC ~ 60 HzMotor13 ampsMaximum Pressure2100 PSI max at initial discharge per CSA internal pressure testingRated Pressure1800 PSI under typical loadMaximum Flow1.65 GPM / 6.25 L/min with nozzle open at minimum pressureRated Flow1.1 GPM / 4.2 L/min under typical loadMaximum Water Inlet Temperature104°F / 40°CMaximum Water Inlet Pressure0.7 MPaFoam Cannon Capacity34 fl oz / 1 LHigh-Pressure Hose Length20 ft / 6 mPower Cord Length35 ft / 10.7 m with GFCINozzles Included0° red, 15° yellow, 40° gray, plus heavy-duty turbo nozzleTotal Stop SystemYesAssembled Dimensions19.75 in. L x 15.25 in. W x 12.75 in. HNet Weight17 lbs / 7.7 kgWarranty2 Year WarrantyWhat's in the BoxIncluded ItemSPX2700-MAXElectric pressure washer✔Top handle✔High-pressure hose holder✔Spray wand protector✔Trigger gun holder✔Cord holder✔4.8 x 16 screws✔ 7 screwsSpray wand✔Trigger gun✔Quick-Connect nozzles✔ 3 nozzles: 0°, 15°, and 40°Heavy-duty turbo nozzle✔Utility bristle brush✔Wheel + rim brush✔Needle clean-out tool✔ included with manual packetHigh-pressure hose✔ 20 ftGarden hose adapter / female coupler✔Foam cannon bottle✔Manual with registration card✔Assembly🚫Do not connect the unit to power until assembly is complete. Keep the pressure washer upright on a secure, stable surface during setup and operation.1HandleInstall top handle and holders.›2WandConnect spray wand to trigger gun.›3HosesConnect pressure hose and garden hose.›4PrimeTurn on water and release trapped air.Install the top handleSlide the top handle into position on the pressure washer and secure it using three screws.Install the high-pressure hose holderAttach the high-pressure hose holder and secure it with the four additional screws provided.Install the accessory holdersSlide the cord holder, trigger gun holder, and spray wand protector into position.Connect the spray wandPress the wings of the spray wand into the slot of the trigger gun, then twist counterclockwise until the two parts are completely locked together.Connect the high-pressure hoseConnect the high-pressure hose to the trigger gun and twist to secure. Connect the other end to the water outlet on the pressure washer and tighten securely.Connect the garden hoseConnect the garden hose adapter to the water inlet, then thread your garden hose into the adapter. Use a reinforced garden hose with at least a 1/2 in. internal diameter.Extension Cord Guidance⚠️Extension cords are not recommended. The SPX2700-MAX includes a 35 ft GFCI power cord. Using an extension cord may cause voltage drop, power loss, or overheating.Getting Started💡 Total Stop System: The motor automatically shuts off when the trigger is released and the unit is pressurized. This is normal. Squeeze the trigger again to restart the pump motor.Position the pressure washerPlace the washer as close as possible to the water supply. Keep it upright on a secure, stable surface.Confirm the unit is switched offMake sure the On/Off switch is OFF before plugging the unit into a power outlet.Reset the GFCI if neededWhen first plugged in, press the Reset button until the power light indicator on the GFCI illuminates.Turn on the water completelyTurn the water supply tap on completely before starting the pressure washer.Prime the systemRelease the safety lock, then press the trigger for a few seconds until water flow is steady. This allows air to escape and discharges residual pressure in the hose.Start the pressure washerTurn the On/Off switch to the ON position. When restarting the motor, keep the trigger pressed.Nozzle GuideNozzle / AttachmentRecommended Use0° RedSpot cleaning or hard-to-reach areas. Use carefully because this is the most concentrated spray pattern.15° YellowTough cleaning jobs on durable surfaces where a stronger spray is needed.40° GrayGentle cleaning for wider coverage and more delicate surfaces.Turbo NozzleRotary zero-degree spray that spins in a circle for a wider cleaning swath on tough dirt and grime.Foam CannonDetergent application using pressure washer-rated detergent.Utility Bristle BrushPainted, topcoat, and delicate surfaces that need light scrubbing assistance.Wheel + Rim BrushVehicle wheels and rims that need targeted scrubbing.🚫Never change nozzles while the trigger is engaged. Turn off the pressure washer, shut off the water, release pressure, and engage the safety lock before changing nozzles.Using the Foam CannonUse pressure washer detergent onlyUse detergents designed for pressure washers. Do not use household detergents, acids, alkaline solutions, bleach, solvents, flammable materials, or industrial-grade solutions.Fill the foam cannon bottleRemove the foam cannon bottle from storage, remove the cap, fill or mix detergent according to the detergent instructions, then secure the cap.Remove the spray wandDisconnect the spray wand from the trigger gun by pressing it in firmly and twisting clockwise until the wings can be removed from the slot.Attach the foam cannonPress the wings of the foam cannon into the trigger gun slot, then twist counterclockwise until the two parts are completely locked.Adjust foam outputRotate the foam cannon nozzle to adjust spray angle from pencil jet to fan spray. Rotate the adjustable cap to increase or decrease soap volume.Apply detergent properlyApply detergent from the bottom to the top of the dry surface. Let it remain briefly, but do not allow detergent to dry on the surface.Drain and rinse after useWhen finished, drain and rinse the foam cannon bottle. Run the pressure washer until all soap is drained from the foam cannon bottle.Using the Included BrushesBrushHow to UseUtility Bristle BrushDetach the spray wand from the trigger gun, align the two tabs with the inside of the trigger gun, push the brush into the trigger gun, then twist counterclockwise to lock it in place.Wheel + Rim BrushDetach the spray wand from the trigger gun, align the two tabs with the inside of the trigger gun, push the brush into the trigger gun, then twist counterclockwise to lock it in place.Shutting DownTurn the switch OFFTurn the switch to the OFF position and unplug the power cord from the outlet.Turn off the water sourceShut off the water supply.Release pressureHold the trigger to release water pressure from the system.Disconnect hosesDisconnect the garden hose from the water inlet and disconnect the high-pressure hose from the trigger gun handle.Engage the safety lockRelease the trigger and engage the gun safety lock.⚠️ Taking a break? If pausing for five minutes or more, engage the gun safety lock, turn the switch OFF, and unplug the power cord.Care & Maintenance🚫Always disconnect the power plug before inspecting, cleaning, changing accessories, or maintaining the pressure washer.1Clean the adapter filterRemove the adapter filter from the garden hose adapter and rinse it with warm water to prevent foreign matter from clogging the pump.2Clean clogged nozzlesRemove the nozzle from the spray wand, use the included needle clean-out tool to clear the nozzle hole, then rinse the nozzle.3Inspect hoses regularlyKeep hoses away from sharp objects. Replace damaged hoses and do not attempt to repair a damaged high-pressure hose.4Use clean water onlyDirty, gritty, sandy, or chemically contaminated water can damage the washer and shorten product life.Storage + Winterizing❄️Freeze damage is not covered by the warranty. Store the pressure washer indoors in a dry, frost-free location where temperatures will not fall below 32°F / 0°C.1Drain before storageAlways empty water from the hoses, pump, and foam cannon bottle before storing.2Short purge for long-term storageDisconnect all water connections, turn the machine on for a few seconds until remaining water exits the pump, then turn it off immediately.3Avoid hose kinksDo not allow the high-pressure hose to become kinked during storage.4Use pump protection for winter storageUse a non-corrosive/non-toxic antifreeze, pump saver, or pump protector before winter storage.5Flush before reuseBefore reusing after antifreeze or pump protector, completely flush the unit with clear water.Troubleshooting GuideUse these quick checks for common SPX2700-MAX issues. Always disconnect power before checking, cleaning, or maintaining the unit.🔴 Machine Refuses to StartStep-by-Step CheckCheck the GFCI light indicator. This confirms whether the pressure washer is receiving power. There should be a red or green light on the GFCI plug.If the GFCI light is off: Press the RESET button on the GFCI plug. Make sure the plug is fully seated, then try a known working outlet. There should be a red or green light. If using an extension cord: Remove the extension cord and plug the pressure washer directly into a wall outlet. Check the nozzle: Remove the nozzle and clean it with the needle clean-out tool. If the nozzle cannot be removed, make sure the nozzle opening is not clogged. Run the full restart sequence: Connect the garden hose and turn the water supply fully on. Make sure the trigger safety lock is in its normal operating position. Press and hold the trigger until water flow is steady to purge air and release trapped pressure. Reset the GFCI if needed, turn the machine ON, and try again.🟡 Fluctuating PressurePossible CausesPump is sucking airHoses or connections are not airtightValves or seals may be dirty, worn, or stuckSolutionsCheck that hoses and connections are airtightRun the washer with the trigger held until regular pressure resumesClean the adapter filter and nozzle🔴 Machine StopsPossible CausesFuse has blownIncorrect mains voltageThermal sensor activatedNozzle partially blockedSolutionsSwitch off other machines using the same circuitConfirm voltage matches the model tagLet the washer cool for 5 minutes, then restartClean the nozzle🟡 Machine PulsatesPossible CausesAir in inlet hoseInadequate water supplyNozzle partially blockedWater filter blockedHose kinkedSolutionsHold the trigger until regular working pressure resumesCheck that the water supply meets the required specificationsUse a reinforced garden hose with at least 1/2 in. internal diameterClean the nozzle and water inlet filterStraighten the hose and remove kinks or blockages🔴 Machine Often Starts and Stops by ItselfPossible CausesPump or spray gun is leakingTrigger mechanism is brokenUnit is entering normal TSS standby after pressurizingSolutionsInspect pump, spray gun, hose, and connections for leaksConfirm the trigger is operating normallyRemember that TSS standby is normal when the trigger is released🔴 Machine Starts, But No Water Comes OutPossible CausesPump, hoses, or accessories are frozenNo water supplyWater inlet filter is blockedNozzle is blockedSolutionsAllow pump, hoses, or accessories to thaw before useConnect inlet water and turn the water supply on completelyClean the water inlet filterClean the nozzle🧼 Foam Cannon Is Not Dispensing SoapPossible CausesFoam cannon is not fully locked into the trigger gunDetergent is not pressure washer-ratedFoam cannon cap or nozzle needs adjustmentFoam cannon bottle was not rinsed after previous useSolutionsReconnect the foam cannon and lock it securelyUse only pressure washer-rated detergentAdjust the foam volume cap and spray angle nozzleDrain and rinse the foam cannon bottle after use💧 Low Water FlowPossible CausesGarden hose is too narrow or kinkedWater supply is not fully openAdapter filter is cloggedNozzle is cloggedSolutionsUse a reinforced garden hose with at least 1/2 in. internal diameterOpen the water source fullyClean the adapter filterClean the nozzle with the needle clean-out toolOptional AccessoriesAccessoryModelSun Joe® House + Deck All-Purpose Pressure Washer Rated Concentrated CleanerSPX-HDC1GSun Joe® Premium Snow Foam Pressure Washer Rated Car Wash Soap + CleanerSPX-FCS1GSun Joe® All-Purpose Heavy Duty Pressure Washer Rated Cleaner + DegreaserSPX-APC1G25 ft medium-duty extension hose for SPX Pressure Washer SeriesSPX-25HSolid brass universal Quick-Connect coupler / garden hose to pressure washer adapterSPX-UQCVideo GuideFrequently Asked QuestionsWhat comes with the SPX2700-MAX?The SPX2700-MAX includes the electric pressure washer, top handle, high-pressure hose holder, spray wand protector, trigger gun holder, cord holder, seven screws, spray wand, trigger gun, three Quick-Connect nozzles, heavy-duty turbo nozzle, utility bristle brush, wheel + rim brush, needle clean-out tool, high-pressure hose, garden hose adapter, foam cannon bottle, and manual with registration card.What nozzles are included?It includes three Quick-Connect nozzles: 0° red, 15° yellow, and 40° gray. It also includes a heavy-duty turbo nozzle for tougher dirt and grime.Does this model use a black soap nozzle?No. The SPX2700-MAX uses a foam cannon for detergent application. Remove the spray wand from the trigger gun, attach the foam cannon, and use pressure washer-rated detergent only.Can I use household detergent or bleach?No. Use only detergents designed for pressure washers. Do not use household detergents, bleach, chlorine products, solvents, ammonia products, acid-based products, or flammable materials.Can I connect the SPX2700-MAX to hot water?No. The maximum inlet water temperature is 104°F / 40°C. Hotter water can damage the pump.Can I use an extension cord?Extension cords are not recommended. The unit includes a 35 ft GFCI power cord. Using an extension cord may cause voltage drop, power loss, or overheating.Why does the motor stop when I release the trigger?This is normal. The SPX2700-MAX has a Total Stop System that shuts the motor off when the trigger is released and the unit is pressurized. Squeezing the trigger restarts the pump motor.What garden hose should I use?Use a reinforced garden hose with an internal diameter of at least 1/2 inch. Avoid long, thin, kinked, or blocked hoses because they can reduce water flow and cause pulsing.How should I store the SPX2700-MAX?Store it indoors in a dry, frost-free area. Drain all water from the hoses, pump, and foam cannon bottle. For winter storage, use a pump protector, pump saver, or non-corrosive/non-toxic antifreeze, then flush with clear water before reuse.What warranty does it have?The SPX2700-MAX is backed by a 2-year limited warranty for ordinary household use when purchased from Snow Joe / Sun Joe or an authorized seller with proof of purchase. Related articles SJI-OMS16 Oscillating Sprinkler
