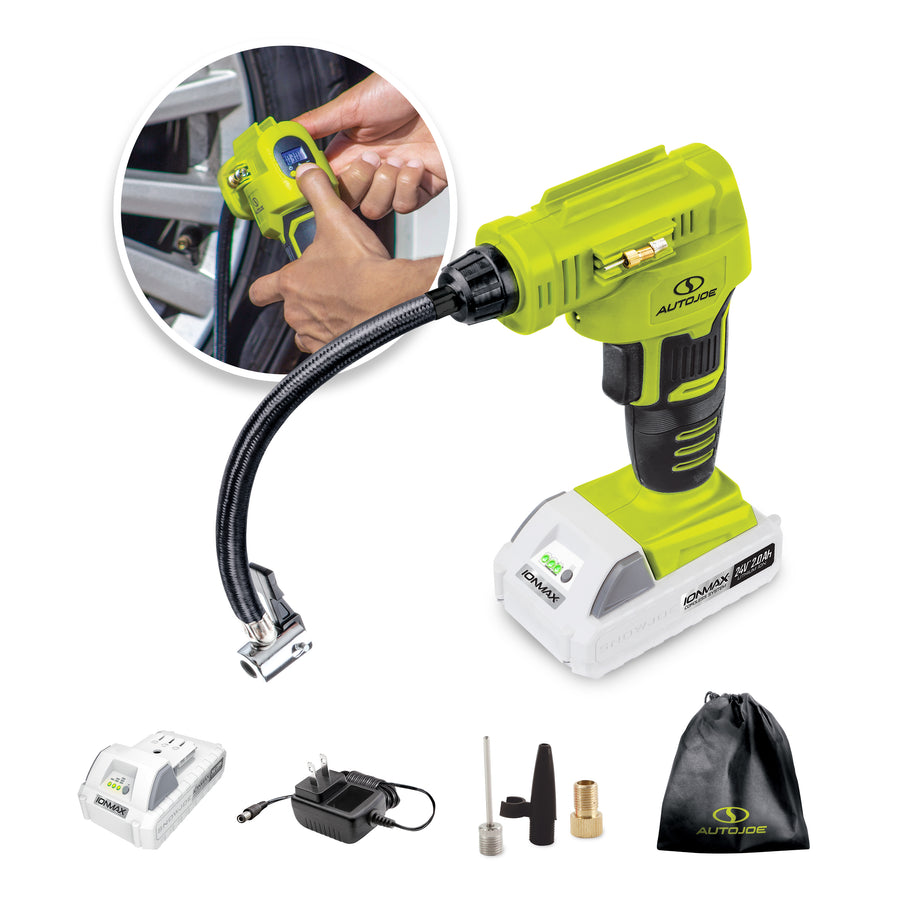

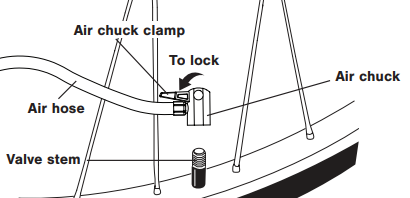

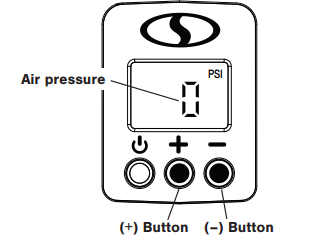

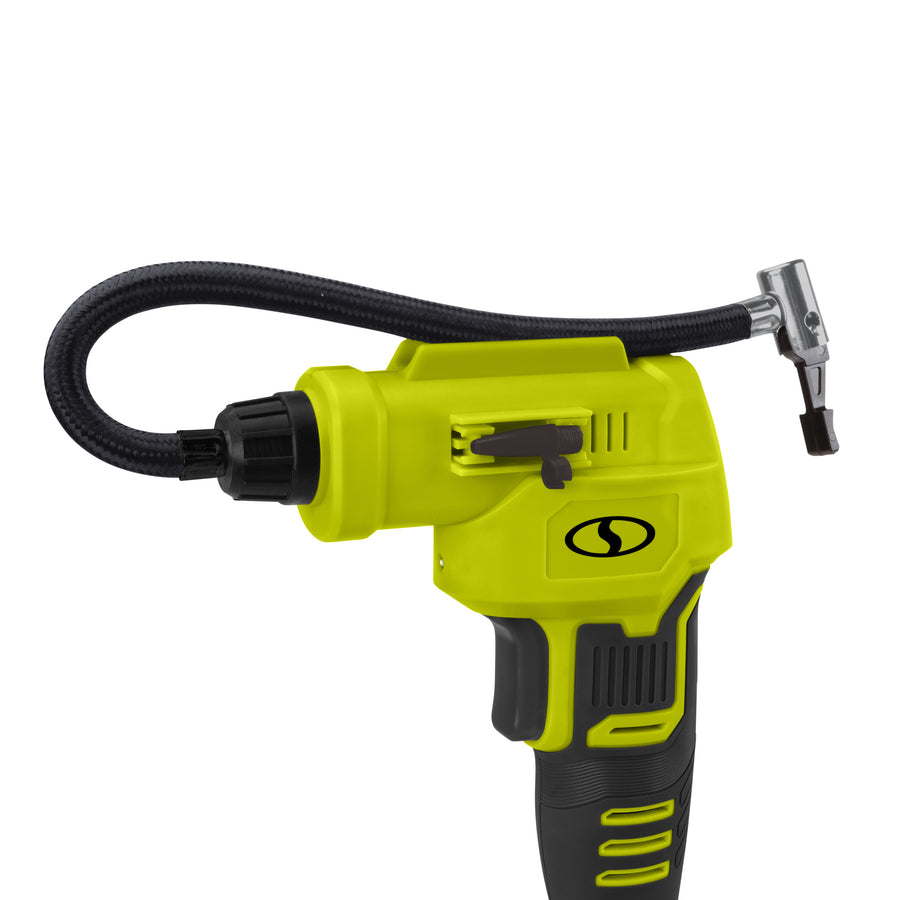

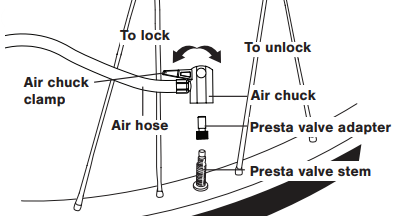

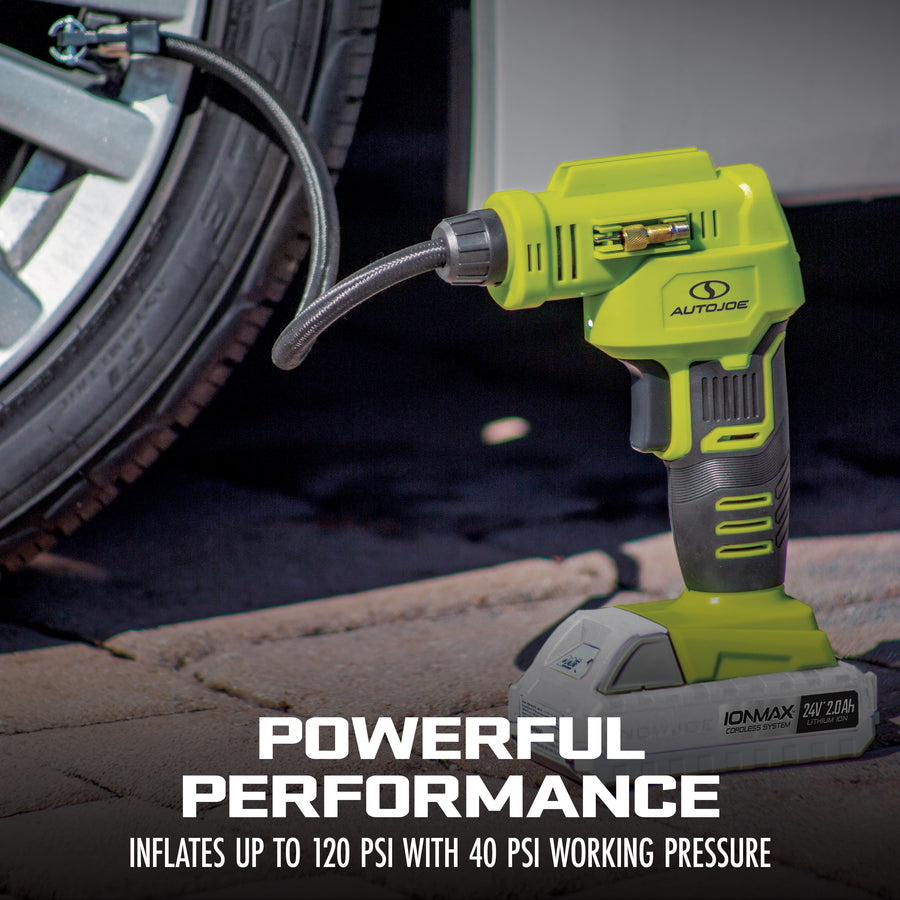

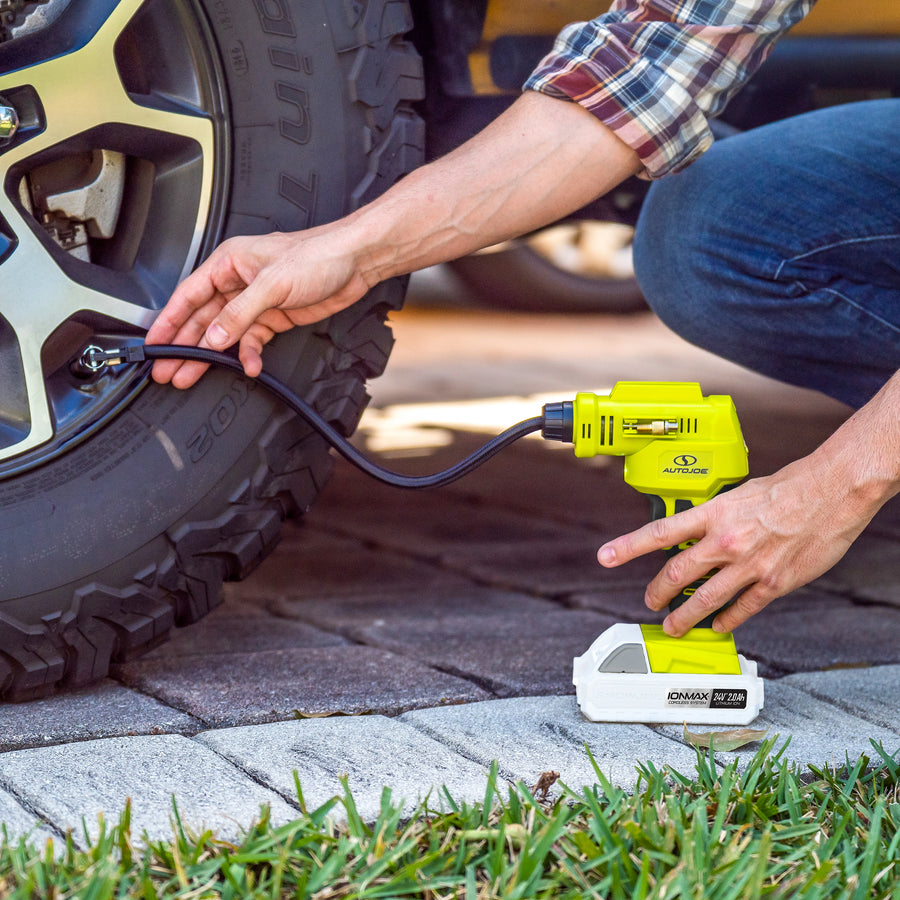

24V-AJC-LTE Cordless Air Compressor Auto Joe® 24V-AJC-LTE Cordless Air Compressor | Product Guide Portable inflation power for home, auto, and on-the-go. The Auto Joe® 24V-AJC-LTE Cordless Air Compressor is a compact 24V IONMAX™ rechargeable inflator designed for tires, bike tires, sports balls, pool floats, and other small inflatables. It features a digital pressure display, auto shut-off at the preset pressure, 120 PSI max air pressure, 40 PSI max working air pressure, a 15-inch air hose, LED light, and included adapters for multiple inflation needs. 🔋 2.0Ah Battery Included 🎯 Digital PSI Control 💡 LED Work Light Meet the 24V-AJC-LTE Key Components 🔋 24V IONMAX™ battery — 2.0Ah rechargeable lithium-ion battery pack 🔌 Battery charger — charges the included 24VBAT-LTE battery 📟 Digital gauge — displays pressure and allows preset shut-off pressure selection ➕ Pressure setting buttons — use + and − to select the desired shut-off pressure 💨 Air hose — 15-inch hose with air chuck for valve stem inflation 🔒 Air chuck clamp — locks the air chuck onto the valve stem or adapter 🏀 Sport ball needle — inflates sports balls that require a needle adapter 🚲 Presta valve adapter — inflates Presta valve bike tires 🛟 Tapered adapter — inflates small valves on floats and similar inflatables 💡 LED light — provides extra visibility in low-light conditions ▶️ Trigger switch — starts and stops inflation, with lock-on functionality 🎒 Storage bag — keeps the compressor, battery, charger, and adapters together Technical Specifications Specification 24V-AJC-LTE Product Type Cordless portable air compressor Best Use Home, auto, sports equipment, camping, bike tires, vehicle tires, pool floats, and small inflatables Motor 154 watts Battery Voltage 24V max; 21.6V nominal under typical load Battery Capacity 2.0Ah Battery Model 24VBAT-LTE Charger Model XZ2600-0450 Charger Input 100 – 240V AC, 50/60 Hz, 0.4A Charger Output 26V DC, 450 mA Maximum Charge Time Approximately 5 hours Air Flow 2.1 gal/min Maximum Working Air Pressure 40 PSI Maximum Air Pressure 120 PSI Gauge Digital readout Pressure Units PSI, BAR, and kPa Hose Length 15 in. / 38 cm Product Dimensions 5.9 in. L x 2.5 in. W x 8 in. H Net Weight 2.18 lbs / 0.99 kg Warranty 2 Year Warranty What's in the Box Included Item 24V-AJC-LTE Cordless air compressor ✔ Tapered adapter ✔ Sport ball needle ✔ Presta valve adapter ✔ Storage bag ✔ 24V IONMAX™ lithium-ion battery ✔ 2.0Ah battery 24V IONMAX™ lithium-ion charger ✔ Manual ✔ Before You Inflate 🚫 Do not exceed the recommended pressure of the item being inflated. The compressor can inflate up to 120 PSI, but the item being inflated may have a much lower maximum pressure. ⚠️ Check tire pressure with a calibrated gauge before driving. The built-in display is helpful for inflation control, but vehicle tire pressure should be confirmed with a calibrated measuring device before driving. 💡 For small inflation tasks only. This compressor is not designed for large-volume items such as boats, pools, rafts, or large air beds. It is also not designed for commercial use. Battery + Charging 🔋 Charge before first use. The included battery is shipped partially charged and should be fully charged before using the compressor for the first time. Remove the battery Press the battery push lock button and slide the battery out of the compressor’s battery compartment. Plug in the charger Connect the charger adapter to a compatible indoor outlet, then connect the charger plug to the battery charge socket. Watch the battery LEDs The battery LEDs will twinkle and illuminate one by one during charging. Charging takes up to approximately 5 hours. Unplug when charged When all three LEDs are illuminated, unplug the charger from the outlet first, then disconnect the charger from the battery. ⚠️ The charger does not automatically turn off when the battery is fully charged. Do not leave the battery plugged into the charger for days on end. Battery Charge Indicator LED Display Meaning 3 LEDs lit Battery charge level is high 2 LEDs lit Battery charge is decreasing; recharge soon 1 LED lit Battery is flat; stop using immediately and charge the battery Common Pressure Ranges ℹ️ These ranges are general references. Always follow the pressure marking on the tire sidewall, the vehicle manual, or the manufacturer’s instructions for the item being inflated. Item / Vehicle Type Recommended Air Pressure Range Car tire 33 – 36 PSI Motorbike tire 28 – 40 PSI E-bike tire 35 – 45 PSI Mountain bike tire 30 – 65 PSI Road bike tire 50 – 95 PSI High-performance road bike tire 96 – 120 PSI Adapter Guide Adapter Recommended Use Air chuck Standard tire valve stems that fit the air chuck opening Tapered adapter Small air valves on floats, children’s toys, and similar small inflatables Sport ball needle Sports balls and items requiring a ball needle Presta valve adapter Presta valve bike tires Starting + Inflating 1 Attach Connect air chuck or adapter. › 2 Set Choose target pressure. › 3 Inflate Press trigger to start. › 4 Stop Unit stops at preset pressure. Install the battery Slide the battery into the battery compartment until it clicks into place. Turn on the display Press the power button below the LCD display. The LED light will also turn on and stay on for about 60 seconds. Set the desired pressure Press the + or − buttons to select the desired shut-off pressure. Wait a few seconds until the current pressure reading displays. Attach the air chuck Place the air chuck on the valve stem and press the clamp down until it locks securely. Start inflation Press the trigger switch to begin inflating. The air pressure will appear on the digital gauge as the item inflates. Let auto shut-off work The compressor will stop automatically when the preset pressure is reached. Press the trigger to shut off the machine before removing the air chuck. 🔥 Connector may be hot after use. Use caution when removing the air chuck, hose, or metal hose clamp. Using the Presta Valve Adapter Loosen the Presta valve locking nut Open the valve by loosening the small locking nut at the top of the Presta valve stem. Thread on the adapter Thread the Presta valve adapter onto the valve stem with the larger open end facing the wheel. Attach the air chuck Clamp the air chuck onto the Presta valve adapter by pressing the air chuck clamp down until it locks in place. Inflate and remove After inflation, remove the air chuck and adapter, then tighten the Presta valve locking nut to seal the tire valve. Digital Gauge + Error Messages Display Meaning / Action Pressure reading Displays the current air pressure while connected to an item being inflated LVP Low voltage protection; charge the battery before continuing OCP Over-current protection; stop use and wait before restarting Display off The digital gauge turns off automatically after about 60 seconds of inactivity Duty Cycle ⏱️ Use in short sessions. This compressor is designed for occasional household use. Do not operate it for more than 5 minutes at a time. After 5 minutes of use, turn it off and allow it to cool for at least 10 minutes before restarting. 💡 If the pump fails to reach the desired pressure within 15 minutes, it will automatically shut off. Storage 1 Store the hose on the tool When not in use, press the air hose into the storage area on top of the compressor. 2 Store adapters in the side storage areas Keep the tapered adapter, sport ball needle, and Presta valve adapter in the built-in adapter storage area. 3 Use the storage bag Store the compressor, battery, charger, and accessories in the included storage bag. 4 Store indoors Store the compressor, battery, and charger in a clean, dry indoor location away from rain, moisture, direct sunlight, and extreme temperatures. Cleaning + Maintenance 🚫 Remove the battery before cleaning, storing, changing adapters, or performing maintenance. 1 Keep vents clear Keep ventilation slots free from dust and dirt to help prevent overheating. 2 Clean after use Wipe the housing with a soft cloth. If needed, use a soft cloth lightly moistened with soapy water. 3 Avoid solvents Do not use brake fluid, gasoline, petroleum-based products, alcohol, ammonia water, or strong solvents on plastic parts. 4 Inspect hose and adapters Check the hose and adapters for damage, leaks, or poor fit before use. Do not use the compressor if the hose leaks or does not function properly. Troubleshooting Guide Use these quick checks for common 24V-AJC-LTE issues. Always remove the battery before checking, cleaning, or storing the compressor. 🔴 Compressor Does Not Turn On Possible Causes Battery is not charged Battery is not fully seated Digital gauge is off Solutions Charge the battery Slide the battery in until it clicks Press the power button below the LCD display 🔋 Battery Does Not Charge Possible Causes Charger adapter is not connected correctly Battery is too warm after use Charger or battery connection is loose Solutions Check the charger adapter and cable connection Allow the battery to cool to room temperature Reconnect the charger plug to the battery charge socket 📟 OCP Flashes on Display Possible Cause Over-current protection has activated Solution Stop use and wait for a while before restarting 📟 LVP Flashes on Display Possible Cause Battery voltage is too low Solution Charge the battery before continuing 💨 No Pressure Possible Causes Adapter is not fitted correctly Air chuck is not locked onto the valve stem Wrong adapter is being used Solutions Check that the adapter is fully seated Press the air chuck clamp down until it locks Use the correct adapter for the item being inflated 🛞 Pump Runs, But Item Does Not Inflate Possible Causes Incorrect adapter is attached Adapter is dirty or blocked Adapter is not fitted securely Item may have a leak Solutions Use the correct adapter Clean the adapter Check that the adapter or air chuck is locked in place Inspect the item being inflated for leaks Optional Accessories Accessory Model 24V IONMAX™ 2.0Ah lithium-ion battery 24VBAT-LTE Video Guide Frequently Asked Questions What comes with the 24V-AJC-LTE? The kit includes the cordless air compressor, tapered adapter, sport ball needle, Presta valve adapter, storage bag, 24V IONMAX™ 2.0Ah lithium-ion battery, 24V IONMAX™ charger, and manual. What can I inflate with this compressor? It can be used for vehicle tires, bike tires, sports balls, pool floats, and similar small inflatables. It is not designed for large-volume items such as boats, pools, rafts, or large air beds. Does it stop automatically? Yes. Set the desired pressure using the digital display and the + or − buttons. The compressor will automatically stop once the preset pressure is reached. What is the maximum pressure? The compressor can inflate up to 120 PSI max, with a 40 PSI maximum working air pressure. Always follow the recommended pressure of the item being inflated. How long does the battery take to charge? The included battery takes up to approximately 5 hours to charge. Unplug the charger when all three battery LEDs are illuminated. Can I leave the compressor running continuously? No. The compressor should not operate for more than 5 minutes at a time. After 5 minutes of use, turn it off and let it cool for at least 10 minutes before restarting. Does it include a light? Yes. The compressor has an LED light above the trigger switch. The light turns on when the power button is pressed and stays on for about 60 seconds. How do I store the hose and adapters? Press the air hose into the hose storage area on top of the tool. Store the adapters in the side storage areas, then place the compressor and accessories in the included storage bag. What does OCP mean on the display? OCP means over-current protection. Stop use and wait for a while before restarting the compressor. What warranty does it have? The 24V-AJC-LTE is backed by a 2-year limited warranty for ordinary household use when purchased from All Season Power / Shop Joe or an authorized seller with proof of purchase. Related articles MJ408E Electric Lawn Mower
