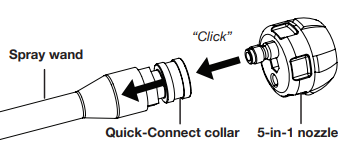

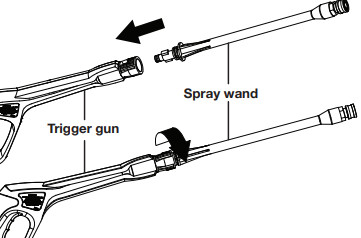

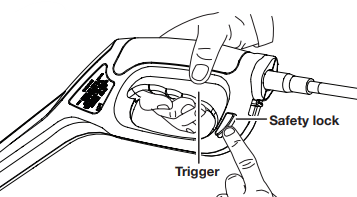

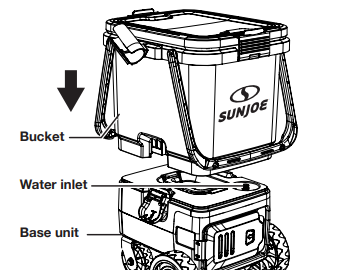

24V-X2-PW1200 Cordless Portable Pressure Washer Sun Joe® 24V-X2-PW1200 Cordless Portable Pressure Washer | Product Guide Portable cordless cleaning with bucket or garden hose convenience. The Sun Joe® 24V-X2-PW1200 Cordless Portable Pressure Washer is designed for residential cleaning tasks such as vehicles, machines, buildings, facades, outdoor surfaces, and everyday dirt and grime. It runs on two 24V iON+ batteries for 48V max power, includes a removable 6.6-gallon water bucket, supports direct garden hose connection, and features Pressure-Select Technology with high and low pressure modes. 🔋 2 x 24V Batteries 🪣 6.6-Gal Bucket 🧼 Foam Cannon Included Meet the 24V-X2-PW1200 Key Components 🪣 Removable water bucket — 6.6-gallon bucket for portable cleaning without a hose connection ⚙️ Base unit — houses the pump, batteries, wheels, controls, and water connections 🔫 Trigger gun — controls water flow and includes a safety lock 🚿 Spray wand — connects the trigger gun to the 5-in-1 nozzle 🎯 5-in-1 nozzle — 0°, 15°, 40°, 0+, and 40+ spray patterns 🧼 Foam cannon — applies pressure washer-rated detergent 🧵 20 ft high-pressure hose — connects the base unit to the trigger gun 🔋 Two 24V iON+ batteries — both batteries are required for operation 🔌 Dual-port charger — charges both included 24V batteries 🎚️ Control panel — includes On/Off, power indicator, low mode, and error indicator 💧 Water inlet adapters — connect either bucket feed or reinforced garden hose 🧰 Needle clean-out tool — clears nozzle blockages Technical Specifications Specification 24V-X2-PW1200 Product Type Cordless portable pressure washer Power Type 48V max cordless system using 2 x 24V batteries Motor 600W brushless motor Battery Voltage 48V DC max / 2 x 24V batteries Battery Capacity 4.0Ah Charger Input 120V AC, 60Hz, 160W Charger Output 26V DC, 2 x 2.2A Maximum Charge Time 1 hour 50 minutes Maximum Water Inlet Temperature 104°F / 40°C Maximum Water Inlet Pressure 0.7 MPa Maximum Pressure 1196 PSI max at initial discharge per CSA internal pressure testing Rated Pressure High: 800 PSI / Low: 650 PSI Maximum Flow 1 GPM with nozzle open at minimum pressure Rated Flow High: 0.65 GPM / Low: 0.77 GPM Removable Bucket Capacity 6.6 gal / 25 L Foam Cannon Capacity 8.5 fl oz / 0.25 L High-Pressure Hose Length 20 ft / 6 m Net Weight 26 lbs / 11.8 kg Warranty 2 Year Warranty What's in the Box Included Item 24V-X2-PW1200 Water bucket assembly ✔ Bucket lid ✔ Base unit ✔ Trigger gun ✔ Spray wand ✔ 5-in-1 Quick-Connect nozzle ✔ Needle clean-out tool ✔ Foam cannon ✔ Trigger gun holder ✔ High-pressure hose ✔ 20 ft Garden hose adapter / female coupler ✔ Water inlet connector ✔ 24V iON+ lithium-ion batteries ✔ 2 batteries 24V iON+ dual-port charger ✔ Manual and registration card ✔ Before You Wash 🚫 Safety first: High-pressure spray can be dangerous if misused. Do not aim the jet at people, pets, live electrical equipment, the unit itself, or your own clothing or footwear. ⚠️ Use clean, cold or lukewarm water only. Do not use hot water. Water temperature must not exceed 104°F / 40°C. Dirty, gritty, sandy, or chemically contaminated water can damage the pump. 💡 Both batteries are required. This pressure washer can only run with both 24V batteries installed together. One battery alone cannot provide enough power to start the tool. Battery + Charging Remove both batteries Open the battery compartment cover and press each battery’s push lock button to remove the battery packs. Plug in the charger Connect the dual-port charger to a compatible outlet. Two green lights indicate the charger has power. Charge both batteries Slide both batteries into the charger until locked. Red lights indicate charging. Green lights indicate the batteries are fully charged. Unplug when charging is complete The charger does not automatically turn off when the batteries are fully charged. Unplug the charger when charging is complete. Battery Indicator Meaning 3 LEDs lit Battery charge level is high 2 LEDs lit Battery charge is decreasing; stop work as soon as possible 1 LED lit Battery is flat; stop immediately and charge the battery Assembly 🚫 Do not insert the batteries until assembly is complete. The washer must be used upright on a secure, stable surface. 1 Bucket Seat bucket on base unit. › 2 Gun + Wand Lock wand into trigger gun. › 3 Nozzle Attach 5-in-1 nozzle. › 4 Hose Connect high-pressure hose. Install the trigger gun holder Insert the trigger gun holder onto the bucket. Seat the bucket on the base Align the water inlet on the base unit with the outlet on the bottom of the bucket. Seat the bucket fully to ensure a proper seal and connection. Lock the bucket to the base Flip up the bucket buckles on the base unit, latch them to the bucket, and press the buckle ends down to lock. Connect the spray wand Align the two tabs on the spray wand with the trigger gun. Push the wand firmly into the trigger gun and twist counterclockwise to lock it in place. Attach the 5-in-1 nozzle Pull the Quick-Connect collar back, snap the nozzle onto the collar until it clicks, then release the collar. Connect the high-pressure hose Insert the hose into the trigger gun connection and lock the latch. Connect the other end to the base unit water outlet and twist the outer collar clockwise until tight. ⚠️ Do not lift the assembled unit by the bucket handles when the bucket is attached to the base. Use the base handle to pull the washer along on its wheels. Water Source Options Option How It Works Bucket Mode Remove the water bucket from the base unit, fill it with clean fresh water, then seat and lock it back onto the base. Do not fill the bucket while it is attached to the base unit. Garden Hose Mode Remove the bucket, disconnect the bucket adapter, connect the brass water inlet connector and garden hose adapter, then thread on a reinforced garden hose with at least 1/2 in. internal diameter. Starting + Pressure Select 💡 Total Stop System: The motor runs when the trigger is pressed and shuts off when the trigger is released. This helps protect the pump from overheating and saves battery power. Insert both batteries Open the battery compartment cover and slide both battery packs in until they click into place. Close the cover. Connect water Use either the filled bucket or a reinforced garden hose connected to the base unit. If using a hose, turn the water supply on completely. Prime the system Release the spray gun safety lock and press the trigger for a few seconds until water flow is steady. This allows air to escape and releases residual pressure in the hose. Start the washer Keep the trigger pressed and press the On/Off button on the control panel. Select pressure mode The washer starts in high power/high pressure mode by default. Press the low setting button to enter low power/low pressure mode for everyday dirt and longer battery life. Press it again to return to high mode. Mode Rated Flow + Pressure High Mode 0.65 GPM / 800 PSI Low Mode 0.77 GPM / 650 PSI 5-in-1 Nozzle Guide 🚫 Never change the spray pattern while spraying. Shut off the pressure washer, disconnect the water source, and lock the trigger gun before changing the nozzle pattern. Spray Pattern Recommended Use 0° Concentrated intense spray for stubborn dirt in small areas. Use carefully on durable surfaces only. 15° Intense cleaning on hard surfaces that can withstand higher pressure. 40° Gentler wide spray for vehicles, patio furniture, boats, lawn equipment, and general rinsing. 0+ Straight-line long-range spray for siding, brick patios, decks, driveways, or sidewalks. Test a small area first. 40+ Light cleaning applications and short-range rinsing. Using the Foam Cannon Use pressure washer detergent only Use detergents designed for pressure washers. Do not use household detergents, acids, alkaline solutions, bleach, solvents, flammable materials, ammonia products, or industrial-grade solutions. Release pressure first Turn off the washer, remove the bucket or shut off the water supply, then pull the trigger to release water pressure. Fill the foam cannon Remove the soap dispenser sprayer from the bottle, fill it with mixed detergent according to the detergent instructions, then reattach the sprayer. Attach the foam cannon Remove the spray wand from the trigger gun. Align the foam cannon tabs with the trigger gun, push it in, and twist counterclockwise to lock it securely. Apply detergent Apply detergent from the bottom to the top of the dry surface. Let it sit briefly, but do not allow detergent to dry on the surface. Rinse after detergent Turn off the washer, release pressure, remove the foam cannon, attach the spray wand and 5-in-1 nozzle, then rinse from the top down. Shutting Down Press the On/Off button Turn the washer off using the control panel. Remove water source Pour the remaining water out of the bucket or turn off the garden hose water supply. Release pressure Hold the trigger to release water pressure from the hose and pump. Disconnect hoses If using the base unit directly, disconnect the garden hose from the water inlet. Disconnect the high-pressure hose from the trigger gun. Lock the trigger gun Release the trigger and engage the gun safety lock. ⚠️ Taking a break? Lock the gun safety lock and press the On/Off button to stop the machine. If left in standby for 3 minutes, the machine will shut off automatically. Care + Maintenance 🚫 Remove both batteries before cleaning, inspecting, changing accessories, or maintaining the washer. 1 Clean the filters Remove the bucket filter and water inlet filter, then rinse them with warm water to prevent foreign matter from clogging the pump. 2 Clean the nozzle Remove the nozzle while covering it with your hand and pulling back the Quick-Connect collar. Use the included needle clean-out tool to clear the nozzle openings. 3 Backflush the nozzle and wand Run water through the nozzle and spray wand from the front opening to help push debris out the back opening. 4 Inspect hoses Keep hoses away from sharp objects. Replace damaged hoses and do not attempt to repair a damaged high-pressure hose. Storage + Winterizing ❄️ Freeze damage is not covered by the warranty. Store the pressure washer indoors in a dry, covered, frost-free location where temperatures will not fall below 32°F / 0°C. 1 Drain all water Empty water from the hoses, pump, foam cannon, and bucket before storage. 2 Purge briefly for long-term storage Disconnect all water connections, turn the machine on for a few seconds until remaining water exits the pump, then turn it off immediately. 3 Avoid hose kinks Do not allow the high-pressure hose to become kinked during storage. 4 Use pump protection for winter storage Use a non-corrosive/non-toxic antifreeze, pump saver, or pump protector before winter storage. 5 Flush before reuse Before using the washer again, completely flush the system with clear water. Troubleshooting Guide Use these quick checks for common 24V-X2-PW1200 issues. Always remove both batteries before checking, cleaning, or maintaining the unit. 🔴 Machine Refuses to Start Possible Causes Batteries are not inserted securely Batteries do not have enough charge Only one battery is installed Solutions Install both batteries until they click into place Charge both batteries fully Use two batteries of the same voltage and capacity 🟡 Fluctuating Pressure Possible Causes Pump is sucking air Connections are not airtight Valves or seals may be dirty, worn, or stuck Solutions Check hoses and connections Prime the system by holding the trigger until pressure becomes regular Clean filters and nozzle ⚠️ Error Indicator Flashes Then Stops Possible Causes Nozzle is blocked Batteries are flat Short circuit if indicator flashes for 6 seconds and shuts down Solutions Clean the nozzle with the included needle clean-out tool Recharge both batteries If the error continues, the unit may require service review 🟡 Machine Pulsates Possible Causes Air in inlet hose Inadequate water supply Nozzle partially blocked Water filter blocked Hose kinked Solutions Hold trigger until regular working pressure resumes Use a reinforced garden hose with at least 1/2 in. internal diameter Clean nozzle and filters Straighten hose and remove kinks or blockages 🔴 Starts and Stops by Itself Possible Causes Pump or spray gun is leaking Trigger mechanism issue Normal TSS standby when trigger is released Solutions Check pump, spray gun, hose, and connections for leaks Confirm the trigger is operating normally Remember that the motor stops when the trigger is released 💧 Starts, But No Water Comes Out Possible Causes Pump, hoses, or accessories are frozen No water supply Water filter blocked Nozzle blocked Solutions Let frozen parts thaw completely before use Fill and lock the bucket or connect inlet water Clean the filters Clean the nozzle 🧼 Foam Cannon Not Working Possible Causes Foam cannon is not locked securely into trigger gun Detergent is not pressure washer-rated Detergent dried inside the foam cannon Solutions Reconnect the foam cannon and lock it securely Use only pressure washer-rated detergent Rinse the foam cannon after each use 🔋 Battery Will Not Charge Possible Causes Battery is too hot or too cold Battery is not seated correctly in charger Charger is not connected to power Solutions Charge within the safe temperature range Remove and reinsert the batteries Confirm the charger is plugged into a working outlet Optional Accessories Accessory Model 24V iON+ 2.0Ah lithium-ion battery 24VBAT-LTE 24V iON+ 2.5Ah lithium-ion battery 24VBAT-LT 24V iON+ 4.0Ah lithium-ion battery 24VBAT 24V iON+ 5.0Ah lithium-ion battery 24VBAT-XR 24V iON+ lithium-ion quick charger 24VCHRG-QC 24V iON+ lithium-ion dual-port charger 24VCHRG-DPC Frequently Asked Questions What comes with the 24V-X2-PW1200? The kit includes the water bucket assembly, bucket lid, base unit, trigger gun, spray wand, 5-in-1 Quick-Connect nozzle, needle clean-out tool, foam cannon, trigger gun holder, high-pressure hose, garden hose adapter, water inlet connector, two 24V iON+ batteries, dual-port charger, manual, and registration card. Can I use the washer without a garden hose? Yes. The removable 6.6-gallon bucket allows portable cleaning without a garden hose connection. Fill the bucket with clean fresh water, then seat and lock it onto the base unit before use. Can I connect it directly to a garden hose? Yes. Remove the bucket, install the water inlet connector and garden hose adapter, then connect a reinforced garden hose with at least a 1/2 inch internal diameter. Does it need both batteries to run? Yes. The pressure washer requires both 24V batteries installed together. One battery alone cannot provide sufficient power to start the tool. How long does it take to charge the batteries? A fully discharged battery pack takes up to approximately 1 hour and 50 minutes to charge within the normal charging temperature range. What does Pressure-Select Technology do? The washer starts in high pressure mode by default. Press the low setting button to use low pressure mode for everyday dirt and grime while helping extend battery life. What spray patterns are included? The included 5-in-1 nozzle has five spray patterns: 0°, 15°, 40°, 0+, and 40+. Can I use household detergent or bleach? No. Use only detergents designed for pressure washers. Do not use household detergents, bleach, chlorine products, solvents, ammonia products, acid-based products, or flammable materials. Can I use hot water? No. Do not use hot water. The maximum water inlet temperature is 104°F / 40°C. What warranty applies? The uploaded manual is for the 24V-X2-PW1200-RM remanufactured model, which includes a 90-day refurbished goods warranty for normal residential use. Warranty terms may differ for non-remanufactured units. Related articles HJ604C Cordless Grass Shear + Hedge Trimmer
