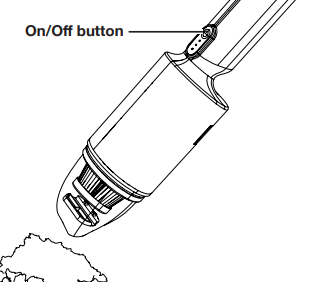

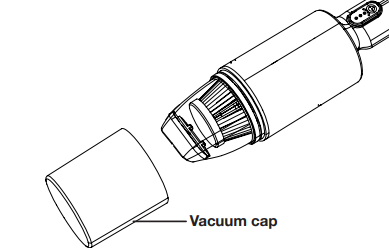

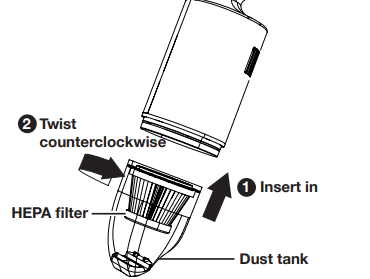

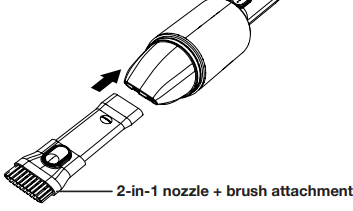

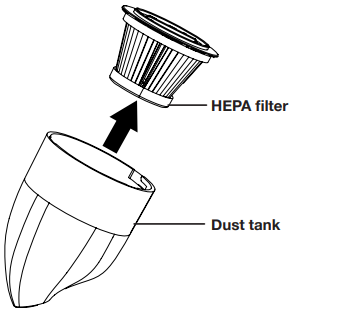

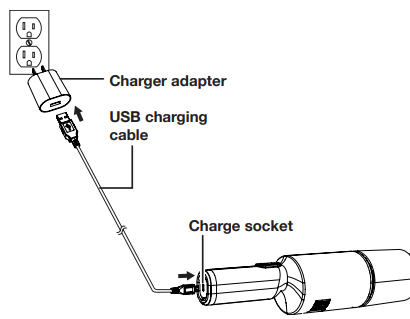

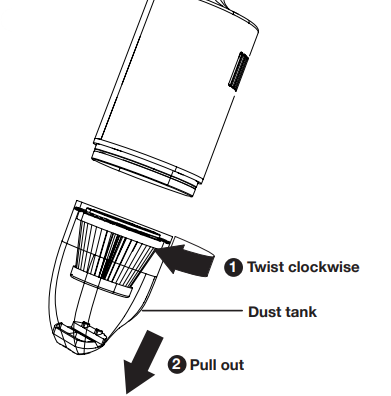

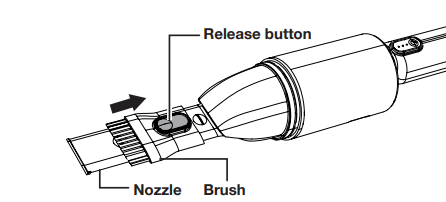

AJV1000 Cordless Handheld Auto Vac Auto Joe® AJV1000 Cordless Handheld Auto Vac | Product Guide Compact cordless cleanup for dry, light debris. The Auto Joe® AJV1000 Cordless Handheld Auto Vac is designed for quick dry vacuuming on hard surfaces, car interiors, small spaces, and everyday dust or debris. It features an 8.4V max lithium-ion battery, USB charge system, HEPA filter, 3.4 oz dust tank, and a 2-in-1 nozzle + brush attachment for small-area cleaning and fine dust pickup. 🔋 2.0Ah Battery💨 4 kPa Max Vacuum Pressure🧹 2-in-1 Nozzle + Brush Meet the AJV1000 Key Components ⚙️ Motor housing — contains the 60W motor and main vacuum body 🧽 HEPA filter — helps capture small dry dust particles during vacuuming 🧺 Dust tank — 3.4 oz / 100 ml collection cup for dry debris 🚧 Dust retaining flap — helps keep collected debris inside the tank 🧢 Vacuum cap — covers the nozzle during storage 🧹 2-in-1 nozzle + brush — cleans small areas and fine dust 🔘 Release button — slides the brush attachment up or down 🔋 Charge level indicator — shows battery level and charging status ▶️ On/Off button — starts and stops the vacuum 🔌 USB charge socket — connects the USB charging cable to the vacuum 🔌 Charger adapter + USB cable — included charging system 🖐️ Handle — compact grip for handheld cleaning Technical Specifications Specification AJV1000 Product Type Cordless handheld auto vacuum Best Use Dry, light debris on hard surfaces, car interiors, small spaces, and quick cleanups Motor 60 W Battery Voltage 8.4V DC max; 7.4V nominal under typical load Battery Capacity 2.0Ah Battery Type Lithium-ion Charger Input 100 – 240V AC, 50 – 60 Hz Charger Output 5V DC, 1A Maximum Runtime Up to 12 minutes Maximum Charge Time Up to 4 hours Maximum Vacuum Pressure 4 kPa Maximum Air Flow 14.1 CFM / 0.4 m³/min Dust Tank Capacity 3.4 oz / 100 ml Weight Without Attachments 1.4 lbs / 0.6 kg Warranty 2 Year Warranty What's in the Box Included Item AJV1000 Cordless handheld vacuum ✔ 2-in-1 nozzle + brush attachment ✔ Charger adapter ✔ USB charging cable ✔ Manuals with registration card ✔ Before You Vacuum 🚫 Dry vacuuming only. Do not use the AJV1000 to clean liquids, wet debris, flammable liquids, gasoline, hot ashes, cigarettes, matches, burning materials, or smoking debris. ⚠️ Indoor use only. Do not expose the vacuum or charger to rain, damp areas, or wet environments. Store the vacuum indoors in a dry place. 💡Always use the dust tank and HEPA filter. Do not operate the vacuum without the dust tank and HEPA filter installed. Charging the Battery 🔋 Charge before first use. The AJV1000 ships with a low charge and should be fully charged before operation. Plug in the charger adapter Connect the charger adapter to a compatible indoor AC outlet. Connect the USB cable Connect the charger adapter and the vacuum using the included USB charging cable. The vacuum may also be charged through another compatible USB port. Watch the charging LEDs The battery indicator LEDs will twinkle and illuminate one by one during charging. Unplug when charged Unplug the charger when all three LEDs are illuminated. Charging may take up to 4 hours. ⚠️The charger does not automatically turn off when the battery is fully charged. Do not leave the vacuum plugged into the charger after charging is complete. Battery Charge Indicator Indicator Meaning 3 white LEDs Battery charge level is high 2 white LEDs Battery charge level is decreasing 1 white LED Battery is almost flat; stop work and charge the battery 1 red LED Battery is flat; stop work immediately and charge the battery Red LED near On/Off during charging Charging overheating protection has activated; disconnect and let the unit cool before charging again Starting + Vacuuming 1 Remove Cap Take off vacuum cap. › 2 Check Filter Confirm HEPA filter is installed. › 3 Power On Press On/Off button. › 4 Store Replace cap after use. Remove the vacuum cap Before operation, remove the vacuum cap from the front nozzle. Check the dust tank and filter Make sure the HEPA filter is installed and the dust tank is securely attached. Point the nozzle at the debris Keep the nozzle pointed toward the dry dust or debris to be cleaned. Do not start the vacuum while it is touching foreign objects. Press the On/Off button Press the On/Off button to start vacuuming. Press it again to turn the vacuum off after use. Replace the vacuum cap After the vacuum is turned off, replace the vacuum cap before storage. Using the 2-in-1 Nozzle + Brush ⚠️Do not adjust the 2-in-1 nozzle + brush while the vacuum is switched on. Turn the vacuum off and wait until it stops completely before adjusting or installing attachments. Turn the vacuum off Wait until the vacuum has stopped completely. Install the attachment Insert the 2-in-1 nozzle + brush attachment into the vacuum nozzle and press firmly until it locks in place. Use with or without the brush To use the nozzle without the brush, press the release button and slide the brush up. Vacuuming Tips 1 Use for dry, light materials only The AJV1000 is not designed for liquids, heavy materials, hot debris, nails, screws, coins, or hard objects. 2 Hold by the handle Always hold the unit by the handle while vacuuming. 3 Keep the nozzle slightly above debris During vacuuming, keep the nozzle about 0.4 in. / 1 cm above the material being vacuumed. 4 Watch for overheating If the vacuum stops from overheating protection, do not keep pressing the On/Off button. Let the vacuum cool before resuming use. Emptying the Dust Tank 🧺 Empty after each use. It is recommended to empty the dust tank every time after using the vacuum. Turn the vacuum off Wait until the tool has stopped completely. Point the nozzle downward Point the nozzle toward the ground to help prevent dust from spilling when the tank is removed. Remove the dust tank Twist the dust tank clockwise, then pull it out from the vacuum. Remove the HEPA filter Lift the HEPA filter out of the dust tank. Discard the debris Empty the debris and dust from the dust tank according to local laws and regulations. Reassemble the tank Insert the HEPA filter into the dust tank, push the dust tank back into the vacuum, and twist counterclockwise until it locks in place. HEPA Filter Care 🚫The HEPA filter must be installed before vacuuming. Do not use a torn, damaged, or missing filter. Remove the dust tank and filter Turn the vacuum off, remove and empty the dust tank, then lift out the HEPA filter. Tap or brush off dirt Clean the filter by gently tapping or brushing dirt off. Handle the filter carefully. Rinse only if needed If needed, rinse the filter with clean water. Allow it to air dry for 24 hours before reinstalling. Replace if damaged If the filter has tears, holes, or excess wear, replace it with original replacement filter model AJV1000-FILTER. Maintenance + Cleaning ⚠️Turn off the vacuum before maintenance. Never remove the dust tank without first switching off the equipment. 1 Clean outside when possible Take the unit outside to clean the dust tank to avoid creating a mess indoors. 2 Clean the dust tank with water Remove and empty the dust tank. Clean the tank with water and allow it to dry completely before reassembling. 3 Keep openings clear Keep ventilation openings free of dust, lint, hair, and anything that may reduce airflow. 4 Inspect parts Check for worn, loose, damaged, or cracked parts before use. Do not use the vacuum if damaged. Storage 1 Empty and clean before storage Empty the dust tank, clean and dry the inside and outside, and check the HEPA filter before storage. 2 Replace the vacuum cap Store the handheld vacuum with the vacuum cap installed over the nozzle. 3 Store indoors Store in a clean, dry, locked indoor location out of reach of children and animals. 4 Protect battery life Never store the vacuum with the battery discharged. Recharge immediately after discharge and recharge every 6 months during long storage. Troubleshooting Guide Use these quick checks for common AJV1000 issues. Always turn off the vacuum before checking, cleaning, or removing the dust tank. 🔴 Machine Refuses to Start Possible Causes Battery is flat Overheating protection is active On/Off button may be damaged Solutions Charge the battery Let the unit cool before resuming use If the button is damaged, the unit may require service review 🟡 Vacuum Suction Drops Possible Causes Dust tank is full HEPA filter is clogged Battery power is low Solutions Empty the dust tank Clean the HEPA filter Charge the battery 🔥 Motor Housing Is Hot Possible Causes Unit has worked continuously for too long Dust tank is full HEPA filter is clogged Solutions Shut down the unit and let it cool Empty the dust tank Clean the HEPA filter 🔌 Vacuum Does Not Charge Possible Causes USB cable is not fully connected Charger adapter or USB port has no power Charging overheating protection activated Solutions Reconnect the USB cable Try a working indoor outlet or compatible USB port Disconnect the unit and let it cool before charging again 🧽 Dust Blows Out / Poor Filtration Possible Causes HEPA filter is missing Filter has holes or tears Dust tank is not locked in place Solutions Install the HEPA filter before use Replace damaged filter with AJV1000-FILTER Reattach and twist the dust tank counterclockwise until locked 💧 Liquid Was Vacuumed Important This unit is for dry vacuuming only Liquids can damage the vacuum and create safety risks What to Do Turn the unit off immediately Do not continue using the vacuum Allow parts to dry and contact support if performance is affected Optional Accessories Accessory Model 2-in-1 nozzle + brush attachment AJV1000-BRUSH HEPA filter AJV1000-FILTER HEPA filter sealer AJV1000-SEAL USB charging cable AJV1000-USBCHARGER Dust tank AJV1000-DUSTCUP Video Guide Frequently Asked Questions What comes with the AJV1000? The AJV1000 includes the cordless handheld vacuum, 2-in-1 nozzle + brush attachment, charger adapter, USB charging cable, and manuals with registration card. Can I use the AJV1000 for wet messes? No. The AJV1000 is for dry vacuuming only. Do not use it to pick up liquids, wet debris, flammable liquids, gasoline, hot ashes, or smoking materials. How long does the battery last? The AJV1000 has a maximum runtime of up to 12 minutes, depending on use and debris conditions. How long does it take to charge? Charging may take up to 4 hours. Unplug the charger when all three LEDs are illuminated. Does the charger turn off automatically? No. The charger does not automatically turn off when the battery is fully charged. Unplug it when charging is complete. What do the battery indicator lights mean? Three white LEDs mean the battery charge is high. Two white LEDs mean the charge is decreasing. One white LED means the battery is almost flat. One red LED means the battery is flat and should be charged immediately. Can I wash the HEPA filter? Yes, only if needed. Rinse with clean water and allow the filter to air dry for 24 hours before reinstalling. Do not use the filter if it has holes, tears, or excess wear. Why did the vacuum stop while I was using it? The vacuum may have activated overheating protection. Turn it off, let it cool for a while, then resume use. Also check and empty the dust tank and clean the HEPA filter. What replacement filter does it use? The replacement HEPA filter model is AJV1000-FILTER. What warranty does it have? The AJV1000 is backed by a 2-year limited warranty for ordinary household use when purchased from Snow Joe / Sun Joe or an authorized seller with proof of purchase. Related articles SPX2599-MAX Electric Pressure Washer
