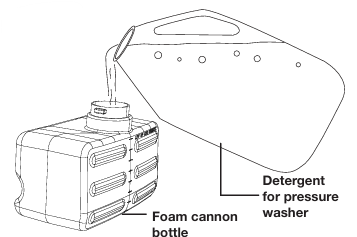

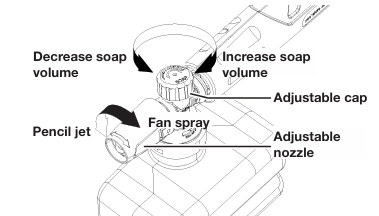

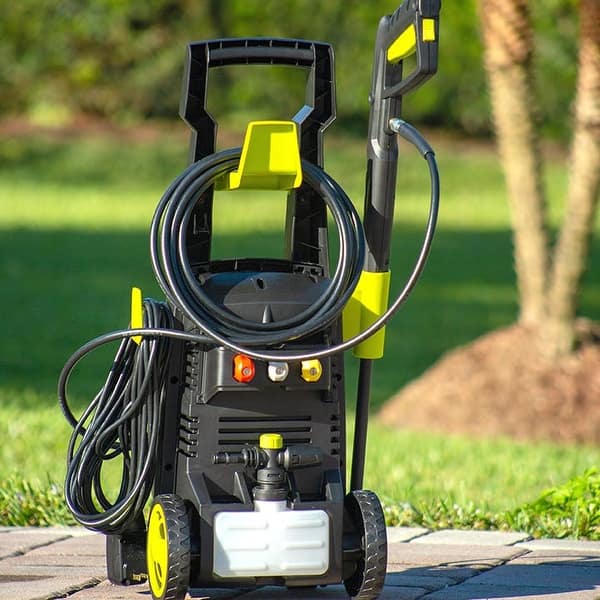

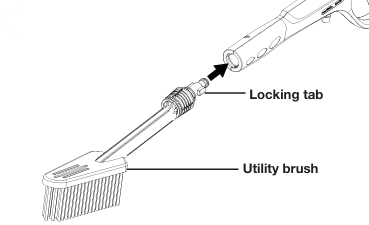

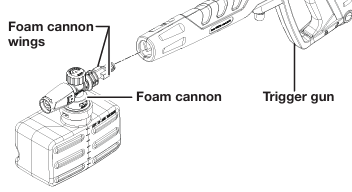

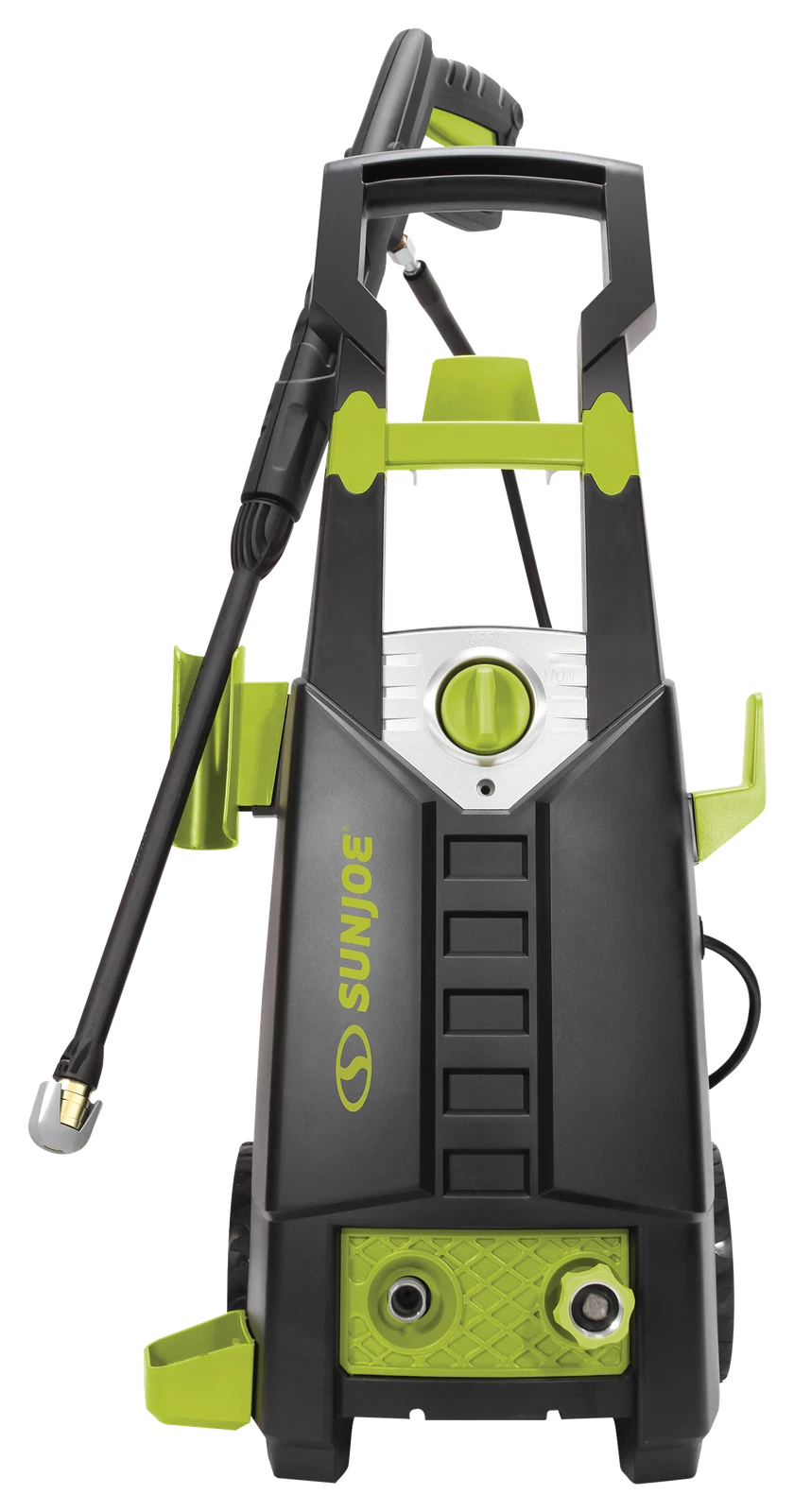

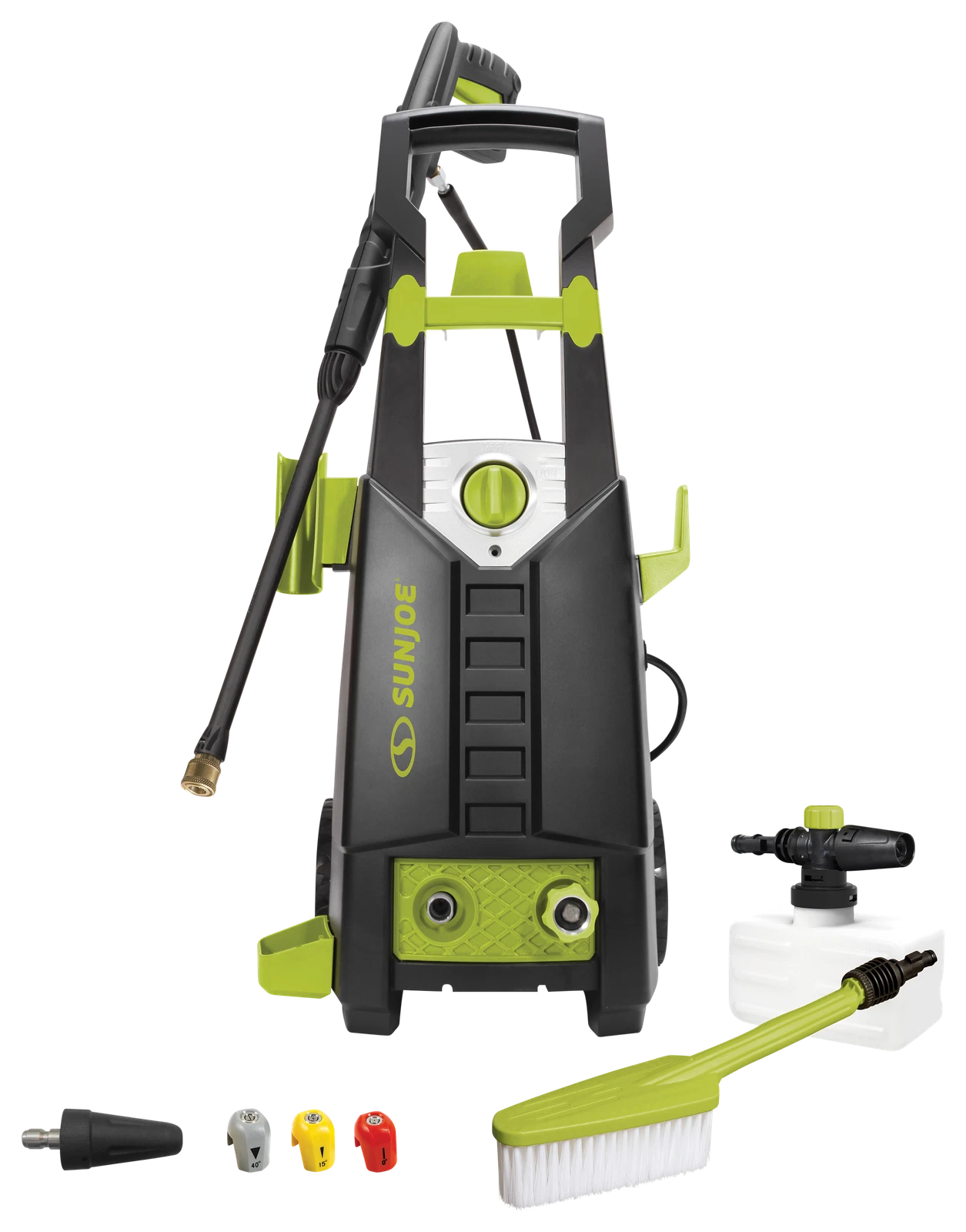

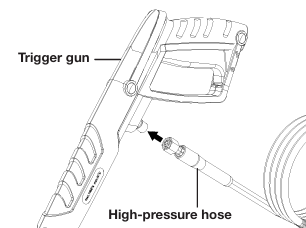

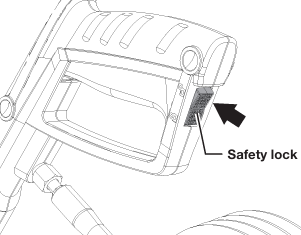

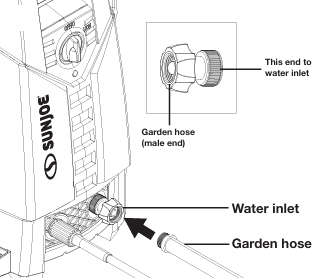

SPX2599-MAX Electric Pressure Washer Sun Joe® SPX2599-MAX Electric Pressure Washer | Product Guide Medium-to-heavy duty cleaning power with foam cannon and brush accessories. The Sun Joe® SPX2599-MAX Electric Pressure Washer is designed for residential cleaning jobs on boats, motorcycles, RVs, ATVs, trailers, decks, barbecues, siding, patio furniture, and more. It features a 13-amp motor, 2080 PSI max pressure, 1.65 GPM max flow, a 20 ft high-pressure hose, 35 ft GFCI power cord, 33.8 fl oz foam cannon bottle, three Quick-Connect spray nozzles, a heavy-duty turbo nozzle, and a utility bristle brush. ⚡ 13-Amp Motor🧼 Foam Cannon Included🌀 Total Stop System Meet the SPX2599-MAX Key Components 🔫 Trigger gun — controls spray flow and includes a safety lock ⚙️ On/Off switch — powers the washer on and off 💧 Water outlet — connects to the high-pressure hose 🚿 Garden hose adapter — connects the water supply to the washer 🔌 Power cord with GFCI — 35 ft cord with built-in GFCI protection 🛞 Wheels — help move the washer around the cleaning area 🧵 20 ft high-pressure hose — connects the washer to the trigger gun 🎯 Quick-Connect nozzles — 0°, 15°, and 40° nozzles for different spray patterns 🌀 Heavy-duty turbo nozzle — rotary zero-degree nozzle for wider high-impact cleaning 🧼 Foam cannon bottle — 33.8 fl oz bottle for pressure washer-rated detergent 🧽 Utility bristle brush — feather bristle brush for painted, topcoat, and delicate surfaces 🧰 Needle clean-out tool — clears clogged nozzle openings Technical Specifications Specification SPX2599-MAX Product Type Electric pressure washer Best Use Residential medium-to-heavy duty cleaning for boats, motorcycles, RVs, ATVs, trailers, decks, barbecues, siding, patio furniture, and more Rated Voltage 120V ~ 60 Hz Motor 13 amps Maximum Pressure 2080 PSI max per CSA test standards Rated Pressure 1800 PSI under typical load Maximum Flow 1.65 GPM max per CSA test standards Rated Flow 1.1 GPM under typical load Maximum Water Inlet Temperature 104°F / 40°C Maximum Water Inlet Pressure 0.7 MPa Foam Cannon Capacity 33.8 fl oz / 1.0 L High-Pressure Hose Length 20 ft / 6 m Power Cord Length 35 ft / 10.7 m with GFCI Nozzles Included 0° orange, 15° yellow, 40° gray, and heavy-duty turbo nozzle Utility Brush SPX-UB1 feather bristle pressure washer utility brush Total Stop System Yes Weight 17 lbs / 7.7 kg Warranty 2 Year Warranty What's in the Box Included Item SPX2599-MAX Electric pressure washer ✔ Top handle ✔ High-pressure hose holder ✔ Spray wand protector ✔ Trigger gun holder ✔ Cord holder ✔ 4.8 x 16 screws ✔ 7 screws Spray wand ✔ Trigger gun ✔ Quick-Connect nozzles ✔ 0°, 15°, and 40° Heavy-duty turbo nozzle ✔ Utility bristle brush ✔ Needle clean-out tool ✔ included with manual packet High-pressure hose ✔ 20 ft Garden hose adapter / female coupler ✔ Manuals with registration card ✔ Assembly 🚫Do not connect to power until assembly is complete. Keep the pressure washer upright on a secure, stable surface during setup and operation. 1 Handle Install top handle. › 2 Storage Attach holders. › 3 Wand Connect wand to gun. › 4 Hoses Connect pressure hose and water. Install the top handle Slide the top handle into position on top of the pressure washer and secure it with three screws. Install the high-pressure hose holder Attach the high-pressure hose holder and secure it with four screws. Install the storage holders Slide the cord holder, trigger gun holder, and spray wand protector into position. Connect the spray wand Press the spray wand wings into the trigger gun slot, then twist counterclockwise until the parts lock together. Connect the high-pressure hose Connect the high-pressure hose to the trigger gun and twist to secure. Connect the other end to the water outlet on the washer and tighten securely. Connect the garden hose Connect the garden hose adapter to the water inlet, then thread your reinforced garden hose into the adapter. Use a garden hose with at least a 1/2 in. internal diameter. Extension Cord Guidance ⚠️Extension cords are not recommended. The SPX2599-MAX includes a 35 ft GFCI power cord. If an extension cord must be used, do not use one over 25 ft, the combined cord length must not exceed 60 ft, and the extension cord must be 14 AWG or heavier. Cord Setup Requirement Built-in power cord 35 ft GFCI power cord Extension cord length Do not use over 25 ft Combined cord length Must not exceed 60 ft total Minimum extension cord gauge 14 AWG or heavier Connection type Outdoor-rated and watertight plug/socket construction Getting Started 💡 Total Stop System: The motor only runs when the trigger is operated and shuts off when the trigger is released. This is normal and helps protect the pump from overheating. Position the pressure washer Place the washer as close as possible to the water supply. Keep it upright on a secure, stable surface. Confirm the unit is switched off Make sure the On/Off switch is OFF before plugging the unit into a power outlet. Reset the GFCI if needed When first plugged in, press the Reset button until the power light indicator on the GFCI illuminates. Turn on the water completely Turn the water supply tap on completely before starting the pressure washer. Prime the system Release the safety lock and press the trigger for a few seconds until water flow is steady. This allows air to escape and releases residual pressure in the hose. Start the pressure washer Turn the On/Off switch to the ON position. When restarting the motor, keep the trigger pressed. Nozzle Guide Nozzle Recommended Use 0° Orange Spot cleaning or hard-to-reach areas. This is the most concentrated spray pattern and should only be used carefully on durable surfaces. 15° Yellow Tough cleaning jobs where a narrower high-pressure spray is needed. 40° Gray Gentler wide spray for light-duty cleaning and rinsing. Heavy-Duty Turbo Nozzle Zero-degree rotary spray that spins in a circle for a wider cleaning swath and stronger impact on durable surfaces. 🚫Never change nozzles while the trigger is engaged. Turn off the pressure washer, shut off the water, release pressure, and engage the safety lock before changing nozzles. Using the Foam Cannon 🧼Use pressure washer-rated detergent only. Do not use household detergents, bleach, chlorine products, solvents, ammonia products, acid-based products, flammable materials, or industrial-grade solutions. Remove the foam cannon bottle Gently pull the foam cannon bottle out of its storage position. Fill the bottle Remove the cap and fill or mix detergent according to the detergent instructions. Secure the cap back into place. Remove the spray wand Disconnect the spray wand from the trigger gun by pressing it in firmly and twisting clockwise until the wings release from the slot. Connect the foam cannon Press the foam cannon wings into the trigger gun slot, then twist counterclockwise until locked. Apply detergent properly Apply detergent from the bottom to the top of the dry surface. Let it remain briefly, but do not allow detergent to dry on the surface. Adjust foam if needed The foam cannon spray angle can be adjusted from 0° to 45° by rotating the nozzle. Foam volume can be adjusted using the adjustable cap. Drain and rinse after use When finished, drain and rinse the foam cannon bottle. Run the washer until all soap is drained from the bottle. ⚠️Do not adjust the foam cannon while the trigger is squeezed. Always test detergent in an inconspicuous area before use. Using the Utility Bristle Brush 🧽The included utility bristle brush is designed for painted, topcoat, and delicate surfaces. It connects directly to the trigger gun after the spray wand is removed. Detach the spray wand Remove the spray wand from the trigger gun if it is installed. Align the brush tabs Align the two tabs of the utility brush with the inside of the trigger gun. Lock the brush into place Push the utility brush into the trigger gun, then twist counterclockwise to lock it. Shutting Down Turn the switch OFF Turn the switch to the OFF position and unplug the power cord from the outlet. Turn off the water source Shut off the water supply. Release pressure Hold the trigger to release water pressure from the system. Disconnect hoses Disconnect the garden hose from the water inlet and disconnect the high-pressure hose from the trigger gun handle. Engage the safety lock Release the trigger and engage the gun safety lock. ⚠️ Taking a break? If pausing for five minutes or more, engage the gun safety lock, turn the switch OFF, and unplug the power cord. Care & Maintenance 🚫Always disconnect the power plug before inspecting, cleaning, changing accessories, or maintaining the pressure washer. 1 Clean the adapter filter Remove the adapter filter from the garden hose adapter and rinse it with warm water to prevent foreign matter from clogging the pump. 2 Clean clogged nozzles Remove the nozzle from the spray wand, use the included needle clean-out tool to clear the nozzle hole, then rinse the nozzle. 3 Inspect hoses regularly Keep hoses away from sharp objects. Replace damaged hoses and do not attempt to repair a damaged high-pressure hose. Storage + Winterizing ❄️Freeze damage is not covered by the warranty. Store the pressure washer indoors in a dry, covered, frost-free location where temperatures will not fall below 32°F / 0°C. 1 Drain before storage Always empty water from the hoses, pump, and foam cannon bottle before storing. 2 Short purge for long-term storage Disconnect all water connections, turn the pressure washer on for a few seconds until remaining water exits the pump, then turn it off immediately. 3 Avoid hose kinks Do not allow the high-pressure hose to become kinked during storage. 4 Use pump protection for winter storage Use a non-corrosive/non-toxic antifreeze, pump saver, or pump protector before winter storage. 5 Flush before reuse Before reusing after antifreeze or pump protector, completely flush the unit with clear water. Troubleshooting Guide Use these quick checks for common SPX2599-MAX issues. Always disconnect power before checking, cleaning, or maintaining the unit. 🔴 Machine Not Working Step-by-Step Checks Check the GFCI light indicator. This confirms whether the pressure washer is receiving power. There should be a red or green light on the GFCI plug. If the GFCI light is off: Press the RESET button on the GFCI plug. Make sure the plug is fully seated, then try a known working outlet. There should be a red or green light. If using an extension cord: Remove the extension cord and plug the pressure washer directly into a wall outlet. Check the nozzle: Remove the nozzle and clean it with the needle clean-out tool. If the nozzle cannot be removed, make sure the nozzle opening is not clogged. Run the full restart sequence: Connect the garden hose and turn the water supply fully on. Make sure the trigger safety lock is in its normal operating position. Press and hold the trigger until water flow is steady to purge air and release trapped pressure. Reset the GFCI if needed, turn the machine ON, and try again. 🔴 Machine Refuses to Start Possible Causes Machine is not plugged into a working outlet GFCI needs to be reset Defective socket Fuse has blown or circuit is overloaded Defective extension cord Solutions Confirm the machine is plugged into a working outlet Check the power cord and reset the GFCI Try a different outlet Switch off other machines using the same circuit Try the unit without an extension cord 🟡 Fluctuating Pressure Possible Causes Pump is sucking air Hoses or connections are not airtight Valves or seals may be dirty, worn, or stuck Solutions Check that hoses and connections are airtight Run the washer with the trigger held until regular pressure resumes Clean the adapter filter and nozzle 🔴 Machine Stops Possible Causes Fuse has blown Incorrect mains voltage Thermal sensor activated Nozzle partially blocked Solutions Switch off other machines using the same circuit Confirm voltage matches the model tag Let the washer cool for 5 minutes, then restart Clean the nozzle 🟡 Machine Pulsates Possible Causes Air in inlet hose Inadequate water supply Nozzle partially blocked Water filter blocked Hose kinked Solutions Hold the trigger until regular working pressure resumes Check that the water supply meets the required specifications Use a reinforced garden hose with at least 1/2 in. internal diameter Clean the nozzle and water inlet filter Straighten the hose and remove kinks or blockages 🔴 Machine Often Starts and Stops by Itself Possible Causes Pump or spray gun is leaking Trigger mechanism is broken Unit is entering normal TSS standby after pressurizing Solutions Inspect pump, spray gun, hose, and connections for leaks Confirm the trigger is operating normally Remember that TSS standby is normal when the trigger is released 🔴 Machine Starts, But No Water Comes Out Possible Causes Pump, hoses, or accessories are frozen No water supply Water inlet filter is blocked Nozzle is blocked Solutions Allow pump, hoses, or accessories to thaw before use Connect inlet water and turn the water supply on completely Clean the water inlet filter Clean the nozzle 🧼 Foam Cannon Not Dispensing Soap Possible Causes Foam cannon is not locked onto trigger gun Foam cannon bottle is empty Detergent is too thick or not pressure washer-rated Foam cannon was not rinsed after prior use Solutions Remove the spray wand and lock the foam cannon onto the trigger gun Fill with pressure washer-rated detergent Mix detergent according to the bottle instructions Drain and rinse the foam cannon bottle after use Optional Accessories Accessory Model Sun Joe® House + Deck All-Purpose Pressure Washer Rated Concentrated Cleaner SPX-HDC1G Sun Joe® Premium Snow Foam Pressure Washer Rated Car Wash Soap + Cleaner SPX-FCS1G Sun Joe® All-Purpose Heavy Duty Pressure Washer Rated Cleaner + Degreaser SPX-APC1G 25 ft medium-duty extension hose for SPX Pressure Washer Series SPX-25H Solid brass universal Quick Connector / garden hose to pressure washer adapter SPX-UQC Frequently Asked Questions What comes with the SPX2599-MAX? It includes the electric pressure washer, top handle, high-pressure hose holder, spray wand protector, trigger gun holder, cord holder, screws, spray wand, trigger gun, three Quick-Connect nozzles, heavy-duty turbo nozzle, utility bristle brush, needle clean-out tool, high-pressure hose, garden hose adapter, and manuals with registration card. What nozzles are included? The SPX2599-MAX includes 0° orange, 15° yellow, 40° gray Quick-Connect nozzles, plus a heavy-duty turbo nozzle. Does it include a foam cannon? Yes. The SPX2599-MAX includes a 33.8 fl oz / 1.0 L foam cannon bottle. Use only pressure washer-rated detergent and rinse the foam cannon bottle after use. Can I use household detergent or bleach? No. Use only detergents designed for pressure washers. Do not use household detergents, bleach, chlorine products, solvents, ammonia products, acid-based products, or flammable materials. Can I connect the SPX2599-MAX to hot water? No. The maximum inlet water temperature is 104°F / 40°C. Hotter water can damage the pump. Can I use an extension cord? Extension cords are not recommended. The unit includes a 35 ft GFCI power cord. If an extension cord must be used, it must be outdoor-rated, 14 AWG or heavier, and no longer than 25 ft. The combined cord length must not exceed 60 ft. Why does the motor stop when I release the trigger? This is normal. The SPX2599-MAX has a Total Stop System that shuts the motor off when the trigger is released and the unit is pressurized. Squeezing the trigger restarts the pump motor. What garden hose should I use? Use a reinforced garden hose with an internal diameter of at least 1/2 inch. Avoid long, thin, kinked, or blocked hoses because they can reduce water flow and cause pulsing. How should I store the SPX2599-MAX? Store it indoors in a dry, frost-free area. Drain all water from the hoses, pump, and foam cannon bottle. For winter storage, use a pump protector, pump saver, or non-corrosive/non-toxic antifreeze, then flush with clear water before reuse. What warranty does it have? The SPX2599-MAX is backed by a 2-year limited warranty for residential and personal household use when used and maintained according to the manual.
