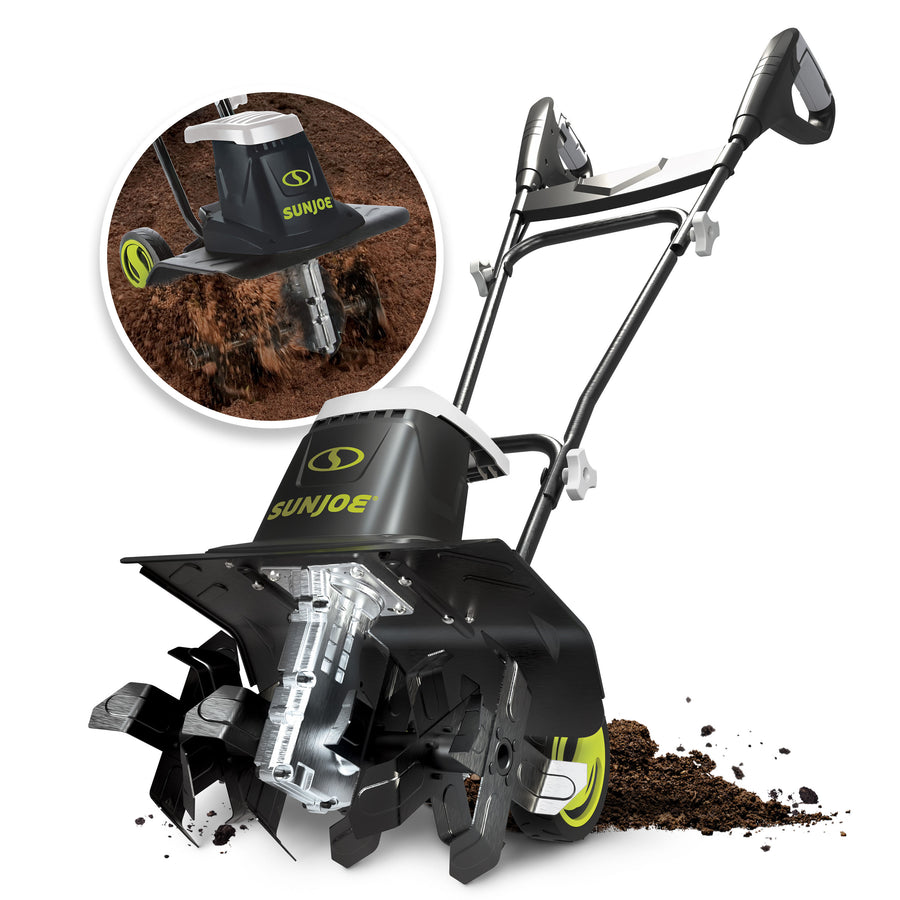

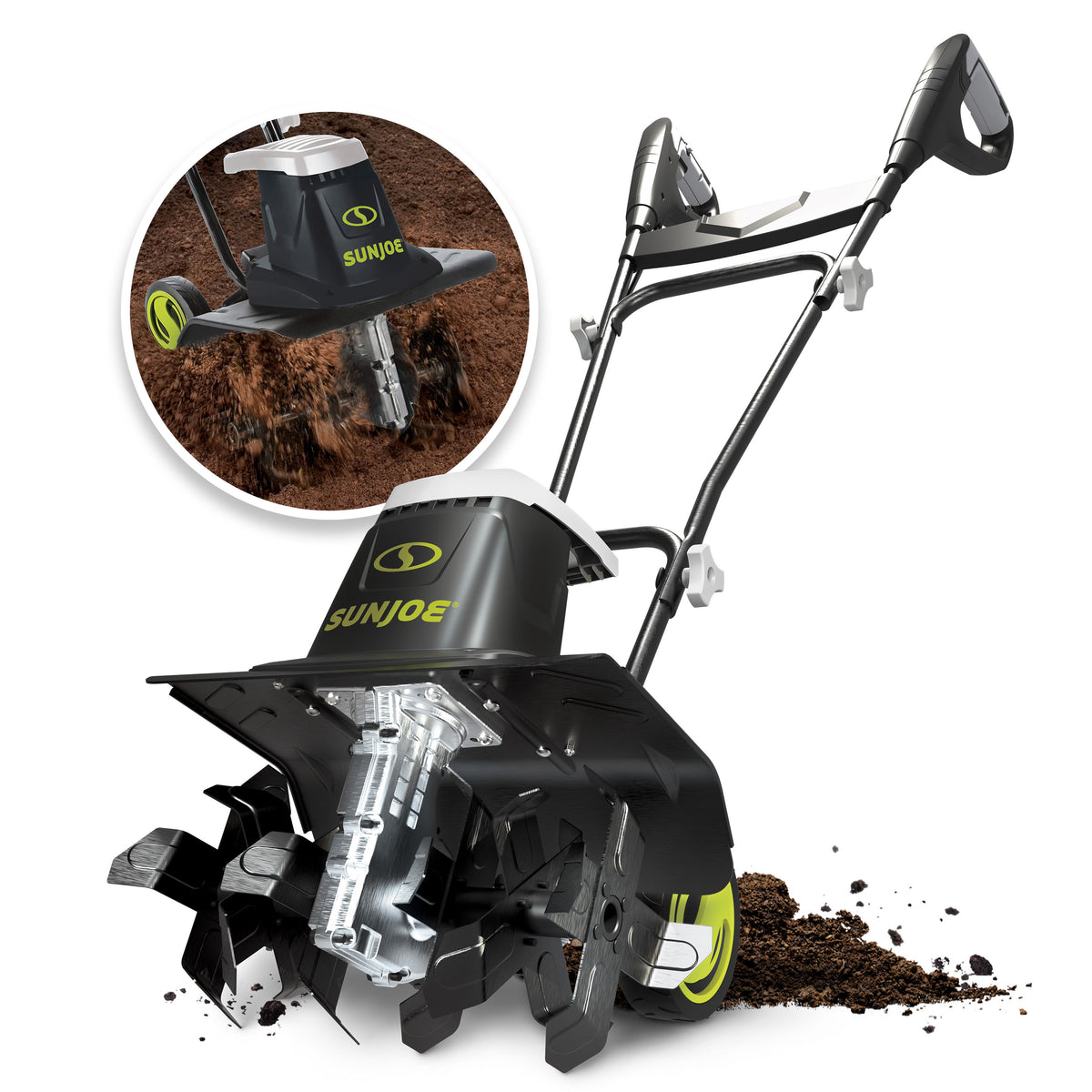

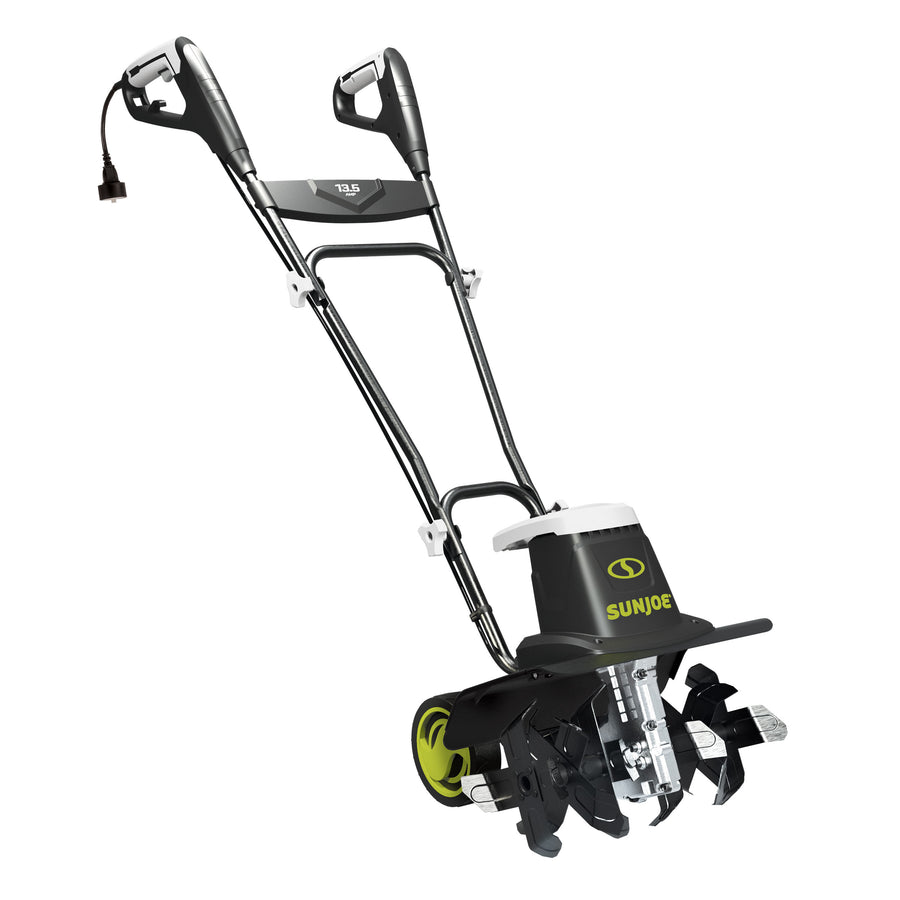

Meet the TJ604E
Key Components
Upper handle — main grip area for controlling the tiller while operating
Safety switch — helps prevent accidental starting
Instant start switch — starts the electric motor without gas, oil, or tune-ups
Cord lock — helps secure the extension cord during operation

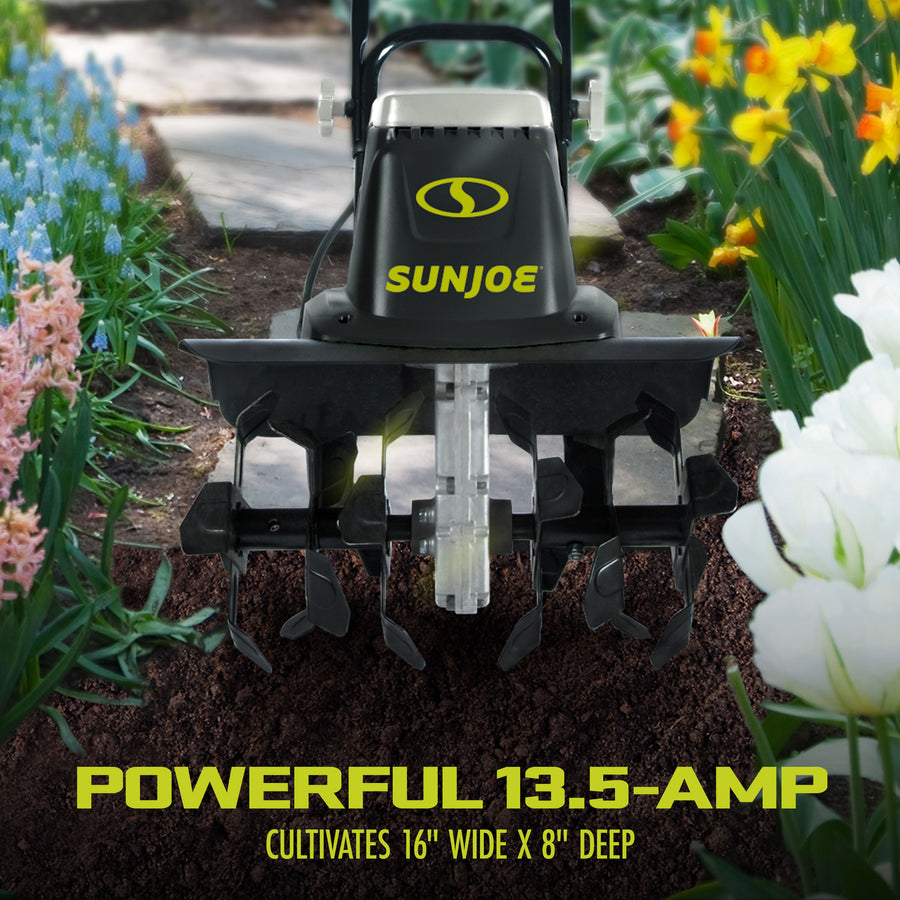

13.5-amp motor — powers the tines through soil at up to 370 RPM

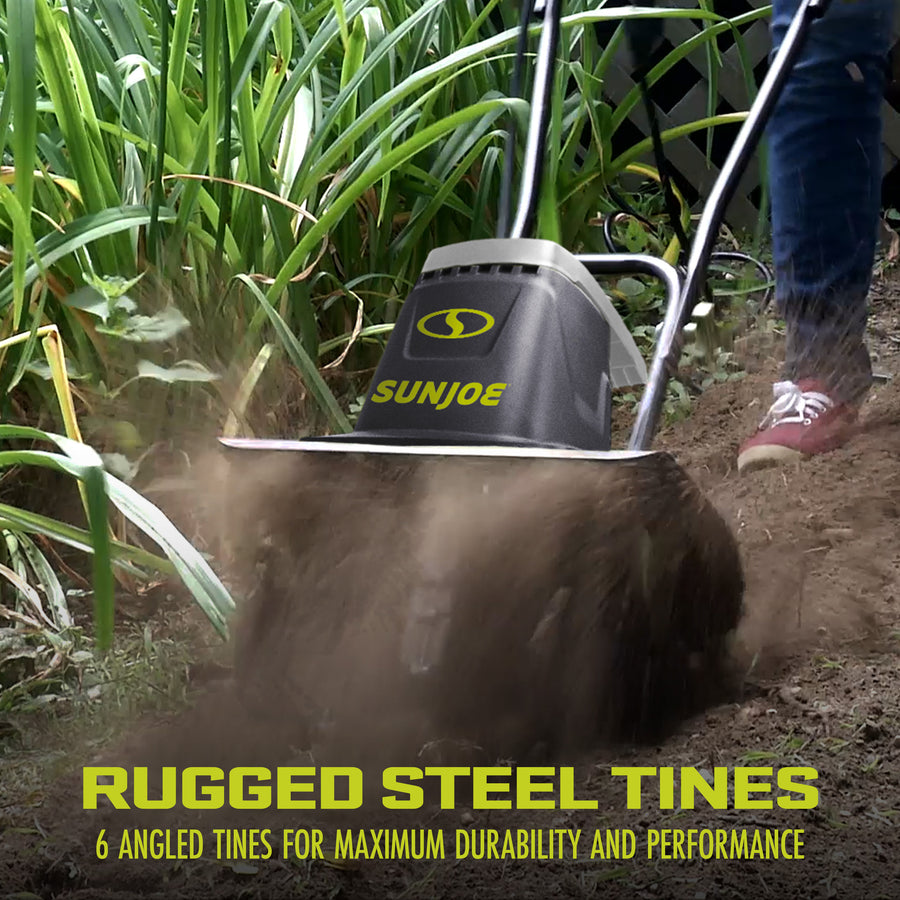

6 steel tilling blades — cultivate, aerate, and prepare soil for planting
Rear wheels — 3-position adjustment for transport and cultivating control
Foldable handle — collapses for easier storage and transport
Technical Specifications
| Specification | TJ604E |
|---|---|
| Product Type | Electric garden tiller + cultivator |
| Best Use | Large garden plots, flower beds, compacted soil, aeration, and seedbed preparation |
| Power Type | Electric |
| Rated Voltage | 120V |
| Motor | 13.5 amps |
| No Load Speed | 370 RPM ±10% |
| Maximum Till Width | 16 in. |
| Maximum Till Depth | 8 in. |
| Number of Blades | 6 steel tilling blades |
| Tine Length | 8 in. |
| Wheel Adjustment | 3 positions |
| Wheel Size | 5.5 in. |
| Handle Length | 43 in. |
| Foldable Handle | Yes |
| Cord Lock | Yes |
| Maximum Extension Cord Length | 100 ft |
| Minimum Extension Gauge | 14 AWG for 50 ft; 12 AWG for 100 ft |
| Decibel Rating | 93 dB |
| Net Weight | 26.5 lbs |
| Warranty | 2 Year Warranty |
What's in the Box
| Included Item | TJ604E |
|---|---|
| Electric garden tiller + cultivator | ✔ |
| 6 steel tilling blades | ✔ installed |
| Release safety switch | ✔ built in |
| Instant start switch | ✔ built in |
| Foldable handle assembly | ✔ |
| Rear wheels | ✔ 3-position adjustment |
Before You Till
Extension Cord Guide
| Extension Cord Length | Minimum Gauge |
|---|---|
| Up to 50 ft | 14 AWG or heavier |
| Up to 100 ft | 12 AWG or heavier |
Setup + Handle Guidance
-
Check handle sections
Confirm the 3-section handle is properly assembled and tightened before operation.
-
Set the rear wheels
Use the 3-position rear wheel adjustment for transport, maneuvering, or cultivating control.
-
Secure the extension cord
Use the cord lock to help keep the extension cord connected during operation.
-
Confirm safe work area
Keep people, pets, and fragile property away from the tilling area before starting.
Starting + Tilling
-
Position the tiller
Place the TJ604E at the start of your garden row. Keep the power cord behind the unit and away from the blades.
-
Start the tool
Use the release safety switch and instant start switch to start the motor.
-
Use controlled forward movement
Guide the tiller slowly through the soil. Let the tines do the work instead of forcing the machine downward.
-
Use overlapping rows
For even soil prep, make straight passes with slight overlap between rows.
-
Stop safely
Release the switch, unplug the unit, and wait for the blades to stop completely before moving, checking, or cleaning the tiller.
Tilling + Cultivating Tips
Break soil in stages
For compacted soil, use multiple shallow passes instead of forcing the unit to till full depth immediately.
Avoid wet soil
Wet soil can clump around the blades, reduce performance, and make the unit harder to control.
Do not force the tool
If the tines slow or stop, reduce your pace, use a shallower pass, and inspect for debris after unplugging the unit.
Use for seedbed prep
The TJ604E is helpful for aerating soil and preparing planting beds before seeding or transplanting.
Care + Maintenance
Clean after each use
Remove soil, roots, weeds, and debris from the tines, housing, wheels, and handle area after operation.
Inspect the extension cord
Check the cord before each use. Do not use a damaged extension cord.
Check hardware
Make sure handle knobs, screws, wheels, guards, and visible hardware are secure before operation.
Keep vents clean
Keep motor vents clear of dust, soil, grass, and debris to help prevent overheating.
Storage
Unplug and clean
Disconnect the tiller from power and clean off soil and debris before storage.
Fold the handle
Collapse the foldable handle for compact storage when not in use.
Store indoors
Store in a dry, secure indoor location out of reach of children and away from moisture.
Troubleshooting Guide
Use these quick checks for common TJ604E concerns. Always unplug the tiller and wait for the blades to stop before checking the unit.
Possible Causes
- Unit is not plugged into a working outlet
- Extension cord is loose, too long, damaged, or undersized
- Safety switch/start switch sequence was not completed
- Circuit is overloaded
Solutions
- Confirm the outlet has power
- Check that the extension cord is fully connected and outdoor-rated
- Use 14 AWG for up to 50 ft or 12 AWG for up to 100 ft
- Try a different circuit with no other heavy tools running
- Use the release safety switch and start switch correctly
Possible Causes
- Soil is too hard, wet, or compacted
- Roots, weeds, or debris are wrapped around the blades
- Tool is being forced too deeply
Solutions
- Use multiple shallow passes
- Unplug the unit and clear debris with gloves and a brush or wooden stick
- Reduce forward speed and avoid forcing the tool
Possible Causes
- Foreign object impact
- Loose hardware
- Damaged or uneven tines
Solutions
- Stop immediately and unplug the unit
- Inspect the work area and remove debris
- Check visible hardware and blade area
- Do not use if parts appear damaged
Possible Causes
- Soil is too wet
- Weeds or roots are wrapped around the blades
- Unit was not cleaned after prior use
Solutions
- Wait until soil conditions are drier
- Unplug the unit and clean the tines safely
- Clean after every use
Possible Causes
- Heavy load or prolonged use
- Air vents are blocked
- Soil is too compacted or tool is being forced
Solutions
- Turn off and unplug the unit
- Let the motor cool before restarting
- Clean air vents
- Use lighter passes
