Meet the 24V-X2-TLR14
Key Components
Safety lock button — must be pressed before squeezing the ON/OFF switch
ON/OFF switch — starts and stops blade rotation
Upper handles — right and left handles provide two-handed control
Handle frames — upper, middle, and lower handle frame assembly
Cable clips — secure the control cable along the handle
Battery compartment — holds both 24V batteries during operation
Tiller blades — 4 steel 7-inch blades for cultivating soil
Wheels — 3-position adjustment for transport and working positions
Wheel adjustment knob — changes wheel position for work or transport
Battery indicator — shows charge level on each battery pack
Dual-port charger — charges both included batteries at the same time
500W brushless motor — cordless tilling power for garden beds
Technical Specifications
| Specification | 24V-X2-TLR14 |
|---|---|
| Product Type | Cordless garden tiller + cultivator |
| Best Use | Small gardens, flower beds, mid-sized landscaping, and medium clearing |
| Motor | 500 W brushless |
| Battery Voltage Max | 48V D.C. / 2 x 24V |
| Battery Capacity | 2.0 Ah each |
| Battery Runtime Max | 13 minutes; excavates up to 270 sq ft of 4 in. dirt |
| Charger Input | 120V AC, 60 Hz, 160 W |
| Charger Output | 26V DC, 2.2 A, 2-port |
| Charge Time Max | 55 minutes |
| Cultivating Width Max | 14 in. / 36 cm |
| Cultivating Depth Max | 7 in. / 18 cm |
| Blades | 4 steel 7 in. / 18 cm tilling blades |
| No Load Speed | 180 rpm |
| Height Adjustment | 3 positions |
| Product Dimensions | 17 in. L x 16.4 in. W x 21.8 in. H |
| Weight, Tool Only | 23.4 lbs / 10.6 kg |
| Weight, With Batteries | 26.7 lbs / 12.1 kg |
| Warranty | 2 Year Warranty |
What's in the Box
| Included Item | 24V-X2-TLR14 |
|---|---|
| Cordless tiller + cultivator with lower handle frame | ✔ |
| Middle handle frame | ✔ |
| Left upper handle | ✔ |
| Right upper handle | ✔ |
| Upper handle frame | ✔ |
| Handle knobs + bolts | ✔ 4 sets included |
| Cable clips | ✔ 2 included |
| iON+ 24V lithium-ion batteries | ✔ 2 included |
| iON+ 24V lithium-ion dual-port battery charger | ✔ |
| Manuals with registration card | ✔ |
Before You Till
Battery + Charger Guide
| Battery Indicator | Meaning |
|---|---|
| 3 LEDs lit | Battery charge level is high |
| 2 LEDs lit | Battery charge is decreasing; stop work as soon as possible |
| 1 LED lit | Battery is flat; stop immediately and charge the battery |
Remove both batteries
Open the battery compartment cover, press the push lock buttons, and slide the batteries out of the tool.
Plug in the charger
Connect the dual-port charger to an appropriate wall outlet. Two green lights indicate the charger is powered on.
Insert the batteries
Slide each battery pack into the charger until it locks in place. Red lights indicate charging.
Remove when fully charged
When the charger lights turn green, the batteries are fully charged. A fully discharged pack charges in up to 55 minutes.
Assembly Overview

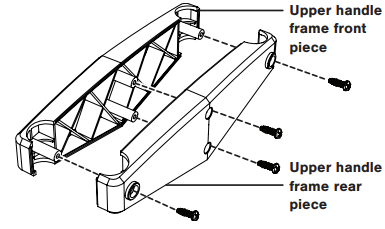

Separate the upper handle frame
Remove the 4 screws from the upper handle frame and retain the screws for reassembly.

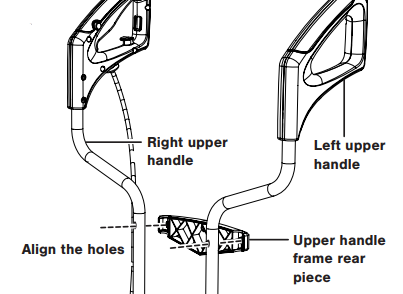

Fit the left and right upper handles
Place both upper handles into the grooves of the upper handle frame rear piece and align the holes.

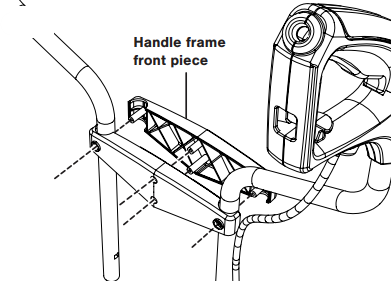

Reinstall the frame front piece
Place the front piece onto the upper handle frame, align the pegs, and secure it with the original 4 screws.

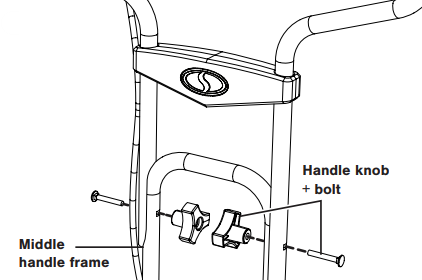

Connect upper and middle frames
Attach the upper handle frame assembly to the middle handle frame using 2 handle knob and bolt sets.

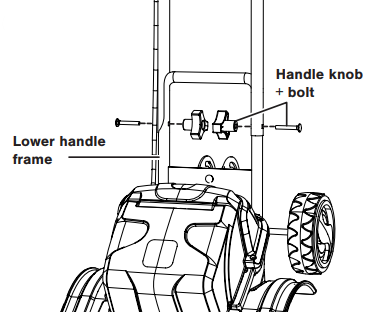

Connect to the lower handle frame
Attach the upper and middle handle assembly to the lower handle frame using the remaining 2 handle knob and bolt sets.
Secure the cable
Clip the cable clips onto the handle to keep the cable secured during operation.

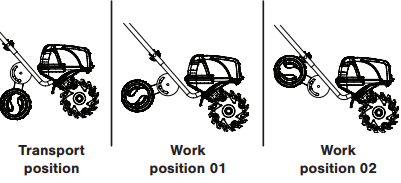

Wheel Adjustment
| Wheel Position | Use |
|---|---|
| Transport position | Use when moving the tiller + cultivator to a new work area |
| Work position 01 | Use for cultivating with one working depth/angle |
| Work position 02 | Use for cultivating with another working depth/angle |

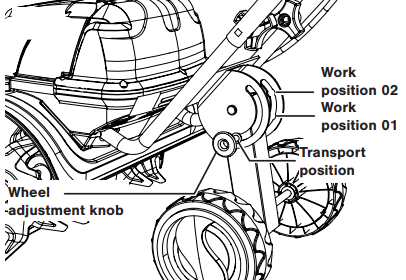

Push the wheel adjustment knob
Press the wheel adjustment knob while moving the wheel assembly.
Select the desired slot
Move the wheels to the transport position, work position 01, or work position 02.
Confirm the lock
Release the knob and make sure the wheels lock securely into position before use.
Starting + Stopping

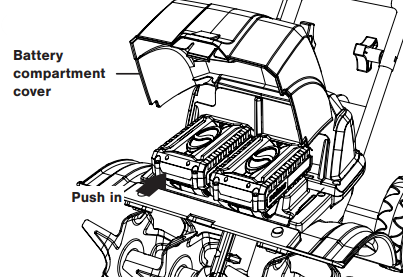

Install both batteries
Open the battery compartment cover and slide both batteries in until they click into place, then close the cover.

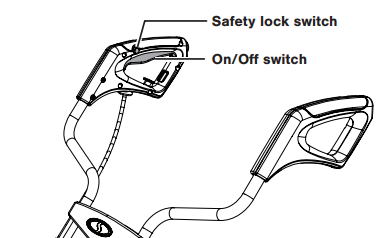

Start the tool
Press and hold the safety lock button while squeezing the ON/OFF switch.
Release the safety lock
Once the tool is running, release the safety lock button while continuing to hold the ON/OFF switch.
Stop the tool
Release the ON/OFF switch. Wait until the blades completely stop before lifting or inspecting the unit.
Tilling Guide
Clear the work area
Remove stones, sticks, wire, and other objects that could be thrown by the blades or damage the motor.
Avoid wet or extremely dry soil
Wet soil can stick to the blades and prevent proper rotation. Extremely hard soil can overload the tool.
Use light pressure
Do not force the product into resistant soil. Walk at a normal pace and keep a firm two-handed grip.
Use overlapping rows
Move up and down in vertical lines, then work horizontally from left to right to help cover the full area evenly.
Turn carefully
Apply light pressure to the handles to lift the blades slightly and use the wheels as a guide when turning.
Care + Maintenance
Clean after each use
Remove soil, dirt, and foliage from the blades, drive shaft, tool surface, and vents with a brush or dry cloth.
Keep vents clear
Clean air vents after every use with a cloth and brush to help prevent overheating.
Use safe cleaning tools
Use a brush or wooden stick near the blades when needed. Never use bare hands to clear debris.
Lubricate the blades
Spray or rub biodegradable oil onto the blades after cleaning to help prolong blade life.
Check hardware
Inspect nuts, bolts, screws, safety labels, guards, and handles before and after each use.
Blade Care
Power off and remove batteries
Place the unit on a flat, stable surface, switch it off, and remove both batteries.
Remove old blade pairs
Remove the hex bolts and self-locking nuts, then remove the steel blades.
Clean the drive shaft
Clean the drive shaft with biodegradable oil before installing new blades.
Install new blades correctly
Place the new blades onto the drive shaft so the holes line up. Install them in the same turning direction as the original blades.
Secure the hardware
Insert the hex bolts through the holes and secure them with the self-locking nuts.
Transportation
Switch off and remove batteries
Make sure the tool is off and the blades have completely stopped before moving it.
Set wheels to transport position
Use the transport wheel position when moving the tiller + cultivator to another work area.
Carry by the transport handles
Use the transport handles when carrying. Secure the product if transporting in a vehicle.
Storage
Remove both batteries
Always remove the batteries from the tiller + cultivator before storage.
Clean the tool
Remove soil and debris from the blades, drive shaft, vents, and handle surfaces before storage.
Inspect for wear
Check for worn, loose, or damaged parts before putting the tool away.
Store in the right location
Store in a dark, dry, frost-free, well-ventilated place out of reach of children. Ideal storage temperature is 50°F to 86°F.
Troubleshooting Guide
Use these quick checks for common 24V-X2-TLR14 concerns. Always switch the unit off, remove both batteries, and wait for the blades to completely stop before inspecting, cleaning, or adjusting the tool.
Possible Causes
- Only one battery is installed
- Batteries are not fully seated
- Batteries are discharged
- Start sequence was not followed
- Battery compartment cover is not fully closed
Solutions
- Install both 24V batteries
- Push each battery in until it clicks into place
- Charge both batteries fully
- Press and hold the safety lock button, then squeeze the ON/OFF switch
- Close the battery compartment cover before retrying
Possible Causes
- Battery charge is low
- Tool was forced into resistant soil
- Blades are clogged with soil, roots, or debris
- Tool may be overloaded or overheated
Solutions
- Check battery indicator lights and recharge if needed
- Use slower passes and lighter pressure
- Remove both batteries and clear debris with a brush or wooden stick
- Allow the tool to cool before restarting
Possible Causes
- Wet soil is sticking to the blades
- Roots, weeds, or debris are wrapped around the blades
- Blade area needs cleaning
Solutions
- Do not till very wet soil
- Remove both batteries before cleaning
- Use a brush or wooden stick to clear the blade area
- Clean and lightly lubricate blades with biodegradable oil after use
Possible Causes
- Trying to till too deeply
- Soil is extremely dry, hard, or compacted
- Wheel position is not set for the task
Solutions
- Do not force the product into resistant soil
- Use light pressure and multiple shallow passes
- Adjust the wheel position for better cultivating results
- Use overlapping rows at a normal walking pace
Possible Causes
- Tool struck a foreign object
- Blade pair is damaged or unbalanced
- Hardware may be loose
Solutions
- Stop immediately and remove both batteries
- Allow the tool to cool completely
- Inspect the blades and hardware for visible damage
- Do not continue using if vibration remains
- Route to support if damage is suspected
Possible Causes
- Charger is not plugged into a working outlet
- Batteries are not fully seated in the charger
- Battery packs are too hot or too cold
- Battery or charger may be damaged
Solutions
- Confirm the charger is plugged into a working outlet
- Remove and reinsert the batteries into the charger
- Allow hot or cold batteries to return to the charging range
- If indicator lights still do not come on, route to support
Optional Accessories + Battery Options
| Item | Model |
|---|---|
| iON+ 24V 2.0 Ah lithium-ion battery | 24VBAT-LTE |
| iON+ 24V 2.5 Ah lithium-ion battery | 24VBAT-LT |
| iON+ 24V 4.0 Ah lithium-ion battery | 24VBAT |
| iON+ 24V 5.0 Ah lithium-ion battery | 24VBAT-XR |
| iON+ 24V lithium-ion battery quick charger | 24VCHRG-QC |
| iON+ 24V lithium-ion dual-port battery charger | 24VCHRG-DPC |
