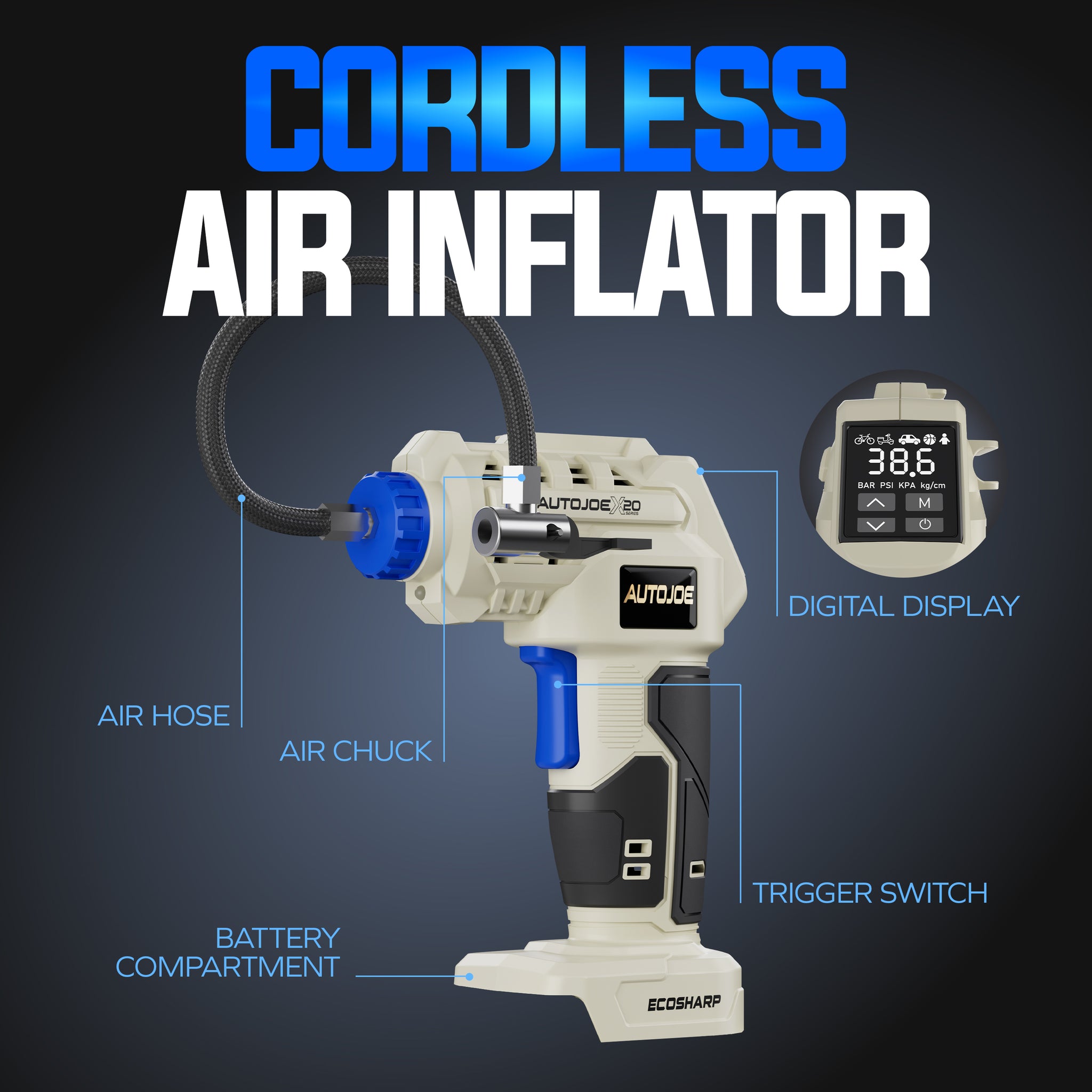

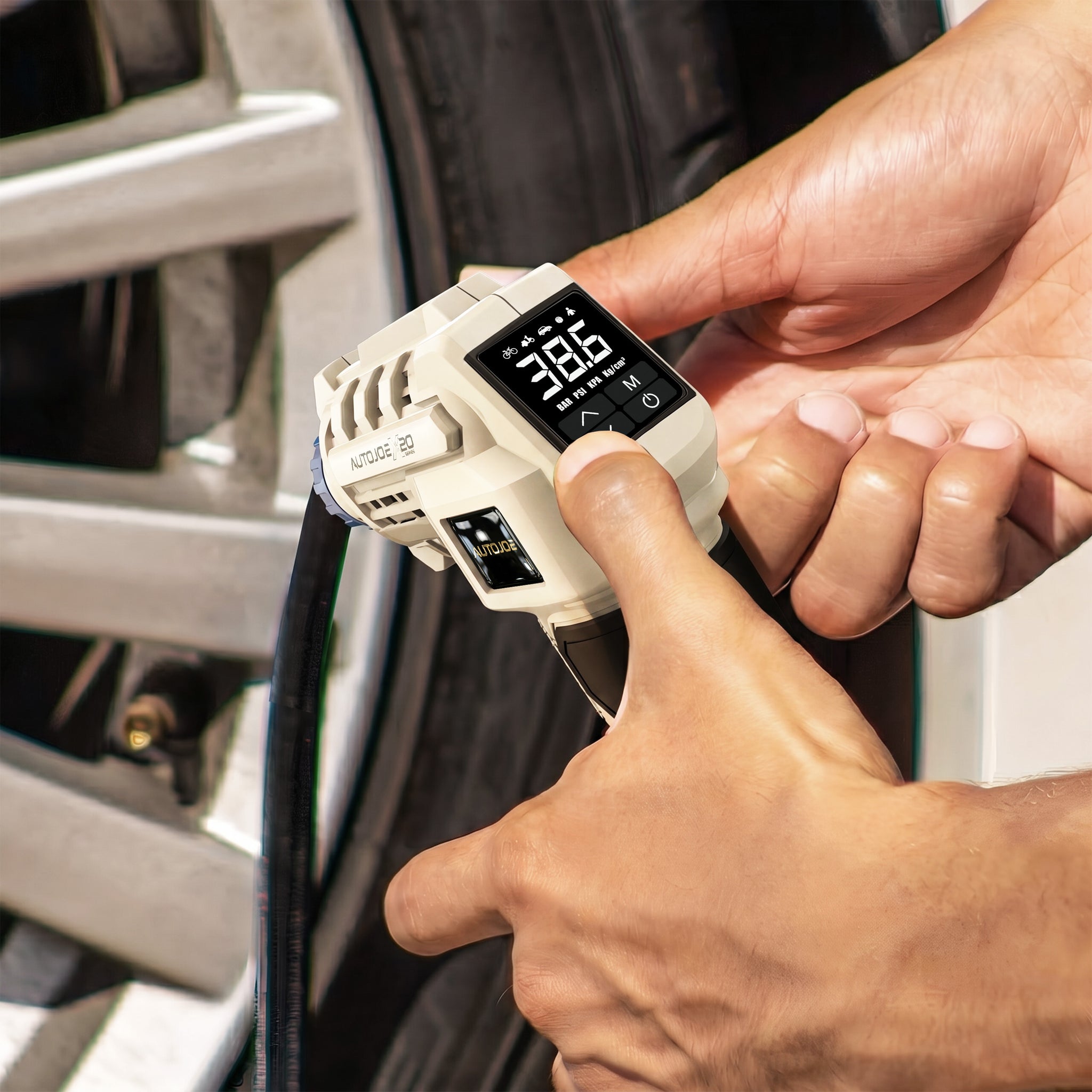

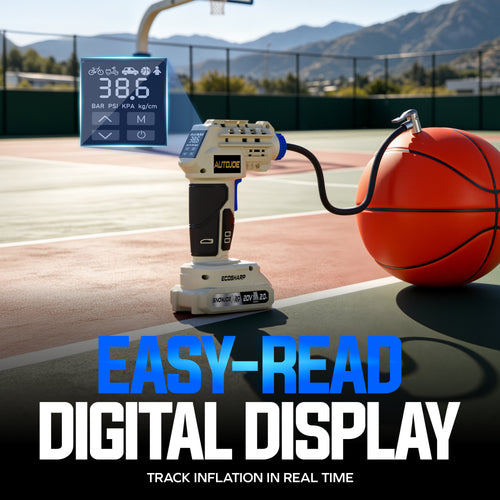

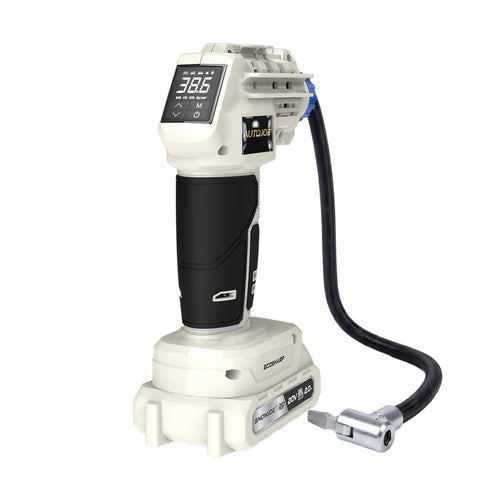

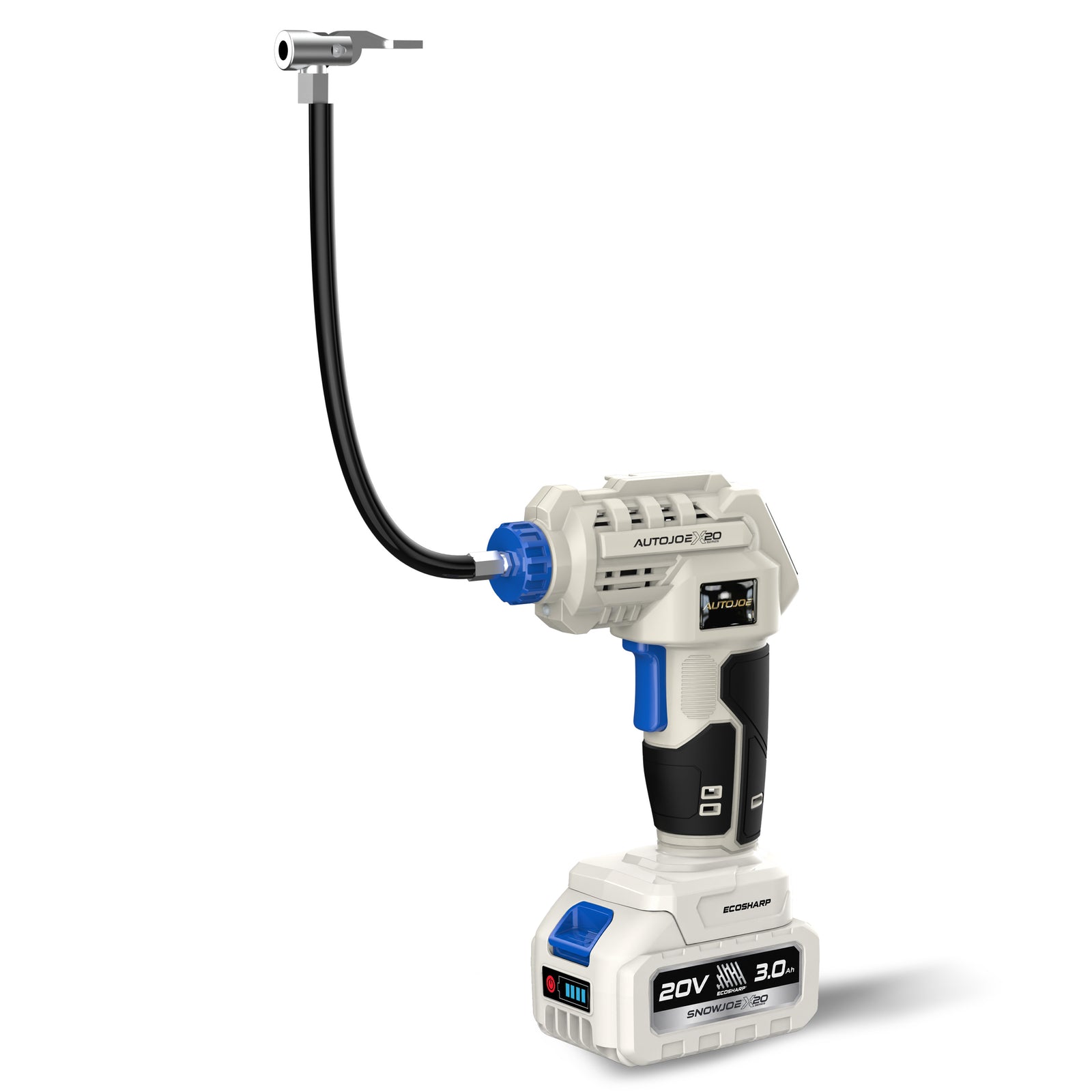

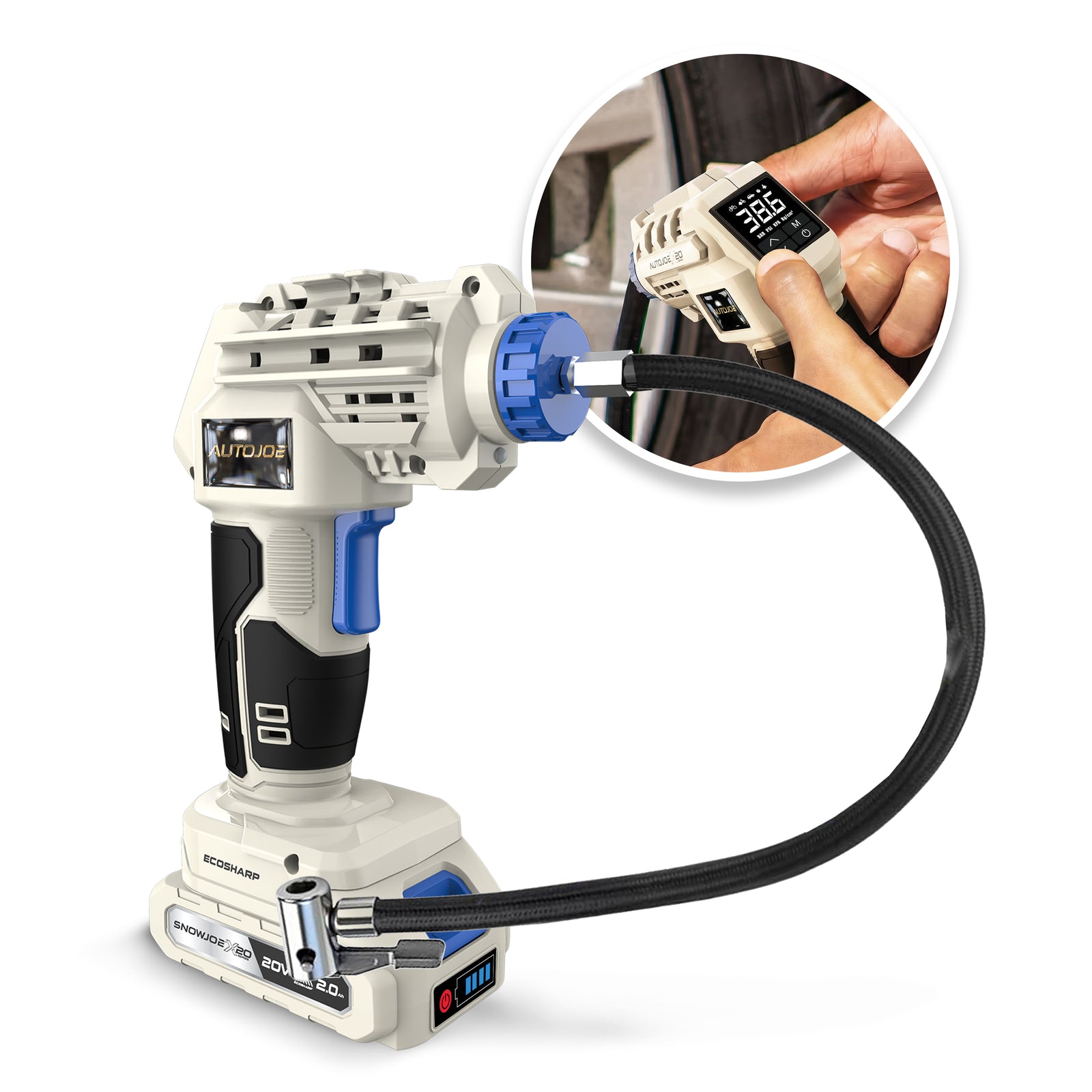

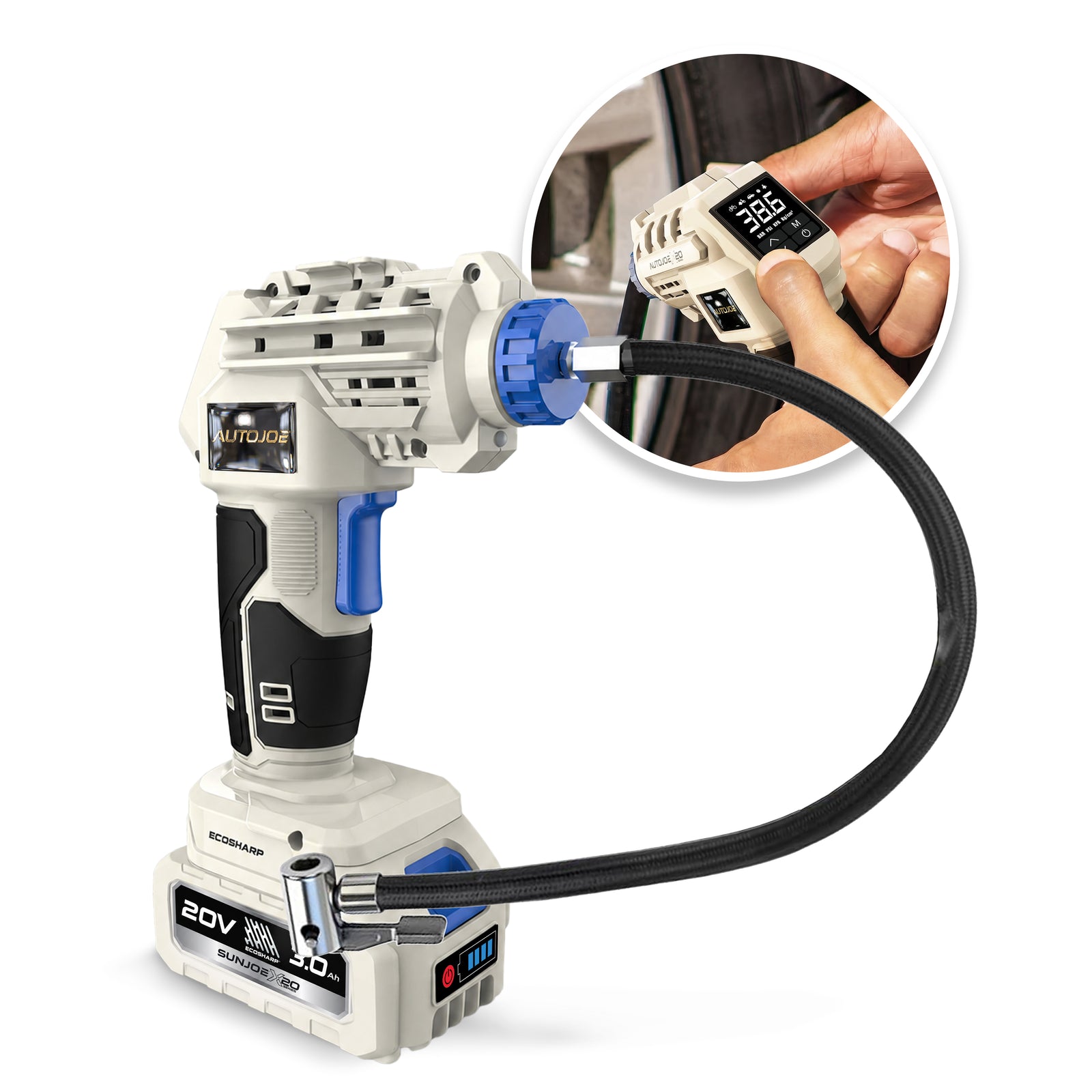

Auto Joe X20-AIR-2A Cordless Air Compressor Auto Joe® X20-AIR Series Cordless Air Compressor | Product Guide OFFICIAL SHOP JOE X20-AIR SERIES PRODUCT GUIDE OverviewFeaturesStart HereSupportFAQs The Auto Joe® X20-AIR Series includes the X20-AIR-2A and X20-AIR-3A cordless air compressor kits. Both models pair a 90 W motor with up to 150 PSI, a digital pressure display, automatic shutoff at the selected pressure, a 12-inch air hose, an LED work light, and a lock-on function. The kit differences are the included battery capacity, maximum charge time, and net weight. 150 PSI Maximum PressureDigital Automatic Shutoff20V ECOSHARP® Power Meet the X20-AIR Series Key Components 01 Digital display - shows the pressure reading in PSI and the selected shutoff pressure. 02 Power button - turns on the display and prepares the compressor for operation. 03 Pressure controls - the plus and minus buttons set the desired automatic shutoff pressure. 04 Trigger switch - starts inflation, stops the compressor, and controls the lock-on function. 05 LED work light - adds visibility for approximately 10 seconds after the power button is pressed. 06 Air hose - 12-inch hose that connects the compressor to the air chuck. 07 Air chuck and clamp - secure the hose to a compatible valve stem or adapter. 08 Hose storage area - holds the air hose on top of the compressor when not in use. 09 Battery compartment - locks the X20 ECOSHARP® battery into the compressor. 10 Battery indicators - four LEDs show 25%, 50%, 75%, and 100% charge. 11 21V lithium-ion charger - charges the included X20 ECOSHARP® battery. 12 Adapter kit - includes two tapered adapters, an air mattress nozzle, a sport ball needle, and Dunlop and Presta valve adapters. Technical Specifications Specification X20-AIR-2A X20-AIR-3A Product Type 20V cordless air compressor 20V cordless air compressor Motor 90 W 90 W Battery System X20 ECOSHARP® lithium-ion X20 ECOSHARP® lithium-ion Battery Voltage Max 20V DC max* / 18V nominal 20V DC max* / 18V nominal Included Battery Capacity 2.0 Ah 3.0 Ah Charger Input 100-240V AC, 50/60 Hz, 0.5 A max 100-240V AC, 50/60 Hz, 0.5 A max Charger Output 21V DC, 750 mA 21V DC, 750 mA Maximum Charge Time Approx. 3.5 hours Approx. 4.5 hours Maximum Air Pressure 150 PSI 150 PSI Pressure Display Digital readout (PSI) Digital readout (PSI) Hose Length 12 in. / 30 cm 12 in. / 30 cm Net Weight 2.56 lbs / 1.16 kg 2.8 lbs / 1.27 kg Product Dimensions 5.91 x 2.83 x 8.03 in.15 x 7.2 x 20.4 cm 5.91 x 2.83 x 8.03 in.15 x 7.2 x 20.4 cm Product Manual Download 2A Manual Download 3A Manual Warranty 1-year limited warranty 1-year limited warranty NOTEBattery compatibility: Use X20 Series 20V ECOSHARP® batteries and compatible 21V chargers. These models are not compatible with 24V IONMAX batteries or chargers. *Initial no-load voltage, when fully charged, peaks at 20V; nominal voltage under typical load is 18V. What's in the Box Included Item X20-AIR-2A X20-AIR-3A Cordless air compressor with 12-inch air hose ✔ ✔ X20 ECOSHARP® lithium-ion battery 1 x 2.0 Ah 1 x 3.0 Ah 21V lithium-ion charger ✔ ✔ Air mattress nozzle ✔ ✔ Tapered adapters 2 2 Sport ball needle ✔ ✔ Dunlop valve adapter ✔ ✔ Presta valve adapter ✔ ✔ Black storage bag ✔ ✔ Operator's manual ✔ ✔ CHECKMissing or damaged parts? Do not use the compressor. Contact All Season Power customer service at 1-866-225-9723. Start Here: Before First Use STOPKeep the battery removed while assembling or checking the air hose. Screw the hose into the compressor and tighten it securely before installing the charged battery. 1 Assemble Secure the air hose with the battery removed. › 2 Charge Fully charge the included X20 battery. › 3 Connect Attach the chuck or correct adapter to the valve. › 4 Inflate Set the pressure and press the trigger. Air Hose Assembly Remove the battery Do not assemble or adjust the hose while a battery is installed. Attach the air hose Screw the threaded end of the air hose clockwise into the cordless air compressor. Tighten securely Confirm the hose connection is fully tightened before installing the battery or operating the compressor. Battery Charging Remove the battery Press the battery push-lock button and pull the battery out of the compressor. Connect the charger Confirm the outlet voltage matches the charger rating. Plug the charger into an appropriate AC outlet, then connect the charger plug to the battery charge socket. Watch the status light The charger indicator is red while charging and green when the battery is fully charged. Disconnect after charging Allow approximately 3.5 hours for the X20-AIR-2A battery or 4.5 hours for the X20-AIR-3A battery. Unplug the charger from the outlet first, then disconnect it from the battery. LEVELBattery indicator: 1 light means 25%, 2 lights mean 50%, 3 lights mean 75%, and 4 lights mean 100% charge. TEMPCharge only within the recommended temperature range. Let the battery return to 41°F-105°F (5°C-40.5°C) before charging. Inflating with the Air Hose Place the air chuck on the valve Use the air chuck without an adapter when the valve stem fits the chuck opening. Seat the valve stem Push the air chuck down until the threaded section of the valve stem is inside the chuck. Lock the clamp Press the air chuck clamp down until it stops or sits parallel with the air hose. Remove after inflation Turn the compressor off, lift the air chuck clamp, and remove the chuck from the valve stem. Using the Included Adapters 01 Tapered adapters - for small air valves on items such as floats and children's inflatable toys. 02 Sport ball needle - for sports balls and other items that require a ball needle. 03 Air mattress nozzle - for compatible small-volume air mattresses and similar inflatables. 04 Presta valve adapter - for bicycle tires with Presta valve stems. 05 Dunlop valve adapter - for compatible bicycle tires with Dunlop valve stems. Insert the correct adapter Place the adapter in the air chuck. Lock it in place Press the air chuck clamp down until the adapter is secure. Remove it safely After turning off the compressor, lift the clamp and remove the adapter. PRESTAPresta valve sequence: Loosen the valve locking nut, thread the adapter onto the valve with the larger open end toward the wheel, clamp the air chuck to the adapter, inflate, remove the chuck and adapter, then tighten the locking nut. Digital Gauge & Automatic Shutoff Turn on the display Press the power button below the LCD. The display must be on before operating the compressor. Select the target pressure Press and hold the plus or minus button until the desired shutoff pressure appears. The numbers flash while the setting is being changed. Wait for the current pressure After selecting the target, wait a few seconds for the display to show the current tire or item pressure. Begin inflation Press the trigger. The compressor stops automatically when the selected pressure is reached. GAUGEVerify vehicle tire pressure with a calibrated gauge before driving. The compressor display is not a substitute for a calibrated pressure gauge. Starting, Stopping & Lock-On Install the charged battery Slide the battery into the compartment until it clicks and locks in place. Turn on the display Press the power button, select the desired pressure, and connect the air chuck or adapter securely. Start inflation Press the trigger switch. The pressure appears on the display while the item is being inflated. Use lock-on when needed Press and hold the trigger, then release it. The compressor continues running. Press the trigger again to stop. Stop before disconnecting Press the trigger to turn off the compressor before removing the air chuck. The compressor also stops automatically when the preset pressure is reached. 60 SECDisplay timeout: The digital gauge turns off after 60 seconds of inactivity. If the chuck is disconnected without turning off the compressor, the unit may continue running for up to 60 seconds before stopping automatically. Duty Cycle & Safe Use 1 Use for household inflation only The compressor is intended for occasional household use, not commercial operation or extended continuous inflation. 2 Do not use for large-volume items The compressor is not designed for boats, pools, rafts, large air beds, or other large-volume inflatables. 3 Follow the item's pressure limit Never exceed the pressure recommended by the vehicle, tire, or item manufacturer. Use only air-handling parts rated for at least 150 PSI. 4 Stay with the item Do not leave an item unattended while it is being inflated, and never direct the air stream at any person. 5 Allow hot parts to cool The hose connector and metal clamp can become hot during use. Let them cool before handling. 6 Know the automatic stop behavior The compressor stops after 10 minutes of no-load operation. Under load, it runs until the preset pressure is reached. Cleaning, Maintenance & Storage STOPRemove the battery before cleaning, checking, maintaining, or storing the compressor. 1 Keep vents clear Keep ventilation slots free of dust and dirt to help prevent motor overheating. 2 Clean with a soft cloth Wipe the housing after use. If needed, use a soft cloth lightly moistened with soapy water. 3 Avoid damaging solvents Do not use brake fluid, gasoline, alcohol, ammonia water, petroleum-based products, penetrating oils, or other strong solvents on plastic parts. 4 Inspect the hose Check the hose for leaks, weak spots, or damage before each use. Do not use a damaged hose. 5 Store the hose and tool Press the hose into the storage area on top of the compressor. Store the tool, battery, and charger indoors in a cool, dry place away from children, humidity, direct sunlight, and freezing temperatures. Troubleshooting Guide Turn off the compressor and remove the battery before checking the hose, chuck, adapter, or exterior vents. Perform only the safe checks below. Unit Will Not Start or Has No Power Possible Causes Battery is not fully inserted Battery is discharged Power button was not pressed or trigger is not fully depressed Thermal or overload protection was triggered Switch does not operate the compressor Solutions Slide the battery into the compartment until it clicks Charge the 2.0 Ah battery for approximately 3.5 hours or the 3.0 Ah battery for approximately 4.5 hours Press the power button first, then fully depress the trigger Power off, remove the battery, allow the unit to cool for 10-15 minutes, and clear any external blockage Stop using the compressor and contact All Season Power if the switch does not operate the unit Battery Will Not Charge or Charges Slowly Possible Causes Wrong charger is being used Battery is too hot or too cold Charger is not connected correctly Solutions Use the compatible 21V lithium-ion charger, model CZRW2200750U Let the battery return to 41°F-105°F (5°C-40.5°C) Unplug the charger, reconnect the charger plug to the battery charge socket, then reconnect the outlet Unit Runs but Does Not Inflate Possible Causes Adapter is not secured in the air chuck Wrong adapter is being used Air chuck is not clamped onto the valve stem Hose is loose, leaking, or damaged Solutions Insert the adapter and press the clamp down until it locks Match the adapter to the valve type Push the chuck onto the valve stem and press the clamp parallel with the hose Inspect the hose, then screw its connector clockwise into the compressor and tighten securely Item Does Not Reach the Target Pressure Possible Causes Target pressure is not set correctly Battery charge is low Chuck or adapter connection is loose Item exceeds the compressor's intended capacity Solutions Press and hold the plus or minus button to set the desired shutoff pressure Recharge the battery; 3-4 indicator lights are recommended for full performance Re-seat the chuck or adapter and fully lock the clamp Use a suitable high-volume inflator for boats, pools, rafts, or large air beds Digital Gauge or LCD Does Not Work Possible Causes Display turned off after 60 seconds of inactivity Battery is discharged Gauge was not turned on before operation Solutions Press the power button to reactivate the display Recharge the battery Press the power button, set the pressure, then press the trigger LED Work Light Does Not Turn On Possible Causes Power button was not pressed Battery is discharged Solutions Press the power button; the LED remains on for approximately 10 seconds Recharge the battery Unit Stops Automatically During Use Possible Causes Preset pressure was reached 10-minute no-load shutoff was triggered Battery was depleted during operation Thermal or overload protection activated Solutions Turn off the unit before removing the air chuck; automatic stop at the selected pressure is normal Restart the compressor when ready after a no-load shutoff Recharge the battery before the next use Power off, remove the battery, and allow the unit to cool before restarting Air Hose Connector Is Hot After Use Possible Cause Normal heat buildup occurred during inflation Solution Allow the connector and metal clamp to cool before handling HELPStill need assistance? Contact All Season Power customer service at 1-866-225-9723 or visit Shop Joe Contact. Official Shop Joe Product PagesView the X20-AIR Series Review the official product details and current purchasing options for each battery configuration. View 2.0 Ah Kit → View 3.0 Ah Kit → Frequently Asked Questions Which X20-AIR models does this guide cover? This guide covers the Auto Joe® X20-AIR-2A and X20-AIR-3A cordless air compressor kits. What is the difference between X20-AIR-2A and X20-AIR-3A? Both kits use the same 90 W, 150 PSI compressor. The X20-AIR-2A includes a 2.0 Ah battery, charges in approximately 3.5 hours, and weighs 2.56 lbs. The X20-AIR-3A includes a 3.0 Ah battery, charges in approximately 4.5 hours, and weighs 2.8 lbs. Can I use a 24V IONMAX battery or charger? No. X20-AIR models use the 20V ECOSHARP® battery platform and a compatible 21V charger. They are not compatible with 24V IONMAX batteries or chargers. What do the battery indicator lights mean? One light indicates 25% charge, two lights indicate 50%, three lights indicate 75%, and four lights indicate 100% charge. Does the compressor display replace a tire gauge? No. The manual states that the pressure display is not calibrated for exact values. Check vehicle tire pressure with a calibrated pressure gauge before driving. Which replacement accessories are listed? The manuals list these compatible accessories: 20V-BATT-2A - 2.0 Ah ECOSHARP® battery for X20-AIR-2A 20V-BATT-3A - 3.0 Ah ECOSHARP® battery for X20-AIR-3A CZRW2200750U - 21V lithium-ion charger X20-AIR-AHOSE - replacement air hose X20-AIR-NOZPK - adapter and nozzle pack What warranty is included? Both X20-AIR kits include a 1-year limited warranty. Product registration is encouraged but is not required to preserve warranty rights. Related articles X20 StormJet Turbo Blower Aqua Joe Pool & Spa Chlorinating Tablets Sun Joe TJ605E Electric Tiller + Cultivator Air Compressor Troubleshooting Sun Joe PGRIT50 Premium Grower Grit
