24V-GT10-LTE Cordless Lightweight Grass Trimmer

Sun Joe® 24V-GT10-LTE Cordless Grass Trimmer | Product Guide
No strings attached.
The Sun Joe® 24V-GT10-LTE Cordless Grass Trimmer is a lightweight, stringless grass trimmer designed for cutting grass and weeds, trimming around areas a mower cannot reach, and edging along flowerbeds, sidewalks, and walkways. Its interchangeable nylon grass blade system cuts a 10-inch path without the hassle of tangled trimmer line.
🔋 24V iON+ Battery 🌱 10 in. Cutting Path 🪶 3.3 lb Net Weight

Meet the 24V-GT10-LTE

Sun Joe 24V-GT10-LTE cordless grass trimmer hero image Sun Joe 24V-GT10-LTE full product view Sun Joe 24V-GT10-LTE 10 inch cutting diameter feature Sun Joe 24V-GT10-LTE cordless trimming feature Sun Joe 24V-GT10-LTE durable blade storage feature Sun Joe 24V-GT10-LTE adjustable handle feature

Key Components

✋

Handle — main grip for operating the trimmer

🔒

Safety lock button — must be pressed before squeezing the On/Off switch

▶️

On/Off switch — starts and stops the trimmer

🔋

Battery compartment — holds the 24V iON+ lithium-ion battery

🖐️

Auxiliary handle — adjustable for comfort and control

🔧

Auxiliary handle knob — loosens or locks the auxiliary handle position

🧩

Onboard blade storage — stores the included replacement grass blades

🌿

Nylon grass blade — stringless cutting blade for grass and weeds

🛡️

Safety guard — helps protect from thrown objects

⚙️

Blade hub — holds the nylon grass blade in place

🔌

24V charger — charges the included 24VBAT-LTE battery

💡

Battery indicators — show remaining battery charge level

Technical Specifications

Specification24V-GT10-LTE
Product TypeCordless grass trimmer
Motor550 W
Battery Voltage Max24V D.C.
Nominal Voltage21.6V under typical load
Battery Capacity2.0 Ah
Charger Input100–240V AC | 50–60 Hz | 50 W
Charger Output25.2V D.C. | 1400 mA
Charge Time Max1 hr 20 min
Cutting Diameter10 in. / 25.4 cm
RotorPA66 nylon grass blade
Total Blades Included11 nylon grass blades
Net Weight3.3 lbs / 1.5 kg
Best UseMedium-sized lawns, trimming grass, weeds, flowerbeds, walkways, and hard-to-reach areas
Warranty2 Year Warranty

What's in the Box

Included ItemDetails
Grass trimmer lower pole assembly✔
Grass trimmer upper pole assembly✔ with 10 replacement grass blades and onboard storage assembled
Safety guard✔
Safety guard screw✔
24V iON+ lithium-ion battery✔ 24VBAT-LTE
24V iON+ lithium-ion battery charger✔ 24VCHRG-AC
Manual with registration card✔

Safety First

🚫 Do not use steel blades, metal line, nylon line, wire, rope, or other substitutes. Use only the original nylon grass blade type designed for this trimmer.
🛡️ The safety guard must be installed before use. It helps protect the operator and bystanders from thrown objects.
⚠️ Keep bystanders, children, and pets at least 50 ft / 15 m away. Stones and debris can be picked up by the blade and thrown during operation.
👓 Wear protective gear. Use safety glasses, hearing protection, gloves, snug-fitting clothing, and non-slip footwear.
🌧️ Do not use in rain or wet conditions. Keep the trimmer, battery, and charger dry.
🦶 Keep hands and feet away from the cutting area. The blade continues rotating for a few seconds after the switch is released.

Battery + Charger Guide

🔋 Charge before first use. The included battery is only partially charged and requires about 1 hr 20 min to fully charge before first use.
Battery IndicatorMeaning
3 LEDs litBattery charge level is high
2 LEDs litBattery charge is decreasing; stop work as soon as possible
1 LED litBattery is flat; stop immediately and charge the battery

  1. Remove the battery

    Press the push lock buttons on both sides of the battery and pull the battery pack out of the equipment.

  2. Plug in the charger

    Check that the outlet voltage matches the charger rating, then plug the charger adapter into an appropriate AC outlet.

  3. Connect the charger to the battery

    Insert the charger plug into the battery charge socket. The battery LEDs will twinkle and illuminate one by one while charging.

  4. Unplug when complete

    When all 3 LEDs are illuminated, unplug the charger from the outlet first, then disconnect the charger from the battery.

⚠️ The charger does not automatically turn off. Do not leave the battery connected to the charger for days on end. Unplug when charging is complete.

Assembly

🚫 Do not insert the battery until assembly is complete. This helps prevent accidental starting.
1
Poles
Connect upper and lower pole.
›
2
Collar
Tighten the pole collar.
›
3
Guard
Install safety guard.
›
4
Battery
Insert battery when ready.

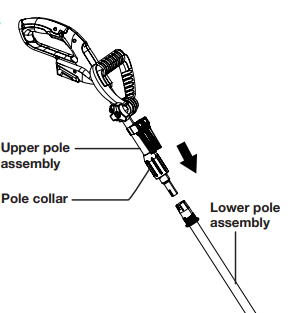

  1. Connect the poles

    Insert the upper pole assembly into the lower pole assembly.

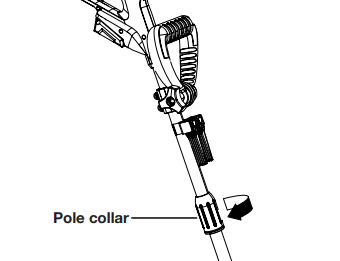

  2. Secure the pole connection

    Screw the pole collar onto the thread to secure the upper and lower poles together.

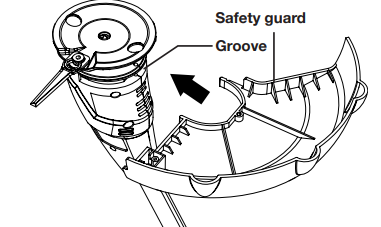

  3. Install the safety guard

    Fit the safety guard into the groove on the motor housing.

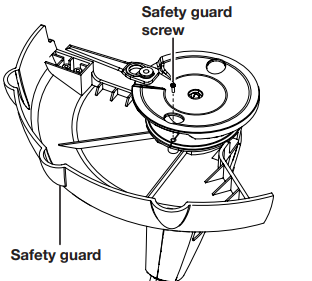

  4. Fasten the safety guard

    Hold the blade hub in place and use the safety guard screw to secure the guard.

Starting + Stopping

⚠️ Clear the work area before trimming. Remove stones, sticks, wire, glass, concrete, metal, wood, and other hidden objects that may be thrown by the blade.

  1. Insert the battery

    Slide the battery into the battery compartment at the back of the machine until it clicks into place.

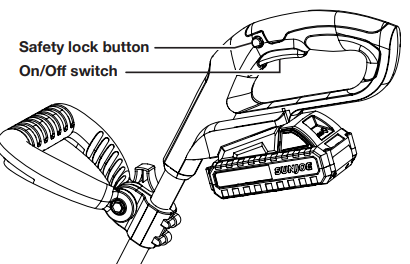

  2. Start the trimmer

    Press and hold the safety lock button, then squeeze the On/Off switch.

  3. Release the safety lock

    Once the machine runs steadily, release the safety lock button while continuing to hold the On/Off switch.

  4. Stop the trimmer

    Release the On/Off switch. Wait for the blade to come to a complete stop, then remove the battery.

Adjusting the Auxiliary Handle

  1. Turn off and remove the battery

    Wait until the blade has fully stopped before adjusting the handle.

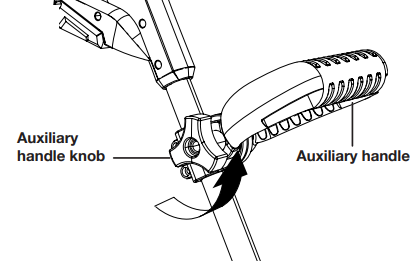

  2. Loosen the handle

    Rotate the auxiliary handle knob counterclockwise.

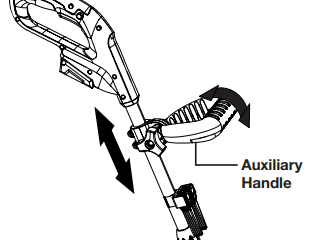

  3. Adjust position

    Slide the auxiliary handle along the upper pole as needed.

  4. Adjust angle

    Pivot the handle to the preferred angle for comfort and control.

  5. Lock the handle

    Rotate the knob clockwise until the handle is secure.

Trimming Tips

🚫 Keep the trimmer away from your body. Maintain at least 2 ft of clearance between any body part and the bladed trimmer head.
⚠️ Protect the blade and hub. Keep at least 1 ft of clearance between the blade and nearby objects such as sidewalks, fencing, posts, siding, buildings, or other immovable objects.
1

Inspect the blade

Check the blade before each use and during long use. Replace it if bent, warped, cracked, chipped, or damaged.

2

Keep the blade below waist level

Maintain a firm grip and keep the blade away from your body while trimming.

3

Let the blade stop fully

After releasing the switch, keep control of the trimmer until the blade has completely stopped rotating.

4

Do not touch the moving blade

Never attempt to stop the blade by hand.

Replacing the Trimmer Blade

🚫 Stop the unit and remove the battery before changing the blade. Do not use steel blades, wire, string, rope, or other substitutes.

  1. Remove the battery

    Turn off the unit, wait for the blade to stop, and remove the battery from the compartment.

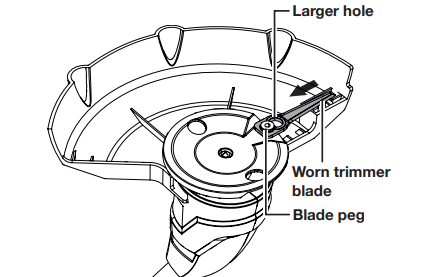

  2. Remove the worn blade

    Move the worn blade inward until the blade peg is in the larger hole. The blade should detach easily.

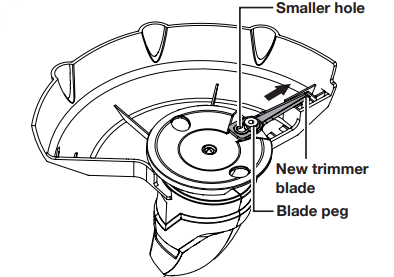

  3. Install the new blade

    Fit the blade peg into the larger hole of the new blade.

  4. Lock the blade

    Pull the new blade outward until the peg locks into the smaller hole.

🌿 Replacement blade model: GT10-GBLD-20PK replacement blades are available as a 20-pack.

Cleaning + Maintenance

🚫 Always turn off the trimmer and remove the battery before maintenance. Wear protective gloves during cleaning and blade replacement.
1

Clean after each use

Remove grass and soil from the trimmer and safety guard after each cutting operation.

2

Keep air vents clear

During operation, keep ventilation vents clean and free from grass.

3

Use gentle cleaning tools

Use a cloth soaked with hot water and a soft brush to clean the trimmer.

4

Do not spray with water

Do not wet or spray the appliance with water.

5

Avoid detergents and solvents

Chemical agents can damage plastic parts. Do not use detergents, solvents, gasoline, paint thinner, ammonia, or similar cleaners.

Storage

1

Clean thoroughly

Clean the grass trimmer before storing.

2

Store in a dry, safe place

Keep the trimmer in a stable, dry location out of reach of children.

3

Do not rest it on the guard

Hang the trimmer by the upper handgrip so the safety guard does not touch anything. Resting the guard against a surface may alter its shape.

Battery + Charger Off-Season Storage

🔋 Store the battery and charger at room temperature away from moisture. Recharge the battery every 6 months to about 50% capacity, shown as 2 lights on.
⚠️ Avoid extreme temperatures. Do not store the battery or charger where temperatures may exceed 105°F / 40.5°C. Battery packs stored below 32°F / 0°C for more than 60 minutes must be discarded.

Troubleshooting Guide

Use these quick checks for common 24V-GT10-LTE concerns. Always turn off the trimmer, remove the battery, and wait for the blade to stop before inspecting, cleaning, adjusting, or replacing parts.

🔴 Trimmer Will Not Start

Possible Causes

  • Battery not fully seated
  • Battery charge too low
  • Start sequence not followed
  • Battery protection cutoff activated

Solutions

  • Remove and reinsert the battery until it clicks into place
  • Check battery LEDs and recharge if needed
  • Press and hold the safety lock button, then squeeze the On/Off switch
  • If the unit stopped from overload, allow the battery/tool to cool before retrying
🔋 Battery Runs Down Quickly

Possible Causes

  • Heavy weeds or overgrown grass
  • Battery not fully charged
  • Battery stored for a long period without charging

Solutions

  • Work at a steady pace and avoid forcing the trimmer
  • Fully charge the battery for about 1 hr 20 min
  • Recharge every 6 months to 50% during storage
🔌 Battery Will Not Charge

Possible Causes

  • Charger not plugged into a proper outlet
  • Charger plug not fully connected to the battery charge socket
  • Battery too hot or too cold
  • Battery deeply discharged or damaged

Solutions

  • Confirm the outlet is working
  • Reconnect the charger plug to the battery charge socket
  • Charge only at room temperature
  • If battery shows damage, swelling, hissing, cracking, or abnormal behavior, stop use and route to support
🌿 Blade Does Not Cut Well

Possible Causes

  • Blade is worn
  • Blade is bent, cracked, chipped, or damaged
  • Grass or debris buildup around guard or blade hub

Solutions

  • Replace the worn blade with one of the included replacement blades
  • Do not use damaged blades
  • Remove the battery and clean grass/soil from the trimmer and guard
🛡️ Guard Issue

Possible Causes

  • Safety guard not installed correctly
  • Guard was stored resting against a surface
  • Guard damaged during use or storage

Solutions

  • Confirm the guard is seated in the groove on the motor housing
  • Confirm the safety guard screw is secure
  • Do not operate without the safety guard installed
  • Route to support if the guard is damaged or deformed
⚠️ Excessive Vibration or Noise

Possible Causes

  • Damaged blade
  • Blade not locked onto the blade peg correctly
  • Debris caught near the blade hub

Solutions

  • Stop immediately and remove the battery
  • Inspect the blade for cracks, chips, warping, or damage
  • Reinstall the blade so the peg locks into the smaller hole
  • Clean debris from the blade area using safe tools only

Optional Accessories

ItemModel
24V iON+ 2.0 Ah lithium-ion battery24VBAT-LTE
24V iON+ 2.5 Ah lithium-ion battery24VBAT-LT
24V iON+ 4.0 Ah lithium-ion battery24VBAT
24V iON+ 5.0 Ah lithium-ion battery24VBAT-XR
24V iON+ lithium-ion battery quick charger24VCHRG-QC
24V iON+ lithium-ion battery dual port charger24VCHRG-DPC
Replacement blades, 20 packGT10-GBLD-20PK
Snow Joe® + Sun Joe® universal wall bracketSJWB

Video Guide

Frequently Asked Questions

Is the 24V-GT10-LTE a string trimmer?
It is a stringless grass trimmer. It uses disposable nylon grass blades instead of trimmer line.
What is the cutting width?
The cutting diameter is 10 inches / 25.4 cm.
How many blades are included?
A total of 11 nylon grass blades are included: 1 installed blade and 10 replacement blades stored onboard.
Can I use metal blades or trimmer line?
No. Do not use steel blades, wire, string, rope, metal line, or nylon line. Use only the original nylon grass blade type designed for this trimmer.
How long does the battery take to charge?
The included 24V battery takes approximately 1 hr 20 min to charge.
Does the charger turn off automatically?
No. The charger does not automatically turn off when the battery is fully charged. Unplug the charger when all 3 battery LEDs are illuminated.
How do I start the trimmer?
Insert the battery until it clicks into place. Press and hold the safety lock button, then squeeze the On/Off switch. Once the motor runs steadily, release the safety lock button.
How do I replace the blade?
Turn off the unit, remove the battery, move the worn blade inward until the peg reaches the larger hole, remove the blade, then install a new blade and pull it outward until the peg locks into the smaller hole.
Can I use it in wet grass or rain?
No. Do not use the trimmer in rain, damp, or wet locations. Keep the tool, battery, and charger dry.
How should I store the trimmer?
Clean the trimmer thoroughly and store it in a dry, safe place out of reach of children. Hang it by the upper handgrip so the safety guard does not rest against anything.
What warranty does it have?
The 24V-GT10-LTE includes a 2-year limited warranty for ordinary household use when purchased from Snow Joe/Sun Joe or an authorized seller with proof of purchase.
