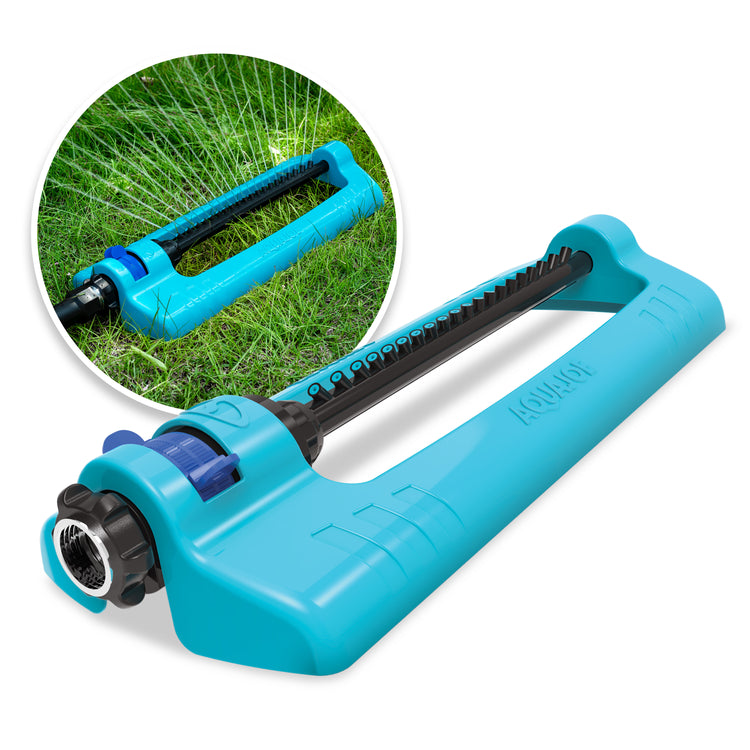

Meet the SJI-OMS20
Key Components
Base — metal base designed to keep the sprinkler stable during use
Spray nozzles — 20 plastic nozzle heads for water flow and dispersal
Oscillator tube — moves water side to side across the selected range
Hose-end — connects the sprinkler to a standard garden hose
Sliding tabs — adjust the sprinkler’s watering range and pattern
Inlet filter — helps catch debris before water enters the sprinkler

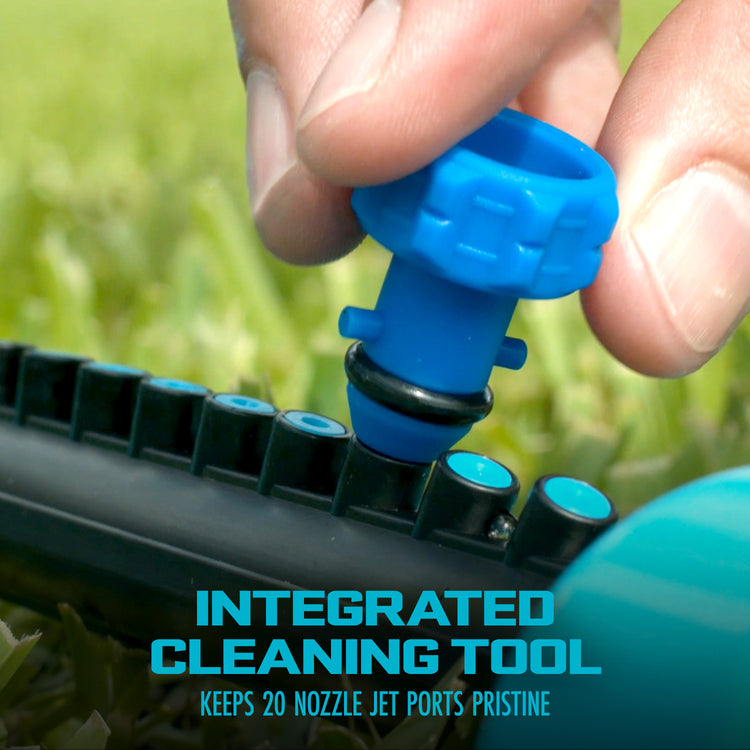

Cleaning pin — removes clogs from the spray nozzles
Technical Specifications
| Specification | SJI-OMS20 |
|---|---|
| Product Type | Oscillating lawn sprinkler |
| Best Use | Large yards and lawn watering |
| Spray Nozzles | 20 plastic nozzle heads |

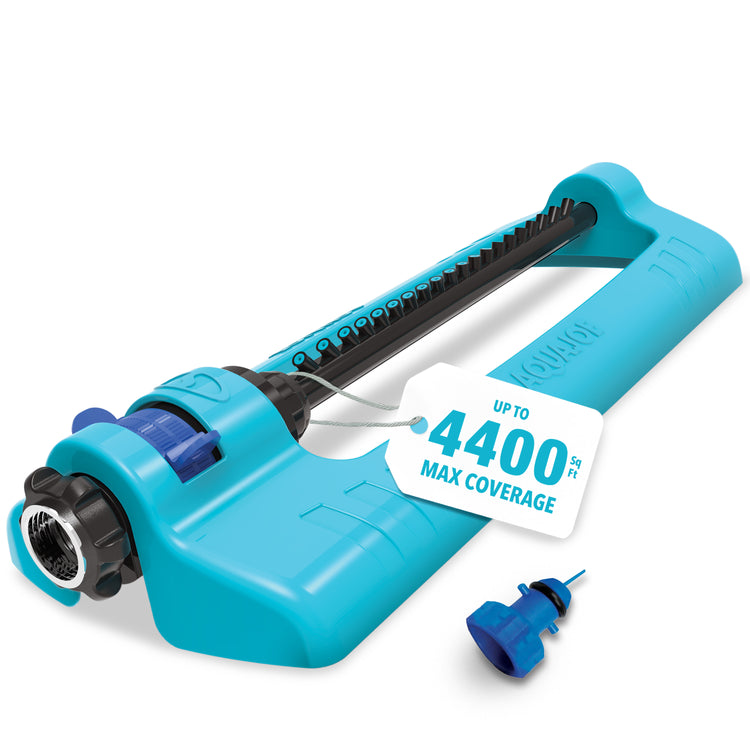

| Coverage Max | 4,400 sq ft / 409 m² |
| Spray Distance Max | 70 ft / 21.3 m |
| Spray Width Max | 63 ft / 19 m |
| Max Pressure | 150 PSI peak pressure at initial discharge; working pressure under typical load is 60 PSI |
| Max Flow | 8 GPM / 30 L/min |

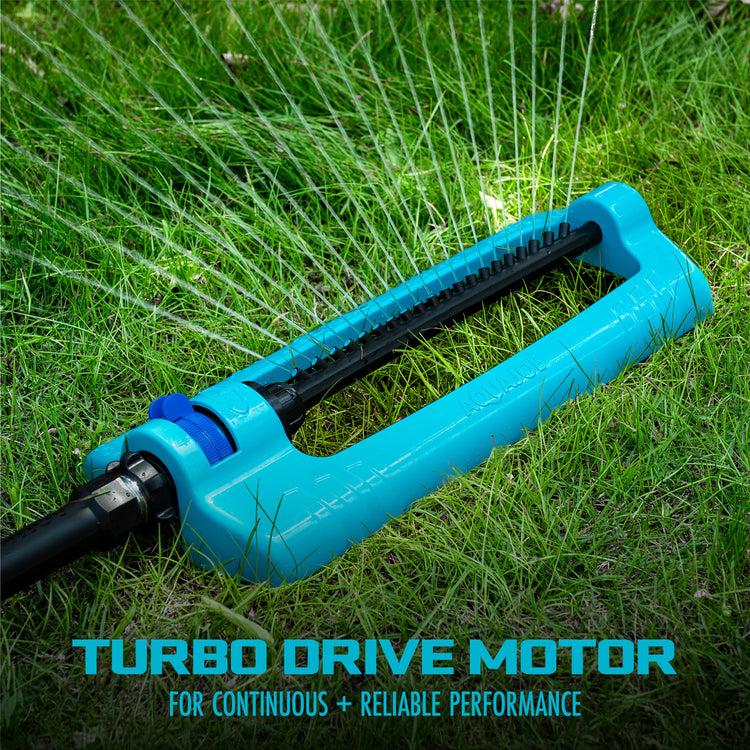

| Motor | Turbo drive |
| Adjustable Range Control | Yes |
| Adjustable Spray Pattern | Yes |
| Product Dimensions | 18 in. L x 6.91 in. W x 3.1 in. H |
| Net Weight | 1.8 lbs / 0.8 kg |
| Gross Weight | 2 lbs |
| Warranty | 2 Year Warranty |
What's in the Box
| Included Item | Details |
|---|---|
| Aqua Joe® SJI-OMS20 oscillating sprinkler | ✔ |
| 20 clog-resistant nozzle heads | ✔ built into the sprinkler |
| Inlet filter | ✔ located at the hose-end |
| Cleaning pin / needle clean-out tool | ✔ stored on the sprinkler |
| Operator’s manual / quick guide | ✔ |
Before You Water
Operation

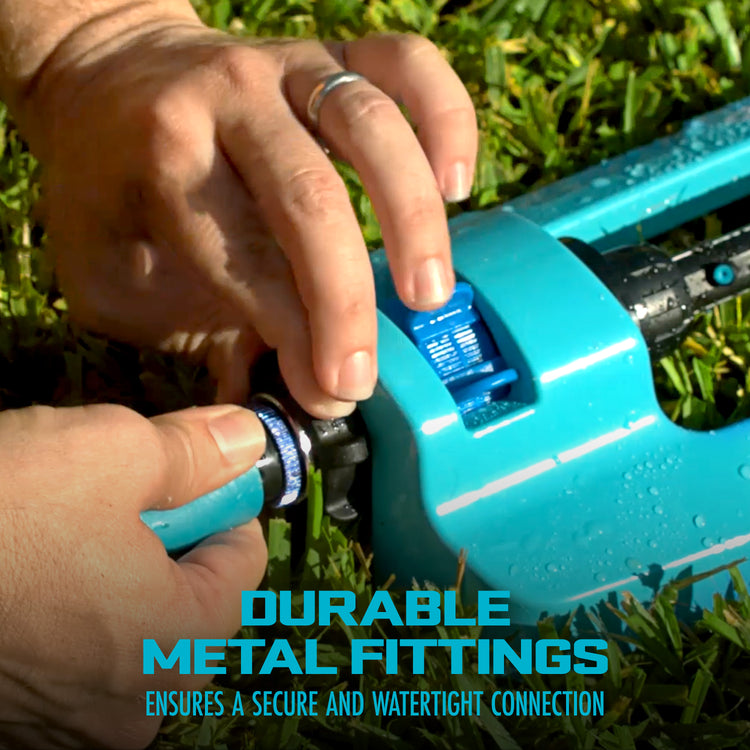

Connect the sprinkler to the hose
Attach the garden hose securely to the hose-end of the sprinkler.
Place the sprinkler on the lawn
Set the metal base on a stable, level area with the spray nozzles facing the watering area.

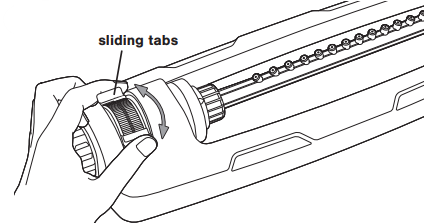

Adjust the watering range
Move the sliding tabs to select the desired position and customize the watering pattern.
Turn on the water
Open the faucet and confirm the sprinkler oscillates and sprays across the selected range.
Watch for runoff
Monitor the watering area and stop or adjust the sprinkler if water begins running off the lawn.

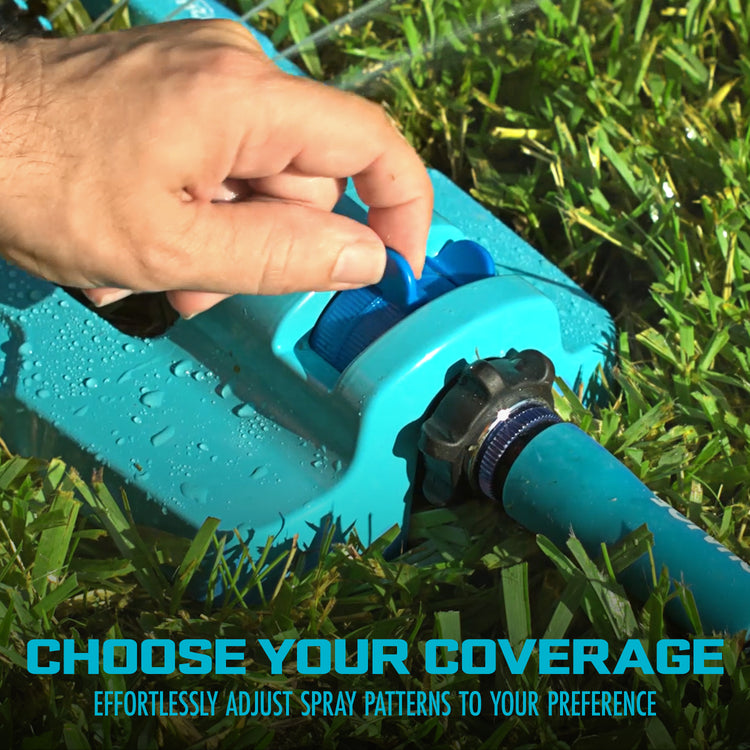

Adjustable Range Control
Watering Tips
Water in the morning
Morning watering helps minimize water loss through evaporation.
Water deeply but less often
Deep, less frequent watering helps promote deeper root growth.
Avoid runoff
Watch water application and adjust placement or timing if water begins running off the lawn.
Maintenance + Care
Follow these steps if the sprinkler stops working properly or shows poor water flow due to debris or dirt buildup.

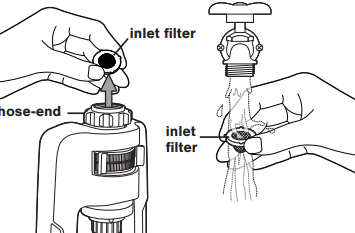

Remove and rinse the inlet filter
Remove the inlet filter from the hose-end of the oscillator and rinse it under water.

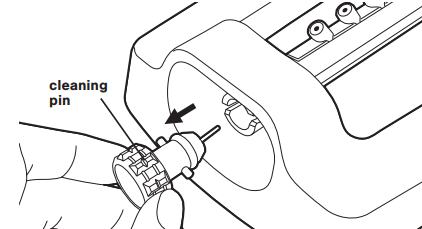

Remove the cleaning pin
Take the cleaning pin from the opposite end of the oscillator.

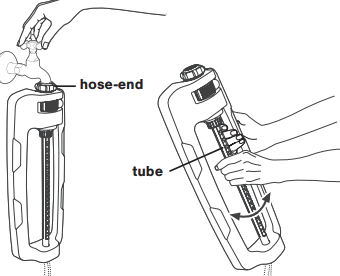

Flush the sprinkler
Connect the oscillator to a spigot. Turn on the faucet and, while water continues running, gently spin the oscillator tube back and forth for a few minutes.
Reinstall the inlet filter
Screw the inlet filter firmly back into place after flushing.

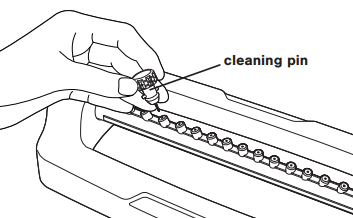

Clear nozzle clogs
Use the provided cleaning pin to clear clogs from the spray nozzles.
Return the cleaning pin
Fit the cleaning pin firmly back in place before using the sprinkler again.
Storage
Turn off the faucet
Shut off the water supply before disconnecting the sprinkler.
Disconnect the hose
Remove the garden hose from the hose-end connection.
Drain remaining water
Allow water to drain completely from the sprinkler before storing.
Store safely
Store the sprinkler in a clean, dry location when not in use, especially before freezing temperatures.
Troubleshooting Guide
Use these quick checks for common SJI-OMS20 concerns.
Possible Causes
- Not enough water pressure
- Garden hose is kinked
- Dirt or grime is blocking the spray nozzles
Solutions
- Check that the faucet is fully open
- Make sure there are no kinks in the hose
- Confirm adequate pressure is flowing into the sprinkler
- Use the provided cleaning pin to clear clogs from the spray nozzles
- Rinse the inlet filter if debris is present
Possible Causes
- Spray nozzles are clogged
- Inlet filter has debris buildup
- Water pressure is too low
Solutions
- Clean the nozzles with the cleaning pin
- Remove and rinse the inlet filter under water
- Flush the oscillator by running water through it and gently spinning the tube back and forth
- Check the hose and faucet for adequate water flow
Possible Causes
- Not enough water pressure
- Hose is kinked
- Sliding tabs are set to a smaller watering range
Solutions
- Ensure there are no kinks in the hose
- Confirm adequate pressure is flowing into the sprinkler
- Adjust the sliding tabs for wider coverage
- Reposition the sprinkler for better yard coverage
