Take on driveways, decks, siding, outdoor furniture, vehicles, and more with the Sun Joe SPX7000-MAX Electric Pressure Washer, combining certified cleaning performance with four spray options and an onboard foam cannon.
2200 rated PSI
1.1 rated GPM
13-amp motor
25-foot hose
Meet the SPX7000-MAX
Why It Stands Out

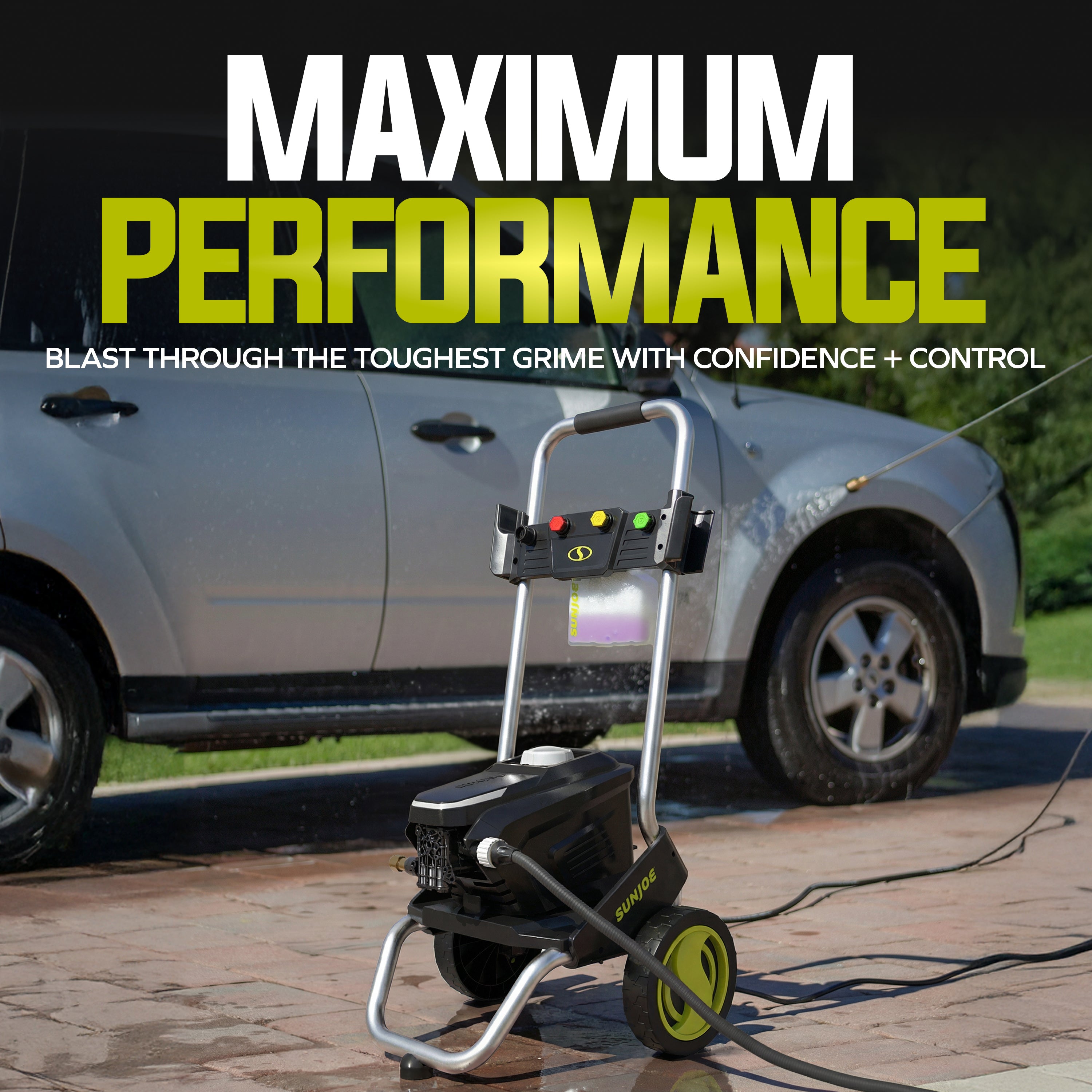

Certified cleaning power
The 13-amp motor delivers 2200 PSI of rated pressure and 1.1 GPM of rated flow.
Four spray options
Three quick-connect tips and a turbo nozzle cover spot cleaning, tough jobs, general cleaning, and heavy dirt.
Adjustable foam cannon
The 22-fluid-ounce detergent bottle applies pressure-washer soap, with a knob for adjusting foam volume.
Extended reach
A 25-foot high-pressure hose and 35-foot GFCI-protected cord help cover larger cleaning areas.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SPX7000-MAX |
| Product Type | Corded electric pressure washer |
| Rated Voltage | 120V AC, 60 Hz |
| Motor | 13 amp |
| Rated Pressure | 2200 PSI |
| Rated Flow | 1.1 GPM (4.2 L/min) |
| Spray Nozzles | 0°, 15°, 25°, and turbo |
| High-Pressure Hose | 25 ft (7.6 m) |
| Power Cord | 35 ft with built-in GFCI |
| Detergent Bottle | 22 fl oz (650 mL) foam cannon |

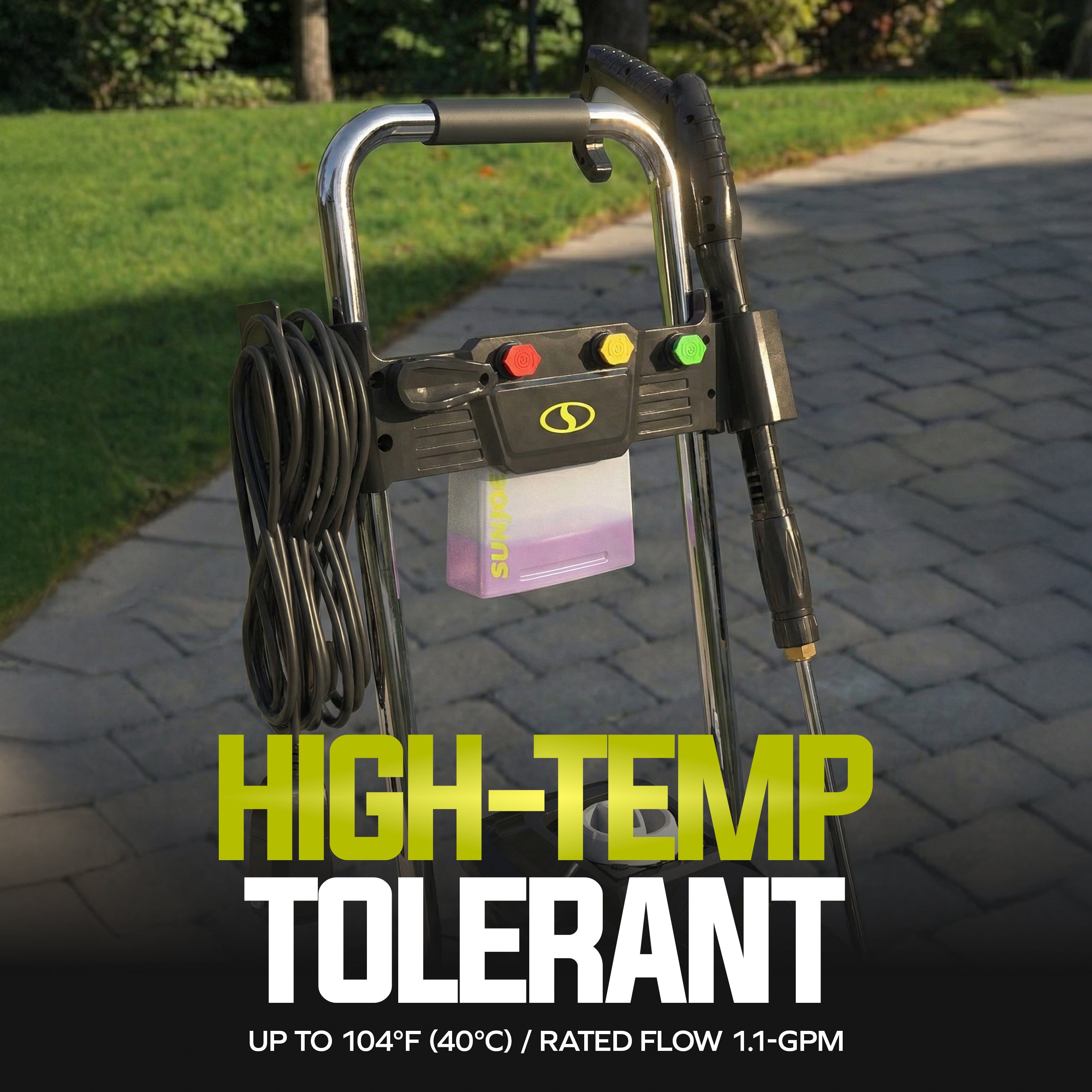

| Maximum Water Inlet Temperature | 104°F (40°C) |
| Maximum Water Inlet Pressure | 0.7 MPa |
| Net Weight | 27 lb (12.2 kg) |
| Product Manual | Download the SPX7000-MAX operator’s manual (PDF) |
| Warranty | 2-year manufacturer’s warranty |

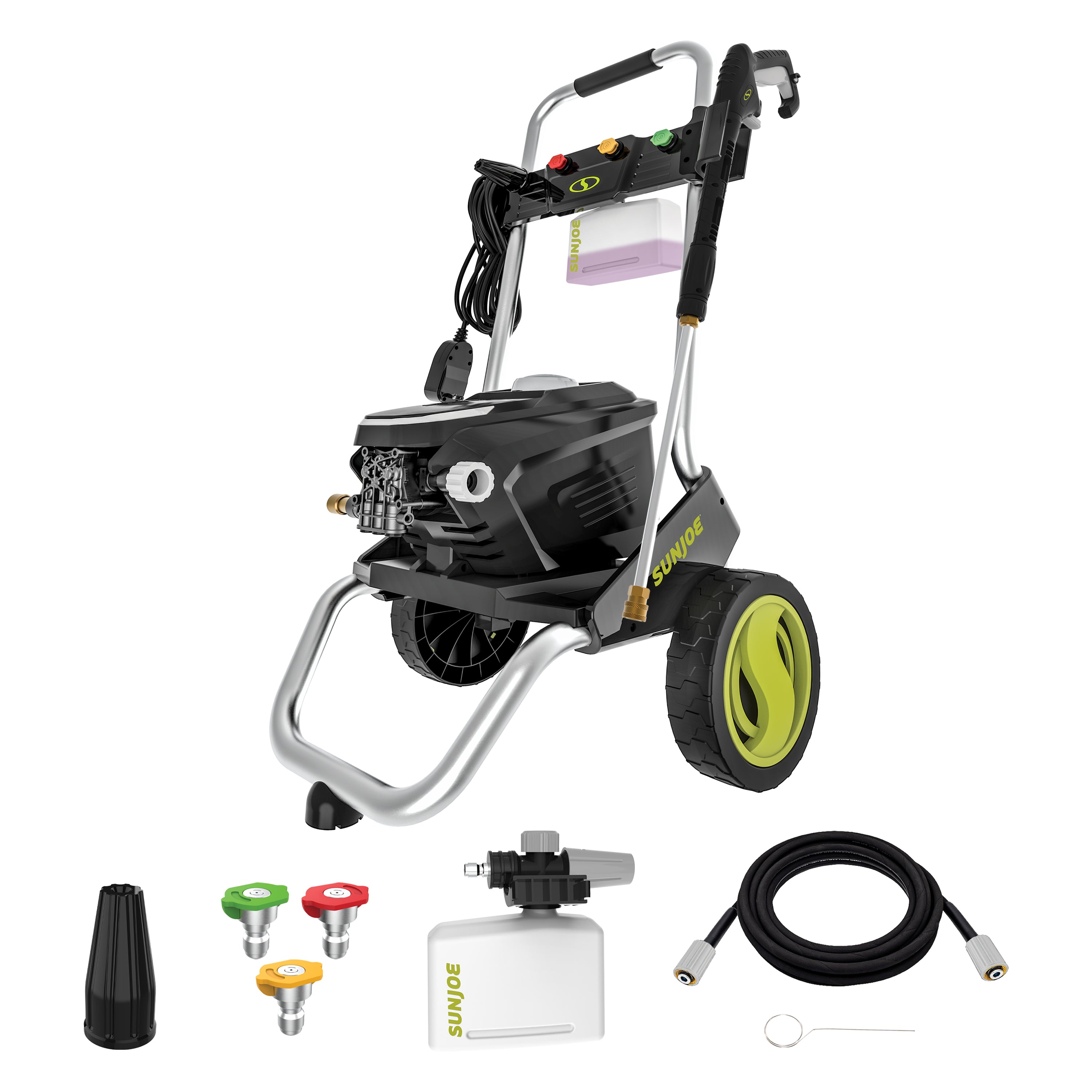

What’s in the Box
- SPX7000-MAX electric pressure washer
- Transport handle
- Trigger gun
- Stainless steel lance
- Three quick-connect nozzles: 0°, 15°, and 25°
- Turbo nozzle
- 22-fluid-ounce detergent bottle with foam cannon
- Hose strap
- Trigger gun holder
- Two screws
- Cord holder
- Needle clean-out tool
- 25-foot high-pressure hose
- Manual
Assembly
Before assembly: Keep the pressure washer unplugged until assembly is complete.
- Position the washer. Place it upright on a secure, stable surface as close as practical to the water supply.
- Install the holders. Slide the trigger gun holder and cord holder into their positions.
- Install the transport handle. Slide the handle fully into position on the washer.
- Secure the stored hose. Wrap the hose strap around the high-pressure hose.
- Organize the accessories. Hang the foam cannon on the back of the storage board and place the four nozzles in the front holders.
- Connect the lance. Fit the stainless steel lance into the trigger gun and rotate the collar until the two parts lock completely.
- Connect the pressure hose. Attach one end to the trigger gun and the other to the washer’s high-pressure water outlet.
- Connect the water supply. Attach the garden hose adapter to the washer inlet, connect a reinforced garden hose with at least a 1/2-inch internal diameter, and connect the hose to the water source.
Getting Started
- Confirm the controls. Make sure the power switch is OFF and the trigger safety lock is engaged.
- Connect electrical power. Plug the washer into a suitable outlet and press RESET on the GFCI until its power indicator illuminates.
- Prime the water system. Turn the water supply fully on, release the safety lock, and squeeze the trigger until the water flows steadily and trapped air is removed.
- Select a nozzle. With the washer off, water off, pressure released, and safety lock engaged, push the suitable nozzle into the quick-connect collar until it clicks.
- Begin cleaning. Turn the switch ON and squeeze the trigger. Keep the jet directed away from people, pets, live electrical equipment, and the washer itself.
- Shut down safely. Turn the switch OFF, unplug the cord, turn off the water, squeeze the trigger to release pressure, disconnect the hoses, and engage the safety lock.
Nozzle Selection
- 0° red: A concentrated jet for heavy deposits on durable surfaces and hard-to-reach areas.
- 15° yellow: Intense cleaning on hard surfaces that can withstand high pressure.
- 25° green: General cleaning for siding, brick patios, wood decks, driveways, and sidewalks; test a small area first.
- Turbo: A rotating high-impact spray for tough dirt and added scrubbing action.
Using the Foam Cannon
- Use pressure-washer detergent only. Follow the detergent label for mixing and never use household detergent, acids, alkaline solutions, bleach, solvents, flammable material, or industrial-grade solutions.
- Fill the bottle. Remove the foam-cannon cap and suction tube, then add detergent formulated specifically for pressure washers.
- Attach the foam cannon. Reinstall the cap and snap the cannon onto the lance’s quick-connect collar until it clicks.
- Adjust the foam. Use the foam-volume knob to set the desired detergent output.
- Apply from bottom to top. Apply detergent to a dry surface, test an inconspicuous area first, and clean a small section at a time.
- Rinse before it dries. Let the detergent work briefly without drying, then switch off, depressurize, remove the foam cannon, install the suitable rinse nozzle, and rinse from the top downward.
Maintenance, Care & Storage
- Switch off, unplug, shut off the water supply, squeeze the trigger to release pressure, and let the unit cool before cleaning or maintenance.
- Inspect the power cord, trigger gun, fittings, and high-pressure hose regularly. Do not use or attempt to mend a damaged high-pressure hose.
- Remove the water inlet filter and rinse it with warm water to prevent debris from clogging the pump.
- Clean a blocked nozzle with the supplied needle tool, then back-flush clean water through the nozzle and lance.
- Store the washer and accessories indoors in a dry, covered, frost-free area. Empty water from the hoses, pump, and detergent bottle before storage.
- For winter or long-term storage, disconnect all water connections, briefly run the washer until remaining pump water exits, and switch it off immediately. Use a non-corrosive, non-toxic pump protector as directed and flush the system thoroughly with clean water before reuse.
Freeze warning: Never store the washer where temperatures may fall below 32°F (0°C). Frozen water can permanently damage the pump.
Troubleshooting
The pressure washer will not start
Step-by-Step Check
- Check the GFCI light indicator. This confirms whether the pressure washer is receiving power. There should be a red or green light on the GFCI plug.
- If the GFCI light is off: Press the RESET button on the GFCI plug. Make sure the plug is fully seated, then try a known working outlet. There should be a red or green light.
- If using an extension cord: Remove the extension cord and plug the pressure washer directly into a wall outlet.
- Check the nozzle: Remove the nozzle and clean it with the needle clean-out tool. If the nozzle cannot be removed, make sure the nozzle opening is not clogged.
- Run the full restart sequence: Connect the garden hose and turn the water supply fully on. Make sure the trigger safety lock is in its normal operating position. Press and hold the trigger until water flow is steady to purge air and release trapped pressure. Reset the GFCI if needed, turn the machine ON, and try again.
Pressure fluctuates
Possible Causes
- The pump is drawing air.
- Internal valves or pump seals require service.
Solutions
- Check that the hoses and connections are airtight.
- If pressure still fluctuates, stop using the washer and contact Shop Joe Customer Support; do not open the pump housing.
Stiff Quick-Release Nozzle Connector
Possible Causes
- Corrosion, dirt, or debris buildup inside the quick-release connector.
Solutions
- Soak the quick-disconnect end in warm, soapy water.
- While submerged, move the quick-release collar back and forth repeatedly until it begins to move more smoothly.
- Remove the connector from the water and rinse it by spraying a strong, steady stream of clean water directly into the quick disconnect to flush out any remaining debris.
- Repeat the soaking, movement, and rinsing process as needed until the collar moves freely.
GFCI Tripping on Pressure Washers
GFCI plug functions as the circuit breaker
- Turn the pressure washer off and unplug it.
- Remove any extension cord and disconnect other devices from the outlet.
- Plug the pressure washer directly into a different wall outlet.
- Reset the GFCI plug and test the unit again.
- If the GFCI continues to trip when the pressure washer is plugged directly into a different outlet, the unit may have an internal electrical malfunction, such as water intrusion or an electrical short.
The pressure washer pulsates
Possible Causes
- Air is trapped in the inlet hose.
- The water supply is inadequate, the hose is kinked, or the inlet filter or nozzle is blocked.
Solutions
- Hold the trigger until regular working pressure resumes.
- Confirm the water supply meets the manual requirements, straighten hose kinks, and clean the inlet filter and nozzle.
The washer starts and stops by itself
Possible Causes
- The pump or spray gun is leaking.
- The trigger mechanism is damaged.
Solutions
- Stop using the washer and contact Shop Joe Customer Support for assistance. Do not attempt an internal repair.
The washer starts, but no water comes out
Possible Causes
- The pump, hoses, or accessories are frozen.
- The water supply is disconnected.
- The inlet filter or nozzle is blocked.
Solutions
- Allow frozen components to thaw completely.
- Connect and fully open the inlet water supply.
- Clean the inlet filter and nozzle.
Stop using the washer immediately if the power cord, trigger gun, high-pressure hose, safety devices, or other important parts are damaged, or if leaking or abnormal operation continues.
Video Guide
Watch this official guide for an overview of the Sun Joe SPX7000-MAX Electric Pressure Washer.
If the video does not load, watch the SPX7000-MAX video guide on YouTube.
Safety reminder: Follow the operator’s manual, keep all electrical connections dry and off the ground, and release stored pressure before changing nozzles or performing maintenance.
Frequently Asked Questions
Which spray options are included?
The SPX7000-MAX includes 0°, 15°, and 25° quick-connect nozzles plus a turbo nozzle.
Can I use hot water with the SPX7000-MAX?
No. Use clean cold or lukewarm water only, and never exceed an inlet-water temperature of 104°F (40°C).
Can I use an extension cord?
An extension cord is not recommended because the washer includes a 35-foot GFCI power cord. If one is necessary, use a watertight, outdoor-rated 14-AWG cord no longer than 25 feet, so the combined cord length does not exceed 60 feet.
Why does the motor stop when I release the trigger?
The Total Stop System automatically stops the motor when the trigger is released, helping protect the pump from overheating and conserve energy.
What type of detergent can I use?
Use only detergent specifically formulated for pressure washers. Do not use household detergents, acids, alkaline solutions, bleach, solvents, flammable material, or industrial-grade solutions.
Where can I find the model and serial numbers?
Both numbers are printed on the decal located on the pressure washer housing.
