Clear Snow Without the Cord. The Snow Joe® 24V-SS11 Series cordless snow shovels are designed for quick snow pickup on decks, steps, patios, and paved walkways. This guide applies to 24V-SS11, 24V-SS11-CT, 24V-SS11-XR, and 24V-SS11-CVR. The series clears an 11-inch-wide path up to 7 inches deep and throws snow up to 20 feet.
Choose Your Model
24V-SS11 — Kit
Includes the cordless snow shovel, one 24V IONMAX™ 4.0 Ah battery, and a compatible 24V IONMAX™ charger.
24V-SS11-CT — Tool Only
Includes the cordless snow shovel. A compatible 24V IONMAX™ battery and charger are sold separately.

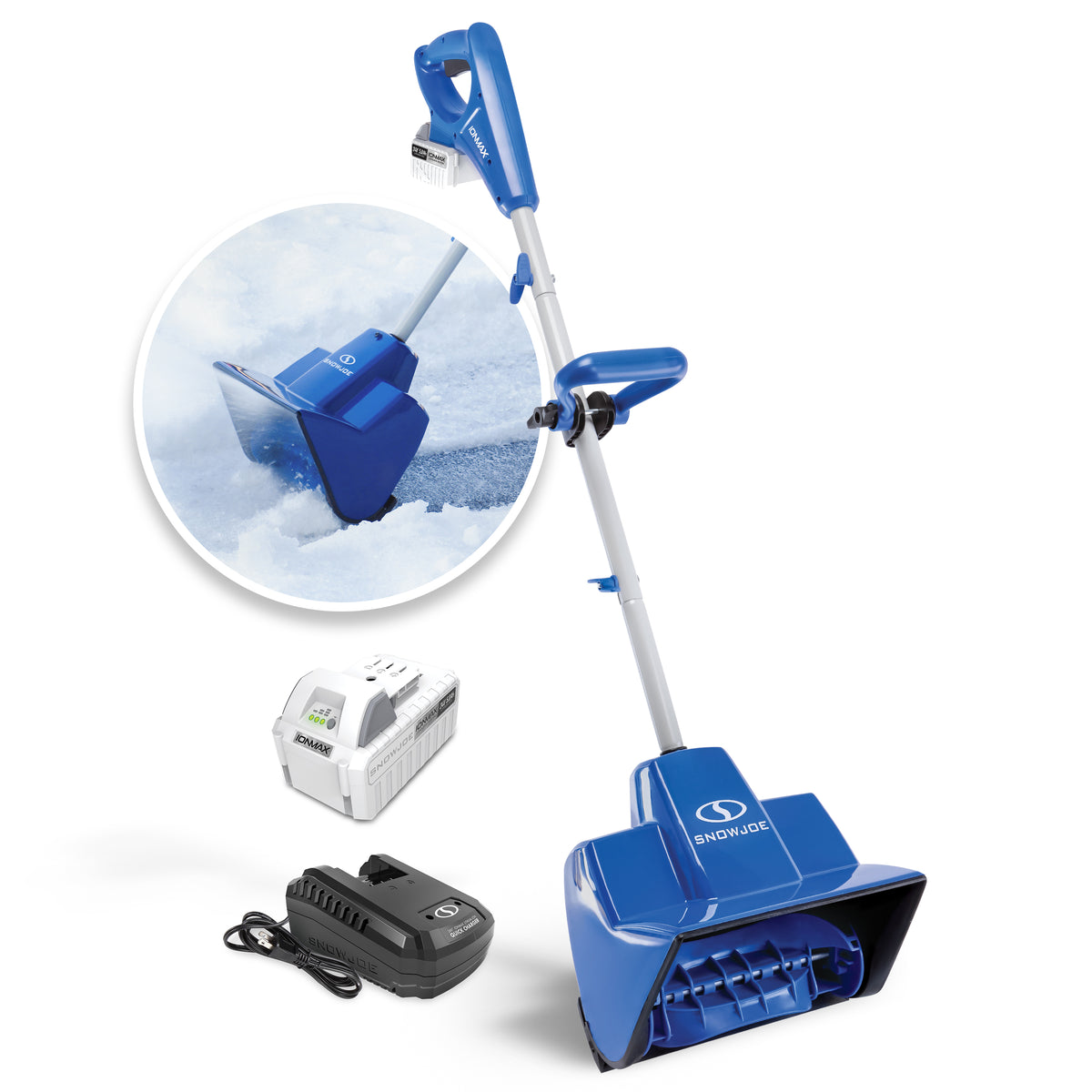

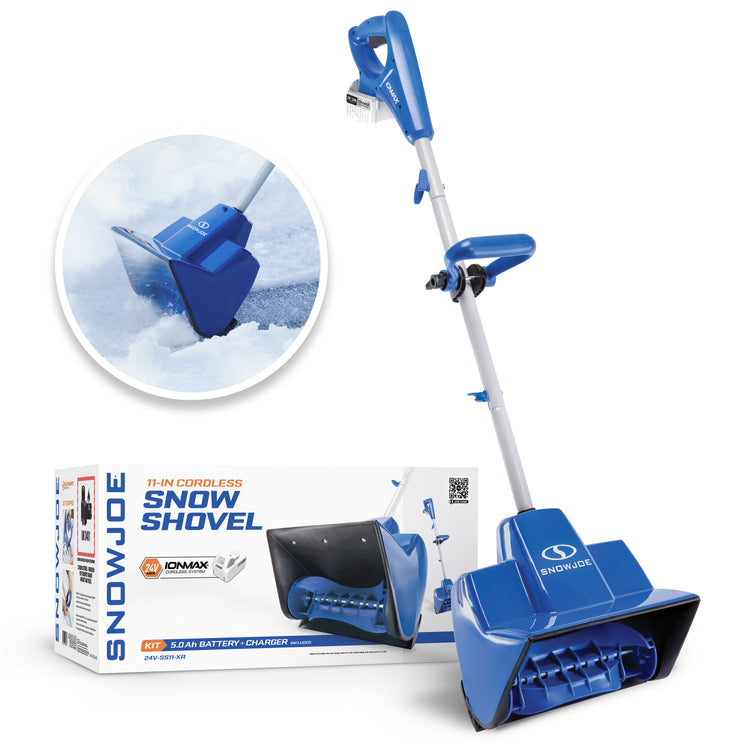

24V-SS11-XR — Extended Runtime Kit
Includes the cordless snow shovel, one 24V IONMAX™ 5.0 Ah battery, and a compatible charger. The XR configuration is rated to move up to 2,025 lb of snow per charge.
24V-SS11-CVR — Cover Kit
Includes the cordless snow shovel, one 24V IONMAX™ 4.0 Ah battery, charger, and a bonus protective cover.
Assembly, operating guidance, and customer-safe troubleshooting in this article apply across the 24V-SS11 Series unless a model-specific package difference is noted.
Meet the 24V-SS11 Series
Key Components
Technical Specifications
| Specification | 24V-SS11 | 24V-SS11-CT | 24V-SS11-XR | 24V-SS11-CVR |
|---|---|---|---|---|
| Product Type | Cordless snow shovel kit | Cordless snow shovel, tool only | Cordless snow shovel extended-runtime kit | Cordless snow shovel cover kit |
| Best Use | Quick snow pickup on decks, steps, patios, and paved walkways | Quick snow pickup on decks, steps, patios, and paved walkways | Quick snow pickup on decks, steps, patios, and paved walkways | Quick snow pickup on decks, steps, patios, and paved walkways |
| Power Type | 24V IONMAX™ cordless battery system | 24V IONMAX™ cordless battery system | 24V IONMAX™ cordless battery system | 24V IONMAX™ cordless battery system |
| Motor | 400 W | 400 W | 400 W | 400 W |
| Battery / Charger | 4.0 Ah battery + compatible charger ✓ | Battery + charger sold separately | 5.0 Ah extended-runtime battery + charger ✓ | 4.0 Ah battery + charger ✓ |
| Included Extras | Standard kit | Tool-only package | Extended-runtime kit | Bonus protective cover |
| Rotor | 2-blade paddle auger | 2-blade paddle auger | 2-blade paddle auger | 2-blade paddle auger |
| No Load Speed | 2500 rpm | 2500 rpm | 2500 rpm | 2500 rpm |
| Clearing Width | 11 in. / 28 cm | 11 in. / 28 cm | 11 in. / 28 cm | 11 in. / 28 cm |
| Depth of Snow Cut | Up to 7 in. / 17.8 cm | Up to 7 in. / 17.8 cm | Up to 7 in. / 17.8 cm | Up to 7 in. / 17.8 cm |
| Throw Distance Max | Up to 20 ft / 6 m | Up to 20 ft / 6 m | Up to 20 ft / 6 m | Up to 20 ft / 6 m |
| Plowing Capacity Max | Up to 74 lb/min | Up to 74 lb/min | Up to 75 lb/min | Not separately specified |
| Net Weight | 10.6 lb | 11.7 lb | 10.6 lb | Less than 12 lb |
| Warranty | 2 Years | 2 Years | 2 Years | 2 Years |
| Operator's Manual | View Manual | View Manual | View Manual | View Manual |
| Product Page | View Product | View Product | View Product | View Product |
24V-SS11
24V-SS11-CT
24V-SS11-XR
24V-SS11-CVR
Voltage reminder: Initial no-load voltage, when fully charged, peaks at 24V. Nominal voltage under typical load is 21.6V.
What's in the Box
| Included Item | 24V-SS11 | 24V-SS11-CT | 24V-SS11-XR | 24V-SS11-CVR |
|---|---|---|---|---|
| Cordless snow shovel upper pole assembly | ✓ | ✓ | ✓ | ✓ |
| Middle pole with auxiliary handle | ✓ | ✓ | ✓ | ✓ |
| Cordless snow shovel lower pole assembly | ✓ | ✓ | ✓ | ✓ |
| Joint-fixing knob + bolt sets | 2 sets | 2 sets | 2 sets | 2 sets |
| Manual with registration card | ✓ | ✓ | ✓ | ✓ |
| 24V IONMAX™ lithium-ion battery | 4.0 Ah | Sold separately | 5.0 Ah | 4.0 Ah |
| 24V IONMAX™ battery charger | ✓ | Sold separately | ✓ | ✓ |
| Protective cover | — | — | — | ✓ |
24V-SS11
24V-SS11-CT
24V-SS11-XR
24V-SS11-CVR
Assembly — Connecting the Poles
Do not insert the battery until assembly is complete. Accidental starting can cause serious injury.
- Lay the unit on a level surface. Position the upper pole section, center/middle pole section, and lower pole section so they can be connected without twisting the internal wire.
- Insert the upper and lower pole sections into the center pole. Insert both sections into the center/middle pole section and push firmly.
- Secure the lower pole connection. Insert the lower bolt through the lower pole section while carefully moving the inner wire aside, then secure the bolt with the joint-fixing knob.
- Secure the upper pole connection. Repeat the bolt-and-knob installation for the upper pole assembly while keeping the inner wire clear of the bolt path.
- Check both pole connections. Make sure both joint-fixing knobs are tight and the internal wire is not pinched between the pole sections.
Internal wiring reminder: If the wire inside the pole blocks the bolt path, carefully move it to one side before inserting the bolt. Do not pinch or force the wire between the pole sections. If excess internal wire makes the pole sections difficult to join, keep the battery removed, disconnect the upper and lower pole sections (and the middle section, if applicable), and lay the parts on a flat, level surface. Start the pole assembly again from the beginning, following the steps above. Keep the internal wire clear of the connections; do not pull, cut, pinch, or force it.
Positioning the Auxiliary Handle
- Remove the battery. Wait until the blade has come to a complete stop.
- Loosen the handle knob. Rotate or move the auxiliary handle to a comfortable position.
- Tighten the handle knob securely. Make sure the auxiliary handle does not move or slide on the pole.
Getting Started
- Inspect the area first. Remove doormats, boards, wires, stones, toys, and other objects the rotor could pick up and throw.
- Confirm the handle is assembled. Make sure all three pole sections and the auxiliary handle are secured.
- Prepare a compatible 24V IONMAX™ battery. Charge the battery before use if needed.
- Insert the battery. Slide the battery into the battery compartment until it clicks and locks into position.
- Start the machine. Press and hold the safety lock switch, then squeeze the trigger switch. Once the machine starts, release the safety lock switch.
- Clear at a comfortable pace. Move forward slowly enough to clear the path completely and slightly overlap each pass.
- Stop the machine. Release the trigger switch and wait for the rotor to stop before removing the battery.
Operating tip: For efficient clearing, throw snow downwind. Hold the snow shovel at a slight angle to direct discharge to the left or right.
Surface reminder: The operator's manual identifies paved surfaces as the intended use. Do not attempt to clear gravel or crushed-rock surfaces.
Maintenance + Care
Always turn off the unit and remove the battery before cleaning, inspecting, servicing, storing, or transporting the snow shovel.
Troubleshooting Guide
Only perform the customer-safe checks below. Turn off the unit and remove the battery before inspecting or clearing the snow shovel.
Possible Cause
- The internal wire is blocking the screw hole or bolt path.
Solution
- If excess wire still prevents assembly, disconnect the upper and lower pole sections (and middle section, if present). Place the sections on a flat, level surface and restart the pole assembly from the first step, keeping the internal wiring clear and avoiding any pinching or pulling.
- Keep the battery removed during assembly.
- Insert the upper and lower pole sections into the center pole section.
- When inserting each bolt, carefully move the inner wire to one side if it blocks the bolt path.
- Secure the lower and upper connections with the supplied joint-fixing knobs.
- Do not pinch or force the internal wire between the pole sections.
Possible Causes
- Battery is depleted, too cold, or not fully seated.
- The safety switch and trigger were not engaged correctly.
Solutions
- Charge the battery indoors and reinstall it until it clicks.
- Allow a very cold battery to return to a suitable operating temperature.
- Press and hold the safety lock switch, then squeeze the trigger switch.
Possible Causes
- Snow or debris is blocking the rotor housing.
- The auger or drive system may be damaged.
Solutions
- Stop the motor, remove the battery, wait at least 10 seconds, and clear the housing with a clean-out tool.
- Never place your hands inside the rotor housing.
- If the auger remains stationary or is visibly damaged, stop using the unit.
Possible Causes
- The battery is depleted or the protection system has activated.
- The unit is overloaded by deep, heavy, or compacted snow.
Solutions
- Release the trigger, remove the battery, and clear any blockage safely.
- Allow the unit and battery to cool if needed.
- Recharge the battery and resume with slower, narrower passes.
Possible Cause
- The auger or another component may be damaged or loose.
Solution
- Stop the unit immediately and remove the battery.
- Inspect the visible exterior parts for damage.
- Do not operate the unit if damage is present.
Video Guide
Frequently Asked Questions
What is the difference between the 24V-SS11 Series models?
The 24V-SS11 includes a 4.0 Ah battery and charger. The 24V-SS11-CT is tool only. The 24V-SS11-XR includes a 5.0 Ah battery and charger, while the 24V-SS11-CVR includes a 4.0 Ah battery, charger, and bonus protective cover.
How do I connect the upper, middle, and lower poles?
Lay the unit on a level surface, insert the upper and lower pole sections into the center/middle pole section, then secure the lower and upper connections with the supplied bolts and joint-fixing knobs.
What if the internal cord or wiring is blocking the pole assembly?
If the internal wire blocks the bolt path, carefully move it to one side while inserting the bolt. Do not pinch or force the wire between the pole sections.
How much snow can the 24V-SS11 Series clear in one pass?
The 24V-SS11 Series clears a path up to 11 inches wide and up to 7 inches deep in one pass.
Can I use the snow shovel on gravel?
No. The operator's manual identifies paved surfaces as the intended use and warns against clearing gravel or crushed-rock surfaces.
Does the snow shovel need lubrication?
No. The cordless snow shovel does not require lubrication.
Need More Help?
If you need help identifying your model, choosing a compatible 24V IONMAX™ battery or charger, or assembling the handle, contact Shop Joe Customer Support.
