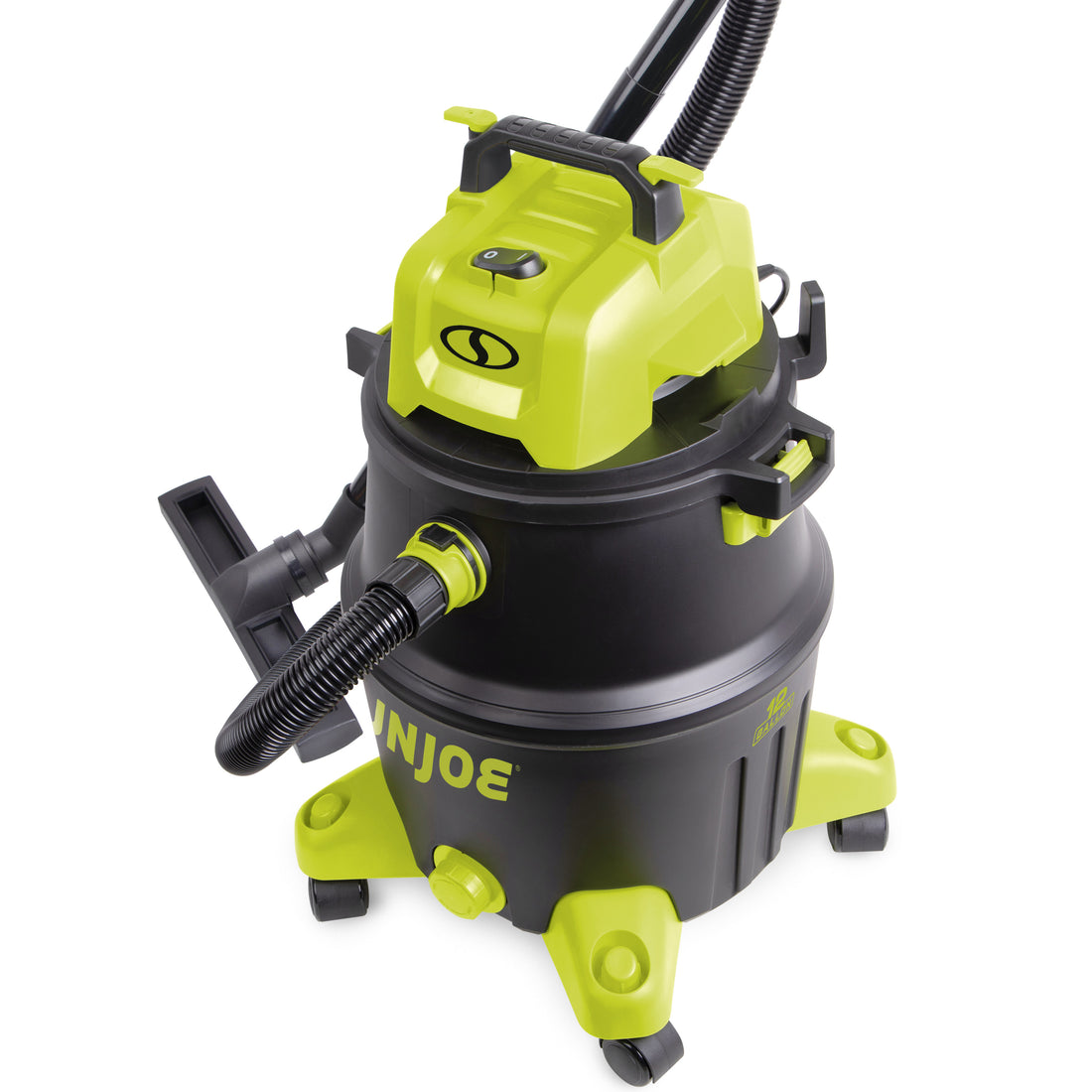

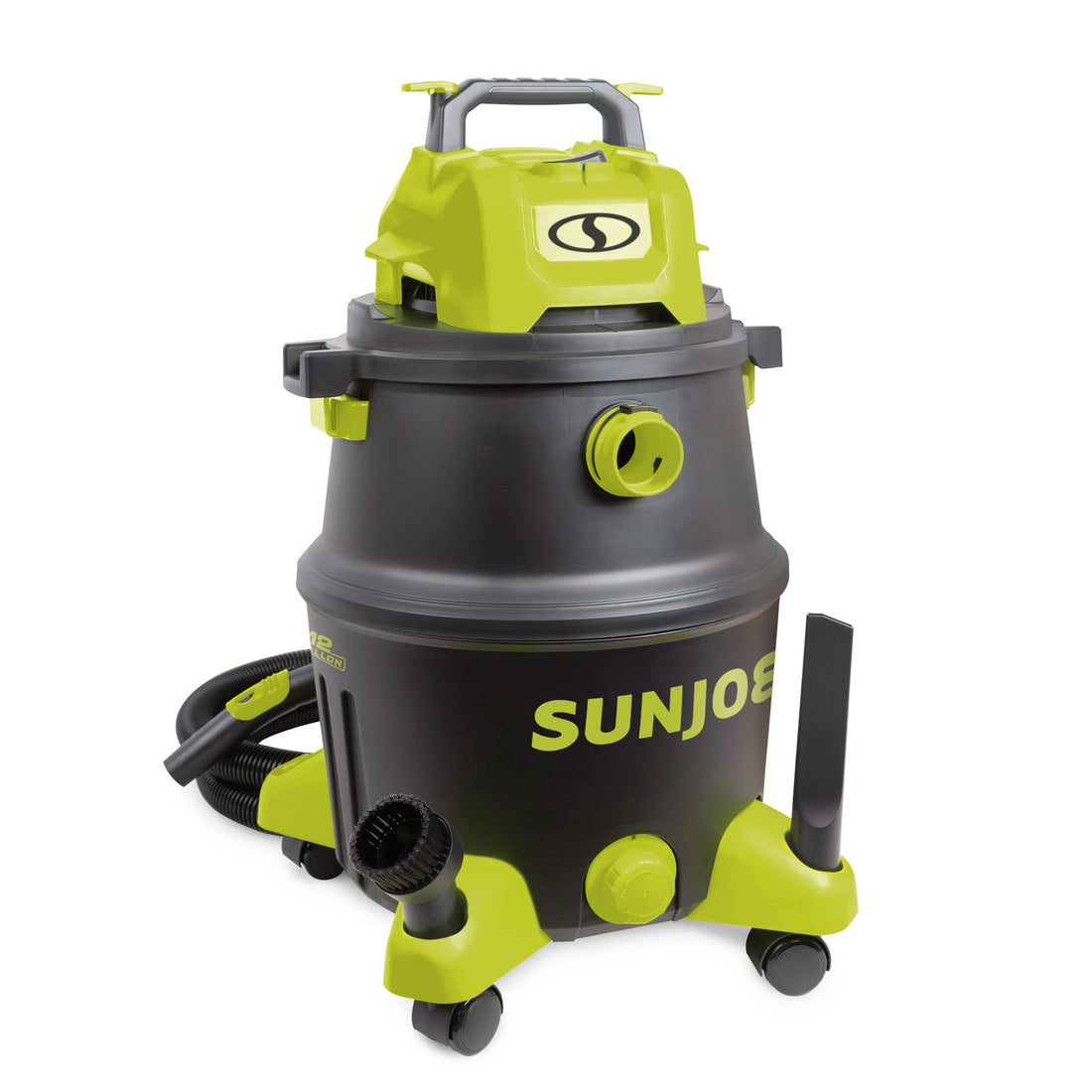

Clean dry debris and wet spills around the home, garage, workshop, or vehicle with the Sun Joe SWD12000 Electric Wet/Dry Vacuum, featuring a removable 12-gallon tank and dedicated filters for dry and wet pickup.
Meet the SWD12000
Why It Stands Out
Large removable tank
The 12-gallon dust tank holds dry debris or liquid and includes a drain outlet for easier emptying after wet pickup.
Wet and dry cleaning

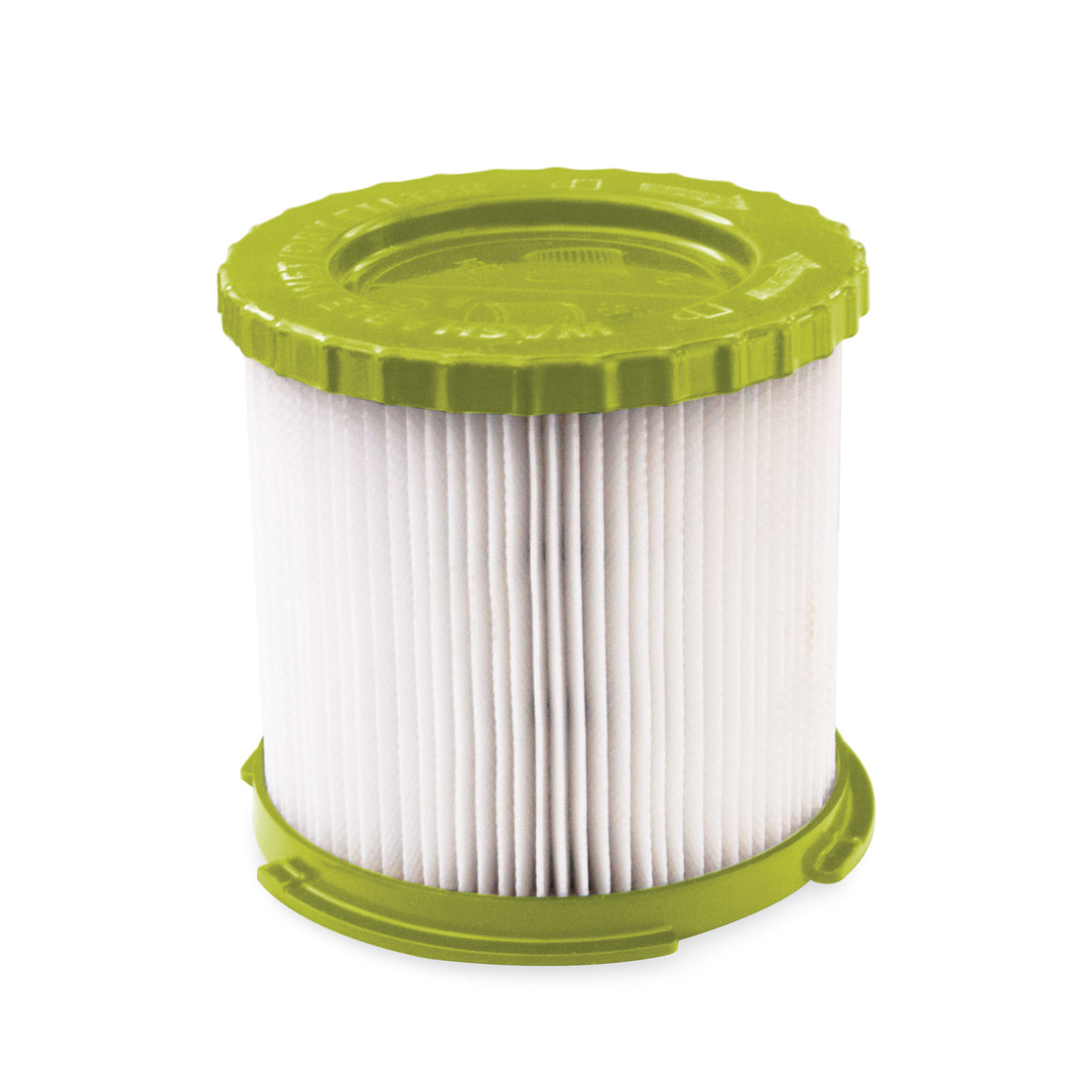

Use the HEPA filter for dry pickup and the washable foam filter for wet pickup.
Powerful airflow
The 10-amp motor delivers up to 60 CFM airflow, 22 kPa vacuum pressure, and 160 watts of maximum suction power.

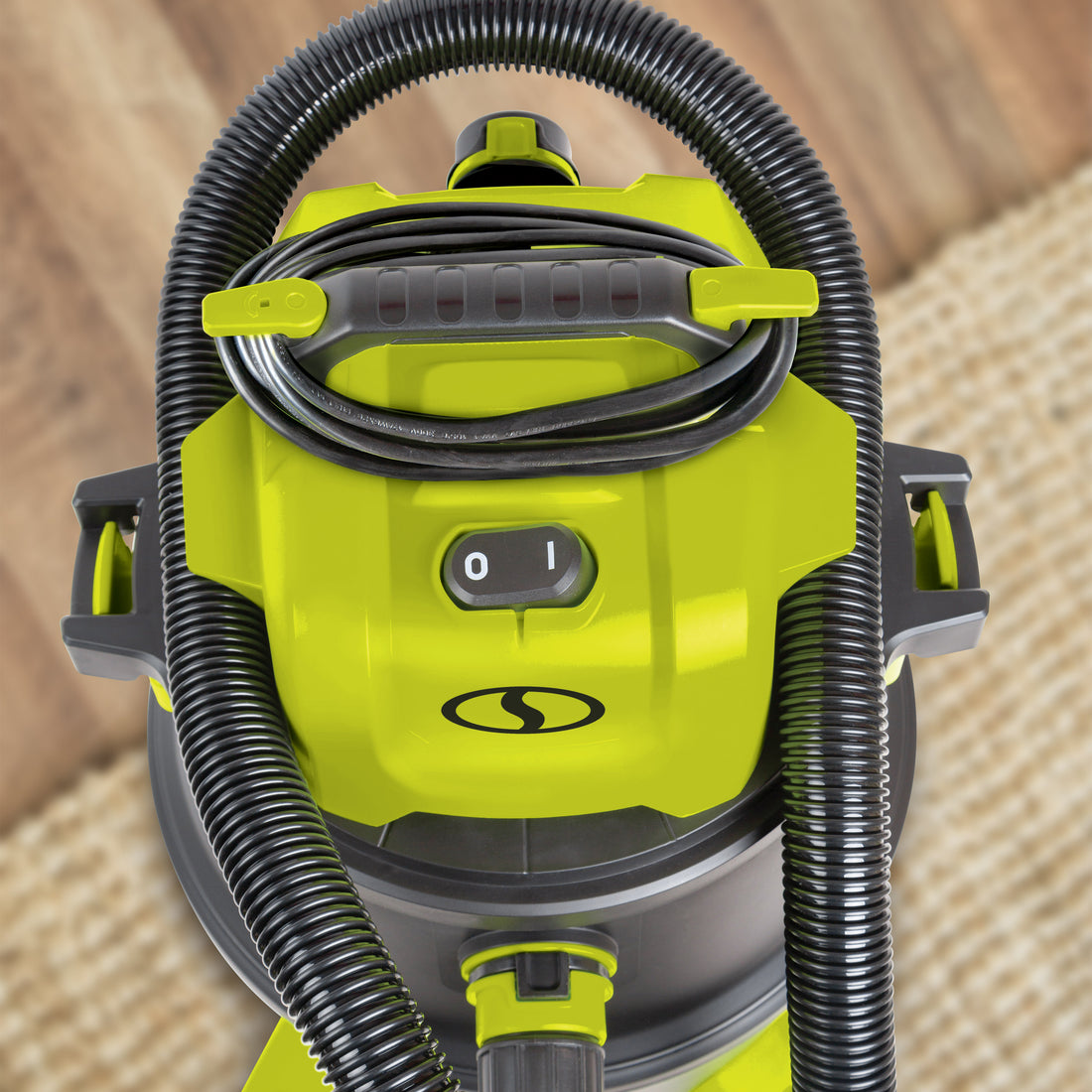

Tools stay organized
Onboard storage keeps the hose, power cord, extension tubes, and cleaning attachments close at hand.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SWD12000 |
| Product Type | Corded electric wet/dry vacuum |
| Rated Voltage | 120V AC, 60 Hz |
| Motor | 10 amp; 1200 watt; 6.5 peak HP |
| Maximum Airflow | 60 CFM (1.7 m³/min) |
| Maximum Vacuum Pressure | 22 kPa |
| Maximum Suction Power | 160 W |
| Tank Capacity | 12 gal (45 L) |
| Suction Hose Length | 8.2 ft (2.5 m) |
| Power Cord Length | 23 ft (7 m) |
| Accessory Diameter | 35 mm |
| Filters | HEPA filter for dry pickup; foam filter for wet pickup |
| Net Weight | 17.8 lb (8.1 kg) |
| Product Dimensions | 17 in. L × 18 in. W × 27 in. H |
| Product Manual | Download the SWD12000 operator’s manual (PDF) |
| Warranty | 2-year manufacturer’s warranty |

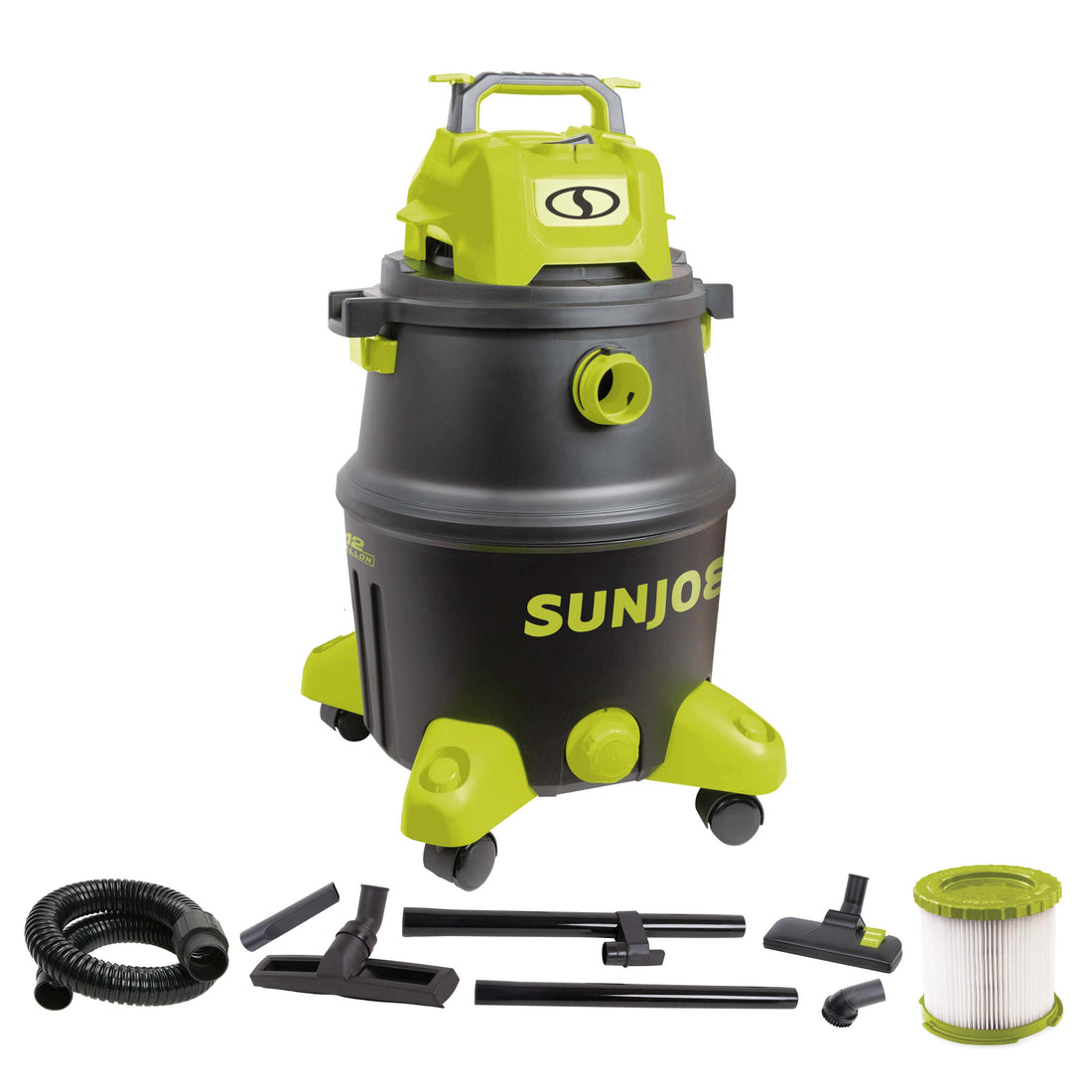

What’s in the Box
- SWD12000 electric wet/dry vacuum
- Four trolley wheels and four screws
- 8.2-foot vacuum hose

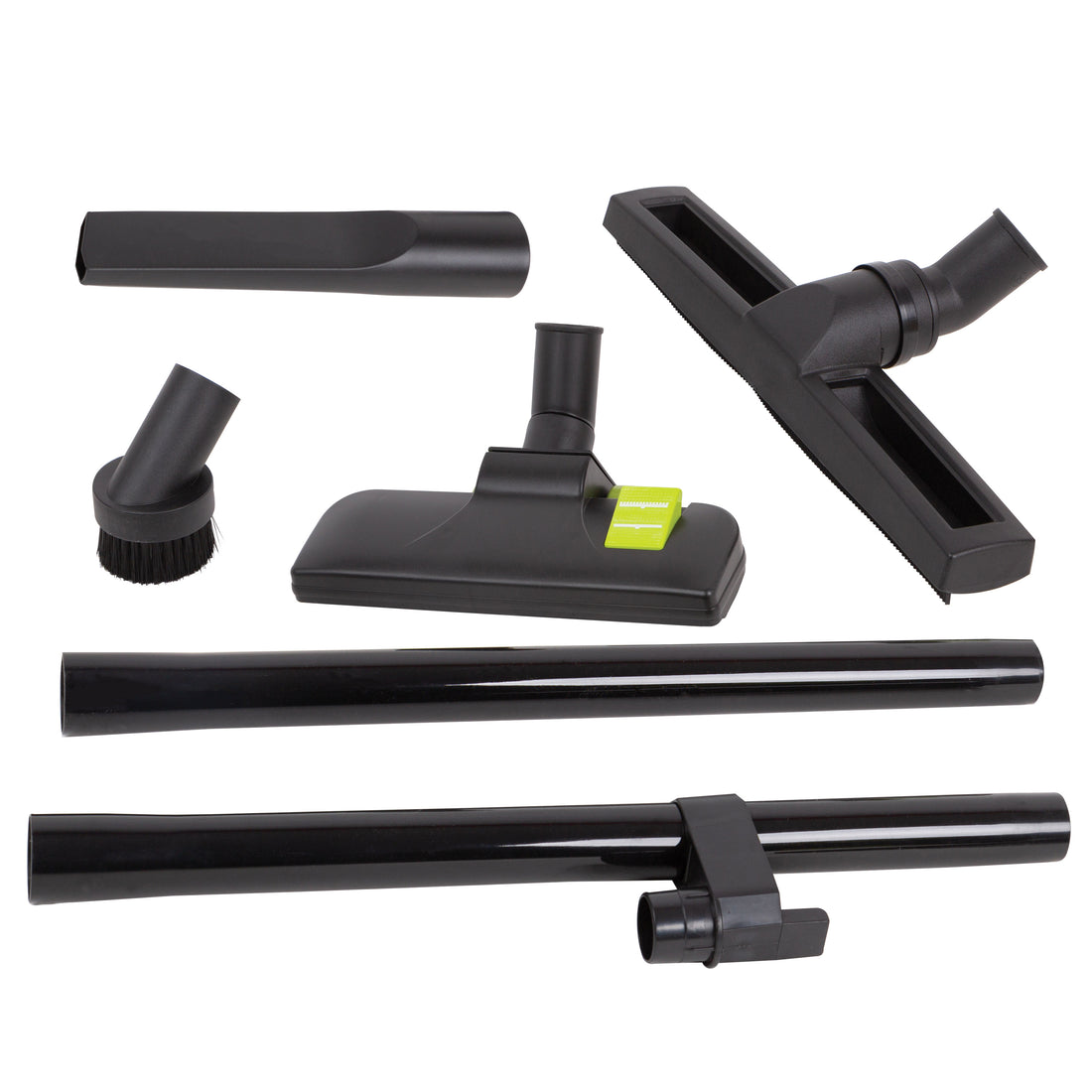

- Two extension tubes
- Wet floor brush
- Dry floor brush
- Crevice nozzle
- Dust brush
- Foam filter
- HEPA filter
- Manual with registration card
Assembly

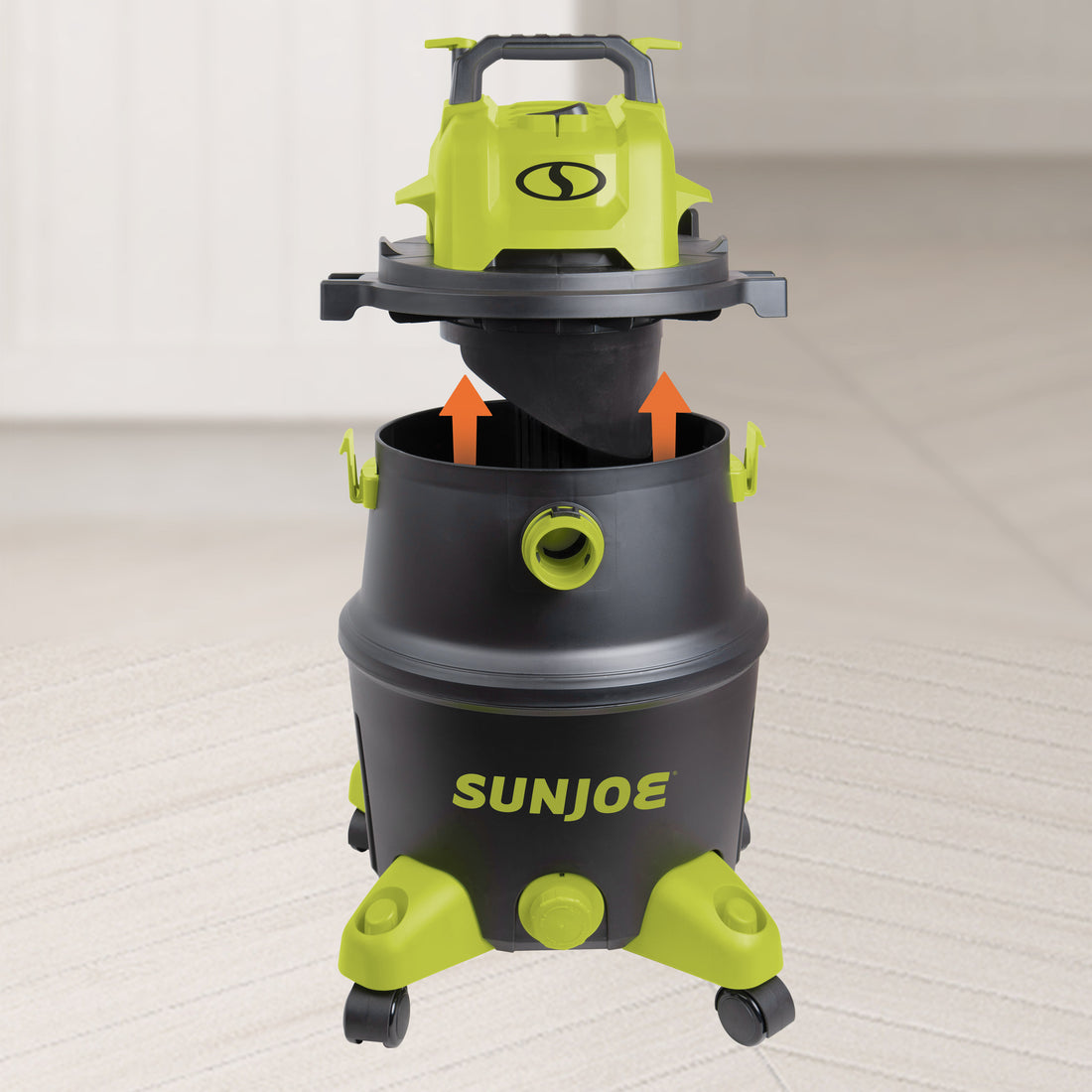

- Remove the power head. Pull both lid locks outward, lift the power head from the tank, and remove the accessories and wheels stored inside.
- Install the trolley wheels. Turn the tank upside down, press all four wheels firmly into the holes in the bottom, and secure each wheel with a supplied screw.
- Attach the vacuum hose. Insert the hose firmly into the air inlet/hose connector.
- Add the extension tubes. If additional reach is needed, press the first tube onto the hose end and connect the second tube firmly to the first.
- Fit the cleaning attachment. Select the attachment for the task and press it securely onto the hose end or extension tube.
- Install the correct filter. Fit the HEPA filter for dry pickup or the foam filter for wet pickup, then secure the power head with both lid locks.
Getting Started
- Prepare the area. Use the vacuum indoors on a level surface, keep the air inlets clear, and remove any material the vacuum must not collect, including hot, flammable, combustible, explosive, or heavy sharp debris.
- Wear appropriate protection. Use hearing protection and wear a face or dust mask in dusty conditions. Secure loose clothing, jewelry, scarves, ties, and long hair away from the air inlet.
- Choose the correct filter and tool. Install the HEPA filter for dry pickup or the foam filter for wet pickup, then attach the brush or nozzle suited to the surface.
- Inspect the vacuum. Confirm the cord, filters, hose, power head, lid locks, and attachment are undamaged and securely fitted.
- Connect the power. Confirm the outlet matches the 120V, 60 Hz rating and plug in the power cord. If an extension cord is needed, use a properly rated cord and secure the appliance cord and extension cord with the knot shown in the manual.
- Start vacuuming. Press the switch to ON (I), move forward at a walking pace, and regulate suction with the airflow block if needed. Closing the block provides maximum suction.
- Manage wet pickup safely. Do not fully immerse the brush opening; leave a gap for airflow. If motor speed decreases because the float valve has closed, switch off, unplug, and drain the tank before continuing.
- Pause during extended use. Stop the vacuum for one minute after every 15 minutes of operation to help prevent motor overheating.
- Shut down and clean up. Press the switch to OFF (O), unplug the vacuum, empty the tank outdoors, and clean and dry the tank and wet filter before storage.
Maintenance, Care & Storage
- Switch off and unplug the vacuum before cleaning, maintenance, filter changes, adjustments, or removing the power head.
- Take the vacuum outside, remove the power head, empty the tank, wash the tank with water, and allow it to dry completely after each use.
- After wet pickup, remove the drain cap to empty liquid waste, clean and dry the tank, and clean the foam filter.
- For the HEPA filter, gently tap or brush away dry dirt outdoors. If washing is needed, use mild soap and clean water, then allow the filter to air-dry for 24 hours before reinstalling it.
- Wash the foam filter with mild soap and clean water after every wet-vacuuming session, then air-dry it for 24 hours before reinstalling it.
- Inspect filters for holes or tears and replace damaged filters immediately. Never use the HEPA filter while it is wet.
- Inspect the vacuum, power cord, hose, attachments, locks, and wheels for wear, looseness, or damage. Contact an authorized service provider for repairs not described in the manual.
- Store the vacuum indoors in a clean, dry, locked location away from children and animals. Use the onboard storage for the hose, cord, tubes, and attachments.
Troubleshooting
The vacuum does not start
Possible Causes
- Power is not reaching the outlet.
- The vacuum is not switched on.
- The collection tank is full.
- The appliance cord, ON/OFF switch, or motor is defective.
Solutions
- Check the cord, outlet, circuit breaker, and fuse. Have damaged electrical components repaired by a qualified electrician.
- Press the ON/OFF switch to ON (I).
- Switch off, unplug, and empty the collection tank.
- Contact support for inspection and repair if the cord, switch, or motor may be defective.
Dust comes out of the motor cover
Possible Causes
- The HEPA filter is missing or damaged.
- The nozzle, hose, or air inlet is blocked.
- The HEPA filter is clogged with fine dust.
Solutions
- Switch off and unplug the vacuum, then install or replace the HEPA filter.
- Check the nozzle, hose, and air inlet and clear any blockage.
- Clean or replace the HEPA filter.
Video Guide
Watch this official product unboxing for an overview of the Sun Joe SWD12000 Electric Wet/Dry Vacuum and its included accessories.
If the video does not load, watch the SWD12000 video on YouTube.
Frequently Asked Questions
Which filter should I use?
Use the HEPA filter only for dry pickup. Use the foam filter for wet pickup, and clean the foam filter after every wet-vacuuming session.
Can the SWD12000 be used outdoors?
No. The operator’s manual identifies this vacuum as an indoor-use product. Do not expose it to rain or use it in damp outdoor conditions.
How often should I pause during use?
To help prevent motor overheating, the manual instructs users to stop the unit for one minute after every 15 minutes of operation.
Can the filters be washed?
Yes. Wash either filter only as directed with mild soap and clean water, then allow it to air-dry for 24 hours before reinstalling it. Never use the HEPA filter while it is wet.
How do I know when the tank is full during wet pickup?
A float valve stops suction when the tank reaches maximum capacity, and the motor speed will decrease. Switch off, unplug, and drain the tank before continuing.
Where are the model and serial numbers located?
The model and serial numbers are printed on the decal located on the housing of the vacuum.
