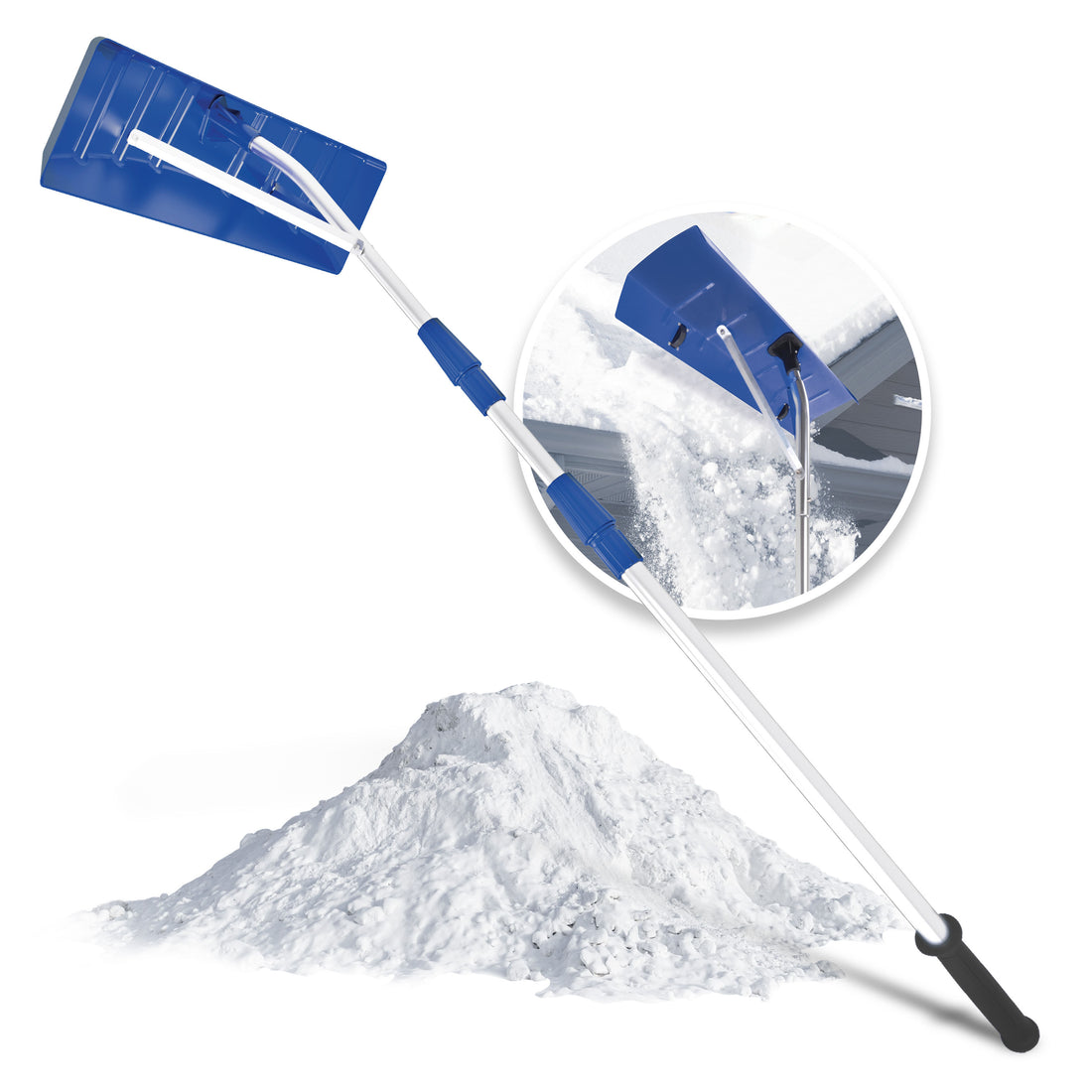

Clear snow, wet leaves, and debris from the safety of the ground with the Snow Joe RJ204M Telescoping Snow Shovel Roof Rake, a lightweight manual roof rake with an adjustable aluminum pole and oversized polycarbonate blade.

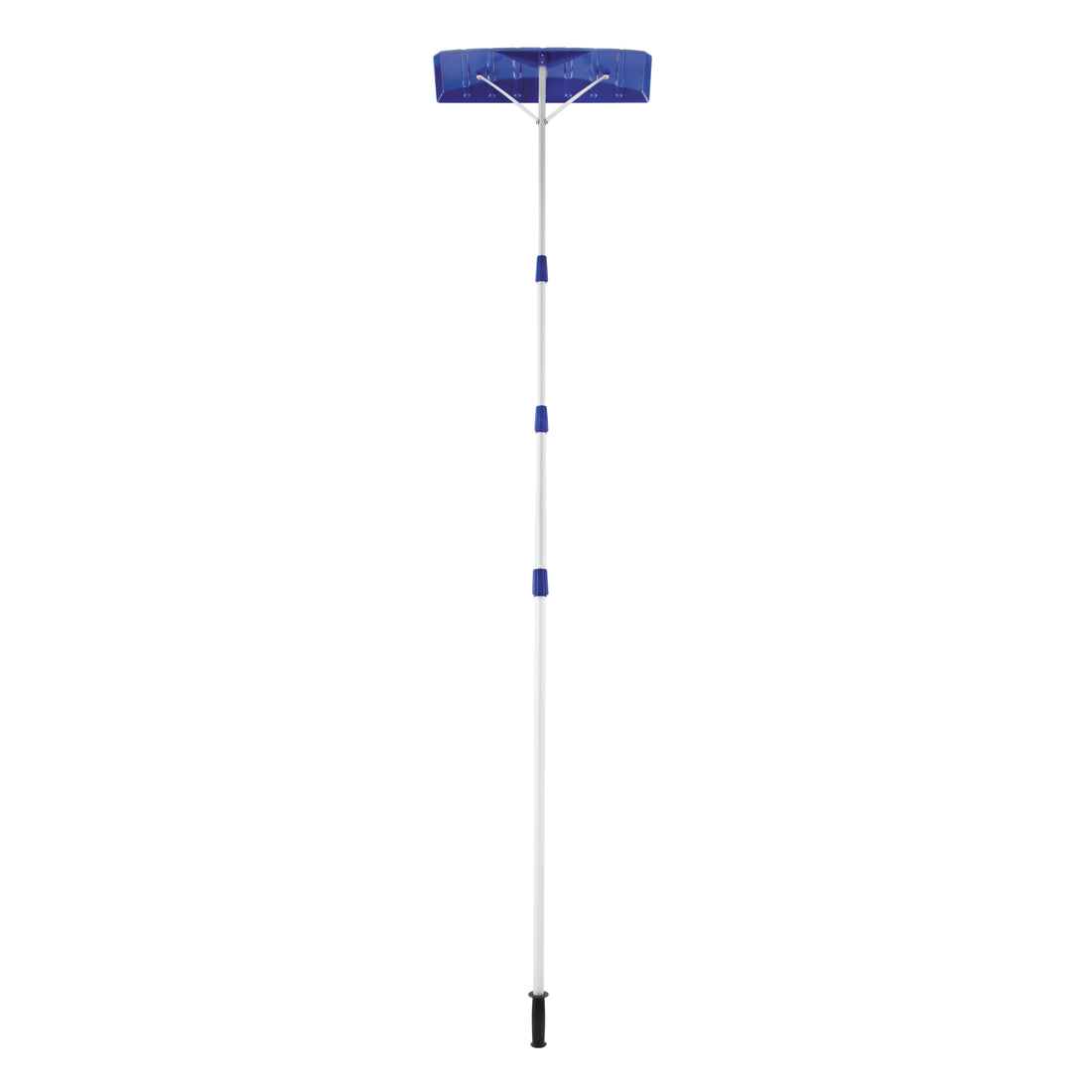

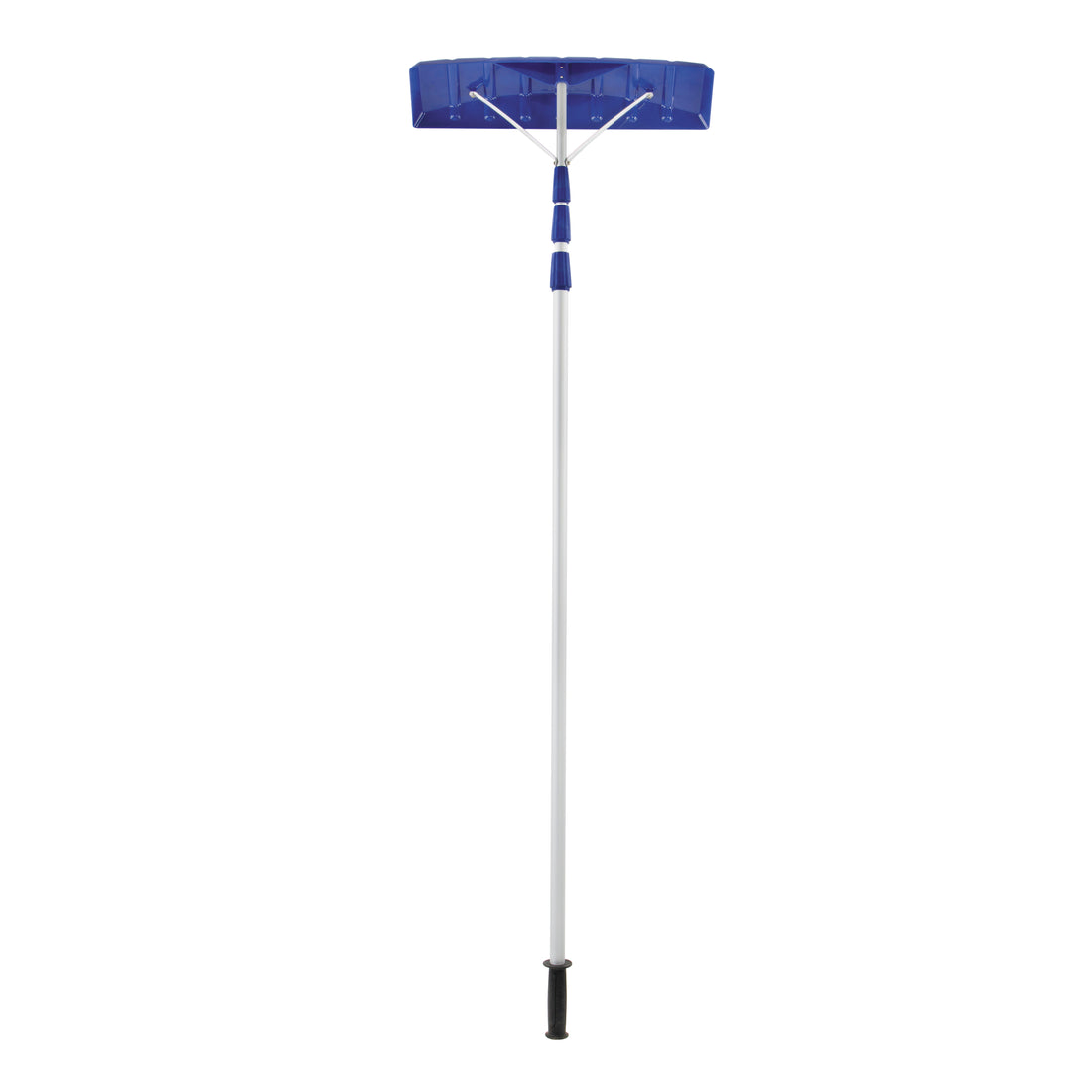

Meet the RJ204M
Key Components

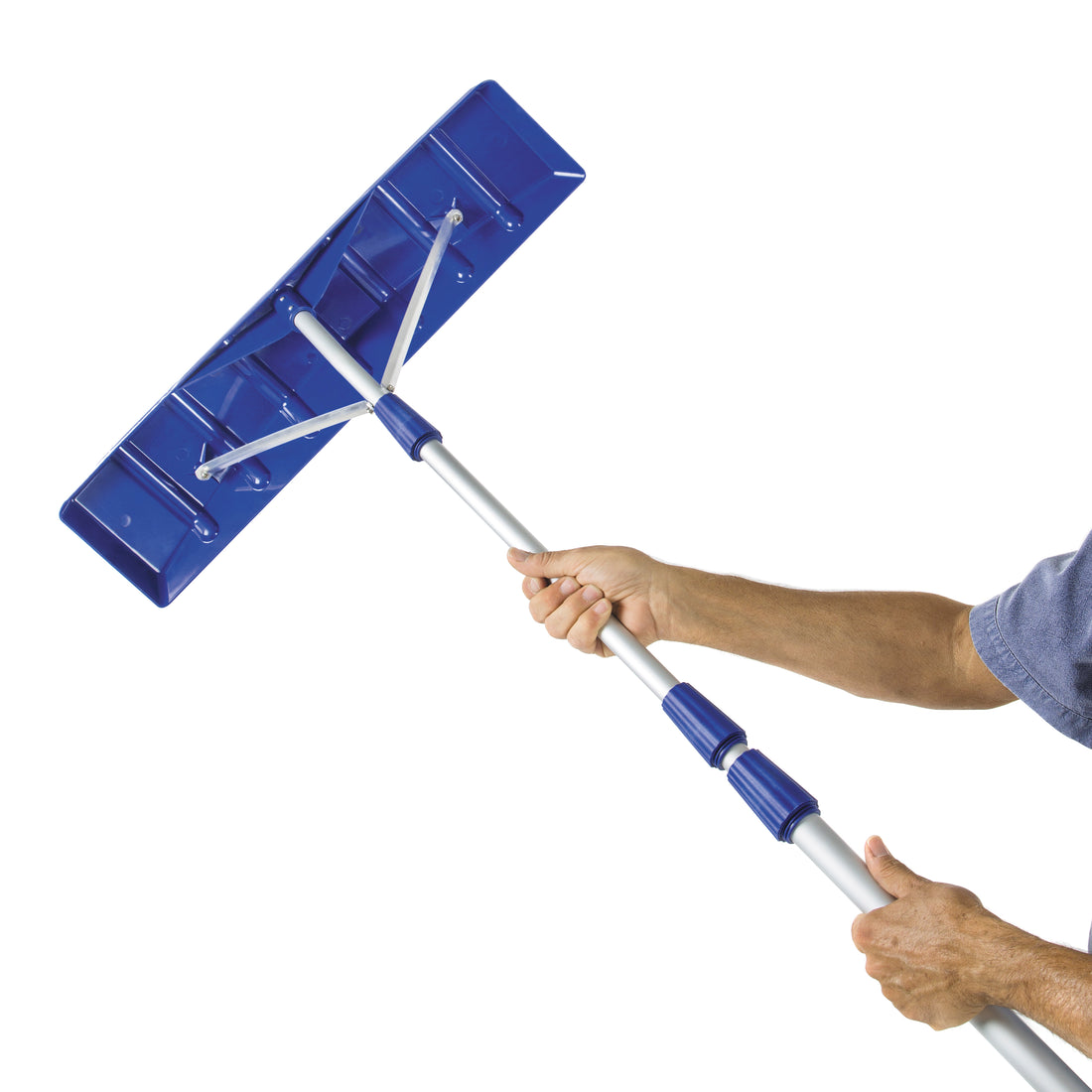

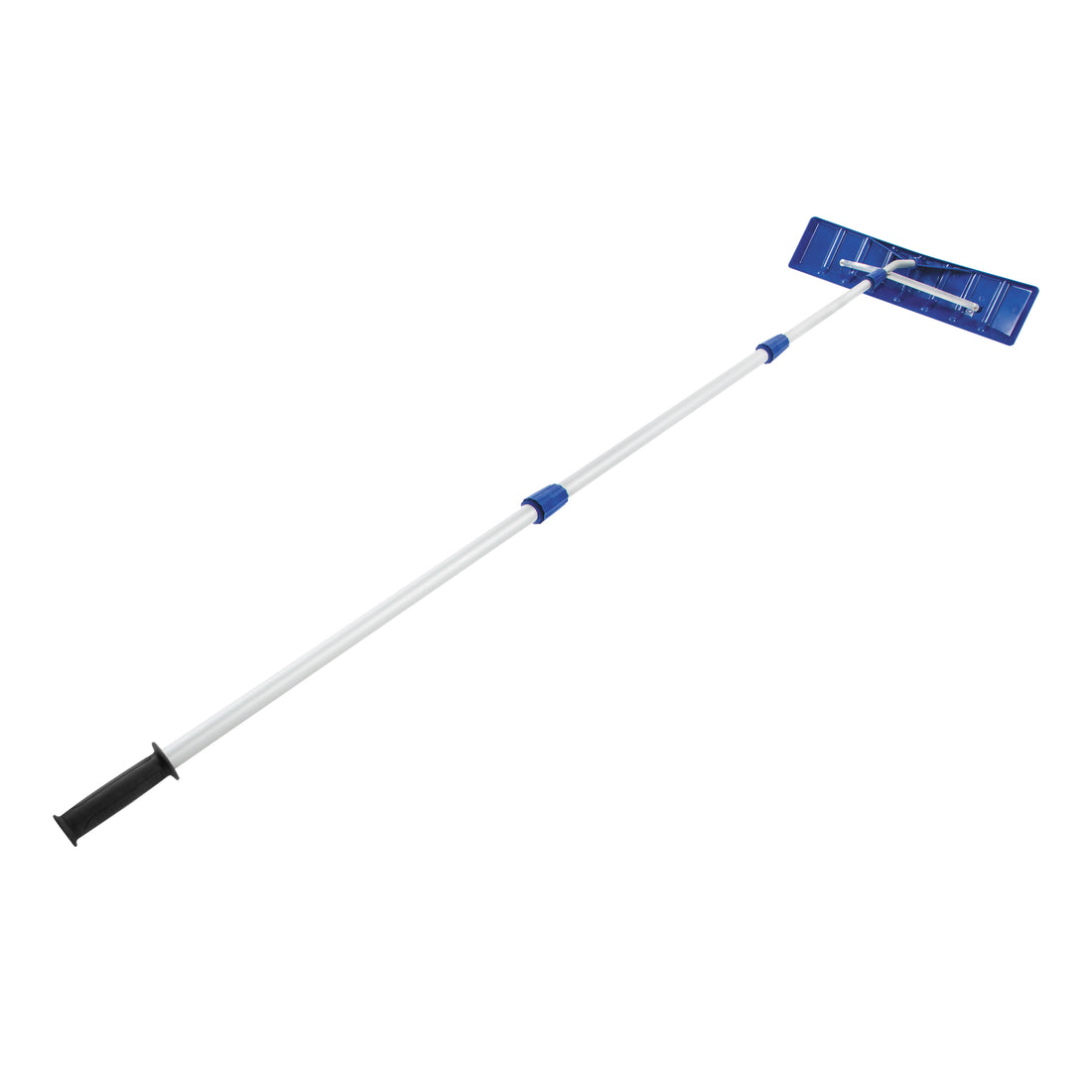

Twist-n-Lock reach
The aluminum pole adjusts from 6.2 feet to 21 feet for up to 27 feet of total overhead reach.

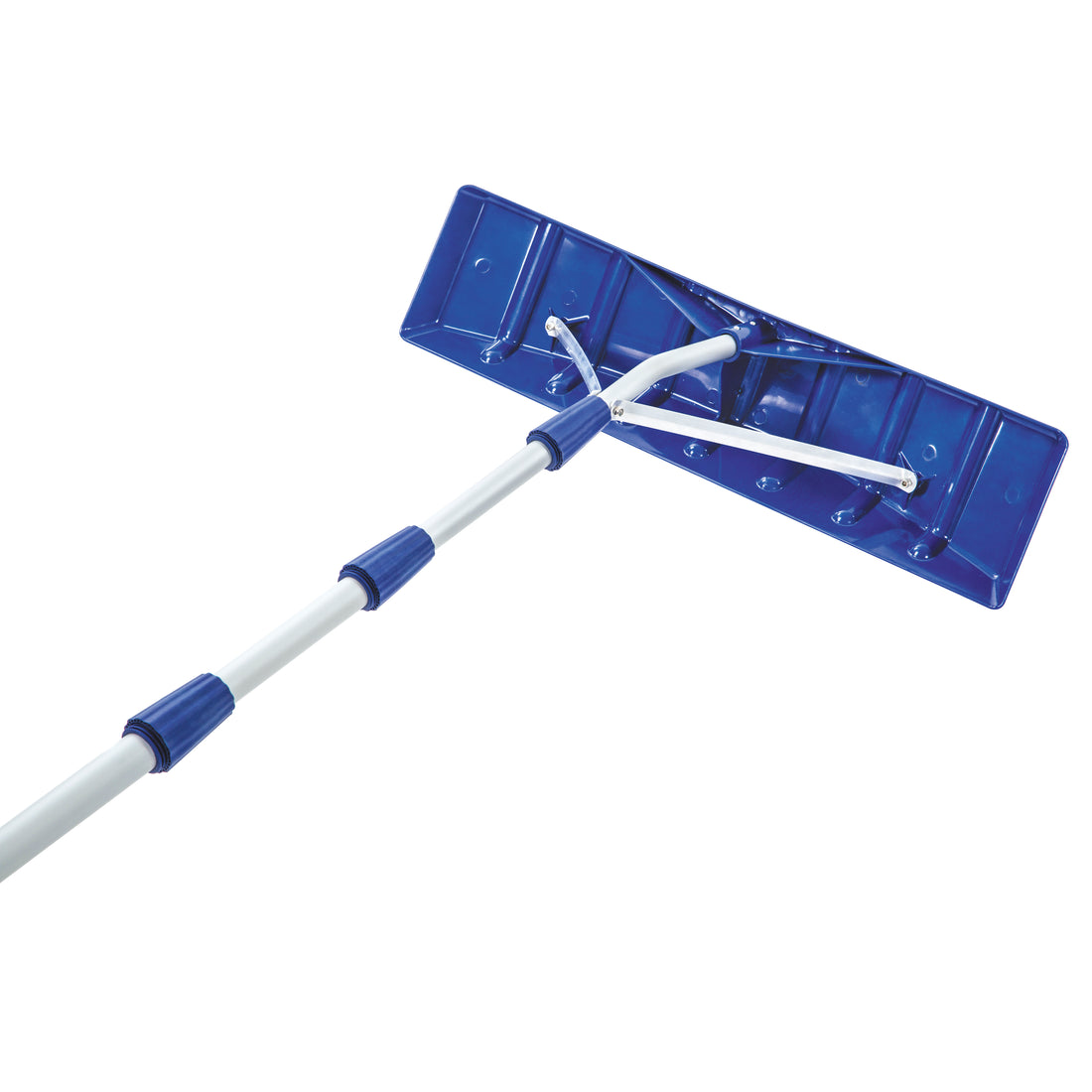

Wide polycarbonate blade
The 25-inch-wide, 6-inch-high rake head clears a broad path across the roof.
Lightweight handling
At 4.8 pounds, the manual roof rake is designed for easier control from ground level.
Assembly tools included
The carton includes the braces, screws, locking nut, hex key, and open-end wrench needed for assembly.
Technical Specifications
| Specification | Details |
|---|---|
| Model | RJ204M |
| Product Type | Manual telescoping snow shovel roof rake |
| Best Use | Removing snow, wet leaves, and debris from roofs while standing on the ground |
| Blade Material | Polycarbonate (PC) |
| Pole Material | Aluminum |
| Telescopic Handle | 6.2 ft to 21 ft (1.9 m to 6.4 m) |
| Overhead Reach | Up to 27 ft (8.2 m) |
| Clearing Width | 25 in. (63.5 cm) |
| Rake Head Height | 6 in. (15.2 cm) |
| Net Weight | 4.8 lb (2.2 kg) |
| Product Dimensions | 252 in. assembled height × 24.8 in. assembled width × 6 in. assembled depth |
| Product Manual | Download the RJ204M operator’s manual (PDF) |
| Warranty | 2-year manufacturer’s warranty |
What’s in the Box
- Telescoping aluminum handle
- Polycarbonate roof rake head
- Two metal braces
- Two short hex screws
- One long hex screw
- One locking nut
- Hex key wrench
- Open-end wrench
- Operator’s manual
Assembly
- Remove the shipping cap. Take the cap from the top of the pole and retain it for storage.
- Expose the connection holes. Unscrew the handle knob and extend the pole until the small holes are visible.
- Attach the rake head. Depress the small buttons at the end of the handle and insert the handle into the roof rake head until it seats in place.
- Secure the braces to the head. Use the supplied hex key to fasten both metal braces to the rake head with the two short hex screws.
- Secure the braces to the pole. Thread the long hex screw through both braces and the pole, then tighten the locking nut with the supplied open-end wrench.
- Set the handle length. Rotate the handle knobs clockwise to loosen them, extend the pole to the desired length, and rotate the knobs counterclockwise to lock the sections.
Getting Started
- Inspect the rake. Confirm the head, braces, screws, locking nut, pole sections, and handle knobs are present, undamaged, and securely fitted.
- Choose a safe position. Remain on solid ground and keep clear of the area where snow or debris will fall.
- Adjust the pole. Turn each handle knob clockwise, extend only as far as needed, and turn the knobs counterclockwise to secure the pole.
- Place the blade on the roof. Guide the rake head onto the snow or debris without climbing onto the roof.
- Pull material toward the roof edge. Use controlled strokes and allow the cleared material to fall away from you and other people.
- Shorten the pole after use. Loosen the knobs, retract the sections carefully, lock them, and reinstall the retained shipping cap for storage.
Maintenance, Care & Storage
- Remove snow, moisture, leaves, and debris from the rake head, braces, pole, and locking knobs after each use.
- Allow all components to dry completely before storage.
- Check the short screws, long screw, locking nut, metal braces, handle buttons, and Twist-n-Lock knobs before each use; tighten supplied fasteners with the included tools when needed.
- Inspect the polycarbonate blade and aluminum pole for cracks, bends, or other damage. Stop using the rake if safe operation is uncertain.
- Retract the telescoping pole, lock the sections, replace the shipping cap, and store the rake in a clean, dry location away from children.
Troubleshooting
The handle will not insert into the rake head
Possible Causes
- The pole has not been extended far enough to expose the small connection holes.
- The small buttons at the end of the handle are not depressed.
Solutions
- Unscrew the handle knob and extend the pole until the small holes are visible.
- Press both small buttons inward while inserting the handle into the rake head.
The telescoping pole will not extend or stay in position
Possible Causes
- A handle knob is still locked.
- A handle knob was not tightened after adjustment.
Solutions
- Rotate the handle knob clockwise to loosen it before extending the pole.
- After selecting the length, rotate the knob counterclockwise to secure the section.
The rake head or braces feel loose
Possible Causes
- The short hex screws, long hex screw, or locking nut are not secure.
Solutions
- Stop using the rake. Check the assembly against the manual and secure the supplied fasteners with the included hex key and open-end wrench.
- Contact support if hardware is missing, damaged, or cannot be secured.
Video Guide
Watch this official live demonstration for an overview of the Snow Joe RJ204M Telescoping Snow Shovel Roof Rake.
If the video does not load, watch the RJ204M video on YouTube.
Frequently Asked Questions
How long is the telescoping pole?
The aluminum pole adjusts from 6.2 feet to 21 feet and provides up to 27 feet of total overhead reach.
What is the rake blade made from?
The current RJ204M has a polycarbonate blade measuring 25 inches wide by 6 inches high.
Can I use the RJ204M for material other than snow?
Yes. The product page identifies it for removing snow, wet leaves, and other debris from roofs.
Do I need separate tools for assembly?
No. The RJ204M includes the hex key and open-end wrench required for its fasteners.
Should I climb onto the roof to use it?
No. The RJ204M is designed to remove roof snow and debris while you remain safely on solid ground.
What should I do with the shipping cap?
Keep the cap after assembly and reinstall it when the pole is retracted for storage.
