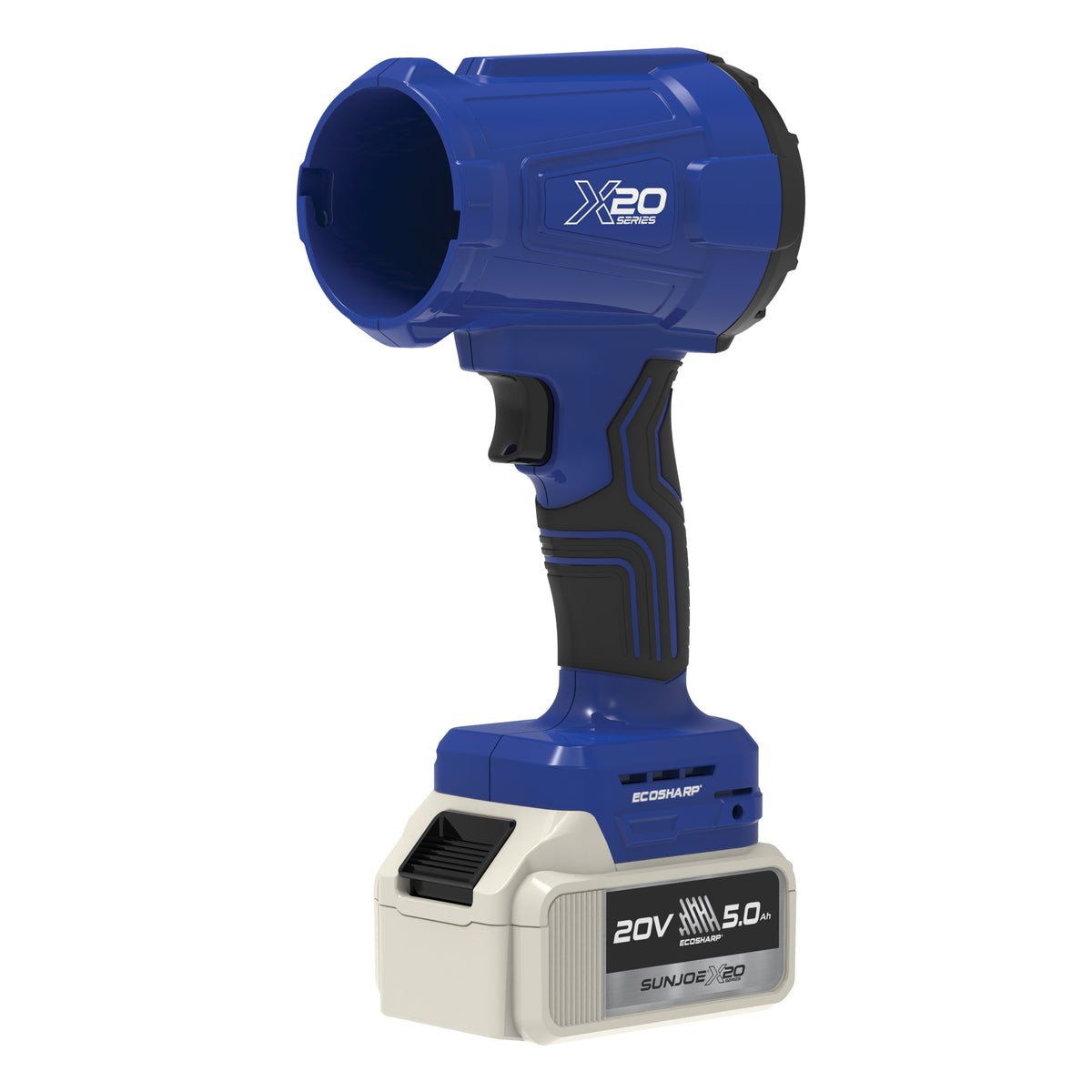

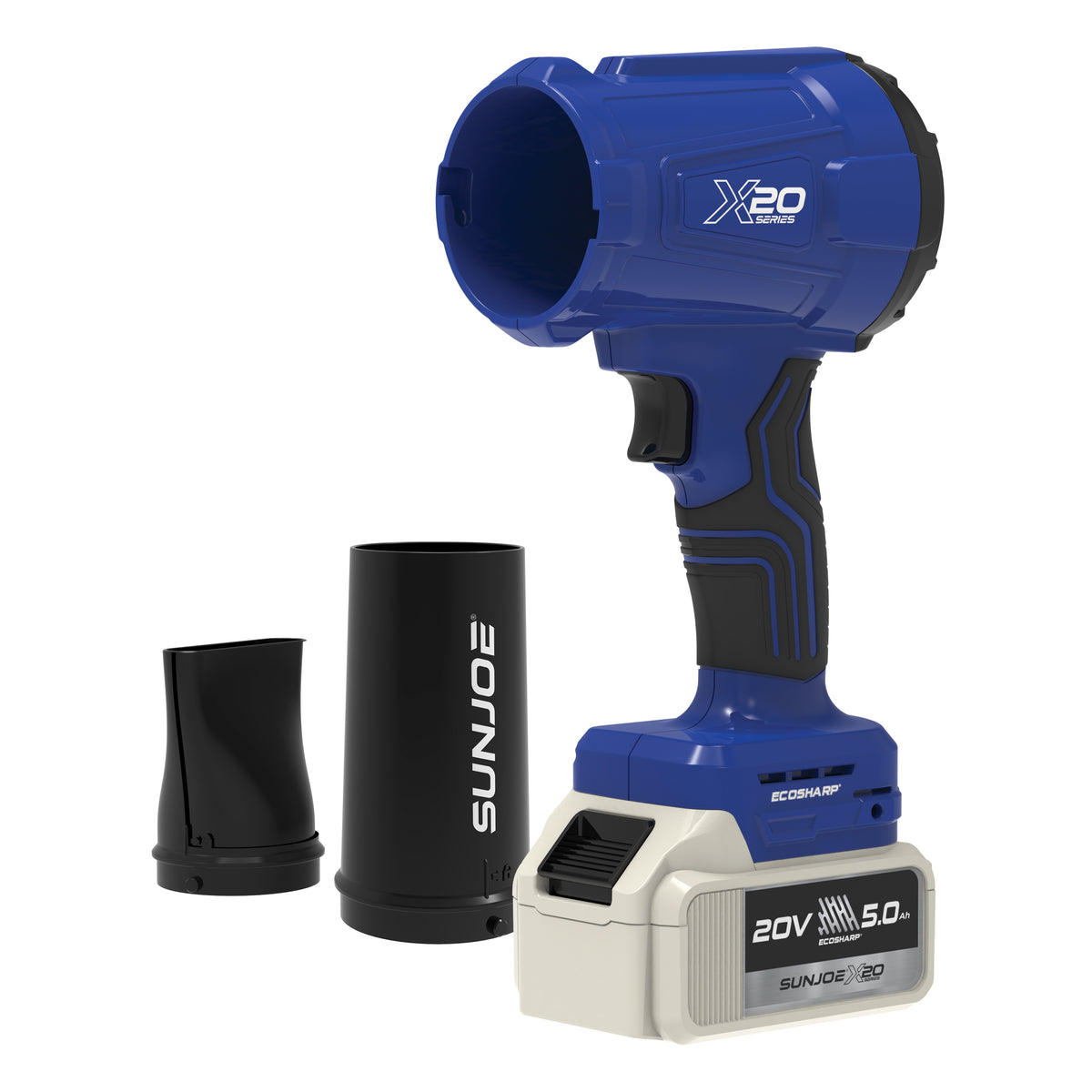

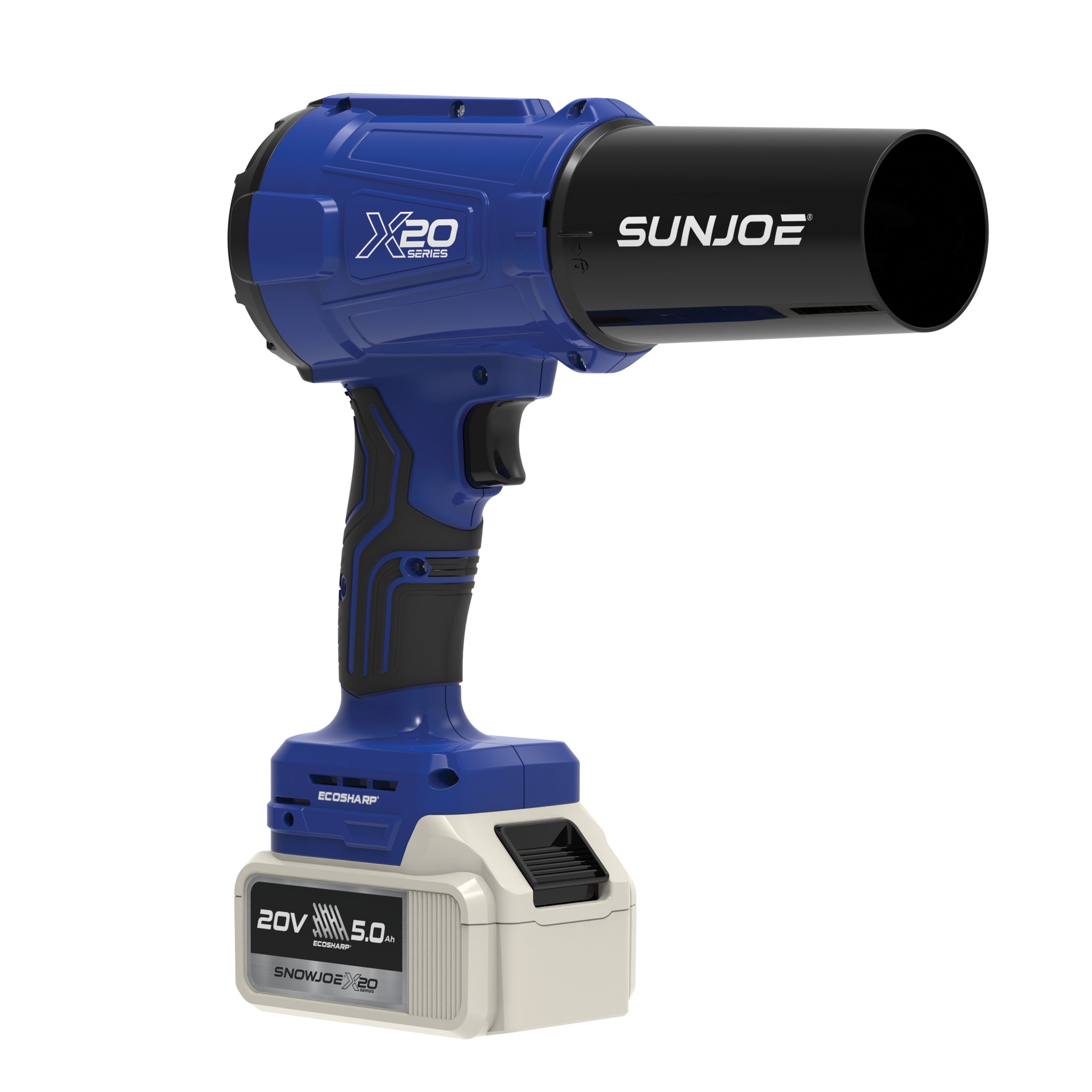

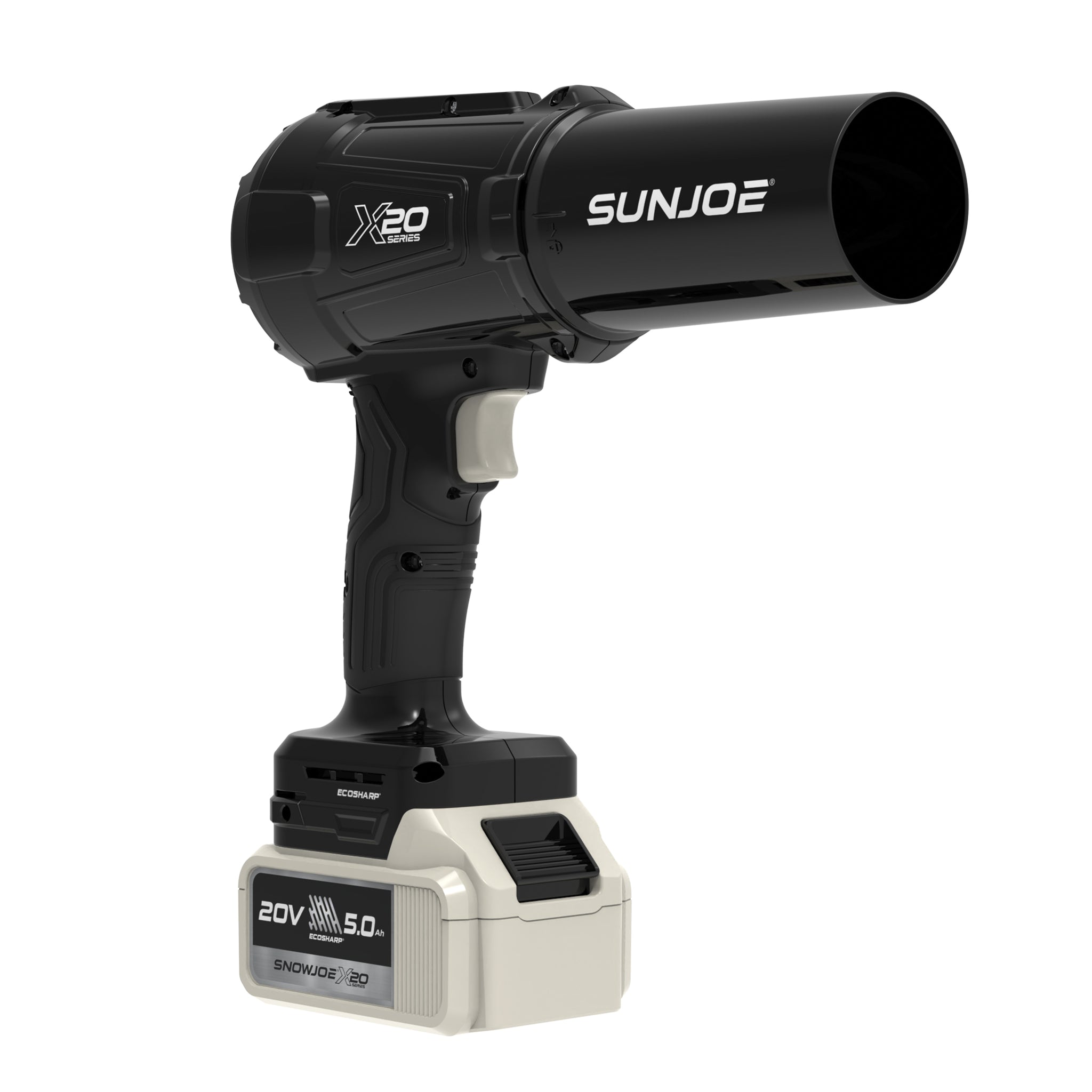

Sun Joe® X20-HHB-5A Cordless Handheld Turbo Blower Sun Joe® X20-HHB-5A Cordless Handheld Turbo Blower | Product Guide OFFICIAL SHOP JOE X20-HHB-5A PRODUCT GUIDE OverviewColorsFeaturesStart HereSupportFAQs The Sun Joe® X20-HHB-5A Cordless Handheld Turbo Blower combines a 20V ECOSHARP® 5.0 Ah battery, a 560 W brushed motor, up to 200 CFM of airflow, and two twist-lock nozzles for focused or wide-area cleanup. This guide covers the WHT, RED, PNK, GRN, BRY, BLU, BLK, and AQM color SKUs. Their battery, charger, controls, included nozzles, performance, and operating instructions are the same. 20V ECOSHARP® PowerUp to 200 CFMRound + Flat Nozzles Meet the X20-HHB-5A Color Options & Model Numbers Model Number Color Configuration X20-HHB-5A-WHT White Blower kit with 1 × 5.0 Ah battery + charger + 2 nozzles X20-HHB-5A-RED Red Blower kit with 1 × 5.0 Ah battery + charger + 2 nozzles X20-HHB-5A-PNK Pink Blower kit with 1 × 5.0 Ah battery + charger + 2 nozzles X20-HHB-5A-GRN Green Blower kit with 1 × 5.0 Ah battery + charger + 2 nozzles X20-HHB-5A-BRY Berry Blower kit with 1 × 5.0 Ah battery + charger + 2 nozzles X20-HHB-5A-BLU Blue Blower kit with 1 × 5.0 Ah battery + charger + 2 nozzles X20-HHB-5A-BLK Black Blower kit with 1 × 5.0 Ah battery + charger + 2 nozzles X20-HHB-5A-AQM Aqua Blower kit with 1 × 5.0 Ah battery + charger + 2 nozzles COLORSame blower, eight color SKUs. The housing color changes; the 5.0 Ah battery, charger, two nozzles, controls, performance, maintenance, and troubleshooting guidance do not. Key Components 01 ON/OFF switch - press and hold to run the blower; release to stop. 02 Handle - the primary grip for controlled one-hand operation. 03 Battery compartment - secures the X20 battery until it clicks into place. 04 Air inlet - supplies operating and cooling airflow; keep it free of hair, clothing, and debris. 05 Handheld blower body - houses the motor and impeller. 06 Round blower nozzle - concentrates airflow for crevices, corners, grills, gutters, and other focused cleanup. 07 Flat blower nozzle - spreads airflow across leaves, light debris, and other wider cleanup areas. 08 20V lithium-ion charger - charges the included 5.0 Ah battery. 09 Charging plug - connects the charger to the battery charge socket. 10 20V ECOSHARP® 5.0 Ah battery - powers every color variant. 11 Charge socket - receives the charging plug while the battery is removed from the blower. 12 Battery-indicator button - displays the approximate remaining charge. 13 Battery indicators - four LEDs show 25%, 50%, 75%, or 100% charge. Technical Specifications Specification X20-HHB-5A Product Type Cordless handheld turbo blower Available Color SKUs WHT, RED, PNK, GRN, BRY, BLU, BLK, and AQM Power Source 20V ECOSHARP® lithium-ion battery Battery Voltage Max 20V DC max* / 18V nominal Included Battery 1 × 5.0 Ah lithium-ion battery Battery Model X20-BATT-5A Motor 560 W brushed Motor Speed 23,000 RPM Maximum Airflow 200 CFM Runtime Up to 32 continuous minutes, per product-page claim; actual runtime varies by use and conditions Charger Input 100-240V AC, 50/60 Hz, 0.5 A max Charger Output 21V DC, 750 mA Maximum Charge Time 6-8 hours Net Weight 3.42 lbs / 1.55 kg Gross Weight 3.79 lbs / 1.72 kg Product Manual Download X20-HHB-5A Manual Warranty 1 Year Limited Warranty *Initial no-load voltage, when fully charged, peaks at 20V; nominal voltage under typical load is 18V. What's in the Box Included Item Quantity Cordless handheld turbo blower body 1 Round blower nozzle 1 Flat blower nozzle 1 X20 Series ECOSHARP® 5.0 Ah lithium-ion battery 1 20V lithium-ion charger 1 Operator's manual 1 CHECKInspect the complete kit before assembly. Do not use the blower if a listed item is missing, damaged, or appears to have been damaged in shipping. Start Here: Before First Use STOPKeep the battery out of the blower until the selected nozzle is fully installed and the work area is ready. Remove the battery before attaching or checking a nozzle, clearing the air inlet, cleaning, servicing, transporting, or storing the blower. 1 Charge Fully charge the 5.0 Ah battery with the included charger. › 2 Choose Select the round nozzle for focus or flat nozzle for wider cleanup. › 3 Lock Align the notches, slide on, and twist until the nozzle clicks. › 4 Blow Insert the battery and use a controlled side-to-side sweep. Battery Charging Remove the battery Press the push-lock button and pull the battery pack out of the blower. Connect the charger Confirm the charger rating is compatible with the outlet. Plug the charger adapter into an appropriate AC outlet, then connect the charging plug to the battery charge socket. Watch the charger indicator The charger light is red while charging and turns green when charging is complete. A full charge takes approximately 6-8 hours. Disconnect in the correct order When the light turns green, unplug the charger from the wall outlet first, then disconnect the charging plug from the battery. LEDBattery-level guide: One LED is approximately 25%, two are 50%, three are 75%, and four are 100%. BATTERYRecharge when blower power begins to drop; do not intentionally run the pack completely flat. If the depleted battery is warm, place it in a cool location for 30 minutes to 1 hour before charging. Install a Blower Nozzle Confirm the battery is removed The switch must be released, the battery removed, and the impeller completely stopped before a nozzle is attached or checked. Choose one nozzle Use the round nozzle for focused airflow or the flat nozzle for a wider air pattern. Align the notches Match the nozzle notches with the slots on both sides of the blower body. Slide and twist to lock Push the nozzle onto the blower body, then twist until it clicks securely into place. NOZZLENever operate the blower without a nozzle securely installed. The manual does not recommend disassembling the nozzle after installation; contact an authorized service provider for repairs. Starting & Stopping SAFEWear eye and hearing protection, non-slip footwear, long pants, and a long-sleeve shirt. Use a dust mask in dusty conditions. Keep bystanders away and never aim the nozzle toward people, pets, windows, vehicles, or loose debris that may ricochet. Inspect the blower and work area Confirm the selected nozzle is locked, the air inlet is clear, and the blower is in good condition. Remove objects that may be thrown and secure loose clothing, jewelry, scarves, and long hair. Insert the charged battery Slide the battery into the compartment until it clicks and locks into position. Start the blower Press the ON/OFF switch all the way down and hold it while operating. Stop the blower Release the switch and wait for the impeller to stop completely before setting the blower down, inspecting it, or removing the battery. 5 SECWait at least five seconds after stopping before restarting. Rapid start/stop cycling can create excess heat and damage the DC motor. Choosing the Right Nozzle Nozzle Air Pattern Best Uses Round Focused airflow Crevices, corners, keyboards, grills, gutters, workbenches, and vehicle areas Flat Wide airflow Leaves, grass clippings, light debris, patios, porches, garage floors, and light snow TIPUse the nozzle that keeps debris controlled. Keep the outlet several inches above the surface and avoid directing material toward people or property. Blowing Tips 1 Use stable footing Operate only from ground level. Keep a firm grip on the handle and never use the blower from a ladder or unstable support. 2 Sweep side to side Hold the nozzle several inches above the ground or work surface, move it from side to side, and advance slowly while keeping the debris pile in front of you. 3 Prepare stubborn debris Use a rake or broom to loosen material before blowing. In dusty outdoor areas, lightly dampen the surface when appropriate. 4 Protect people and property Blow toward a safe, open area away from children, pets, open windows, freshly washed vehicles, and solid surfaces that may cause ricochet. 5 Use only in suitable conditions Do not expose the blower to rain or wet conditions. Do not blow burning or smoking material, and do not use the tool in an explosive atmosphere or when lightning is possible. Maintenance & Storage STOPRemove the battery before every cleaning, inspection, maintenance, or storage task. Wear protective gloves and do not service the blower while the motor is running or hot. 1 Keep the air vents clear Regularly remove dust and debris with a dry rag or brush. Never cover the air vents during operation. 2 Clean plastic carefully Use mild detergent on a damp cloth if needed. Do not use caustic cleaning agents and never allow water to contact the tool. 3 Inspect before storage Check for worn, loose, or damaged parts. If vibration, noise, or damage is present, stop using the blower until it has been inspected or repaired. 4 Store without the battery Keep the blower, manual, and accessories in a secure, dry, well-ventilated place that children cannot access and away from corrosive agents. 5 Recycle the battery responsibly Follow federal, state, and local recycling rules. Cover the battery terminals with electrical tape before disposal to prevent a short circuit. Troubleshooting Guide Before checking the blower, release the ON/OFF switch, remove the battery, and wait for the impeller to stop completely. Perform only the safe checks below. Unit Will Not Turn On Possible Causes Battery is not fully installed Battery is discharged Solutions Remove and reinsert the battery until it clicks Fully charge the battery for approximately 6-8 hours Do not use a damaged battery Battery Will Not Charge Possible Cause Battery is too hot or too cold Solutions Allow the battery to return to room temperature before charging If the depleted pack is warm, place it in a cool location for 30 minutes to 1 hour Reconnect the charger and confirm the outlet is working Airflow Is Weak Possible Causes Air inlet is blocked Battery charge is low Nozzle is not fully locked Solutions Turn off the blower and remove the battery Clear the air inlet and nozzle area with a dry brush or rag Fully charge the battery Confirm the nozzle is twisted and clicked into place Unit Shuts Off During Use Possible Causes Battery is depleted Battery or motor has overheated The switch was cycled repeatedly within a few seconds Solutions Recharge the battery Remove the battery and allow the blower and pack to cool before restarting Wait at least five seconds after stopping before restarting Runtime Is Short Possible Causes Battery was not fully charged Battery is cold Heavy or continuous use is drawing more power Solutions Fully charge the battery before use Allow a cold battery to warm indoors to room temperature Use controlled passes and stop when the task is complete Official Product ResourcesView the X20-HHB-5A Open the official product listing to view current color options or download the operator's manual. View Product Page → Operator's Manual → Frequently Asked Questions Do the eight color SKUs perform differently? No. The WHT, RED, PNK, GRN, BRY, BLU, BLK, and AQM SKUs are color variants of the same X20-HHB-5A blower platform. Each uses the same 5.0 Ah battery, charger, controls, two nozzles, and operating specifications. Can I use a 24V IONMAX battery or charger? No. This blower is designed for the 20V ECOSHARP® system. Use only a compatible X20 battery and charger; 24V IONMAX batteries and chargers are not compatible. Why does the product say 20V Max when nominal voltage is 18V? A fully charged battery reaches an initial no-load voltage of 20V. Under typical operating load, the battery's nominal voltage is 18V. Is product registration required for warranty coverage? No. Registration is encouraged because it can make customer support easier, but the operator's manual states that failure to register does not diminish warranty rights. The product includes a 1-year limited warranty for qualifying household use. Related articles Sun Joe X20-PRU-2A 20-Volt ECOSHARP Cordless X20 Pruner
