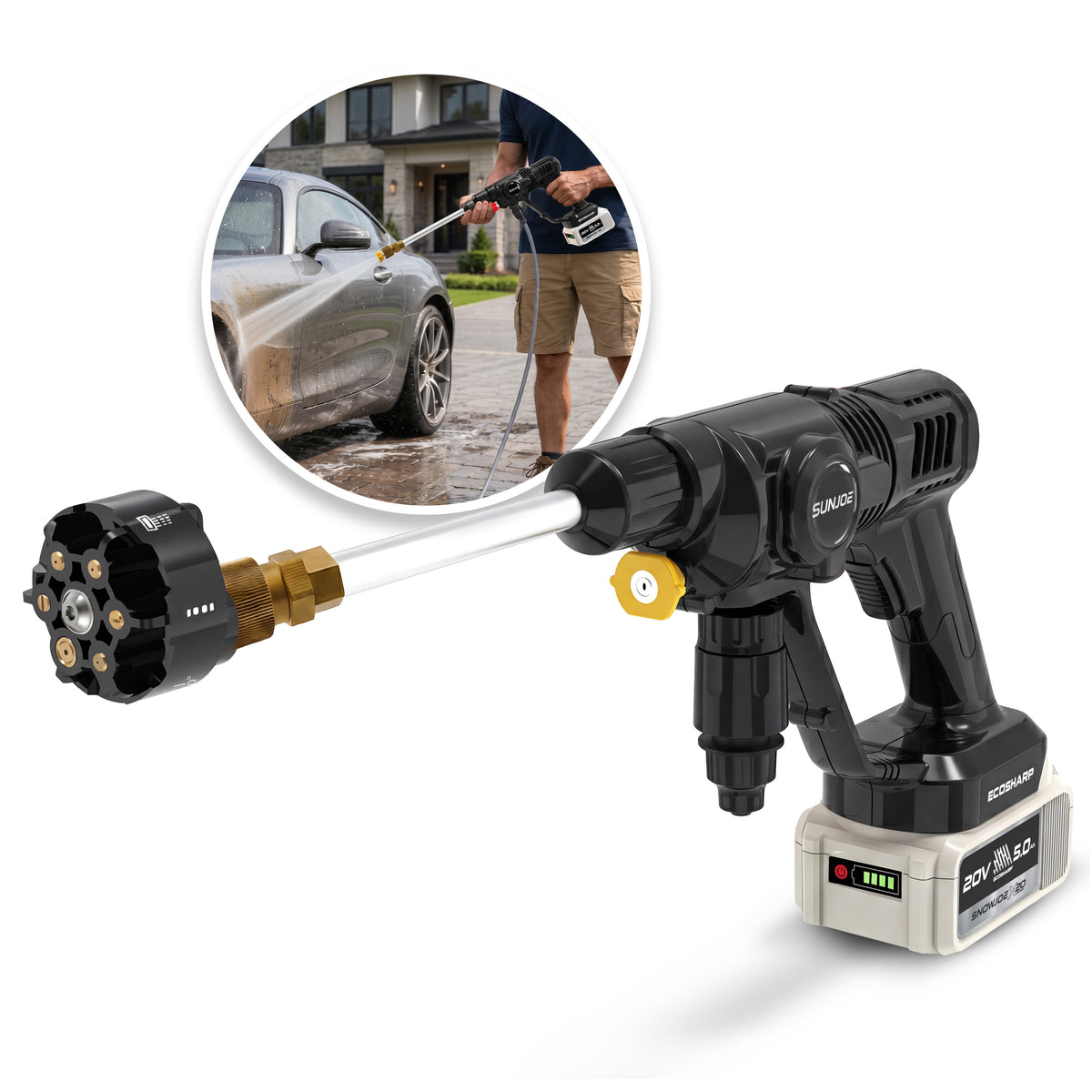

Meet the X20-PSC-5A
Key Components
ON/OFF switch - starts and stops the pressure sprayer.
Handle - primary grip for controlling the unit during use.
Battery compartment - holds the included 20V ECOSHARP® battery pack.
Air inlet - ventilation opening that should be kept free of debris.
Spray tip barrel - connects the sprayer body to the selected spray nozzle or foam cannon.
Siphon hose adapter - water-intake connection for the included hose and adapters.
Water filter + 16.4 ft siphon hose - allows filtered water pickup from a bucket or suitable fresh-water source.
6-in-1 power nozzle - provides rinse, soap, 40°, 25°, 15°, and 0° spray settings.
0°, 15°, and 40° spray nozzles - separate quick-connect tips included with the kit.
Detergent bottle with foam cannon - applies pressure-washer detergent for supported cleaning tasks.
Garden-hose adapters - connect the sprayer to a compatible spigot or garden-hose supply.
Hard shell case - stores the sprayer and included accessories.
Technical Specifications
| Specification | X20-PSC-5A |
|---|---|
| Product Type | Cordless pressure sprayer |
| Power Source | 20V ECOSHARP® lithium-ion battery |
| Battery Voltage Max | 20V max / 18V nominal under typical load |
| Included Battery | 1 x 5.0 Ah battery |
| Motor | 200 W |
| Output Pressure | 290 PSI |
| Water Flow | 1.06 GPM |
| Charger Input | 100-240V AC, 50/60 Hz, 0.5 A max |
| Charger Output | 21V DC, 750 mA |
| Charge Time Max | 6-8 hours |
| Net Weight | 2.976 lbs / 1.35 kg |
| Gross Weight | 3.79 lbs / 1.72 kg |
| Product Manual | Find the X20-PSC-5A Manual |
| Product Page | View X20-PSC-5A on ShopJoe.com |
| Warranty | 1 Year Warranty |

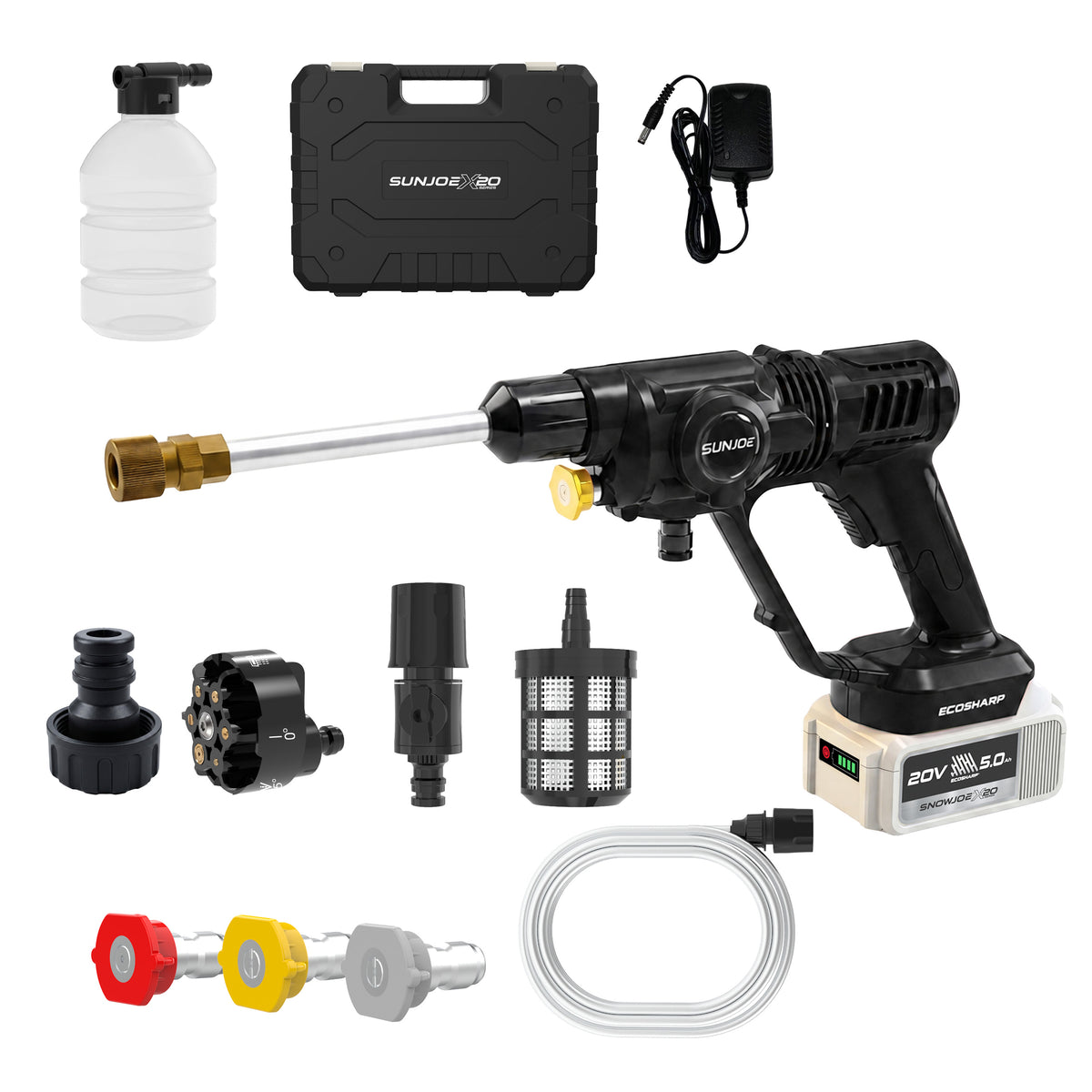

What's in the Box
| Included Item | X20-PSC-5A |
|---|---|
| Cordless pressure sprayer body | ✔ |
| Spray tip barrel | ✔ |
| 0° jet spray nozzle | ✔ |
| 15° spray nozzle | ✔ |
| 40° spray nozzle | ✔ |
| 6-in-1 power nozzle | ✔ |
| Water filter | ✔ |
| 16.4 ft siphon hose | ✔ |
| Detergent bottle with foam cannon | ✔ |
| Garden hose adapter | ✔ |
| Hose quick connector | ✔ |
| 3/4 in. hose adapter | ✔ |
| 20V ECOSHARP® 5.0 Ah lithium-ion battery | ✔ |
| Lithium-ion battery charger | ✔ |
| Hard shell case | ✔ |
| Operator's manual | ✔ |
Start Here: Before First Use
Battery Charging
-
Remove the battery
Press the battery push-lock buttons and pull the battery pack out of the sprayer.
-
Connect the charger
Confirm the outlet voltage matches the charger rating. Plug the charger into an appropriate AC outlet, then connect the charger plug to the battery charge socket.
-
Watch the charging indicator
The charger indicator is red while charging and turns green when charging is complete.
-
Unplug after charging
Allow approximately 6-8 hours for a full charge. Unplug the charger from the wall outlet first, then disconnect it from the battery.
Spray Tip Barrel Assembly
-
Keep the battery removed
Make sure the switch is off before assembly.
-
Insert the spray tip barrel
Fit the metal spray tip barrel firmly into the sprayer body.
-
Lock the barrel
Rotate the barrel clockwise until the two parts are completely locked.
-
Position the protective sleeve
Slide the black protective sleeve to the right and place it in position.
Connect to a Bucket or Fresh-Water Source
-
Install the water filter
Fit the water filter onto the end of the siphon hose and push firmly so it is secure.
-
Connect the siphon hose
Pull down the quick-connector collar, fit the hose onto the sprayer adapter, then release the collar to lock it.
-
Confirm the connection
Gently pull the hose connection to make sure it will not come off.
-
Submerge the filter
Place the filter end in the bucket or suitable fresh-water source and adjust the floater so the filter remains below the water surface.
Connect to a Spigot
-
Attach the garden-hose adapter
Pull down the adapter collar, fit it onto the sprayer's siphon-hose adapter, release to lock, then connect the garden hose and tighten it securely.
-
Install the 3/4 in. hose adapter
Separate the 3/4 in. hose adapter from the hose quick connector and attach the adapter to the water supply.
-
Prepare the hose quick connector
Separate the connector components and install the female quick-connector fitting and connector body on the hose as shown in the operator's manual.
-
Connect to the water supply
Pull down the quick-connector collar, fit it onto the 3/4 in. hose adapter, and release the collar to lock it.
Detergent Bottle + Foam Cannon
-
Fill with pressure-washer detergent
Remove the foam-cannon cap and suction tube, then fill the bottle with detergent designed specifically for pressure washers according to the detergent manufacturer's directions.
-
Attach the foam cannon
Reinstall the cap and connect the foam cannon to the spray barrel's quick-connect fitting until it locks.
-
Apply from bottom to top
Apply detergent to a dry surface from the bottom upward. Test first in an inconspicuous area.
-
Rinse before it dries
Allow a short dwell time, then rinse. Do not allow detergent to dry on the surface.
6-in-1 Multi-Spray Nozzle
Turn the sprayer off and remove the battery before changing spray patterns or swapping spray tips.
Starting + Operating
-
Confirm a stable water supply
Make sure all water connections are secure. Do not operate the pump dry.
-
Insert the charged battery
Slide the battery into the battery compartment until it clicks into place.
-
Open the spigot if used
If connected to a spigot, turn the water supply tap on completely.
-
Prime the water flow
Trigger the unit for a few seconds until the water flow becomes steady.
-
Operate with stable footing
Keep a firm grip, maintain proper balance, and keep the spray directed only at the intended surface.
-
Stop the unit
Release the switch to stop spraying.
Maintenance + Storage
-
Shut down and depressurize
Release the trigger, remove the battery, turn off or remove the water source, disconnect the hose, then squeeze the trigger to release remaining pressure.
-
Clean the water filter
Remove and disassemble the water-inlet filter and rinse its components with warm water so debris does not clog the pump.
-
Drain after use
Empty water from hoses, the pump, and the detergent bottle before storage.
-
Store indoors and frost-free
Store the sprayer in a dry, covered location above 32°F / 0°C.
Troubleshooting
Remove the battery before inspecting, cleaning, adjusting, or performing maintenance. Use only the checks below that match the symptom you are seeing.
Unit Will Not Turn On
Possible Causes
- Battery is not installed fully or is discharged
- ON/OFF switch is not fully pressed
- Battery protective cutoff was triggered
Solutions
- Reinstall the battery until it clicks and recharge it if needed
- Press the ON/OFF switch fully
- Remove the battery and allow the unit to cool completely before reinstalling it; do not repeatedly press the switch while cutoff is active
Low Water Pressure or Weak Spray
Possible Causes
- Water filter is clogged
- Air inlet vents are blocked
- Siphon hose is loose or leaking
- Battery charge is low
Solutions
- Remove and rinse the water filter with warm water
- With the battery removed, clear debris from the air inlet
- Re-seat the siphon hose and confirm the quick connector locks securely
- Recharge the battery
Unit Runs but No Water Comes Out
Possible Causes
- Siphon filter is not submerged
- Air is trapped in the pump
- Quick connector is not fully locked
- Water source is empty or shut off
Solutions
- Adjust the floater so the filter remains below the water surface
- With a stable water supply connected, trigger the unit for several seconds until flow becomes steady
- Re-seat the connector and confirm it locks securely
- Refill the bucket or fully open the spigot
Water Leaks from a Hose or Connection
Possible Causes
- Quick connector is not locked
- Garden-hose adapter is not tightened
- Hose or connector is damaged
Solutions
- Re-seat the quick connector and gently pull to verify the lock
- Tighten the garden-hose adapter securely
- Replace a damaged hose or connector; do not attempt to mend a damaged hose
Spray Pattern Will Not Change or Nozzle Collar Is Stuck
Solutions
- Turn the unit off and remove the battery before rotating the collar or changing tips
- Align the desired spray-pattern symbol with the mark on the nozzle
- For a separate nozzle tip, pull down the spray-barrel collar, seat the nozzle adapter fully, and release the collar; confirm the nozzle will not pull off
Unit Shuts Off During Use
Possible Causes
- Battery is depleted or overheated
- Air inlet vents are clogged
- The unit has been operated continuously for an extended period
Solutions
- Recharge the battery or remove it and allow the unit to cool before restarting
- With the battery removed, clear debris from the air inlet vents
- After extended operation, pause the unit for 5-10 minutes
