Snow Joe 20-Volt X20 Cordless Snow Shovel Bundle – Shop Joe

3 × 5.0 Ah ECOSHARP® Batteries10 in. Clearing WidthUp to 18 ft Throw

Meet the BDL-A0317 Bundle

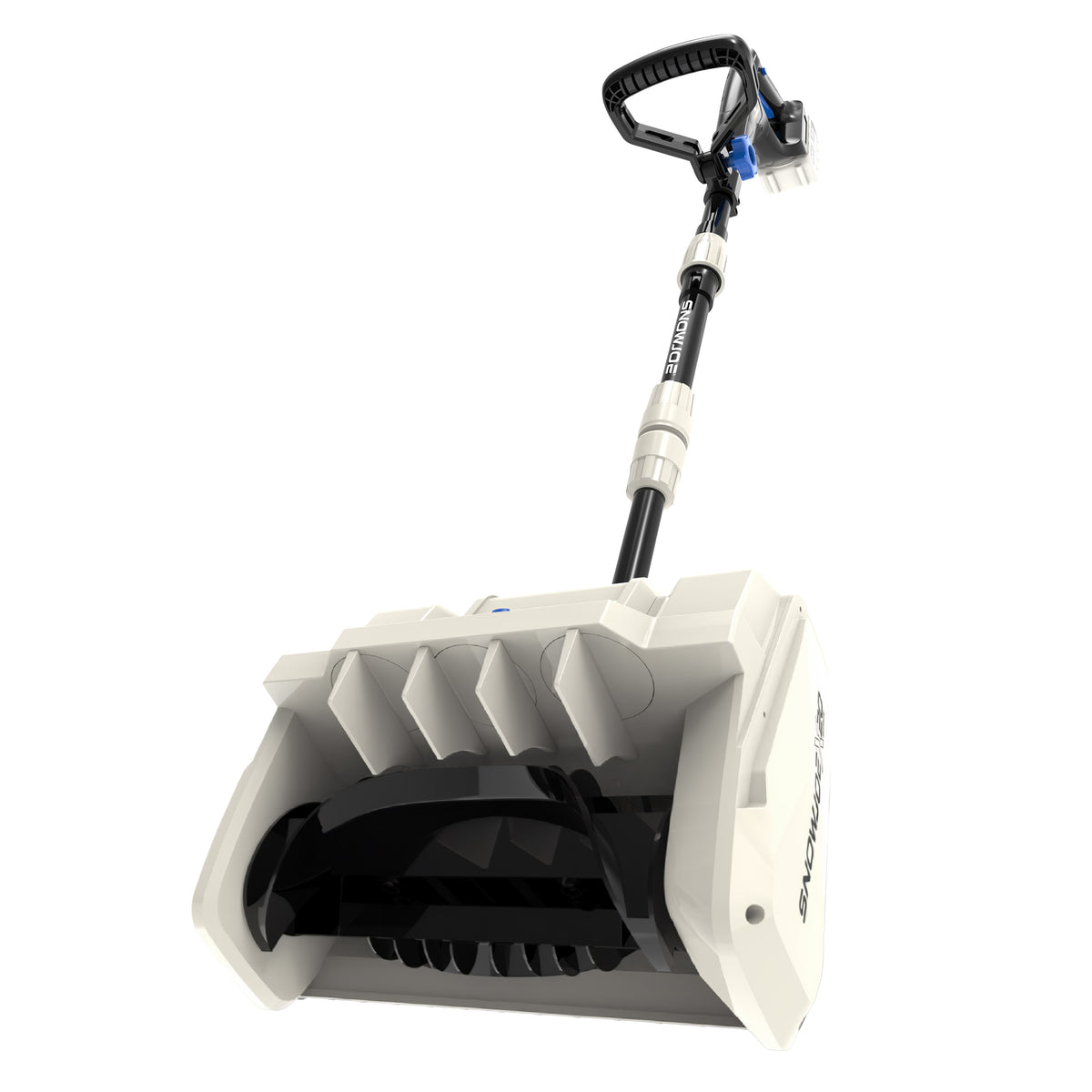

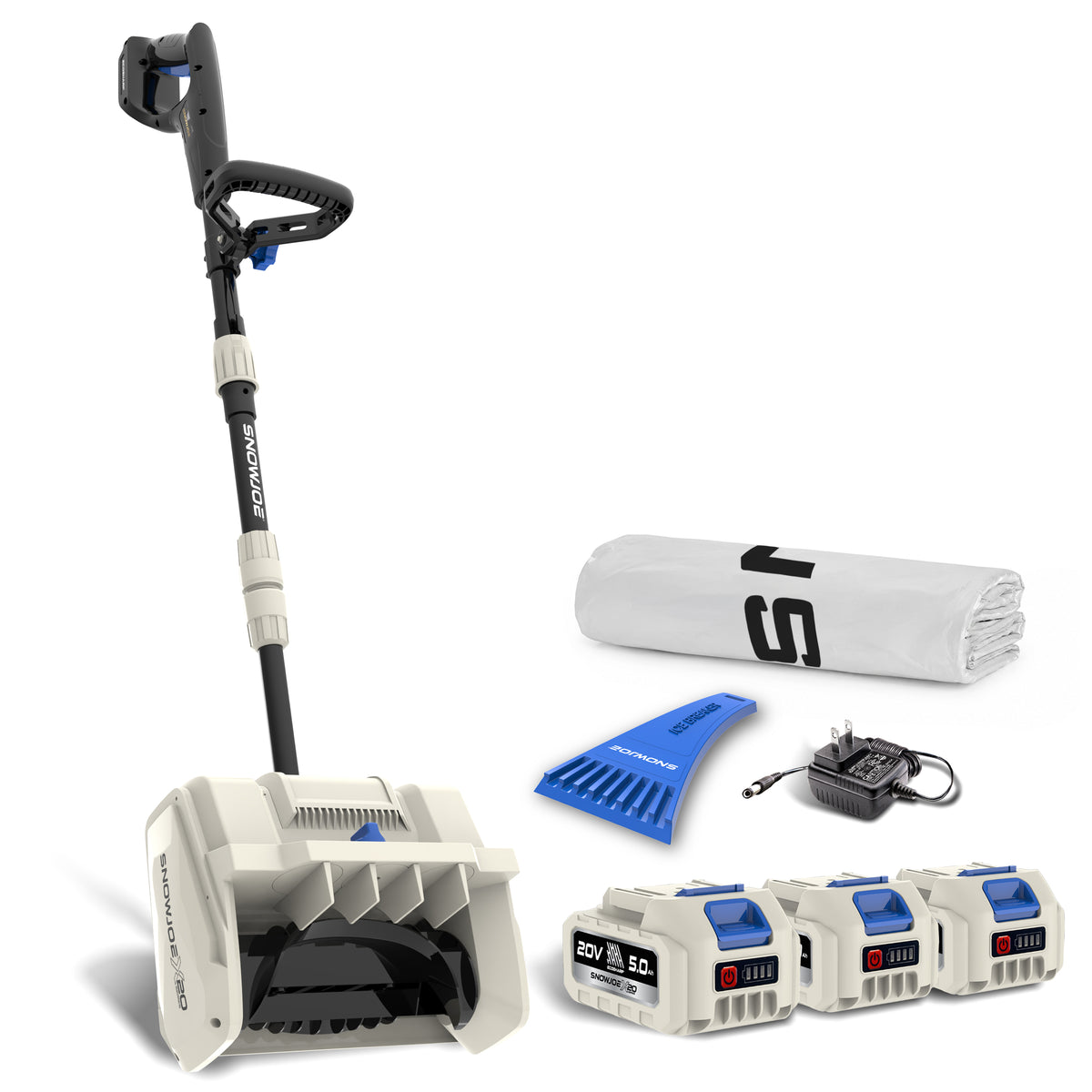

Snow Joe BDL-A0317 cordless snow shovel bundle

Snow Joe BDL-A0317 product feature image 1

Snow Joe BDL-A0317 product feature image 2

Snow Joe BDL-A0317 product feature image 3

Snow Joe BDL-A0317 product feature image 4

Snow Joe BDL-A0317 product feature image 5

Snow Joe BDL-A0317 product feature image 6

Snow Joe BDL-A0317 product feature image 7

Snow Joe BDL-A0317 product feature image 8

Key Components

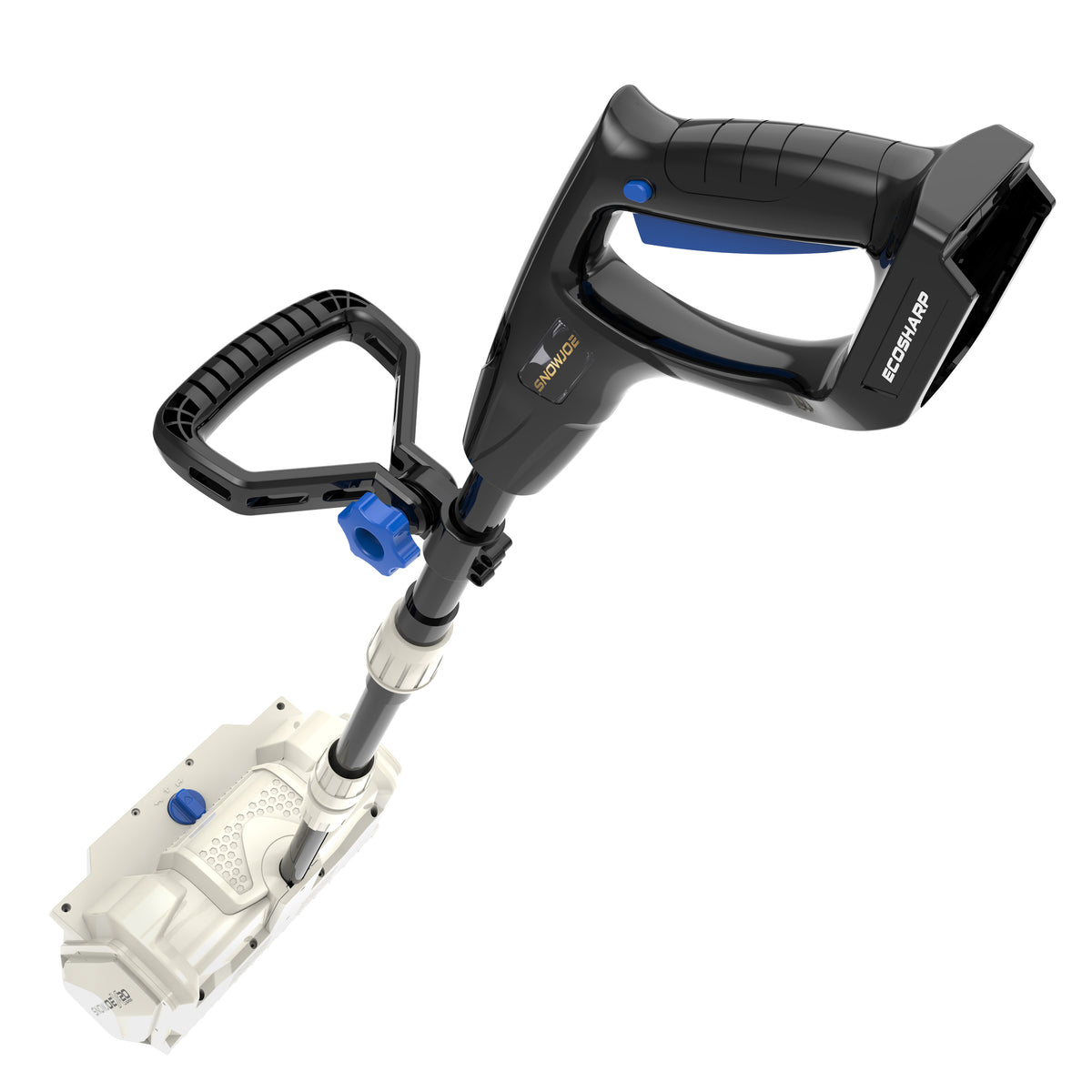

Upper handle - primary grip with safety switch, trigger, and battery compartment.

Safety switch + ON/OFF trigger - two-step start system for the auger.

Battery compartment - holds one compatible X20 ECOSHARP® battery at a time.

Auxiliary handle - adjustable second grip for two-hand control.

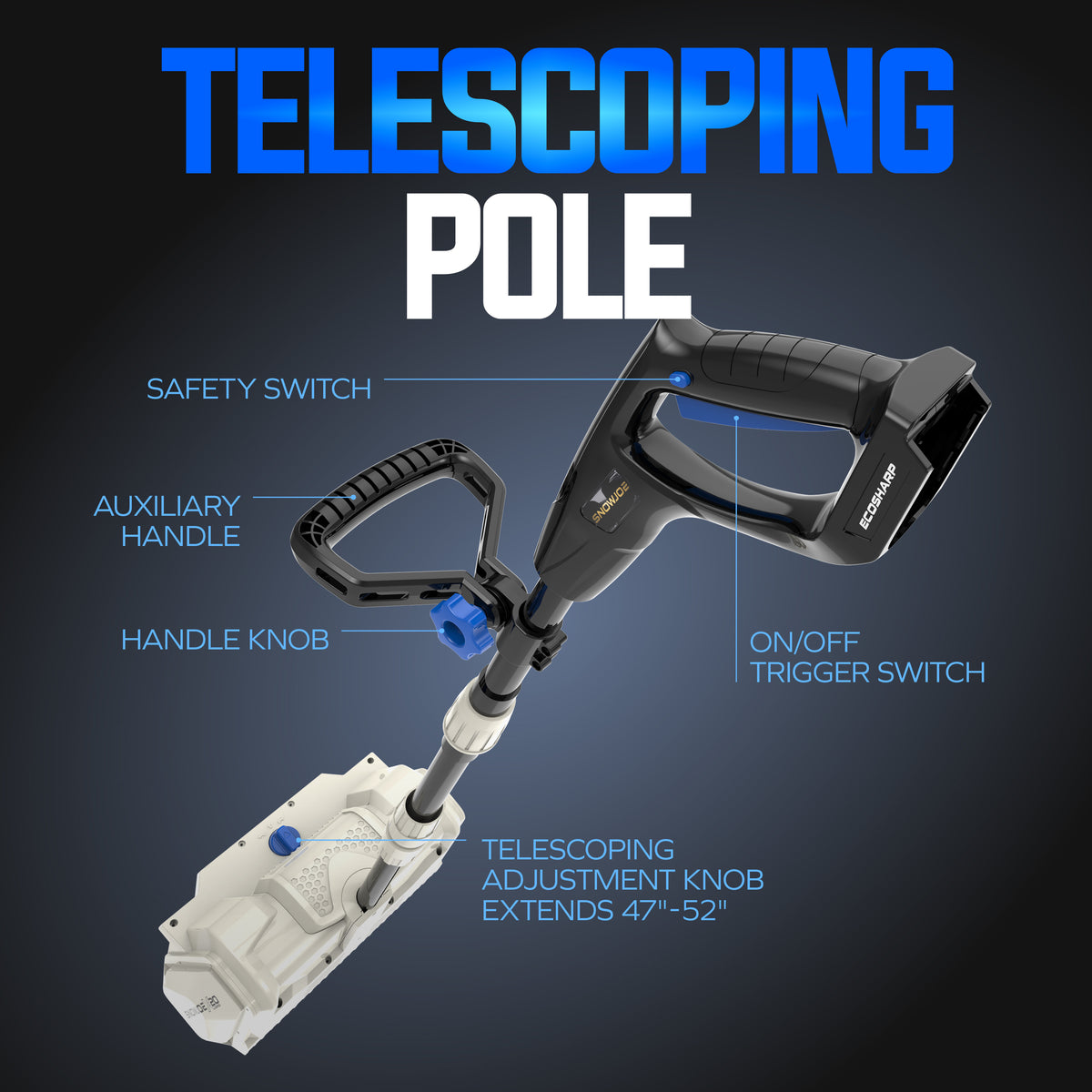

Telescoping pole - extends to a comfortable working height and locks with the adjustment knob.

Directional chute control - aims discharge up to 45 degrees left or right.

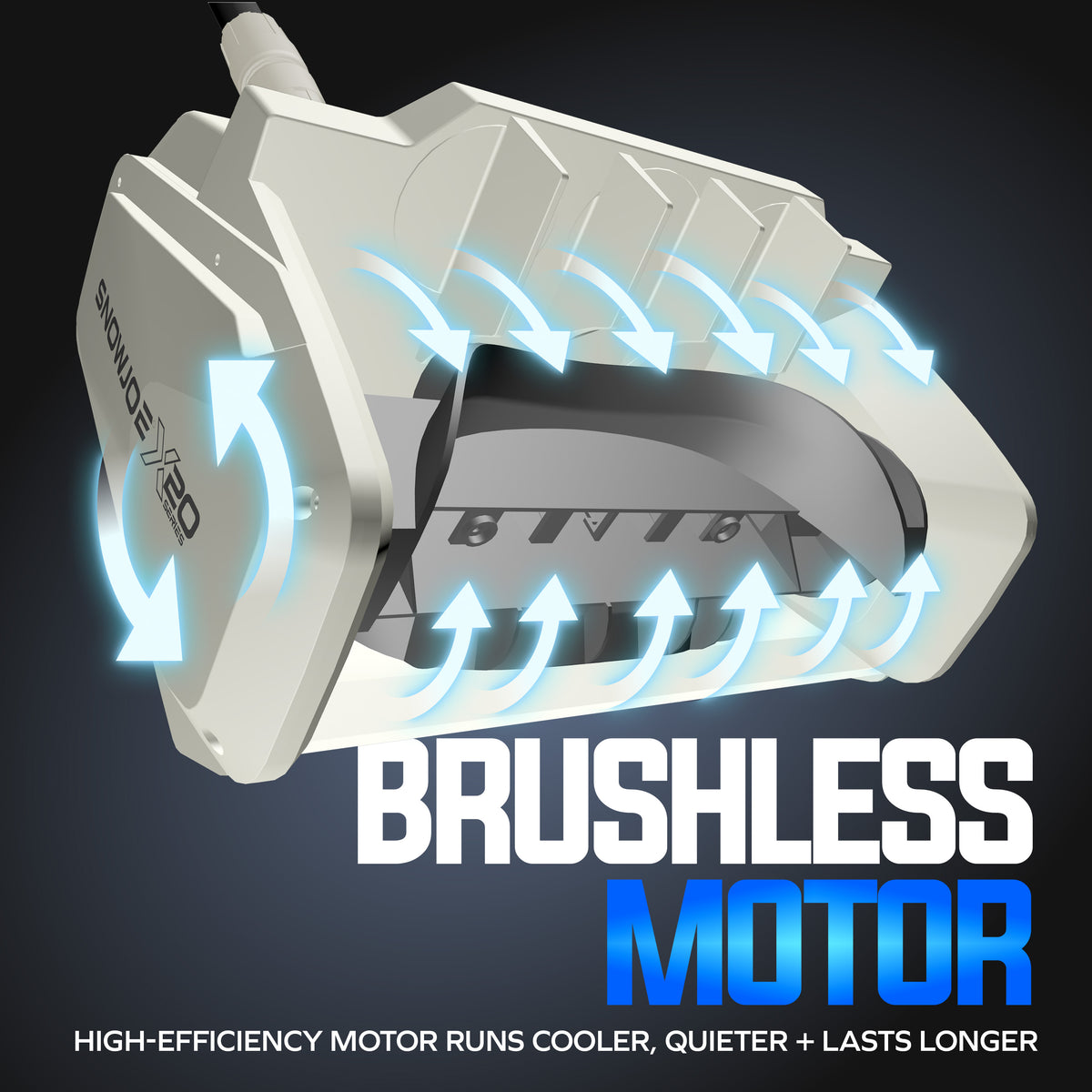

Brushless motor + paddle auger - 400 W motor driving a 2-blade rotor at 21,200 RPM.

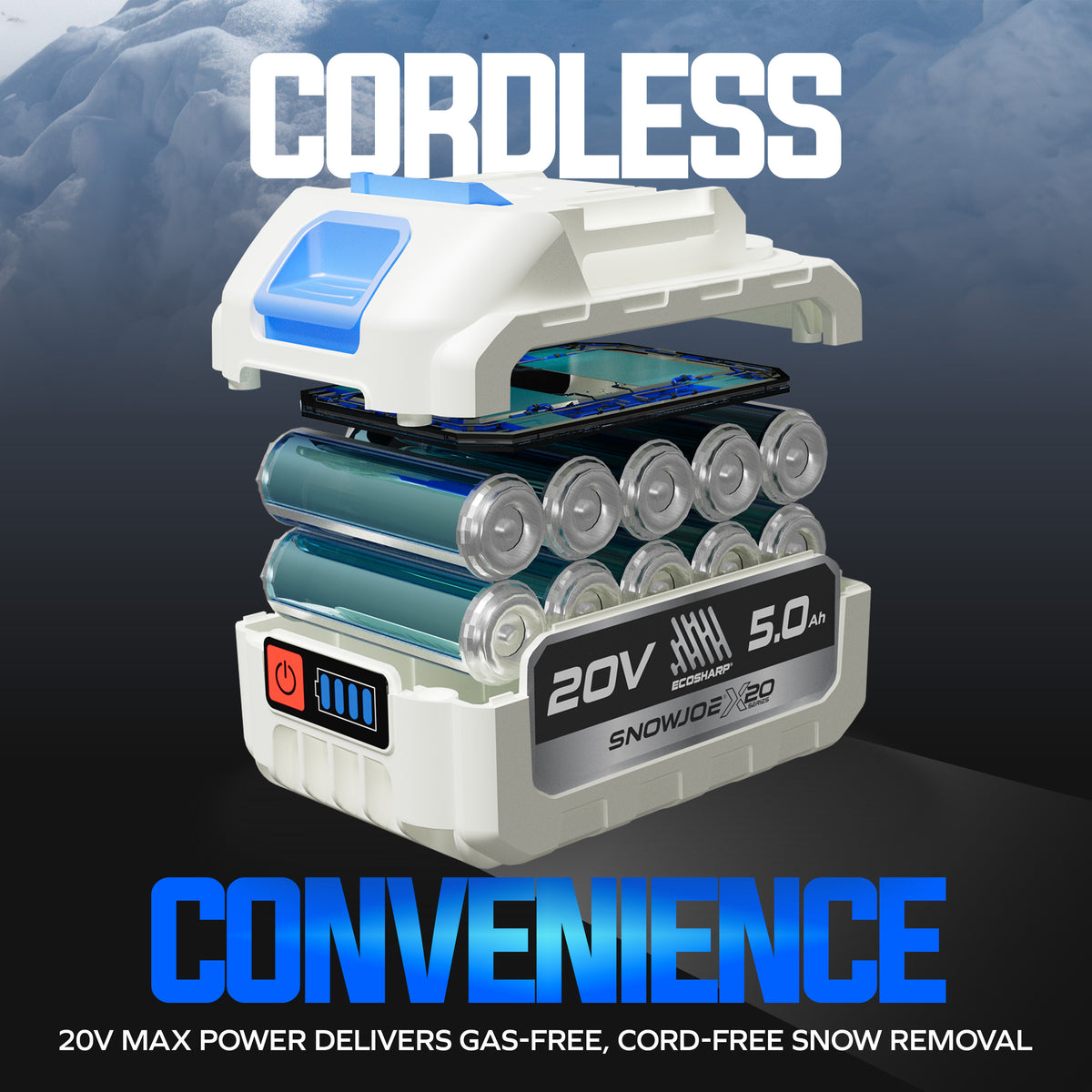

Three 5.0 Ah batteries - charged swap-in packs; the shovel operates with one battery at a time.

Snow shovel cover - protects the clean, dry machine during indoor storage.

Ice scraper - for loose snow, frost, and light ice on suitable smooth surfaces.

Technical Specifications

Specification	BDL-A0317
Product Type	Cordless snow shovel bundle
Motor	400 W brushless motor
Battery Voltage	20V D.C.*
Battery Capacity	5.0 Ah per battery
Included Battery Configuration	3 × 20V ECOSHARP® 5.0 Ah lithium-ion batteries
Battery Operation	One battery installed in the shovel at a time
Charger Input	100-240V AC, 50-60 Hz, 0.8 A
Charger Output	21V D.C., 0.75 A
Maximum Charge Time	6-7 hours per battery
No-Load Speed	21,200 RPM
Rotor	2-blade paddle auger
Clearing Width	10 in. (25 cm)
Snow Cut Depth	Up to 5 in. (12.7 cm)
Maximum Throw Distance	18 ft (5.48 m)
Product Dimensions	12.6 in. L × 7.5 in. W × 52 in. H, assembled
Published Net Weight	8.4 lb (3.8 kg)
Published Gross Weight	10.8 lb (4.9 kg) for the base tool kit documented in the manual
Product Manual	Download BDL-A0317 Manual
Warranty	1-year limited warranty

KITThree-battery bundle: BDL-A0317 includes three 5.0 Ah batteries. Charge and use one battery at a time; keep the others as charged swap-in spares.

*Initial no-load voltage, when fully charged, peaks at 20V; nominal voltage under typical load is 18V.

What's in the Box

Included Item	Included
Cordless snow shovel upper pole assembly	✓
Cordless snow shovel lower pole assembly	✓
Middle pole with auxiliary handle	✓
Joint-fixing knob and bolt	✓
20V ECOSHARP® 5.0 Ah lithium-ion battery	3
20V ECOSHARP® lithium-ion charger	✓
Screwdriver	✓
Snow shovel cover	✓
Ice scraper	✓
Operator's manual	✓

Start Here: Before First Use

STOPDo not insert a battery until assembly, adjustment, and work-area checks are complete. Remove the battery before adjusting, inspecting, cleaning, clearing, or storing the snow shovel.

Charge

Fully charge each included battery for 6-7 hours. Charge one battery at a time.

›

Assemble

Connect the upper, middle, and lower pole sections and tighten the fixing hardware.

›

Adjust

Set the telescoping height, auxiliary handle, and discharge direction with the battery removed.

›

Inspect

Clear the work area of stones, wires, mats, toys, boards, and other hidden objects.

Battery Charging

Remove the battery

Press the push-lock buttons and pull the battery pack out of the snow shovel.
Check the power supply

Confirm the outlet voltage matches the charger rating before connecting the charger.
Connect the charger

Plug the charger into a suitable AC outlet, then connect the charger plug to the battery charge socket. The charger light is red while charging and green when complete.
Allow 6-7 hours

Charge each battery separately. Unplug the charger after charging is complete, and do not leave batteries on prolonged charge.

LEDBattery indicator: 1 light = 25%, 2 lights = 50%, 3 lights = 75%, and 4 lights = fully charged.

Assembly & Adjustment

Connect the upper and middle poles

Raise the handle section, align the groove at the connection point, insert the upper pole into the middle-pole connector, and tighten the knob clockwise.
Extend the telescoping pole

Turn the adjustment knob counterclockwise, extend the pole to the desired height, and tighten the knob clockwise.
Position the auxiliary handle

With the battery removed and the auger stopped, loosen the knob, remove the screws with the supplied screwdriver, set the handle within its 180-degree range, and tighten securely.
Set the discharge direction

With the battery removed, turn the directional control left or right. The adjustment range is 45 degrees.

Included Accessory Use

Screwdriver

Use it only for the auxiliary-handle mounting screws. Do not use it to open the motor, battery, or charger housing.

Snow shovel cover

Remove the battery, clean and dry the shovel, cover it completely, and store it indoors. Never cover a wet machine, and remove the cover before operation.

Ice scraper

Use it for loose snow, frost, and light ice on vehicle windows and other suitable smooth surfaces. Do not use excessive force or use it on delicate surfaces that may scratch.

Starting & Stopping

CLEARKeep hands and feet away from the auger and discharge opening. Keep people, pets, and property out of the discharge path.

Insert one charged battery

Slide one battery into the compartment until it clicks. Keep the other two batteries outside the tool as charged spares.
Use the two-step start

Press and hold the safety-lock switch with your thumb, then squeeze the trigger switch.
Release the safety lock

After the motor starts, release the safety-lock switch while continuing to hold the trigger.
Stop the machine

Release the trigger and wait for the auger to stop completely before moving, adjusting, or inspecting the unit.

Snow-Clearing Tips

Use the right pace

Move forward at a comfortable rate that lets the auger clear the path completely. Slow down as snow depth increases.

Aim the discharge

Use the directional chute control to direct snow left or right, away from people, pets, windows, vehicles, and property.

Work with the wind

Throw snow downwind when possible and slightly overlap each pass.

Use steady footing

Wear winter footwear with good traction, keep a firm two-hand grip, walk rather than run, and use extra care on slopes and while backing up.

Clearing a Clogged Rotor

STOPNever use your hands to clear the rotor housing.

Shut off the motor

Release the trigger and remove the battery.
Wait 10 seconds

Allow the rotor blades to come to a complete stop.
Use a clean-out tool

Free the rotor with a suitable clean-out tool - never with your hands.
Inspect before restarting

Check the auger, housing, and guards for damage or trapped material before reinstalling the battery.

Maintenance & Storage

STOPRemove the battery before cleaning, checking, servicing, or storing the snow shovel.

Prevent freeze-up

After clearing snow, run the machine for a few minutes to help prevent the rotor blades from freezing.

Clean and inspect

Remove snow and debris, check fasteners, and inspect for worn, loose, or damaged parts.

Do not lubricate

The snow shovel does not require lubrication; its bearings are factory-lubricated for the life of the product.

Store indoors

Remove the battery and store the shovel in a locked, dry location out of children's reach.

Protect all three batteries

Store batteries and charger at room temperature away from moisture. Recharge each battery every 6 months to about 50% capacity during off-season storage.

Troubleshooting

Release the trigger, remove the battery, and wait for all moving parts to stop before performing any check.

Snow Shovel Will Not Start

Check

Battery is fully inserted and locked
Battery is charged
Safety-lock switch is pressed before the trigger
Battery contacts are clean and free of corrosion

Try

Reinstall the battery until it clicks
Recharge the battery for 6-7 hours
Use the two-step start sequence
Wipe contacts with a dry cloth

Unit Stops During Operation

Try

Replace the depleted battery with a charged spare
Allow the motor to cool for 5-10 minutes
Take shallower passes or reduce forward speed

Poor Clearing or Throwing Performance

Try

Remove the battery and clear the rotor housing and chute with a clean-out tool
Press down on the handle to maintain scraper contact
Reduce forward speed

Rotor Housing Is Jammed

Stop

Remove the battery and wait at least 10 seconds
Use a clean-out tool - never your hands
Inspect the rotor blades for damage before restarting

Snow Direction Cannot Be Controlled

Try

Turn the chute control firmly within its 45-degree range
Remove the battery and clear ice from the chute pivot points

Auxiliary Handle Is Loose

Try

Remove the battery
Retighten the handle knob clockwise
Use the supplied screwdriver to tighten the mounting screws

Official Product Resources

View the BDL-A0317 Bundle

Open the official Shop Joe product listing or locate the operator's manual for BDL-A0317 for complete safety, operation, and warranty information.

View Product Page Find the Manual

Frequently Asked Questions

How many batteries are included with BDL-A0317?

The bundle includes three 20V ECOSHARP® 5.0 Ah batteries.

Does the snow shovel use all three batteries at once?

No. The shovel has one battery compartment and operates with one battery at a time. The other batteries serve as charged swap-in spares.

How long does each battery take to charge?

A fully discharged 5.0 Ah battery can take approximately 6-7 hours to charge with the included charger.

What can the snow shovel clear?

It clears a path up to 10 inches wide and 5 inches deep and can throw snow up to 18 feet, depending on snow and operating conditions.

Can I control the discharge direction?

Yes. With the battery removed and the auger stopped, use the directional chute control to adjust discharge up to 45 degrees left or right.

How do I start the snow shovel?

Install one charged battery until it clicks, press and hold the safety-lock switch, then squeeze the trigger. Release the safety lock after the motor starts while continuing to hold the trigger.

What are the cover and ice scraper for?

The cover protects a clean, dry snow shovel during indoor storage.

The ice scraper is intended for loose snow, frost, and light ice on vehicle windows and other suitable smooth surfaces.

Can I use a 24V IONMAX battery or charger?

No. This product uses the 20V ECOSHARP® platform and is not compatible with 24V IONMAX batteries or chargers.

What warranty applies?

The manual identifies a 1-year warranty, with 90 days of bonus coverage available through registration. Optional extended coverage may also be available through Shop Joe.

Where can I find the operator's manual?

Open the official Shop Joe Product Manuals page and search for BDL-A0317.
