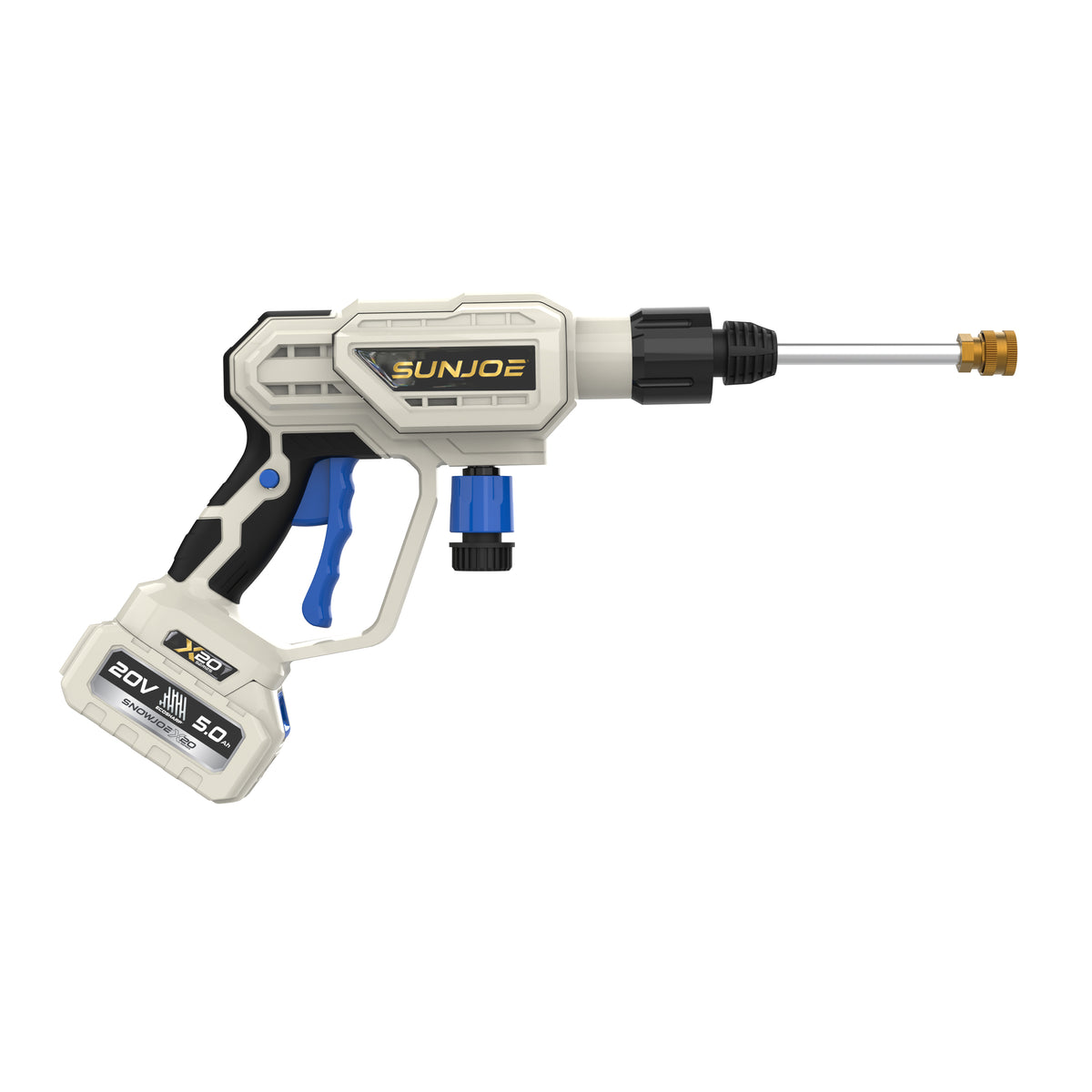

Meet the X20-XTREAM-TV1

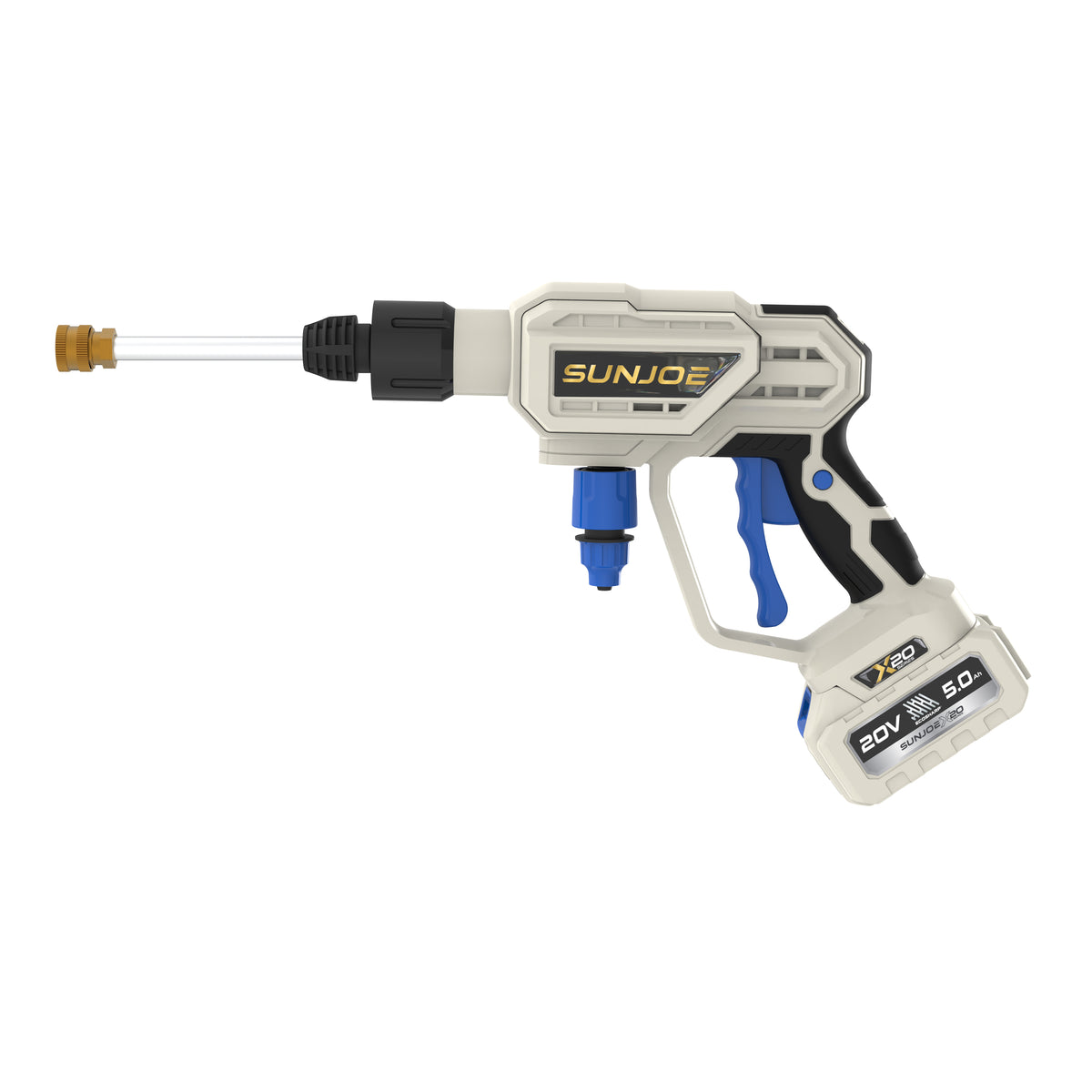

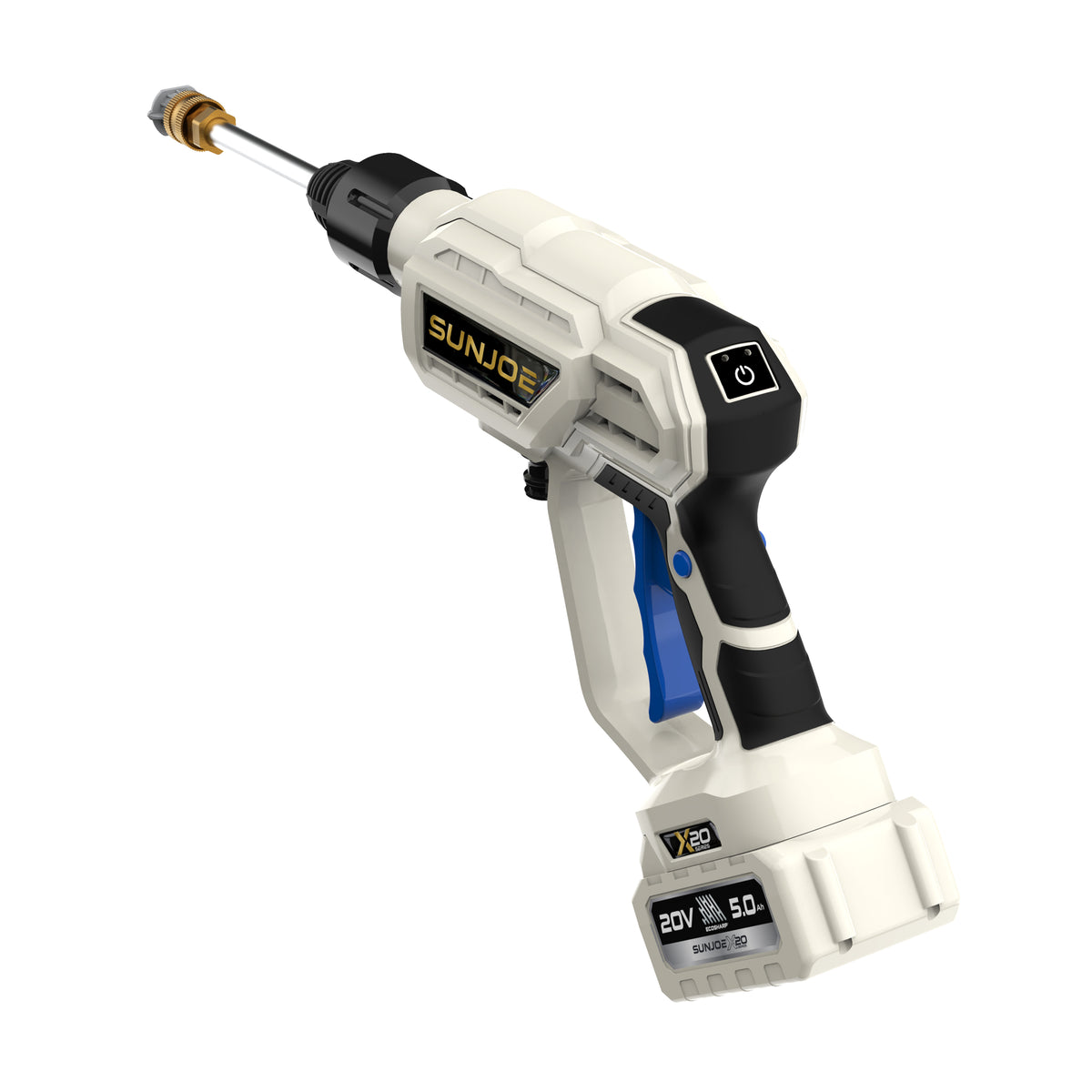

Key Components
ON/OFF trigger - starts and stops water flow.
Handle - primary grip for controlled operation.
Battery dock - accepts the included X20 Series 20V 5.0 Ah battery.
Safety button - locks or unlocks the trigger.
Air inlet - keeps cooling air moving through the unit.
Mode button - switches between high- and low-flow modes.

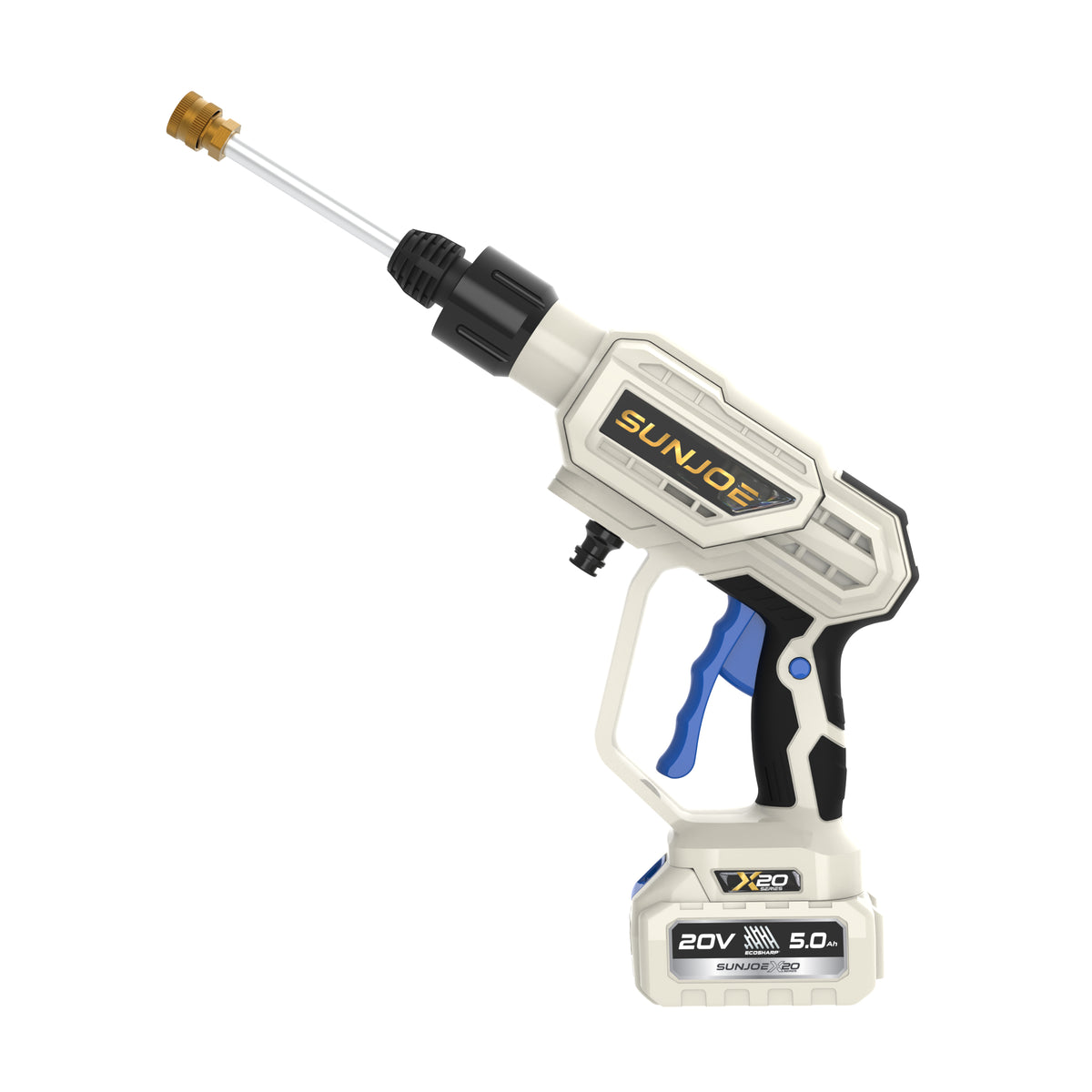

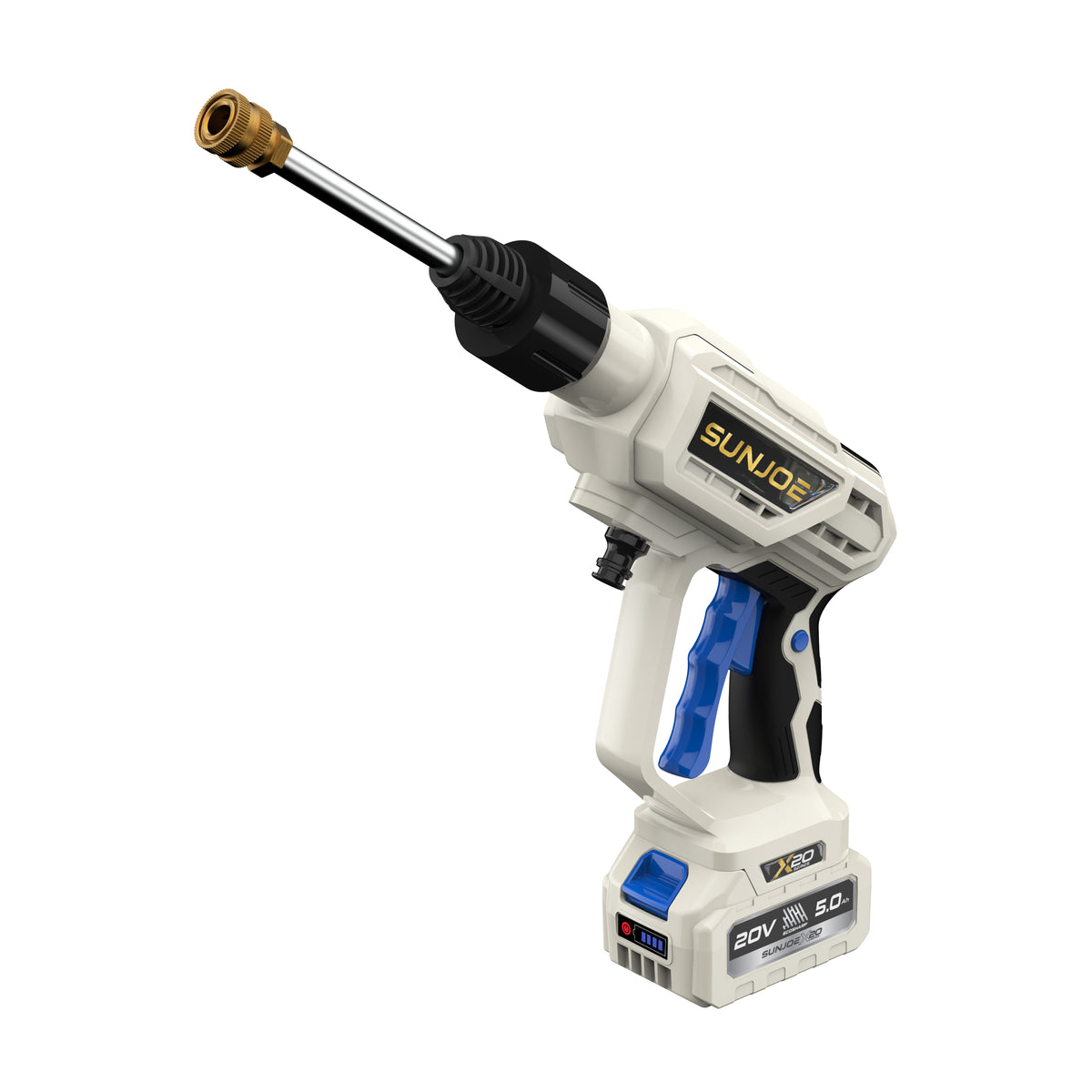

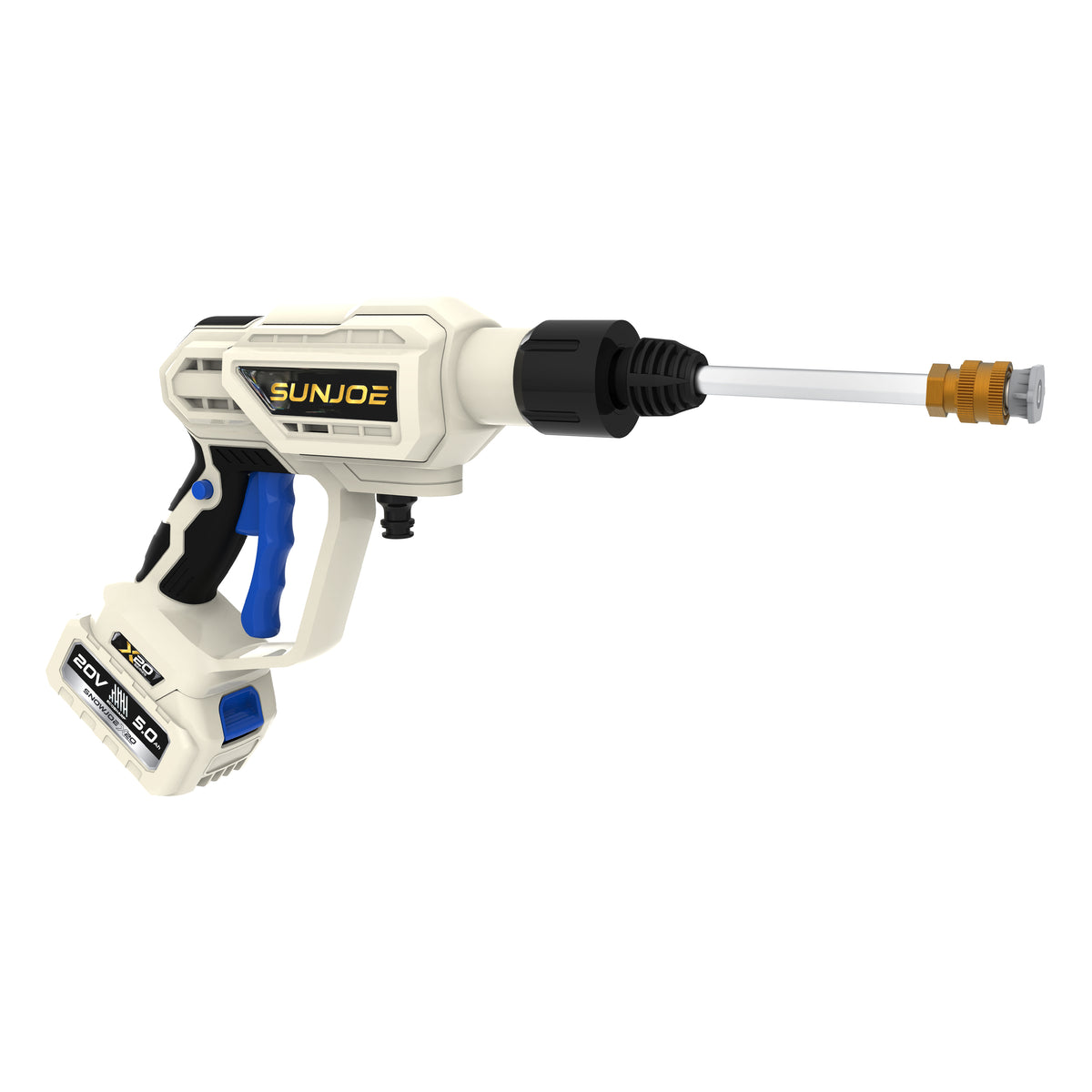

Pressure-washer body - houses the motor and pump.
Spray wand - twist-locks into the washer body.
Hose quick connector - accepts the siphon- or garden-hose adapter.
Water filter - helps filter debris when drawing from a bucket or suitable fresh-water source.
16.4 ft siphon hose - draws clean water through the included filter.
3/4 in. garden-hose adapter - connects to a standard garden hose.

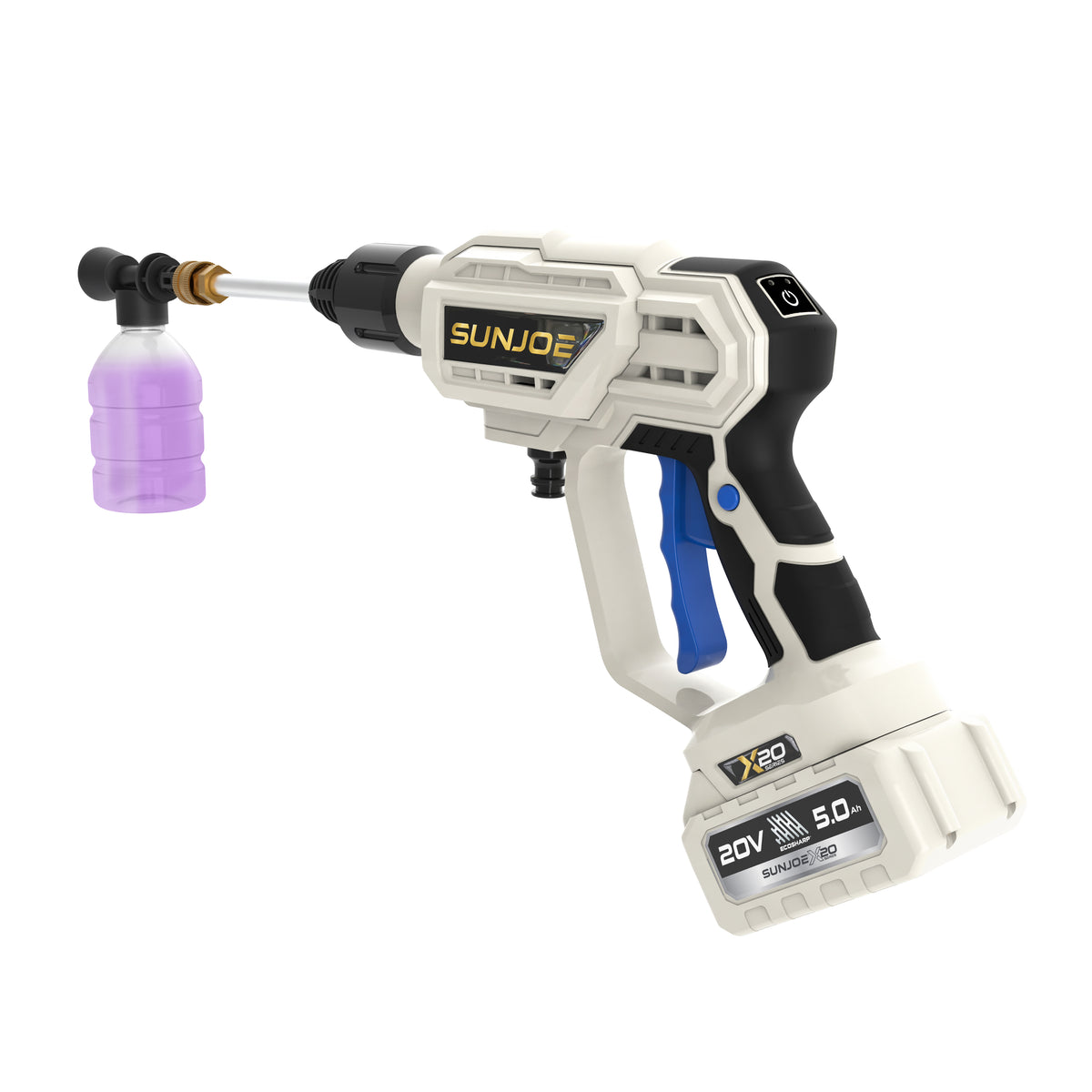

Detergent bottle + foam cannon - applies approved pressure-washer detergent.

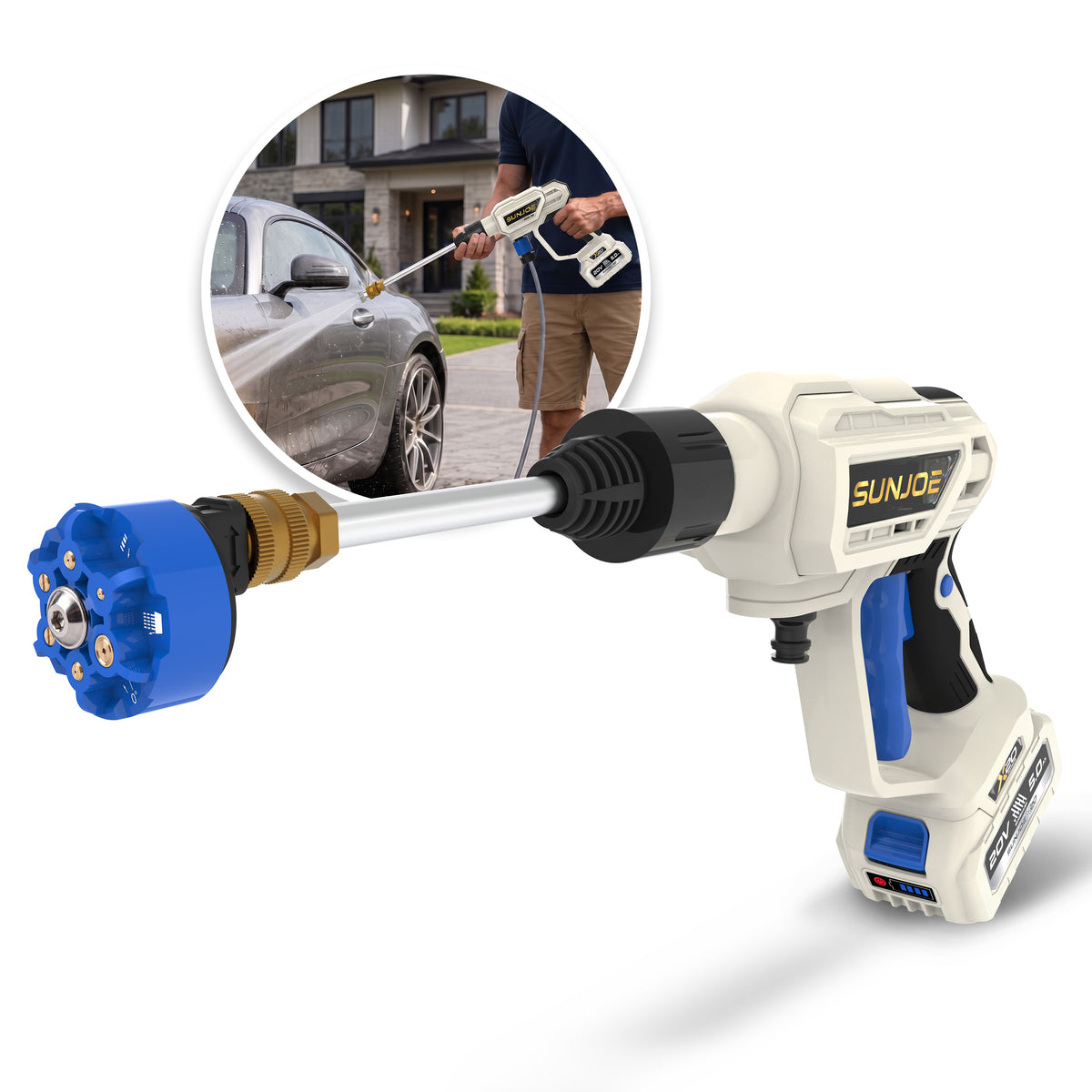

6-in-1 power nozzle - provides rinse, soap, 40°, 25°, 15°, and 0° spray patterns.
0°, 15°, and 40° spray nozzles - separate quick-connect tips for different cleaning tasks.
Hard shell case - stores the washer and included accessories.

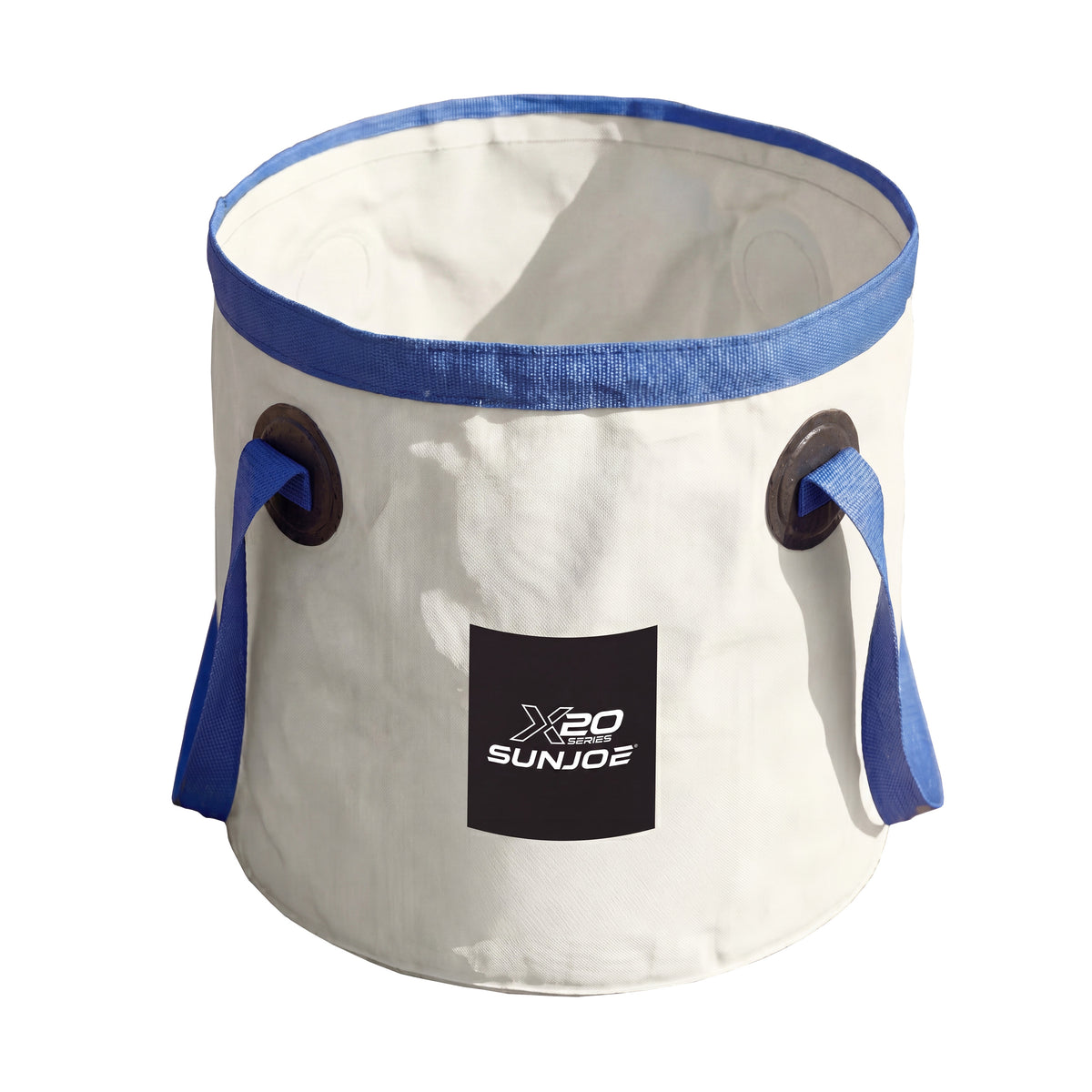

Bucket - included for portable water pickup and wash-kit use.

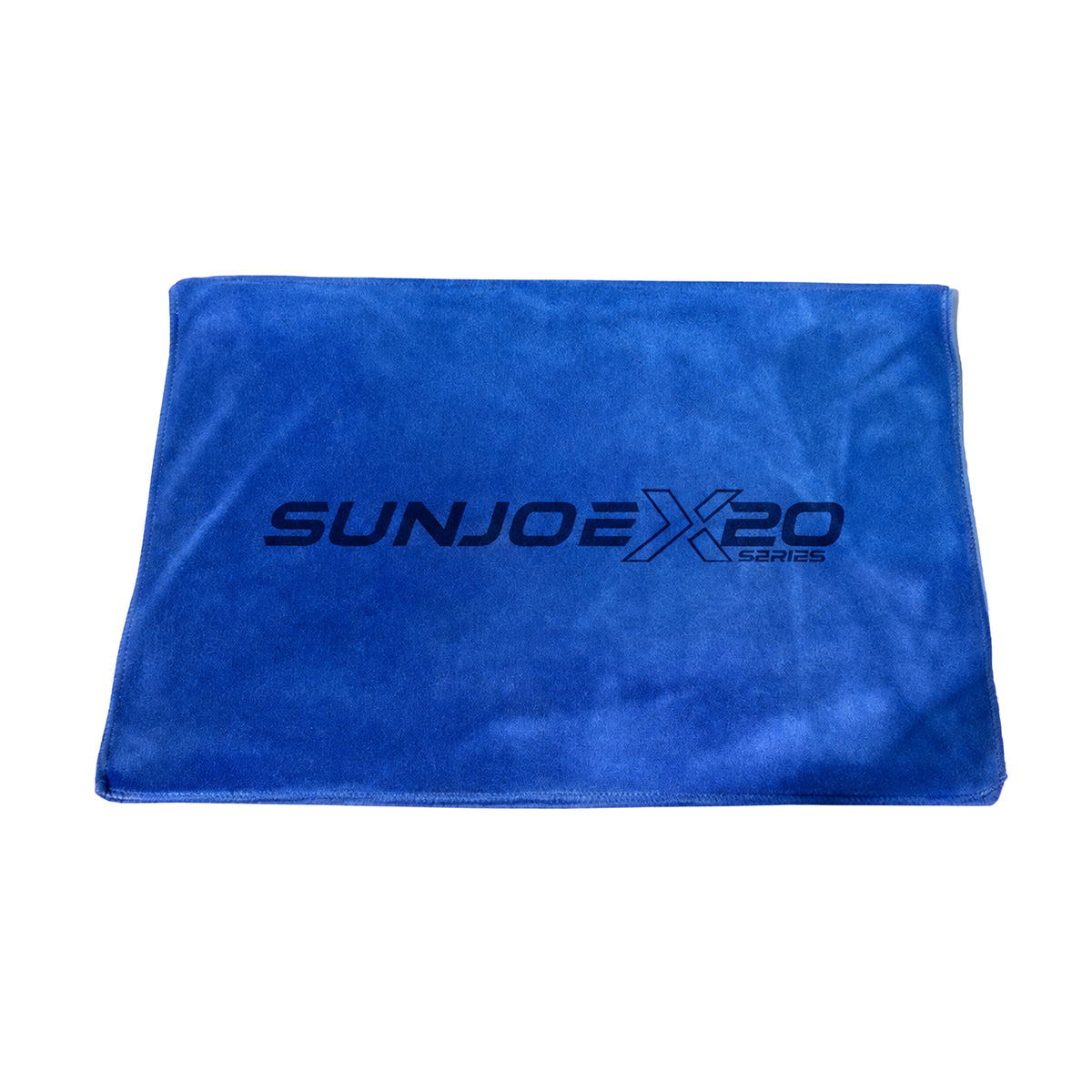

Three towels - included for drying after rinsing.
Technical Specifications
| Specification | X20-XTREAM-TV1 |
|---|---|
| Product Type | Cordless pressure washer |
| Motor Type | Brushless |
| Motor | 220 W |
| Output Pressure | 350 PSI |
| Water Flow | 0.9 GPM |
| Maximum Inlet Pressure | 0.69 MPa |
| Battery Voltage | 20V D.C.* |
| Battery Capacity | 5.0 Ah |
| Charger Input | 100V - 240V AC, 50/60 Hz, 26 W |
| Charger Output | 22V D.C., 1 A, 22 W |
| Charge Time Max | 6-8 hours |
| Net Weight | 3.53 lbs (1.6 kg) |
| Gross Weight | 9.06 lbs (4.11 kg) |
| Product Dimensions | 19.8 in. L × 3.16 in. W × 10.55 in. H, assembled |
| Product Manual | Open the X20-XTREAM-TV1 Manual |
| Warranty | 1-year limited warranty |
*Initial no-load voltage, when fully charged, peaks at 20V; nominal voltage under typical load is 18V.

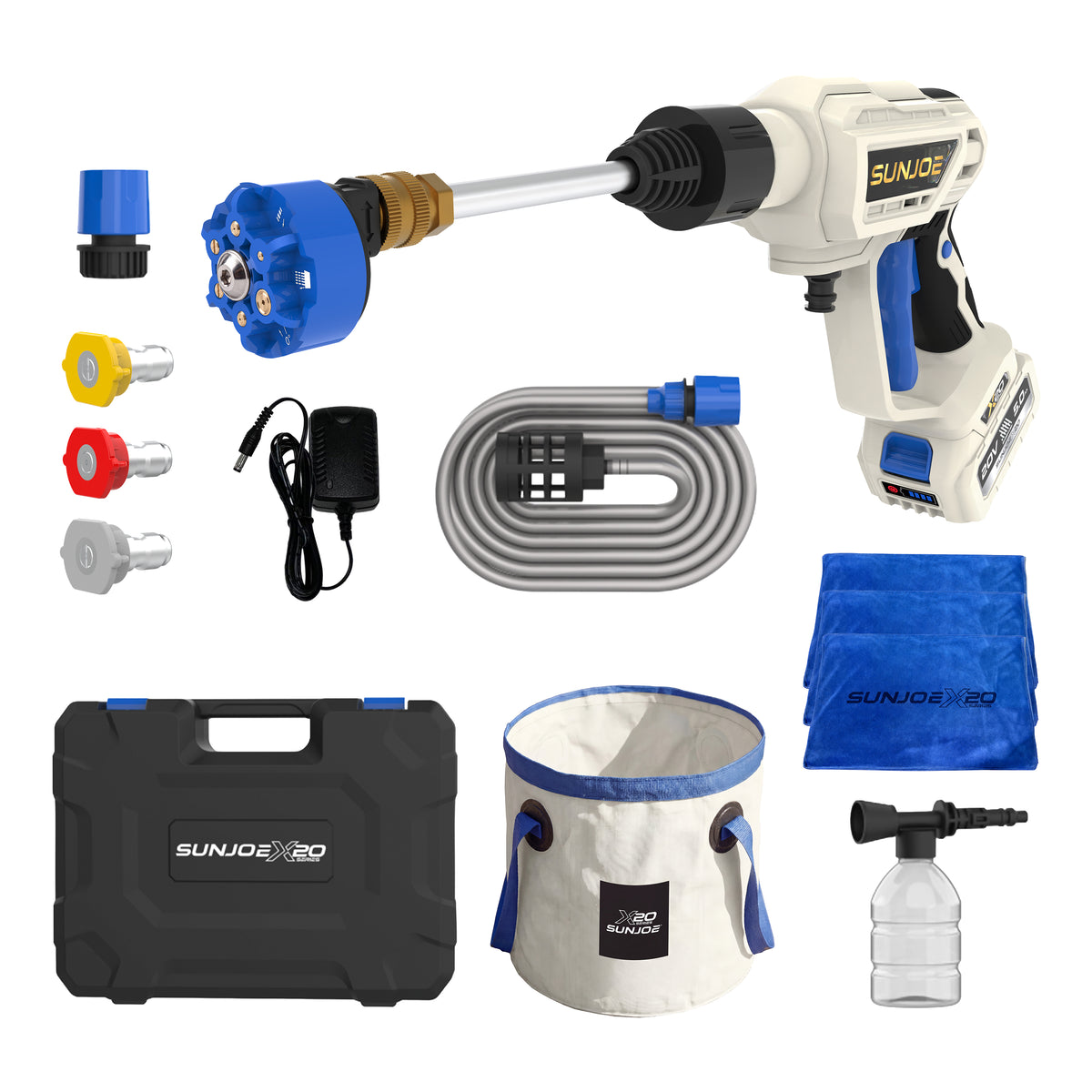

What's in the Box
| Included Item | X20-XTREAM-TV1 |
|---|---|
| Cordless pressure-washer body | ✔ |
| Spray wand | ✔ |
| 0° jet spray nozzle | ✔ |
| 15° spray nozzle | ✔ |
| 40° spray nozzle | ✔ |
| 6-in-1 power nozzle | ✔ |
| 16.4 ft siphon hose with 3/8 in. adapter and water filter | ✔ |
| Detergent bottle with foam cannon | ✔ |
| 3/4 in. garden-hose adapter | ✔ |
| X20 Series 20V 5.0 Ah ECOSHARP® battery | ✔ |
| X20 Series 20V ECOSHARP® charger | ✔ |
| Hard shell case | ✔ |
| Bucket | ✔ |
| Towels | 3 |
| Operator's manual | ✔ |
Start Here: Before First Use
Battery Charging
Remove the battery
Press the push-lock button and pull the battery out of the battery dock.
Connect the charger
Confirm the outlet matches the charger rating, connect the charger to the outlet, and insert the charging connector into the battery.
Watch the indicator
The charger indicator is red while charging and turns green when charging is complete.
Disconnect safely
Allow approximately 6-8 hours for a full charge. Unplug the charger from the outlet first, then disconnect it from the battery.
Spray Wand Assembly
Keep the battery removed
Make sure the safety button is in the locked position.
Insert the spray wand
Fit the spray wand firmly into the washer body.
Lock the wand
Rotate the wand clockwise until the two parts are completely locked.
Remove when needed
Push the wand toward the washer body and rotate it counterclockwise to detach it.

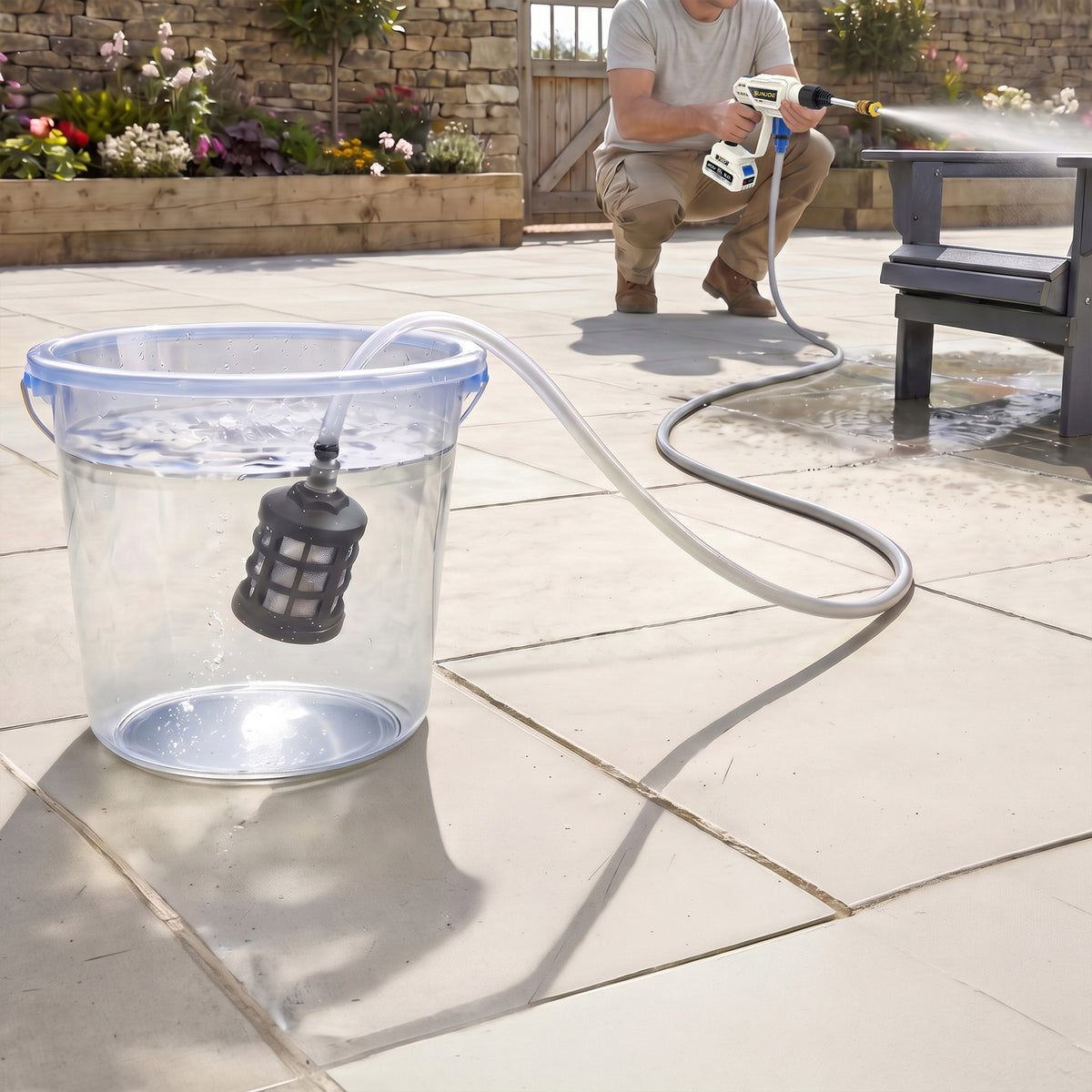

Connect to a Bucket or Fresh-Water Source
Connect the siphon hose
Pull down the collar on the 3/8 in. siphon-hose adapter, fit it onto the hose quick connector until it clicks, then release the collar to lock it.
Confirm the connection
Gently pull the connection to make sure it will not come off.
Submerge the filter
Place the filtered end in a bucket or suitable fresh-water source and adjust the floater so the filter remains below the water surface.
Connect to a Spigot
Install the garden-hose adapter
Pull down the collar on the 3/4 in. garden-hose adapter, fit it onto the hose quick connector until it clicks, and release the collar to lock it.
Attach the garden hose
Connect a standard 3/4 in. garden hose to the adapter and connect the other end to the faucet.
Verify the connection
Gently pull the adapter to confirm it is locked before opening the water supply.

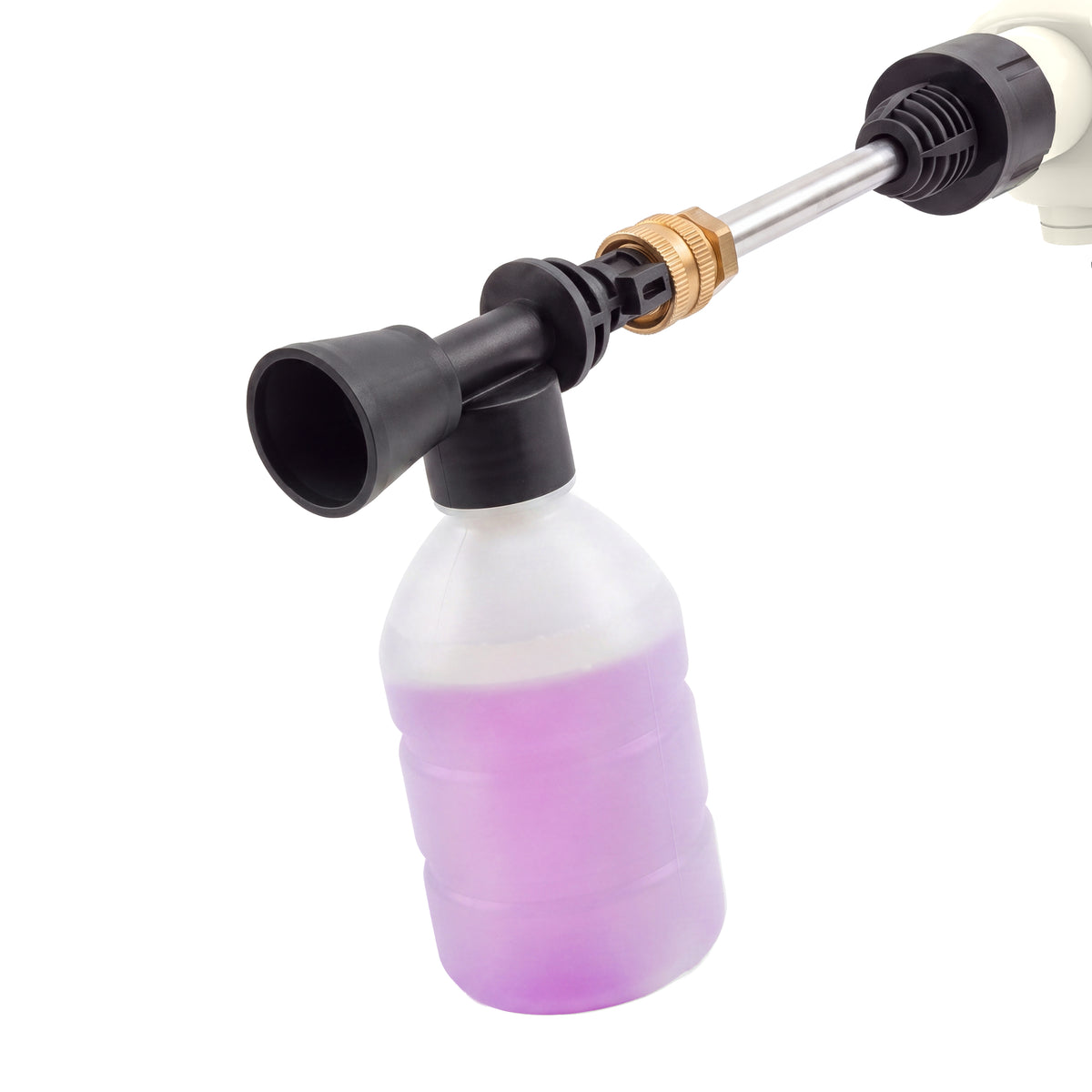

Detergent Bottle + Foam Cannon
Use approved detergent
Fill the bottle with detergent designed specifically for pressure washers, following the detergent manufacturer's directions.
Attach the foam cannon
Fit the detergent bottle firmly into the washer body and rotate the plastic cap clockwise until locked.
Apply from bottom to top
Apply detergent to a dry surface from the bottom upward and test first in an inconspicuous area.
Rinse before it dries
Allow a short dwell time, then rinse. Do not allow detergent to dry on the surface.

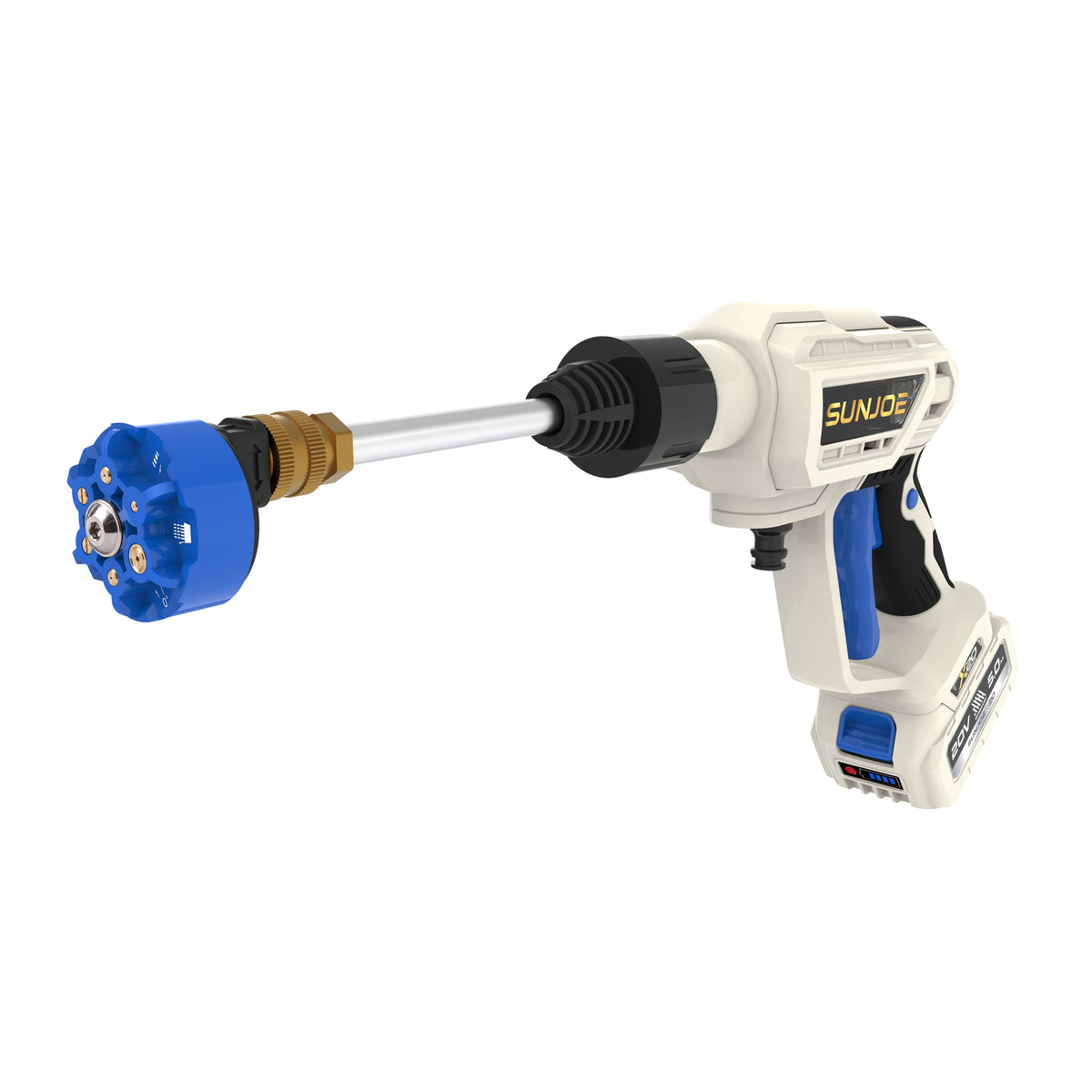

6-in-1 Power Nozzle + Spray Tips
Turn the washer off and remove the battery before changing a nozzle or spray pattern.
Pull down the quick-connect collar
Pull down the collar on the spray wand.
Seat the nozzle
Insert the 6-in-1 nozzle or individual spray-nozzle adapter fully.
Release the collar
Release the collar to lock the nozzle, then gently pull to confirm it is secure.
Starting, Stopping + Flow Modes
Lock the trigger
Set the safety button to the locked position before installing the battery.
Insert the battery
Slide the charged battery into the dock until it clicks.
Unlock and start
Press the safety button to unlock the washer, then squeeze the ON/OFF trigger. Hold it for a few seconds until water flow stabilizes.
Select the flow mode
The washer defaults to high flow with both LEDs on. Press the mode button once to switch to low flow, shown by one LED.
Stop safely
Release the trigger. For long idle periods, return the safety button to the locked position.
Shutdown, Maintenance + Storage
Shut down and depressurize
Release the trigger, lock the safety button, remove the battery, turn off or remove the water source, disconnect the hose, and squeeze the trigger to release remaining pressure.
Clean the water filter
Remove and disassemble the filter on the siphon hose and rinse its components with warm water.
Drain the system
Empty water from the hoses, pump, and detergent bottle after use.
Store indoors
Store the washer and accessories in a dry, covered, frost-free location above 32°F (0°C).
Optional Accessories
| Accessory | Model |
|---|---|
| Spray tip barrel | X20-XTREAM-STB |
| 3/4 in. garden-hose adapter | X20-XTREAM-34AD |
| Detergent bottle with foam cannon | X20-XTREAM-FOAM |
| 16.4 ft siphon hose with 3/8 in. adapter and water filter | PSC-HOSE |
| 6-in-1 power nozzle | PSC-PNOZ |
| 0°/15°/40° spray-nozzle pack | PSC-NOZPK |
| X20 Series 20V 5.0 Ah ECOSHARP® battery | 20V-BATT-5A |
| X20 Series 20V ECOSHARP® charger | CZRW2201000U |
Troubleshooting
Remove the battery before inspecting, cleaning, adjusting, or performing maintenance. Use only the checks below that match the symptom you are seeing.
Unit Will Not Turn On
Possible Causes
- Battery is not installed or is discharged
- ON/OFF trigger is not fully pressed
- Battery protective cutoff was triggered
Solutions
- Reinstall the battery until it clicks and fully recharge it
- Press the trigger fully
- Remove the battery and allow the unit to cool completely before restarting
Low Water Pressure or Weak Spray
Possible Causes
- Water filter is clogged
- Air inlet vents are blocked
- Siphon hose is loose or leaking
- Battery charge is low
Solutions
- Remove and rinse the filter with warm water
- With the battery removed, clear the air inlet
- Re-seat the siphon hose and confirm the quick connector locks
- Recharge the battery
Unit Runs but No Water Comes Out
Possible Causes
- Siphon filter is not submerged
- Air is trapped in the pump
- Quick connector is not fully locked
- Water source is empty or shut off
Solutions
- Adjust the floater so the filter remains submerged
- Trigger the unit for several seconds until flow is steady
- Re-seat the connector
- Refill the bucket or fully open the spigot
Water Leaks from a Hose or Connection
Possible Causes
- Quick connector is not locked
- Garden-hose adapter is not tightened
- Hose or connector is damaged
Solutions
- Re-seat the connector and gently pull to verify the lock
- Tighten the garden-hose adapter
- Replace a damaged hose or connector; do not mend a damaged hose
Spray Pattern Will Not Change or Collar Is Stuck
Solutions
- Turn the unit off and remove the battery before rotating the collar or changing tips
- Align the desired spray-pattern symbol with the mark
- Pull down the spray-wand collar, seat the nozzle fully, release the collar, and verify the nozzle is locked
Unit Shuts Off During Use
Possible Causes
- Battery is depleted or overheated
- Air inlet vents are clogged
- Continuous operation exceeded 30 minutes
Solutions
- Recharge the battery or allow the unit to cool
- Remove the battery and clear the air inlet
- Pause for 5-10 minutes before restarting
Battery Will Not Charge
Possible Causes
- Battery is too hot or cold
- Supply voltage does not match the charger
- Battery has remained uncharged for an extended period
Solutions
- Allow the battery to reach the approved charging range
- Confirm the outlet matches 100-240V AC, 50/60 Hz
- A deeply discharged battery may require replacement
Runtime Is Short
Possible Causes
- Battery is not fully charged or is cold
- Battery capacity has degraded with age
Solutions
- Fully charge the battery for approximately 6-8 hours and allow it to reach room temperature
- Replace a battery whose usable capacity has noticeably declined
