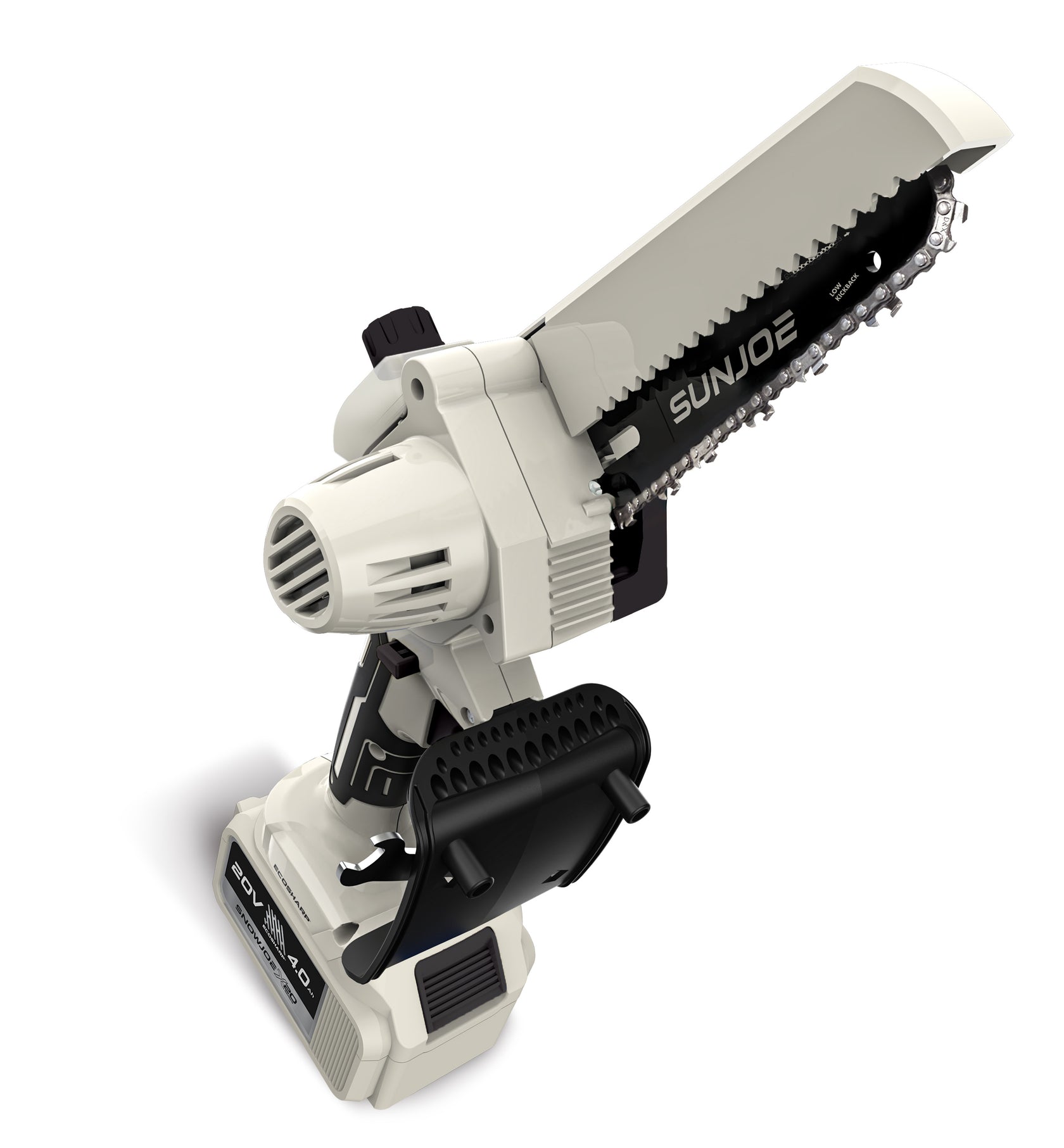

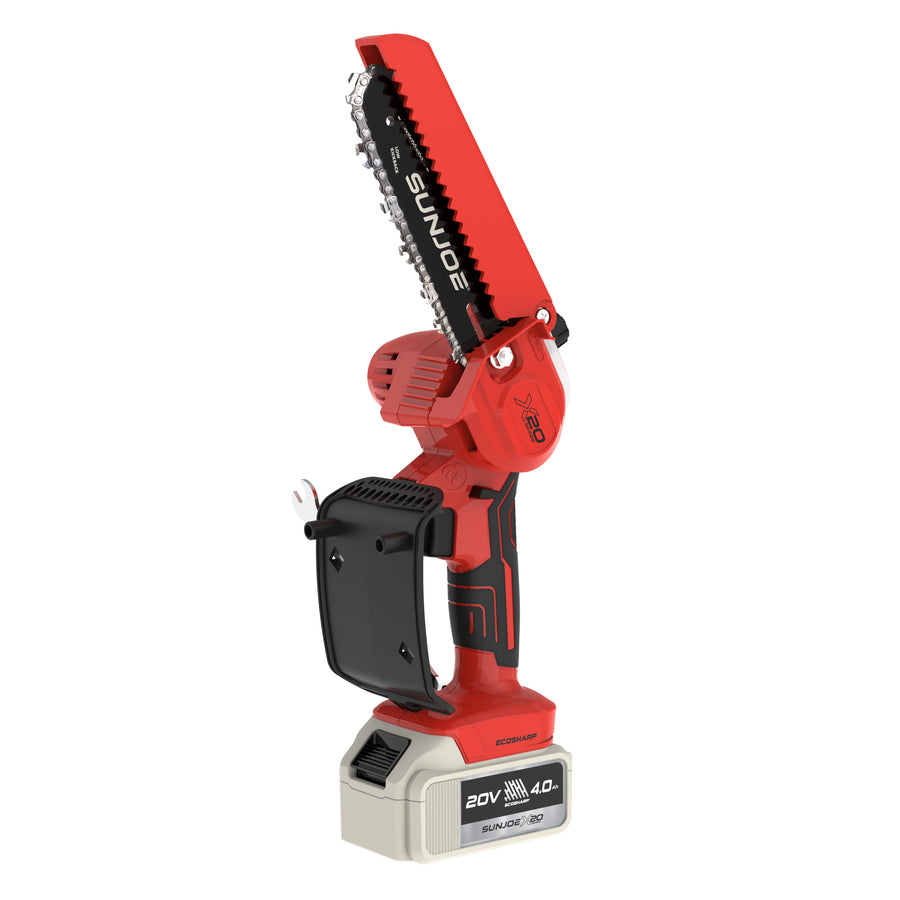

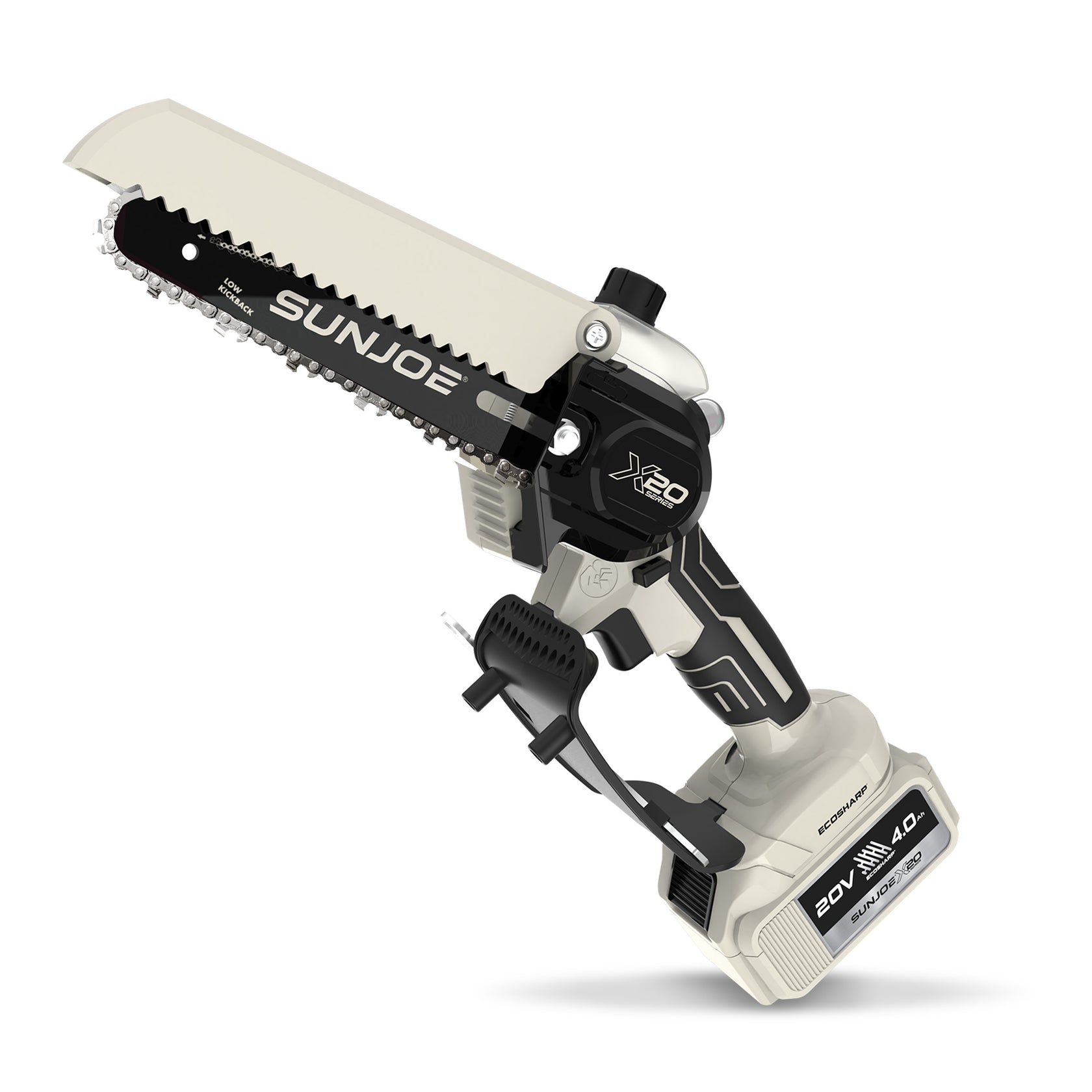

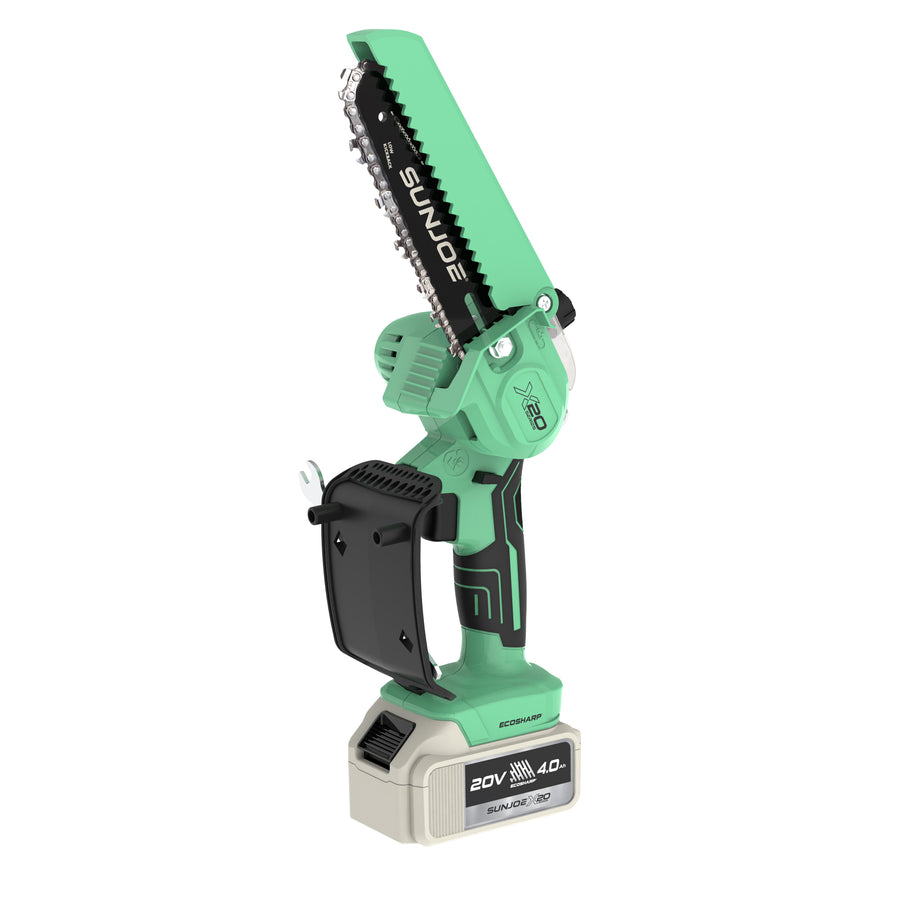

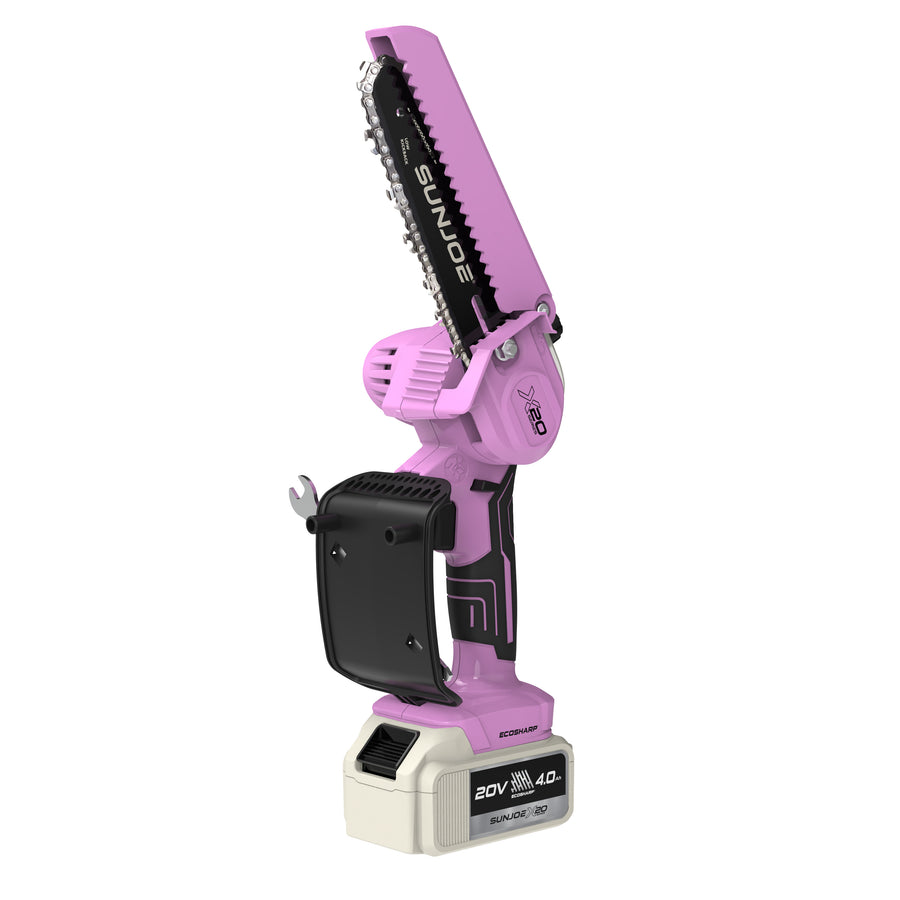

Sun Joe X20-SAW Series Product Guide Sun Joe® X20-SAW Series Cordless Handheld Mini Pruning Saw | Product Guide OFFICIAL SHOP JOE PRODUCT GUIDE SUN JOE® · X20 ECOSHARP® See It? Saw It. Sun Joe X20-SAW Series Cordless Handheld Mini Pruning Saw OverviewFeaturesSetupSupportVideosFAQs The Sun Joe® X20-SAW Series Handheld Mini Pruning Saw is a lightweight cordless pruning saw designed for trimming tree limbs and branches, cutting smaller logs, shaping shrubs, and tackling quick yard cleanup. Both X20-SAW-TV1 and X20-SAW-4A use the 20V ECOSHARP® battery platform, a 315 W brushed motor, a 5-inch guide bar, and a 6-inch cutting chain. The main difference is the included battery: X20-SAW-TV1 includes a 5.0 Ah battery, while X20-SAW-4A includes a 4.0 Ah battery. Cordless 20V Power6 in. Cutting ChainAll-in-One Kit Meet the X20-SAW Series Key Components 01 Chain/sprocket end cover — covers the sprocket and chain mounting area 02 Handle grip — main grip for controlled one-hand operation 03 Safety lock button — must be pressed before squeezing the On/Off switch 04 On/Off switch — starts and stops the saw when used with the safety lock button 05 Battery compartment — holds the X20 Series ECOSHARP® battery pack 06 5-inch guide bar + 6-inch chain — designed for pruning branches up to 5 inches thick 07 Oil tank + oil pump — manual oiling system for bar and chain lubrication 08 Cutting bar sheath — covers the bar and chain during storage and transport 09 Hard shell case — storage case for the saw and included accessories 10 Screwdriver + wrench — used for chain tension and bar/chain service Technical Specifications Specification X20-SAW-TV1 X20-SAW-4A Product Type Handheld mini pruning saw Handheld mini pruning saw Best Use Pruning branches, limbs, woody stems, smaller logs, and kindling Pruning branches, limbs, woody stems, smaller logs, and kindling Power Source 20V ECOSHARP® lithium-ion battery 20V ECOSHARP® lithium-ion battery Battery Voltage Max 20V max / 18V nominal 20V max / 18V nominal Included Battery Capacity 5.0 Ah 4.0 Ah Motor 315 W brushed motor 315 W brushed motor Guide Bar Length 5 in. / 12.7 cm 5 in. / 12.7 cm Cutting Chain Length 6 in. / 15.2 cm 6 in. / 15.2 cm Cutting Thickness Max 5 in. / 12.7 cm 5 in. / 12.7 cm Oil Tank Capacity 0.81 fl oz / 24 ml 0.81 fl oz / 24 ml Oil Bottle Capacity 1.01 fl oz / 30 ml 1.01 fl oz / 30 ml Charger Input 100–240V AC, 50–60 Hz, 0.8A 100–240V AC, 50–60 Hz, 0.8A Charger Output 20V DC, 0.75A 20V DC, 0.75A Charge Time Max 5–6 hours 5–6 hours Chain Drive Links 37 37 Chain Pitch 0.25 in. / 6.35 mm 0.25 in. / 6.35 mm Chain Gauge 0.04 in. / 1.1 mm 0.04 in. / 1.1 mm File Diameter 0.13 in. / 3.2 mm 0.13 in. / 3.2 mm Net Weight 3.86 lbs / 1.75 kg 3.86 lbs / 1.75 kg Product Dimensions 16.54 in. x 5.51 in. x 6.5 in. 16.54 in. x 5.51 in. x 6.5 in. Product Manual Download X20-SAW-TV1 Manual Download X20-SAW-4A Manual Warranty 1 Year Warranty 1 Year Warranty NOTEBattery compatibility note: These are X20 Series 20V ECOSHARP® tools. They are not compatible with 24V IONMAX batteries or chargers. What's in the Box Included Item X20-SAW-TV1 X20-SAW-4A Cordless handheld mini pruning saw with chain and bar pre-assembled ✔ ✔ Cutting bar sheath ✔ ✔ 1.01 fl oz / 30 ml lubrication oil ✔ ✔ X20 Series ECOSHARP® lithium-ion battery ✔ 1 x 5.0 Ah battery ✔ 1 x 4.0 Ah battery 20V lithium-ion battery charger ✔ ✔ Gloves ✔ ✔ Screwdriver ✔ ✔ Wrench ✔ ✔ 6-inch cutting chain ✔ 2 chains total, including 1 pre-assembled ✔ 2 chains total, including 1 pre-assembled Safety glasses ✔ ✔ Hard shell case ✔ ✔ Manual ✔ ✔ Ear plugs ✔ listed on current 5.0 Ah product page ✗ Before First Use STOPDo not insert the battery until all checks are complete. Always remove the battery before checking chain tension, adding oil, changing accessories, cleaning, or storing the saw. 1 Charge Fully charge the battery before first use. › 2 Check Inspect the bar, chain, screws, and safety controls. › 3 Oil Fill the oil tank with bar and chain oil. › 4 Cut Start only when the chain is clear of all objects. Battery Charging Remove the battery Press the push lock button on the battery and pull the battery pack out of the saw. Connect the charger Confirm the charger voltage matches the outlet. Plug the charger adapter into an AC outlet, then connect the charger plug to the battery charge socket. Watch the charging indicator The charger light turns red while charging and green when fully charged. The battery indicator LEDs blink and illuminate one by one during charging. Unplug after charging A full charge takes about 5–6 hours. Unplug the charger from the outlet first, then disconnect it from the battery. 05 Battery indicator: 1 light means 25%, 2 lights mean 50%, 3 lights mean 75%, and 4 lights mean 100% charge. Chain Oil & Lubrication Use bar and chain oil only Use good-quality bar and chain oil designed for chain saws. Do not use engine oil, mineral oil, contaminated oil, or low-quality oil. Fill before use Remove the oil tank cap and add oil to about 1 cm from the rim of the filler. Oil during operation Press the clear oil pump 2–3 times after the saw has been used for 5–8 minutes. Check oil delivery With the bar and chain installed, start the saw and confirm oil is being delivered to the chain before continuing work. CAUTIONNever run the saw without lubrication. Failure to lubricate the chain can damage the bar, chain, and oiler system. Adjusting Chain Tension STOPRemove the battery and wear protective gloves before touching the bar or chain. The chain is sharp even when the saw is off. Loosen the end cover Make sure the saw is shut off and the battery is removed. Loosen the chain/sprocket end cover slightly by turning the end cover knob counterclockwise. Adjust the chain Turn the cover screw until there is only about a 0.3 cm gap when pulling the chain. The chain should be snug but still able to rotate by hand without binding. Tighten the cover Use the wrench to tighten the cover nut clockwise, then confirm the chain is still properly seated in the guide bar groove. Getting Started Complete the daily checklist Inspect the chain, guide bar, motor housing, screws, ventilation slots, safety lock button, and On/Off switch before each work session. Secure the workpiece Clamp loose wood when possible. Do not hold the workpiece with your hand or foot while cutting. Insert the battery Slide the battery into the compartment until it clicks securely into place. Start the saw Make sure the chain is not touching anything. Hold the saw firmly, press the safety lock button, then squeeze the On/Off switch. Let the chain do the work Allow the chain to reach full speed before entering the cut. Use light downward pressure and keep the saw running through the cut. Stop safely Release the On/Off switch and wait for the chain to stop completely before removing the saw from the cut, setting it down, or inspecting it. STOPDo not use this saw in a tree, on a ladder, on a scaffold, in wet conditions, near electrical wires, or above shoulder height. This saw is not intended for tree felling. CAUTION Restart reminder: Wait at least 5 seconds after stopping before restarting. Repeated rapid starts can generate heat and damage the motor. Cutting Tips 1 Cut wood only Do not use the saw to cut plastic, masonry, metal, non-wood building materials, vines, or small underbrush. 2 Stay within capacity The saw is designed for limbs and smaller logs up to 5 inches in diameter, depending on wood type. 3 Watch for spring back Use caution when cutting limbs under tension. Spring-loaded wood can move suddenly when released. 4 Avoid kickback Do not let the guide bar tip contact any object. Keep a firm grip with your thumb and fingers wrapped around the handle. 5 Break in new chains After installing a new chain, run the saw idle for about 5 minutes, remove the battery, recheck tension, then make only easy cuts for about 30 minutes. Maintenance & Care STOPAlways remove the battery before cleaning, checking, adjusting, servicing, or storing the saw. Let the saw cool for at least 5 minutes before servicing or storage. 1 Clean after each use Use a cloth, paintbrush, or brush to remove dust and wood splinters. Keep ventilation slots free from sawdust and debris. 2 Clean the sprocket area Use a brush or compressed air to clean the sprocket area. Do not allow liquid inside the motor housing. 3 Check chain tension often Chains stretch during use, especially during the first period of use or after replacement. Never work with a loose chain. 4 Inspect the guide bar Replace the guide bar if it is bent, cracked, broken, has spread rails, or has wear inside the rails that allows the chain to lay sideways. 5 Inspect the sprocket Replace the sprocket when wear exceeds 0.5 mm. Do not mount a new chain on a worn sprocket or a worn chain on a new sprocket. 6 Store safely Install the guide bar cover and store the saw indoors in a dry, high, or locked place out of children’s reach. Troubleshooting Guide Remove the battery before inspecting, cleaning, adjusting, or performing maintenance. Only perform the checks below. Saw Will Not Start Possible Causes Battery is not fully inserted or locked in place Battery is discharged Safety lock button was not engaged before squeezing the switch Battery protective cutoff was triggered by overload or overheating Solutions Remove and reinsert the battery until it clicks securely Charge the battery for 5–6 hours Press and hold the safety lock button, then squeeze the On/Off switch Do not repeatedly press the switch if cutoff activates; remove the battery and let the unit cool Battery Drains Quickly Possible Causes Battery is aged or deeply discharged Wood exceeds the 5-inch maximum diameter Chain is dull or improperly tensioned Battery was stored in extreme heat or cold Solutions Recharge the battery fully before use Stay within the 5-inch cutting capacity Sharpen or replace the chain and adjust tension Store the battery around room temperature and at least 40% charged Chain Does Not Move or Cuts Poorly Possible Causes Chain tension is too loose or too tight Chain is installed in the wrong direction Chain is dull Chain is not lubricated Solutions Remove the battery and adjust chain tension Reinstall the chain so sharp teeth face the direction of chain rotation shown on the guide bar Sharpen or replace with X20-SAW-6CHAINX2 Fill the oil tank and press the oil pump every 5–8 minutes during use Chain Comes Off the Guide Bar Possible Causes Chain tension is too loose Guide bar is bent, worn, or has spread rails End cover knob was not tightened after adjustment Solutions Remove the battery and reseat the chain on the sprocket and bar groove Adjust chain tension and tighten the end cover knob securely Replace the guide bar if damaged Excessive Vibration Possible Causes Chain is installed backwards Chain tension is incorrect Guide bar or sprocket is worn or damaged Screws or end cover knob are loose Solutions Stop immediately and remove the battery Confirm chain direction and tension Inspect the guide bar and sprocket Tighten all screws and the end cover knob before use Motor Overheats or Shuts Off Possible Causes Ventilation slots are clogged Cutting material exceeds 5 inches Motor was restarted too quickly Battery overload cutoff activated Solutions Stop, remove the battery, and clean the ventilation slots Do not exceed the 5-inch cutting capacity Wait at least 5 seconds before restarting Allow the saw and battery to cool completely before reuse Chain or Bar Is Not Lubricated Possible Causes Oil tank is empty Oil pump is not being pressed Oil tank filter may be clogged from poor-quality oil Solutions Fill with good-quality bar and chain oil to 1 cm from the rim Press the oil pump 2–3 times every 5–8 minutes during use Do not use engine oil, mineral oil, or contaminated oil Kickback Occurs Possible Causes Guide bar tip contacted an object Wood closed in and pinched the chain Cutting above shoulder height or overreaching Loose grip during operation Solutions Avoid contact between the guide bar tip and any object Plan cuts so wood does not close on the chain Do not cut above shoulder height Maintain a firm grip with your thumb and fingers around the handle Battery Will Not Charge Possible Causes Charger is connected to the wrong voltage Battery or charger is damaged Battery temperature is outside 41°F–105°F Battery has not been charged in more than 12 months Solutions Use a 100–240V AC outlet matching charger requirements Do not use damaged batteries or chargers Let hot batteries cool to room temperature before charging Replace a battery that may be damaged from exhaustive discharge Watch the X20-SAW in Action See the pruning saw in action, then review the official chain and cover installation demonstrations. Featured video See It? Saw It. See the X20-SAW-TV1 handle pruning and quick yard cleanup, then use the guides below for chain replacement and cover installation. In-action demo X20-SAW-4A Product Demo Care guide Chain Replacement Setup guide Cover Installation More about the X20-SAW Series Explore More Product Details Visit ShopJoe to see additional product information, images, customer reviews, available options, and current purchasing details. View Details & Buying Options → Frequently Asked Questions What is the difference between X20-SAW-TV1 and X20-SAW-4A? The main difference is the included battery. The X20-SAW-TV1 includes a 5.0 Ah X20 ECOSHARP® battery. The X20-SAW-4A includes a 4.0 Ah X20 ECOSHARP® battery. Both use the same 20V platform, 5-inch guide bar, 6-inch chain, and 5-inch maximum cutting capacity. What comes with the X20-SAW Series? Both kits include the cordless handheld mini pruning saw with chain and bar pre-assembled, cutting bar sheath, lubrication oil, X20 ECOSHARP® battery, 20V charger, gloves, screwdriver, wrench, two 6-inch chains, safety glasses, hard shell case, and manual. The X20-SAW-TV1 includes a 5.0 Ah battery, while the X20-SAW-4A includes a 4.0 Ah battery. What size branches can it cut? The X20-SAW Series is designed for trimming branches and smaller logs up to a recommended and maximum 5 inches in diameter, depending on wood type. Does this saw need bar and chain oil? Yes. Fill the oil tank before use and press the oil pump 2–3 times after every 5–8 minutes of operation. Use only good-quality bar and chain oil designed for chain saws. How long does the battery take to charge? The included X20 ECOSHARP® battery takes approximately 5–6 hours to fully charge using the included 20V lithium-ion charger. Can I use 24V IONMAX batteries with this saw? No. The X20-SAW Series is compatible with X20 ECOSHARP® 20V battery configurations only. It is not compatible with 24V IONMAX batteries or chargers. What replacement chain does this model use? The listed replacement chain is X20-SAW-6CHAINX2, the X20 Series Sun Joe® 6-inch replacement chain 2-pack. What optional accessories are listed for these models? Optional accessories include: 20V-BATT-5A — 20V ECOSHARP® 5.0 Ah lithium-ion battery for X20-SAW-TV1 20V-BATT-4A — 20V ECOSHARP® 4.0 Ah lithium-ion battery for X20-SAW-4A GC09-2100750US — charger for X20 Series SAW, CBLW, and BLOWER tools X20-SAW-6CHAINX2 — 6-inch replacement chain 2-pack SWJ-OIL — bar and chain oil, or equivalent bar and chain oil from a local hardware store How should I store the pruning saw? Remove the battery, clean the saw, place the guide bar cover on the bar and chain, and store the tool indoors in a dry, high, or locked location out of children’s reach. Keep it away from fertilizers, brake fluids, gasoline, petroleum-based products, penetrating oils, and harsh solvents. Related articles Sun Joe SPX200-GO Electric Pressure Washer Snow Joe + Sun Joe® Battery Guide How do I assemble my RJ204M? Aqua Joe AJ-WTX2 Manual Water Timer Set How to Locate Your Product’s Model Number, Serial Number, Date Code, and User Manual
