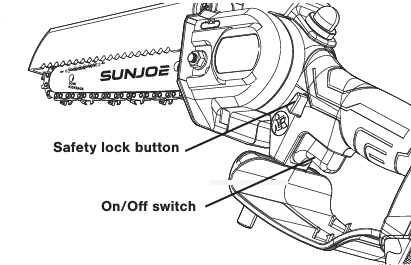

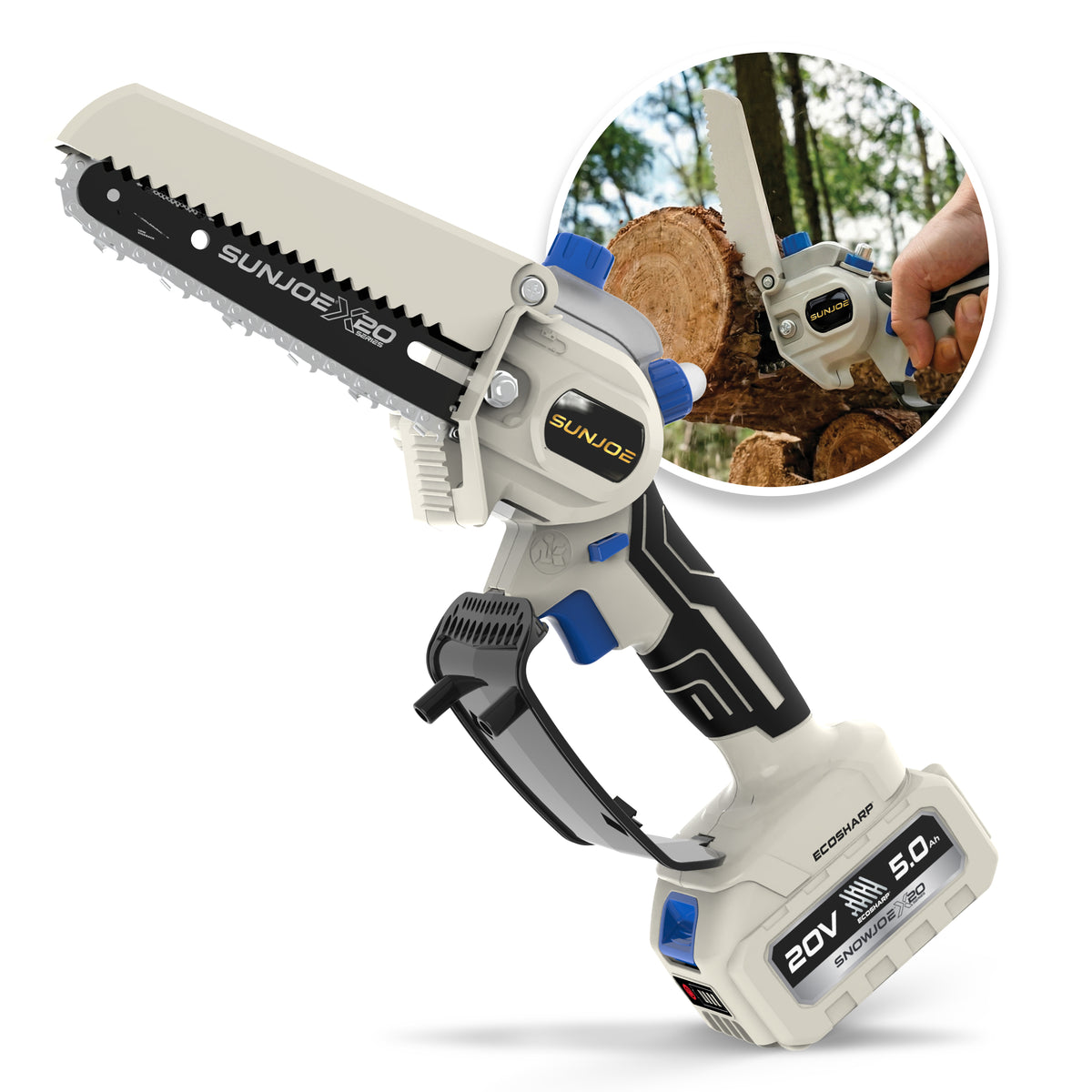

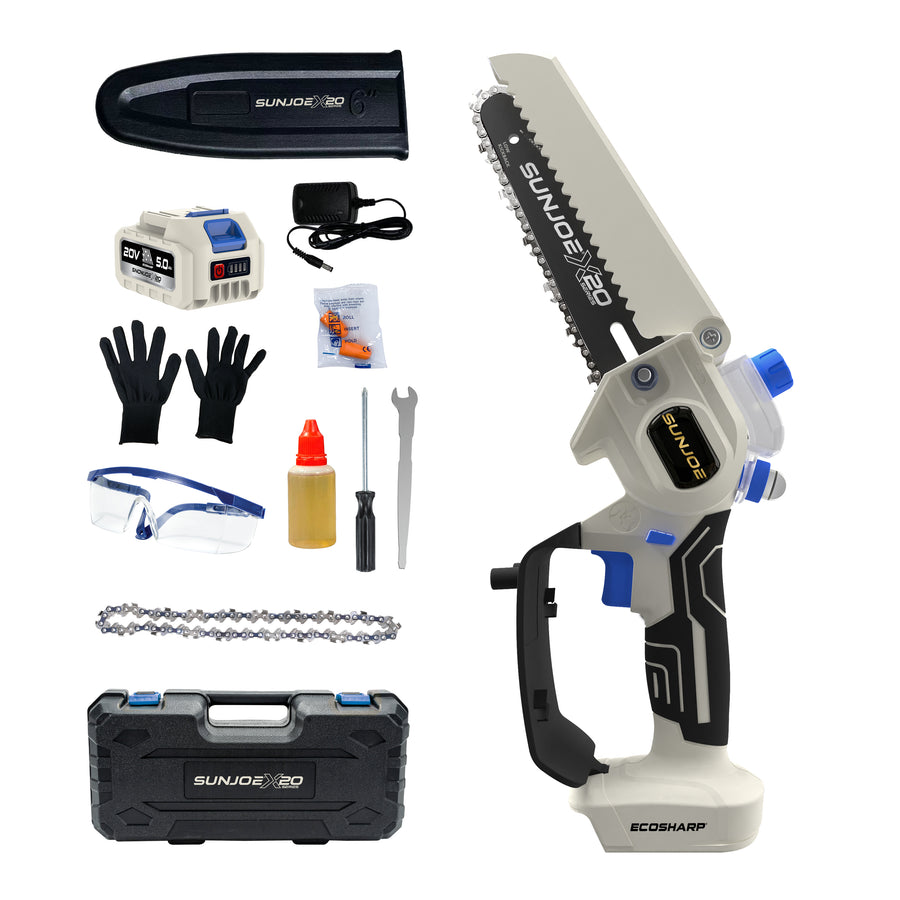

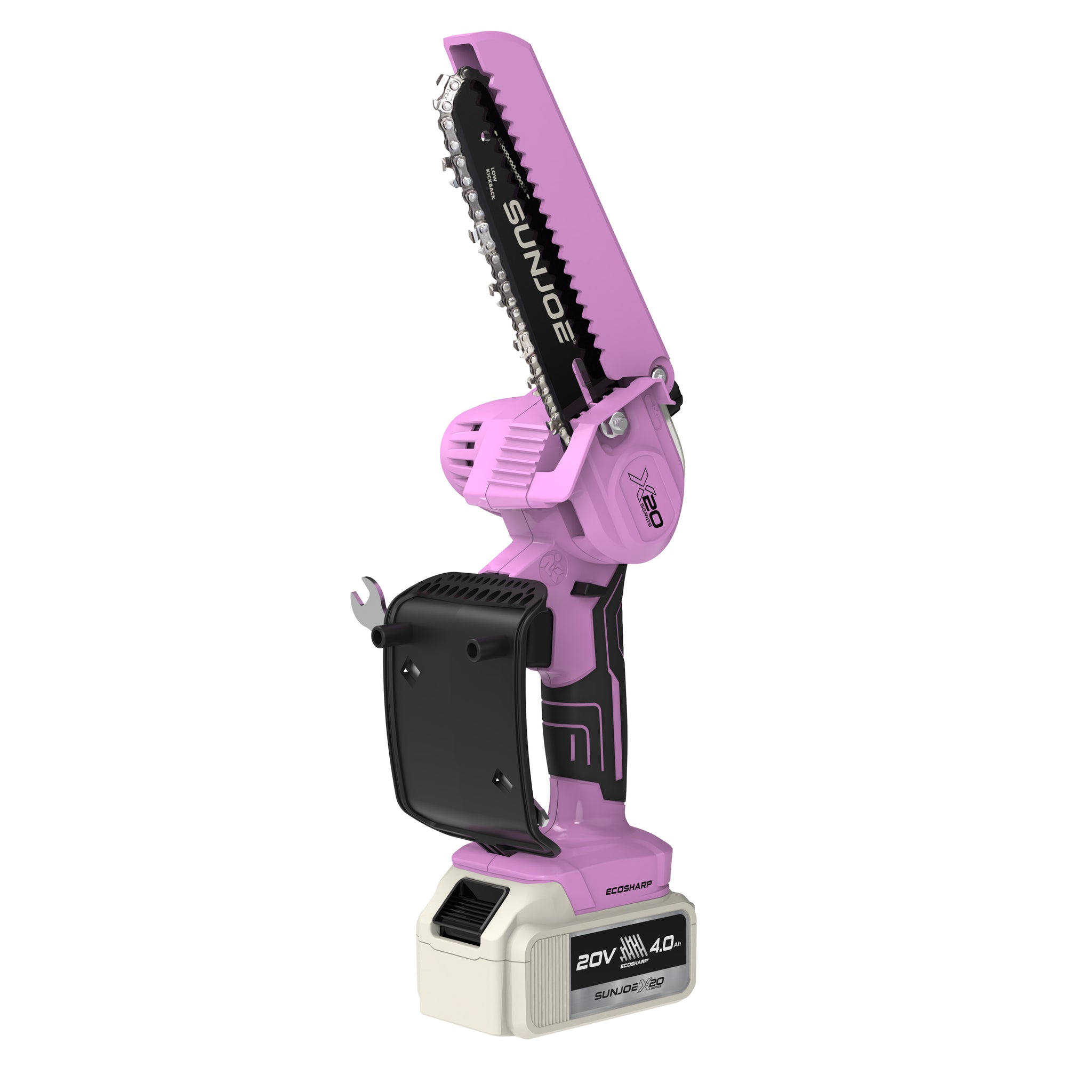

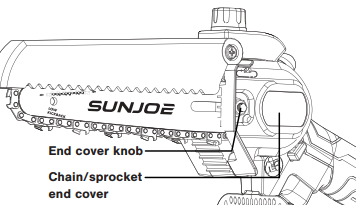

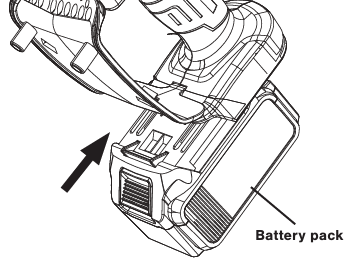

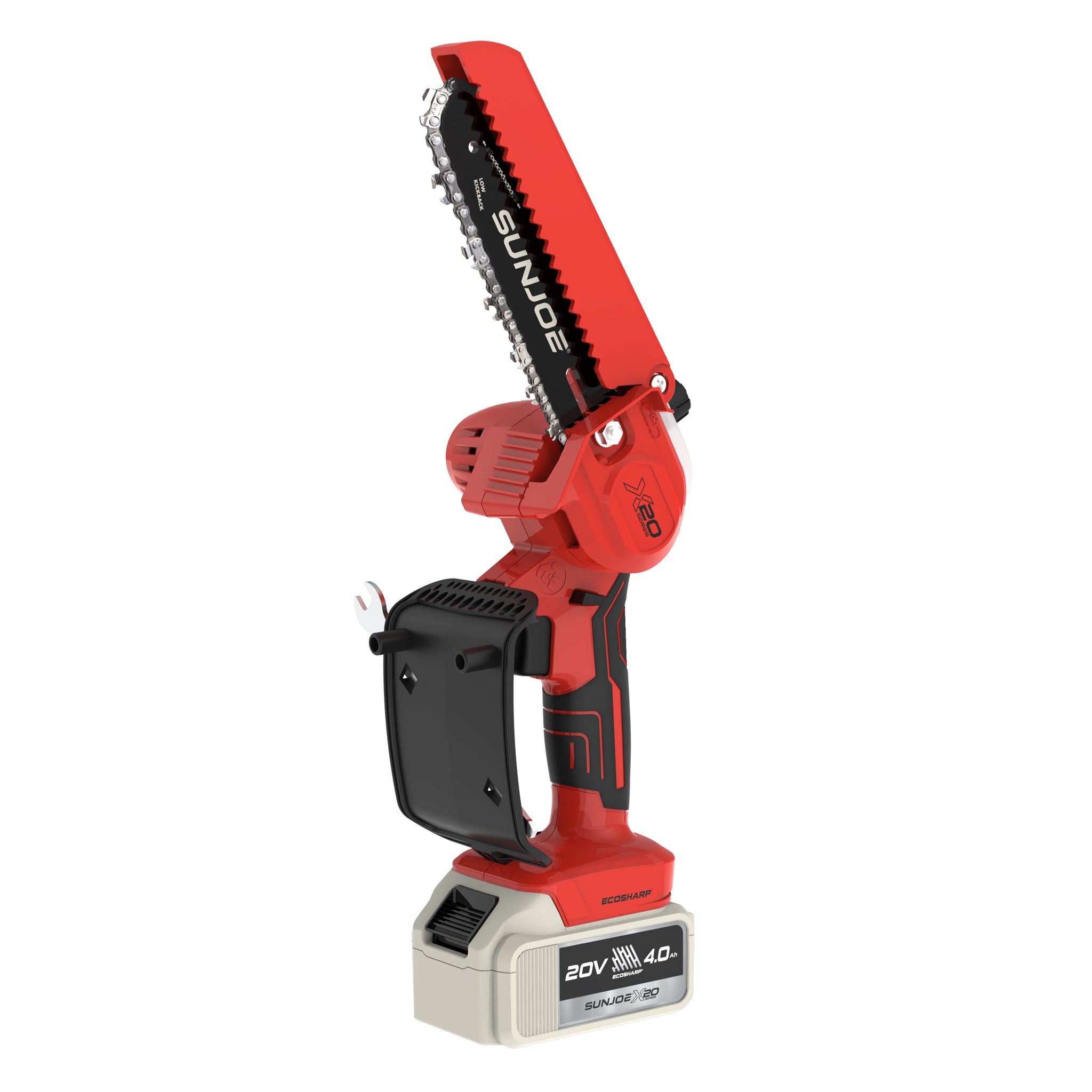

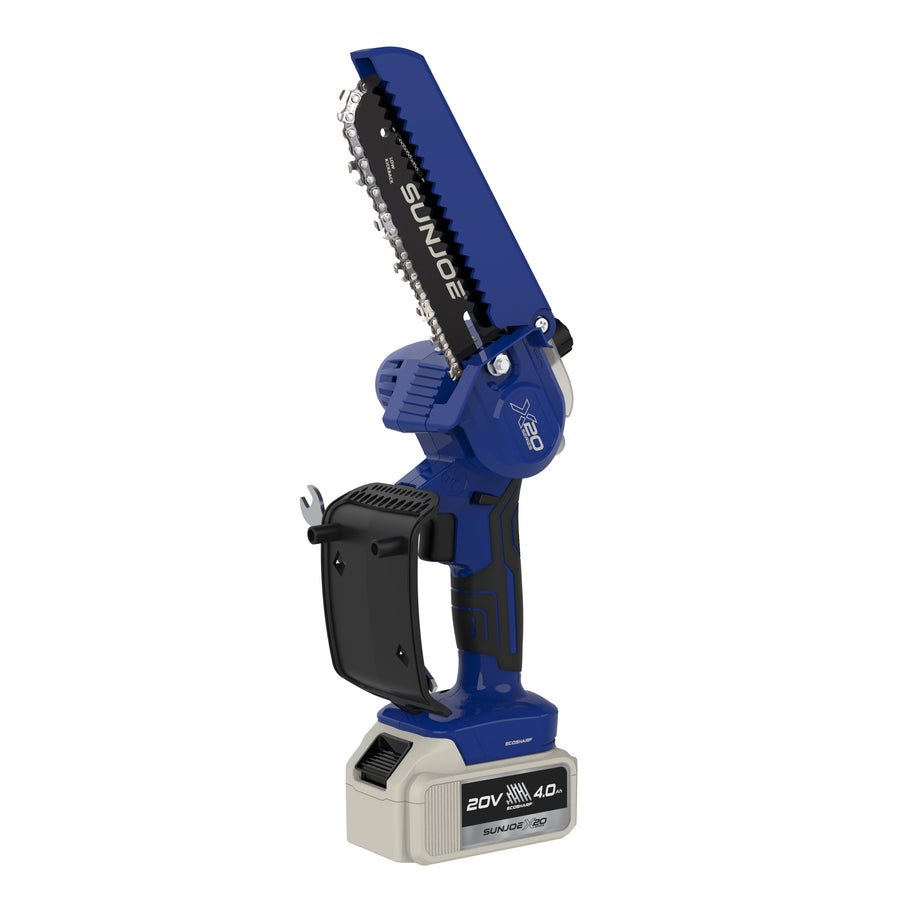

X20-SAW Series Cordless Handheld Mini Pruning Saw Sun Joe® X20-SAW Series Handheld Mini Pruning Saw | Product Guide ☀️ Sun Joe® Product Guide20V ECOSHARP® System 5 in. Bar + 6 in. Chain 1-Year WarrantySee It? Saw It.The Sun Joe® X20-SAW Series Handheld Mini Pruning Saw is a lightweight cordless pruning saw designed for trimming tree limbs and branches, cutting smaller logs, shaping shrubs, and tackling quick yard cleanup. Both X20-SAW-TV1 and X20-SAW-4A use the 20V ECOSHARP® battery platform, a 560 W brushed motor, a 5-inch guide bar, and a 6-inch cutting chain. The main difference is the included battery: X20-SAW-TV1 includes a 5.0 Ah battery, while X20-SAW-4A includes a 4.0 Ah battery.⚡ Cordless 20V Power 🪚 6 in. Cutting Chain 🧰 All-in-One KitMeet the X20-SAW Series Key Components🧩Chain/sprocket end cover — covers the sprocket and chain mounting area🤲Handle grip — main grip for controlled one-hand operation🔐Safety lock button — must be pressed before squeezing the On/Off switch🎚️On/Off switch — starts and stops the saw when used with the safety lock button🔋Battery compartment — holds the X20 Series ECOSHARP® battery pack🪚5-inch guide bar + 6-inch chain — designed for pruning branches up to 5 inches thick🛢️Oil tank + oil pump — manual oiling system for bar and chain lubrication🛡️Cutting bar sheath — covers the bar and chain during storage and transport🧰Hard shell case — storage case for the saw and included accessories🔧Screwdriver + wrench — used for chain tension and bar/chain serviceTechnical SpecificationsSpecificationX20-SAW-TV1X20-SAW-4AProduct TypeHandheld mini pruning sawHandheld mini pruning sawBest UsePruning branches, limbs, woody stems, smaller logs, and kindlingPruning branches, limbs, woody stems, smaller logs, and kindlingPower Source20V ECOSHARP® lithium-ion battery20V ECOSHARP® lithium-ion batteryBattery Voltage Max20V max / 18V nominal20V max / 18V nominalIncluded Battery Capacity5.0 Ah4.0 AhMotor560 W brushed motor560 W brushed motorGuide Bar Length5 in. / 12.7 cm5 in. / 12.7 cmCutting Chain Length6 in. / 15.2 cm6 in. / 15.2 cmCutting Thickness Max5 in. / 12.7 cm5 in. / 12.7 cmOil Tank Capacity0.81 fl oz / 24 ml0.81 fl oz / 24 mlOil Bottle Capacity1.01 fl oz / 30 ml1.01 fl oz / 30 mlCharger Input100–240V AC, 50–60 Hz, 0.8A100–240V AC, 50–60 Hz, 0.8ACharger Output20V DC, 0.75A20V DC, 0.75ACharge Time Max5–6 hours5–6 hoursChain Drive Links3737Chain Pitch0.25 in. / 6.35 mm0.25 in. / 6.35 mmChain Gauge0.04 in. / 1.1 mm0.04 in. / 1.1 mmFile Diameter0.13 in. / 3.2 mm0.13 in. / 3.2 mmNet Weight3.86 lbs / 1.75 kg3.86 lbs / 1.75 kgProduct Dimensions16.54 in. x 5.51 in. x 6.5 in.16.54 in. x 5.51 in. x 6.5 in.💡 Battery compatibility note: These are X20 Series 20V ECOSHARP® tools. They are not compatible with 24V IONMAX batteries or chargers.What's in the BoxIncluded ItemX20-SAW-TV1X20-SAW-4ACordless handheld mini pruning saw with chain and bar pre-assembled✔✔Cutting bar sheath✔✔1.01 fl oz / 30 ml lubrication oil✔✔X20 Series ECOSHARP® lithium-ion battery✔ 1 x 5.0 Ah battery✔ 1 x 4.0 Ah battery20V lithium-ion battery charger✔✔Gloves✔✔Screwdriver✔✔Wrench✔✔6-inch cutting chain✔ 2 chains total, including 1 pre-assembled✔ 2 chains total, including 1 pre-assembledSafety glasses✔✔Hard shell case✔✔Manual✔✔Ear plugs✔ listed on current 5.0 Ah product page✗Before First Use🚫 Do not insert the battery until all checks are complete. Always remove the battery before checking chain tension, adding oil, changing accessories, cleaning, or storing the saw.1ChargeFully charge the battery before first use.›2CheckInspect the bar, chain, screws, and safety controls.›3OilFill the oil tank with bar and chain oil.›4CutStart only when the chain is clear of all objects.Battery ChargingRemove the batteryPress the push lock button on the battery and pull the battery pack out of the saw.Connect the chargerConfirm the charger voltage matches the outlet. Plug the charger adapter into an AC outlet, then connect the charger plug to the battery charge socket.Watch the charging indicatorThe charger light turns red while charging and green when fully charged. The battery indicator LEDs blink and illuminate one by one during charging.Unplug after chargingA full charge takes about 5–6 hours. Unplug the charger from the outlet first, then disconnect it from the battery.🔋 Battery indicator: 1 light means 25%, 2 lights mean 50%, 3 lights mean 75%, and 4 lights mean 100% charge.Chain Oil & LubricationUse bar and chain oil onlyUse good-quality bar and chain oil designed for chain saws. Do not use engine oil, mineral oil, contaminated oil, or low-quality oil.Fill before useRemove the oil tank cap and add oil to about 1 cm from the rim of the filler.Oil during operationPress the clear oil pump 2–3 times after the saw has been used for 5–8 minutes.Check oil deliveryWith the bar and chain installed, start the saw and confirm oil is being delivered to the chain before continuing work.⚠️ Never run the saw without lubrication. Failure to lubricate the chain can damage the bar, chain, and oiler system.Adjusting Chain Tension🚫 Remove the battery and wear protective gloves before touching the bar or chain. The chain is sharp even when the saw is off.Loosen the end coverMake sure the saw is shut off and the battery is removed. Loosen the chain/sprocket end cover slightly by turning the end cover knob counterclockwise.Adjust the chainTurn the cover screw until there is only about a 0.3 cm gap when pulling the chain. The chain should be snug but still able to rotate by hand without binding.Tighten the coverUse the wrench to tighten the cover nut clockwise, then confirm the chain is still properly seated in the guide bar groove.Getting StartedComplete the daily checklistInspect the chain, guide bar, motor housing, screws, ventilation slots, safety lock button, and On/Off switch before each work session.Secure the workpieceClamp loose wood when possible. Do not hold the workpiece with your hand or foot while cutting.Insert the batterySlide the battery into the compartment until it clicks securely into place.Start the sawMake sure the chain is not touching anything. Hold the saw firmly, press the safety lock button, then squeeze the On/Off switch.Let the chain do the workAllow the chain to reach full speed before entering the cut. Use light downward pressure and keep the saw running through the cut.Stop safelyRelease the On/Off switch and wait for the chain to stop completely before removing the saw from the cut, setting it down, or inspecting it.🚫 Do not use this saw in a tree, on a ladder, on a scaffold, in wet conditions, near electrical wires, or above shoulder height. This saw is not intended for tree felling.⚠️ Restart reminder: Wait at least 5 seconds after stopping before restarting. Repeated rapid starts can generate heat and damage the motor.Cutting Tips1Cut wood onlyDo not use the saw to cut plastic, masonry, metal, non-wood building materials, vines, or small underbrush.2Stay within capacityThe saw is designed for limbs and smaller logs up to 5 inches in diameter, depending on wood type.3Watch for spring backUse caution when cutting limbs under tension. Spring-loaded wood can move suddenly when released.4Avoid kickbackDo not let the guide bar tip contact any object. Keep a firm grip with your thumb and fingers wrapped around the handle.5Break in new chainsAfter installing a new chain, run the saw idle for about 5 minutes, remove the battery, recheck tension, then make only easy cuts for about 30 minutes.Maintenance & Care🚫 Always remove the battery before cleaning, checking, adjusting, servicing, or storing the saw. Let the saw cool for at least 5 minutes before servicing or storage.1Clean after each useUse a cloth, paintbrush, or brush to remove dust and wood splinters. Keep ventilation slots free from sawdust and debris.2Clean the sprocket areaUse a brush or compressed air to clean the sprocket area. Do not allow liquid inside the motor housing.3Check chain tension oftenChains stretch during use, especially during the first period of use or after replacement. Never work with a loose chain.4Inspect the guide barReplace the guide bar if it is bent, cracked, broken, has spread rails, or has wear inside the rails that allows the chain to lay sideways.5Inspect the sprocketReplace the sprocket when wear exceeds 0.5 mm. Do not mount a new chain on a worn sprocket or a worn chain on a new sprocket.6Store safelyInstall the guide bar cover and store the saw indoors in a dry, high, or locked place out of children’s reach.Troubleshooting GuideRemove the battery before inspecting, cleaning, adjusting, or performing maintenance. Only perform the checks below.🔴 Saw Will Not StartPossible CausesBattery is not fully inserted or locked in placeBattery is dischargedSafety lock button was not engaged before squeezing the switchBattery protective cutoff was triggered by overload or overheatingSolutionsRemove and reinsert the battery until it clicks securelyCharge the battery for 5–6 hoursPress and hold the safety lock button, then squeeze the On/Off switchDo not repeatedly press the switch if cutoff activates; remove the battery and let the unit cool🟡 Battery Drains QuicklyPossible CausesBattery is aged or deeply dischargedWood exceeds the 5-inch maximum diameterChain is dull or improperly tensionedBattery was stored in extreme heat or coldSolutionsRecharge the battery fully before useStay within the 5-inch cutting capacitySharpen or replace the chain and adjust tensionStore the battery around room temperature and at least 40% charged🟡 Chain Does Not Move or Cuts PoorlyPossible CausesChain tension is too loose or too tightChain is installed in the wrong directionChain is dullChain is not lubricatedSolutionsRemove the battery and adjust chain tensionReinstall the chain so sharp teeth face the direction of chain rotation shown on the guide barSharpen or replace with X20-SAW-6CHAINX2Fill the oil tank and press the oil pump every 5–8 minutes during use🟡 Chain Comes Off the Guide BarPossible CausesChain tension is too looseGuide bar is bent, worn, or has spread railsEnd cover knob was not tightened after adjustmentSolutionsRemove the battery and reseat the chain on the sprocket and bar grooveAdjust chain tension and tighten the end cover knob securelyReplace the guide bar if damaged🔴 Excessive VibrationPossible CausesChain is installed backwardsChain tension is incorrectGuide bar or sprocket is worn or damagedScrews or end cover knob are looseSolutionsStop immediately and remove the batteryConfirm chain direction and tensionInspect the guide bar and sprocketTighten all screws and the end cover knob before use🔴 Motor Overheats or Shuts OffPossible CausesVentilation slots are cloggedCutting material exceeds 5 inchesMotor was restarted too quicklyBattery overload cutoff activatedSolutionsStop, remove the battery, and clean the ventilation slotsDo not exceed the 5-inch cutting capacityWait at least 5 seconds before restartingAllow the saw and battery to cool completely before reuse🟡 Chain or Bar Is Not LubricatedPossible CausesOil tank is emptyOil pump is not being pressedOil tank filter may be clogged from poor-quality oilSolutionsFill with good-quality bar and chain oil to 1 cm from the rimPress the oil pump 2–3 times every 5–8 minutes during useDo not use engine oil, mineral oil, or contaminated oil🔴 Kickback OccursPossible CausesGuide bar tip contacted an objectWood closed in and pinched the chainCutting above shoulder height or overreachingLoose grip during operationSolutionsAvoid contact between the guide bar tip and any objectPlan cuts so wood does not close on the chainDo not cut above shoulder heightMaintain a firm grip with your thumb and fingers around the handle🟡 Battery Will Not ChargePossible CausesCharger is connected to the wrong voltageBattery or charger is damagedBattery temperature is outside 41°F–105°FBattery has not been charged in more than 12 monthsSolutionsUse a 100–240V AC outlet matching charger requirementsDo not use damaged batteries or chargersLet hot batteries cool to room temperature before chargingReplace a battery that may be damaged from exhaustive dischargeVideo GuideFrequently Asked QuestionsWhat is the difference between X20-SAW-TV1 and X20-SAW-4A?The main difference is the included battery. The X20-SAW-TV1 includes a 5.0 Ah X20 ECOSHARP® battery. The X20-SAW-4A includes a 4.0 Ah X20 ECOSHARP® battery. Both use the same 20V platform, 5-inch guide bar, 6-inch chain, and 5-inch maximum cutting capacity.What comes with the X20-SAW Series?Both kits include the cordless handheld mini pruning saw with chain and bar pre-assembled, cutting bar sheath, lubrication oil, X20 ECOSHARP® battery, 20V charger, gloves, screwdriver, wrench, two 6-inch chains, safety glasses, hard shell case, and manual. The X20-SAW-TV1 includes a 5.0 Ah battery, while the X20-SAW-4A includes a 4.0 Ah battery.What size branches can it cut?The X20-SAW Series is designed for trimming branches and smaller logs up to a recommended and maximum 5 inches in diameter, depending on wood type.Does this saw need bar and chain oil?Yes. Fill the oil tank before use and press the oil pump 2–3 times after every 5–8 minutes of operation. Use only good-quality bar and chain oil designed for chain saws.How long does the battery take to charge?The included X20 ECOSHARP® battery takes approximately 5–6 hours to fully charge using the included 20V lithium-ion charger.Can I use 24V IONMAX batteries with this saw?No. The X20-SAW Series is compatible with X20 ECOSHARP® 20V battery configurations only. It is not compatible with 24V IONMAX batteries or chargers.What replacement chain does this model use?The listed replacement chain is X20-SAW-6CHAINX2, the X20 Series Sun Joe® 6-inch replacement chain 2-pack.What optional accessories are listed for these models?Optional accessories include:20V-BATT-5A — 20V ECOSHARP® 5.0 Ah lithium-ion battery for X20-SAW-TV120V-BATT-4A — 20V ECOSHARP® 4.0 Ah lithium-ion battery for X20-SAW-4AGC09-2100750US — charger for X20 Series SAW, CBLW, and BLOWER toolsX20-SAW-6CHAINX2 — 6-inch replacement chain 2-packSWJ-OIL — bar and chain oil, or equivalent bar and chain oil from a local hardware storeHow should I store the pruning saw?Remove the battery, clean the saw, place the guide bar cover on the bar and chain, and store the tool indoors in a dry, high, or locked location out of children’s reach. Keep it away from fertilizers, brake fluids, gasoline, petroleum-based products, penetrating oils, and harsh solvents.
